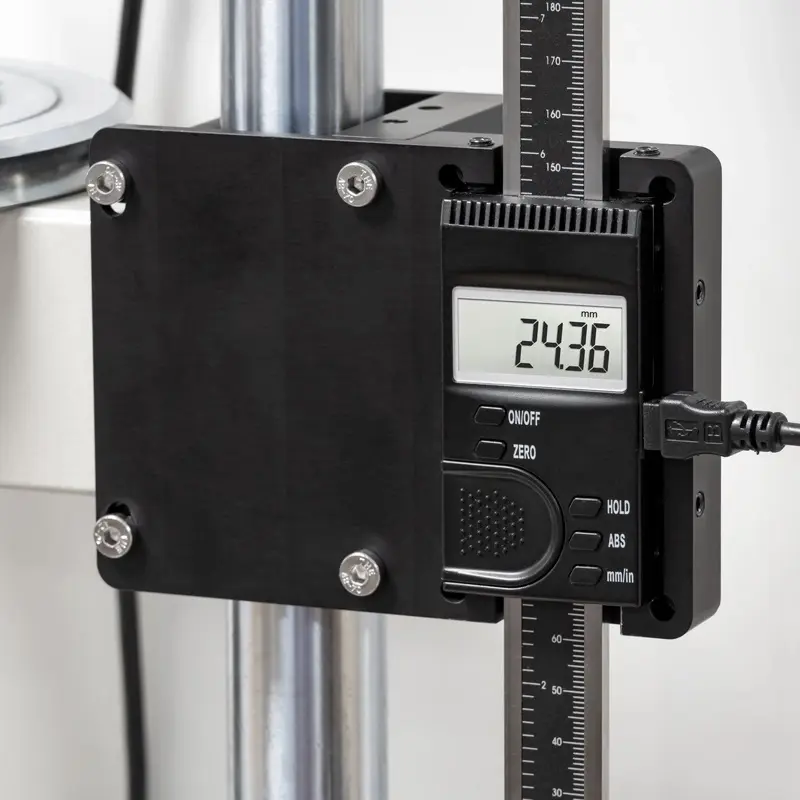

Length Measuring Device PCE-DFG FD 300 including software

Order no.: PCE-DFG FD 300
GTIN (EAN): 4250348730251
US$ 1,197.00
ex. VAT, ex. delivery costs
:
4250348730251
PCE-DFG FD 300
Available in: Available soon!

Accessory

PCE-SJJ015 Clamping Device for Test Stand
PCE-SJJ015 Clamping Device for Test Stand
US$ 256.00

Description

PCE-DFG FD 300 force-displacement adapter / Incl. software / 11 components

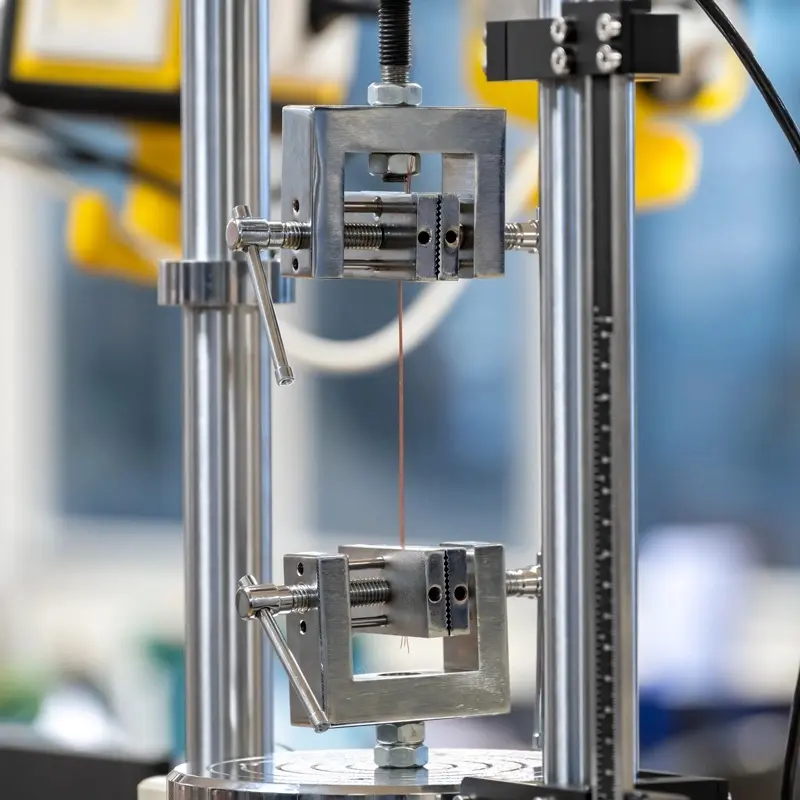

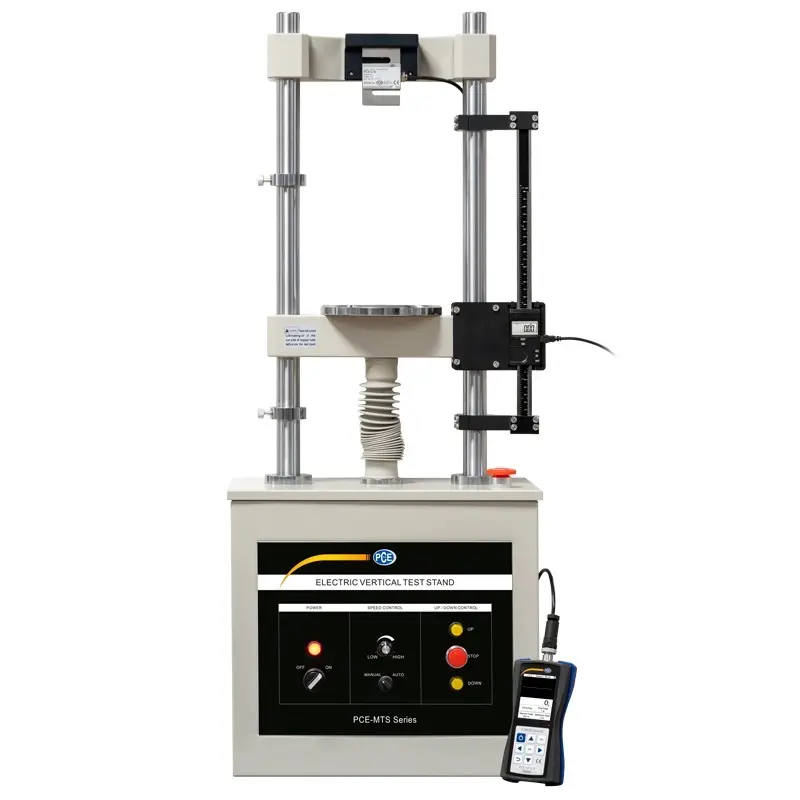

The PCE-DFG FD 300 is a useful extension to the material test stand PCE-MTS 500 in connection with a force measuring device (e.g. PCE-DFG N 5K). This extension allows force-displacement diagrams and curves to be created. The software included in the scope of delivery offers the user an optimized interface for evaluating diagrams and graphs. In this way, material tests can be carried out with forces of up to 5000 N (500 kg / 1102 lb).

Specification

Measuring range -150 … 150 mm / -5.9 … 5.9"
Resolution 0.01 mm  / 0.0004"
Accuracy ±0.03 mm / 0.001"
Operating conditions  Temperature: 0 … +50 °C / 32 … 122 °F
Storage conditions Temperature: -20 … +65 °C / -4 … 149 °F
  Humidity: 10 … 95 % RH, non-condensing
Weight 360 g / 12.7 oz
Power supply 3VCR 2032
Dimensions 394 x 40 x 10 mm / 15.5 x 1.5 x 0.4" (HxWxD)

Delivery Scope

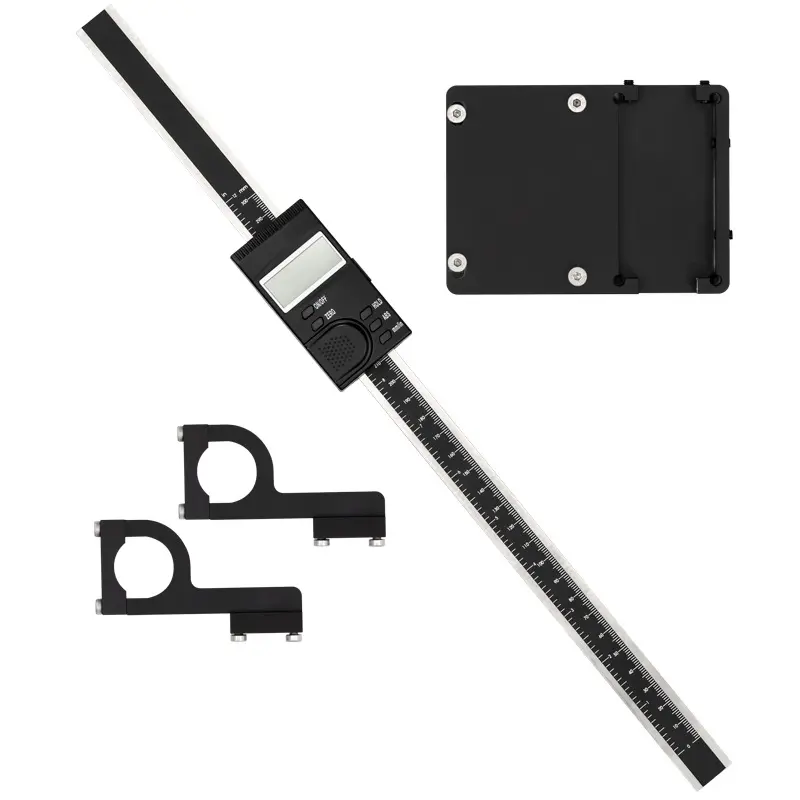

1 x Length measuring device PCE-DFG FD 300
1 x Bracket (consisting of 11 components)
1 x Mounting kit (consisting of 24 screws and 2 grub screws)
1 x Measuring system
1 x Data cable
1 x USB stick with PCE-DFG FD software

N.B. Force gauge / force measuring stand not included
