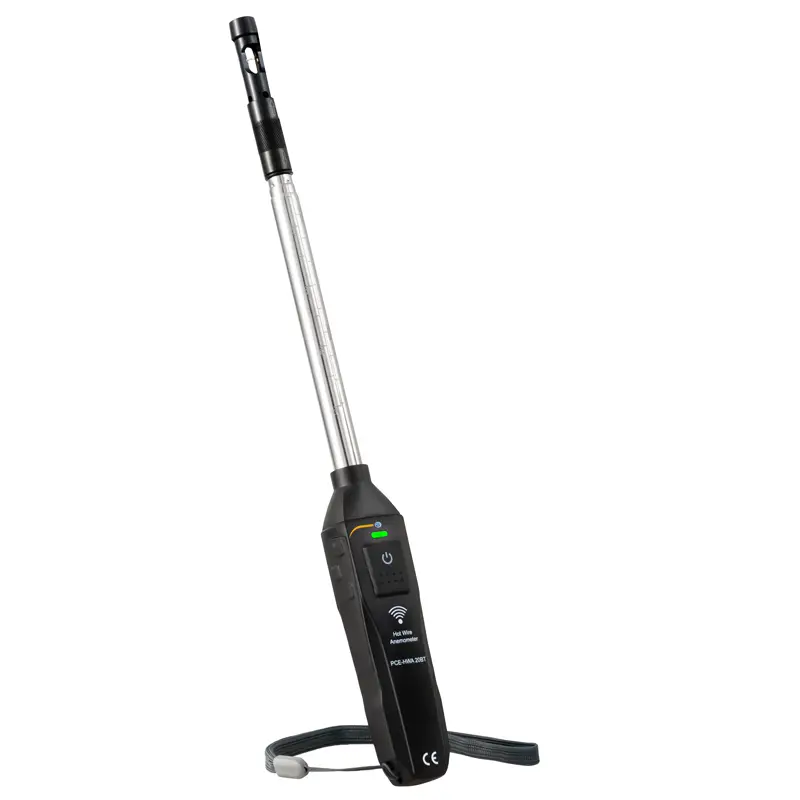

Thermo-Anemometer PCE-HWA 20BT

Order no.: PCE-HWA 20BT

GTIN (EAN): 4250348723383

Description

Thermo-anemometer with Bluetooth interface / Measuring range 0 ... 30 m / s / Adjustable telescopic rod with a length of 390 mm (15.4 in) / Temperature and humidity measurement

The thermo-anemometer has a measuring range of 0 ... 30 m / s. In addition to the air flow, the anemometer can also measure the ambient temperature between -20 ... 60°C / -4 ... 140°F and the ambient humidity between 0 ... 100% RH. The telescopic arm can be extended up to a length of 390 mm / 15.4 in. The anemometer is part of the basic equipment of a ventilation technician for regulating and controlling ventilation systems.

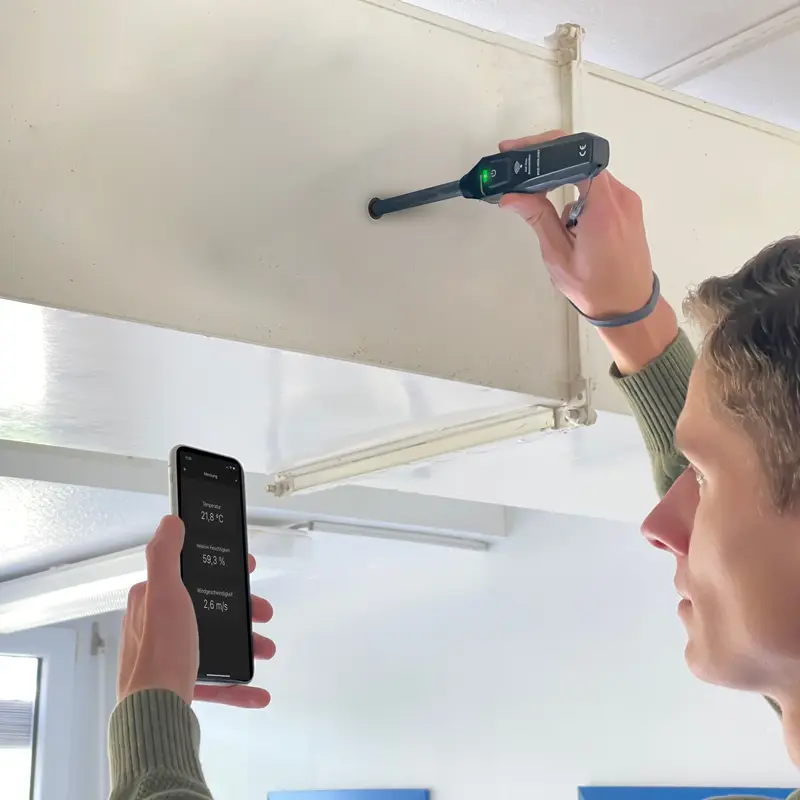

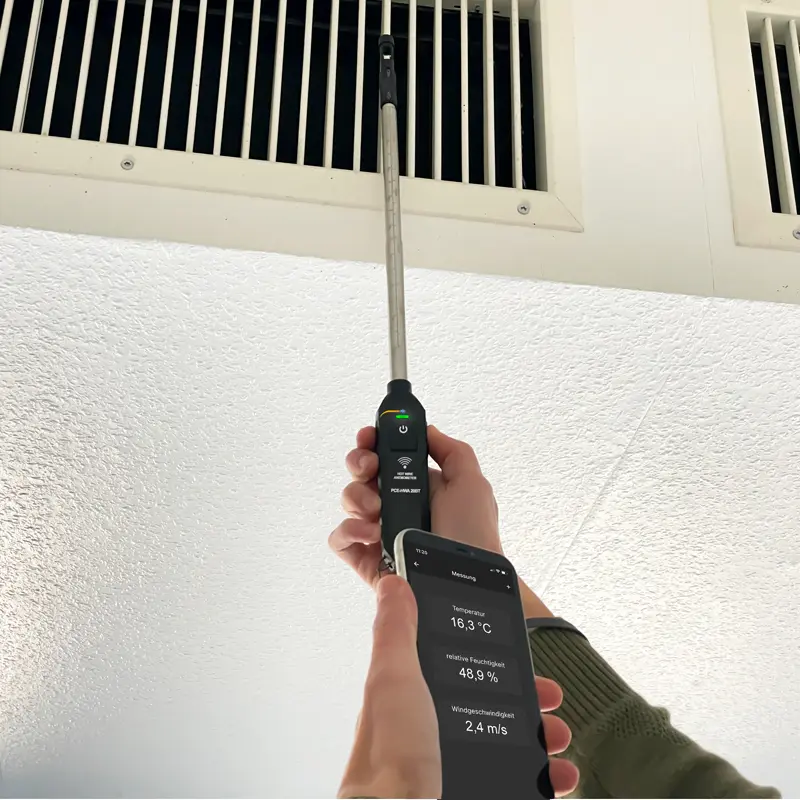

The thermo-anemometer can be connected to an Android or iOS device via the Bluetooth 4.0 data interface. With the free app, all sensors can be read out by the anemometer. In addition to the normal view of all measurement parameters from the anemometer, the measurement values can also be displayed graphically. Another function is the data recording of the app. This means that all measured values that have been measured by the anemometer are saved directly. After a measurement, the data can be exported as a CSV file.

Highlights

- Bluetooth 4.0 interface
- Battery operation

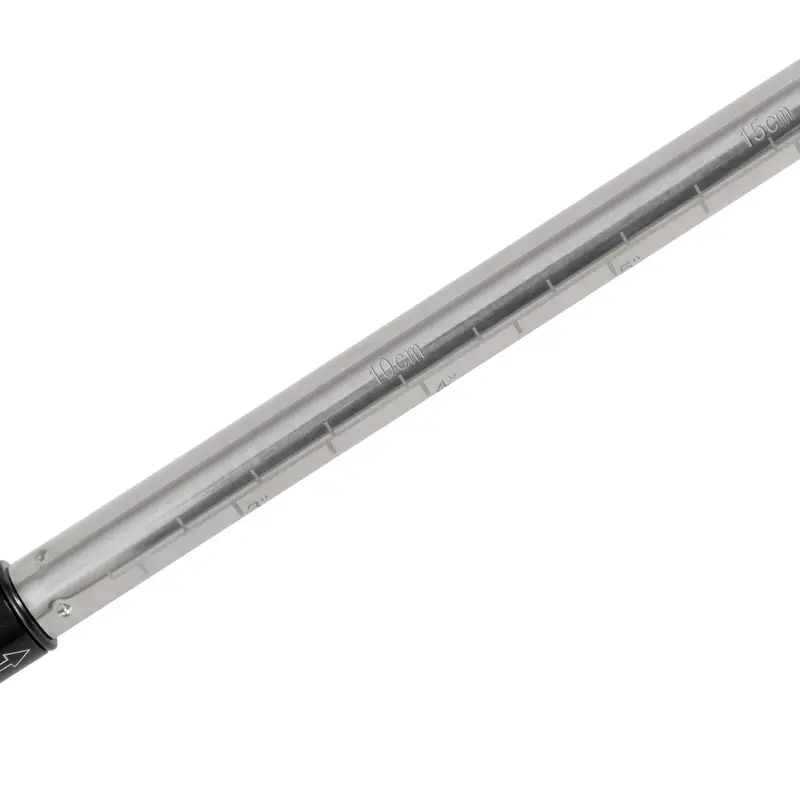

- Telescope diameter 12 mm

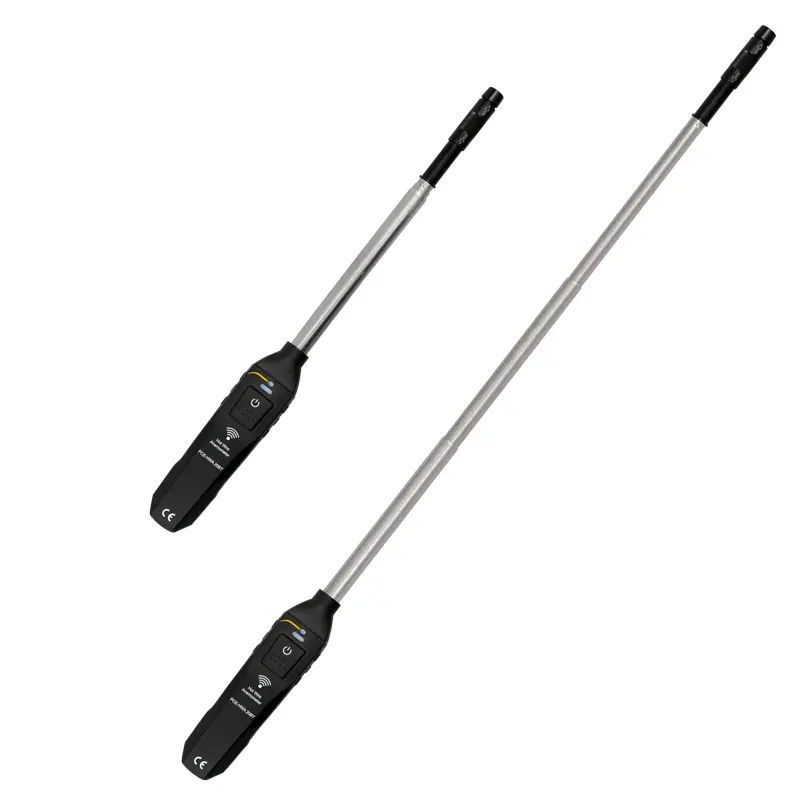

- 390 mm / 15.4 in telescopic pole
- Measuring range 0 ... 30 m / s
- Compact design

Specification

Wind speed
Measuring range	0.00 ... 30.00 m / s
Resolution	0.01 m / s
Measurement Accuracy	± 0.1 m / s ± 5%, between 0 ... 5 m / s
	± 0.3 m / s ± 5%, between 5 ... 30 m / s

Temperature
Measuring range	-20 ... 60°C, -4 ... 140°F
Resolution	0.1°C / °F
Measurement Accuracy	± 0.8°C / 1.4°F, between -20 ... 0°C / -4 ... 32°F
	± 0.5°C / 0.9°F, between 0 ... 60°C / 32 ... 140°F

Humidity
Measuring range	0 ... 100% RH
Resolution	0.1% RH
Measurement Accuracy	± 3.5% RH, between 20 ... 80% RH
	± 5% RH, between 0 ... 20 RH and
	80 ... 100% RH

Interface	Bluetooth 4.0

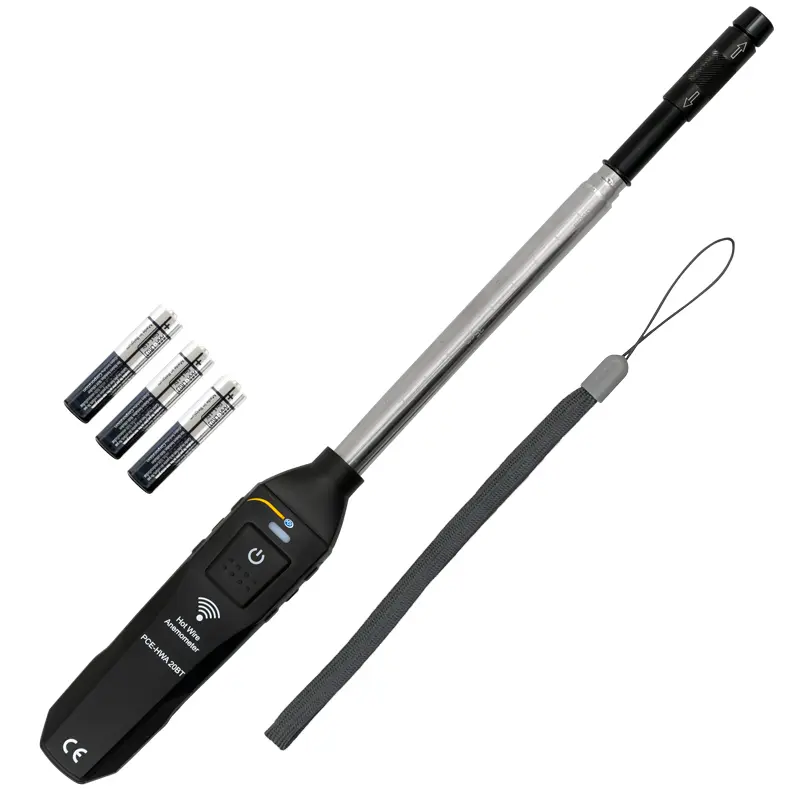

Power supply	3 x 1.5V AAA batteries
Telescope length	390 mm / 15.4 in
Telescope Diameter	12 mm
Environmental Conditions	-20 ... 60°C / -4 ... 140°F, < 90% RH, non-condensing
Dimensions	325 x 35 x 22 mm / 12.8 x 1.4 x 0.9 in (retracted)
	525 x 35 x 22 mm / 20.7 x 1.4 x 0.9 in (extended)
Weight	83 g / < 1 lb
