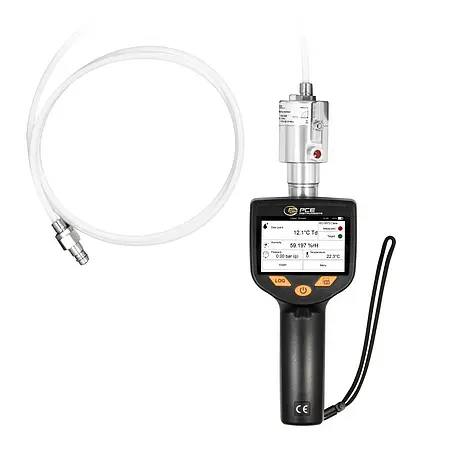

Thermo-Hygrometer PCE-DPM 10

Name: Thermo-Hygrometer PCE-DPM 10
Brand: PCE Instruments
SKU: 6114606
Price: 5120 USD
Availability: InStock

Order no.: PCE-DPM 10

GTIN (EAN): 4250348733634

Accessory

Optional activation of the Smart Features PCE-DPM 10-SF

US$ 336.00

Description

Thermo-Hygrometer for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display

The precise thermo-hygrometer from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The thermo-hygrometer is versatile and provides accurate results for air and various gases.

The thermo-hygrometer offers a robust and handy design, the housing of the thermo-hygrometer was specially developed for industrial applications.

The operation of the thermo-hygrometer is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the thermo-hygrometer. The thermo-hygrometer offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.

In addition, the thermo-hygrometer is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the thermo-hygrometer to be used quickly and also saves time during measurement.

In addition, the thermo-hygrometer has a thermo-hygrometer function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.

When the optional Smart Features are purchased, the thermo-hygrometer can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the thermo-hygrometer to document the measurement location using the integrated camera.

Highlights

- Taupunkt Messbereich von -100 ... +50 °C

- Druckbereich bis 15 bar Differenzdruck

- Datenlogger für bis zu 100 Millionen Messwerte

- Alarmgrenzen einstellbar.

- Touch LC Display

Specification

Differential pressure
Measuring range	0 bar ... +15 bar
Resolution	0.01 bar
Accuracy	0.5 % v. Mb.

Taupunkt
Messbereich	-100 °C ... +50 °C
Auflösung	0,1 °C

Taupunkt
Measuring range	0 °C ... +20 °C
Resolution	0.1 °C
Accuracy	± 1°C

Taupunkt
Measuring range	-60 °C ... +50 °C
Resolution	0.1 °C
Accuracy	± 2°C

Taupunkt
Measuring range	-100 °C ... -60 °C
Resolution	0.1 °C
Accuracy	± 3°C

Temperature
Measuring range	-30 °C ... +50 °C
Resolution	0.1 °C
Accuracy	± 0.3 °C

General technical data
Measurement functions	Average value
Units	°C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.
Connections	G1/2" with 6mm quick coupling
Display type	LC Touch Display
Display size	3.5 inches
Display refresh rate	1 x per second
Storage medium	Internal memory
Memory interval of	1 s
Memory interval up to	60 s
Memory capacity	100 million values
Interface	USB-C
Standard(s)	ISO8573-1
Standard(s) Additional information	Evaluation according to ISO8573-1 only possible when purchasing the additional functions! Order no. No. PCE-DPM 10-SF
Sensor	QCM (quartz crystal microbalance)
Response time	1 s
Measuring medium	Air, nitrogen, argon, carbon dioxide, oxygen
Automatic switch-off adjustable	10 ... 60 min.
Automatic switch-off can be deactivated	Yes
Housing	ABS
Menu language	English, German, French, Spanish, Chinese, Korean, Japanese
Protection class (device)	IP30
Power supply	5V DC 3 A (via USB-C)
Weight	775 g
Dimensions (L x W x H)	310 x 100 x 60 mm
Other dimensions	PTFE hose 1.5 m with 6mm quick coupling
Operating conditions	0 ... 40 °C , 0 ... 80 % RH
Storage conditions	0 ... 40 °C , 0 ... 80 % r.H
Instruction languages	German

Batteries and rechargeable batteries
Type	Lithium-ion battery
Lithium info	Lithium in product (built-in or enclosed)
Capacity	3500 mAh
Voltage	3.7 V
System	Secondary: Rechargeable battery / rechargeable battery
Number	1
Weight	55 g
Weight class	Class 05 (51 - 150g)

Delivery Scope

1x Thermo-Hygrometer PCE-DPM 10

1x PTFE hose with quick coupling

1x USB power supply with adapters

1x USB-C cable

1x USB-C stick

1x transport case

1x software (download)

1x operating instructions

Downloads

Software
