Thermometer PCE-T 330

Order no.: PCE-T 330
GTIN (EAN): 4250348722720
US$ 326.00
ex. VAT, ex. delivery costs
:
4250348722720
PCE-T 330
Available in: 1-2 days

Accessory

Calibration certificate for 2-channel thermometer
Calibration certificate for 2-channel thermometer
US$ 189.00
Temperature Contact Sensor TF-RA330-5
Temperature Contact Sensor TF-RA330-5
US$ 66.00
Temperature Contact Sensor TF-RA330-3
Temperature Contact Sensor TF-RA330-3
US$ 61.00
Temperature Contact Sensor TF-RA330
Temperature Contact Sensor TF-RA330
US$ 53.00
High Temperature Sensor TF-104B (extra long)
High Temperature Sensor TF-104B (extra long)
US$ 131.00
Miniature Connector TF-551
Miniature Connector TF-551
US$ 9.00
Screw-on Sensor
Screw-on Sensor TF-524
US$ 59.00
Flexible Sensor TF-120
Flexible Sensor TF-120
US$ 43.00
Screw-in Sensor TF-119
Screw-in Sensor TF-119
US$ 191.00
Magnetic Surface Sensor TF-513
Magnetic Surface Sensor TF-513
US$ 112.00
Surface Sensor TF-509 (self-adhesive)
Surface Sensor TF-509 (self-adhesive)
US$ 62.00
Insulated Surface Temperature Sensor TF-102A
Insulated Surface Temperature Sensor TF-102A
US$ 73.00
HT Surface Sensor TF-110A
HT Surface Sensor TF-110A
US$ 105.00
Crocodile Clip Sensor TF-109
Crocodile Clip Sensor TF-109
US$ 53.00
Temperature Sensor TF-101
Temperature Sensor TF-101
US$ 90.00
Miniature Connector TF-550
Miniature Connector TF-550
US$ 9.00
Extension Cable TF-520
Extension Cable TF-520
US$ 78.00
High Temperature Probe TF-104A
High Temperature Sensor TF-104A
US$ 66.00
High Temperature Wire Sensor TF-121
High Temperature Wire Sensor TF-121
US$ 92.00
Air Sensor TF-108
Air Sensor TF-108
US$ 63.00
Penetration / Immersion Sensor TF-106
Penetration / Immersion Sensor TF-106
US$ 66.00
Flexible Temperature Sensor TF-500 (Type K)
Flexible Temperature Sensor TF-500
US$ 14.00
Miniature-Connector TF 550
Miniature-Connector TF 550
US$ 9.00
Surface temperature roller sensor PCE-SP-101
Surface temperature roller sensor PCE-SP-101
US$ 111.00
Surface temperature sensor PCE-SP-202
Surface temperature sensor PCE-SP-202
US$ 79.00

Description

Two-channel thermometer / Battery life of approx. 190 hours /
Different file formats / No software required / Storage for 20,000 data points

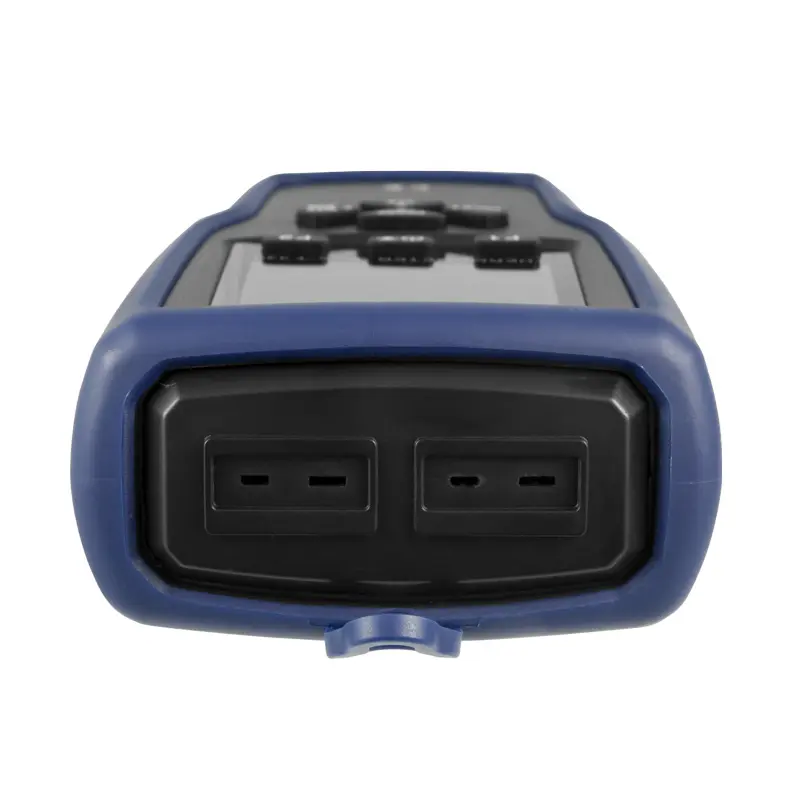

The thermometer has two measuring inputs. Each measuring input from the thermometer can be connected to a thermocouple of type K, T and J. With a measuring rate of 2 Hz, the thermometer shows rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these rapid temperature fluctuations can also be displayed precisely by the thermometer.

With a data memory of 20,000 measuring points, the thermometer can be used for a long period of time. A data point on the thermometer contains a measured value per channel and date as well as the current time. When the thermometer is connected to a computer, it is recognized as a removable disk. This allows the thermometer to be connected to computers with different operating systems, as no additional software is required for further analysis. The measurement data from the thermometer can be saved as TXT, CSV, XLS and DLG format.

Highlights

- Two-channel temperature data logger
- For thermocouples type K, T and J
- Long battery life
- Data storage for 20,000 measuring points
- File format TXT, CSV, XLS and DLG
- Rubberized protective cover

Specification

Temperature Sensor    Measuring range
Resolution
Accuracy
Type K-200 ... 1370 °C / -328 … +2498 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type T-200 ... 400 °C / -328 … 752 °F
   0.01 °C±0.3 % of rdg. +0.4 °C
Type J-200 ... 1200 °C / -328 … 2192 °F
   0.01 °C±0.3 % of rdg. +0.4 °C

Units°C / °F
Number of channels2
Measuring rate2 Hz
Data storage15,328 kB for 20,000 data points
File formatsTXT, CSV, XLS, DLG
Storage interval1 .... 86,399 s

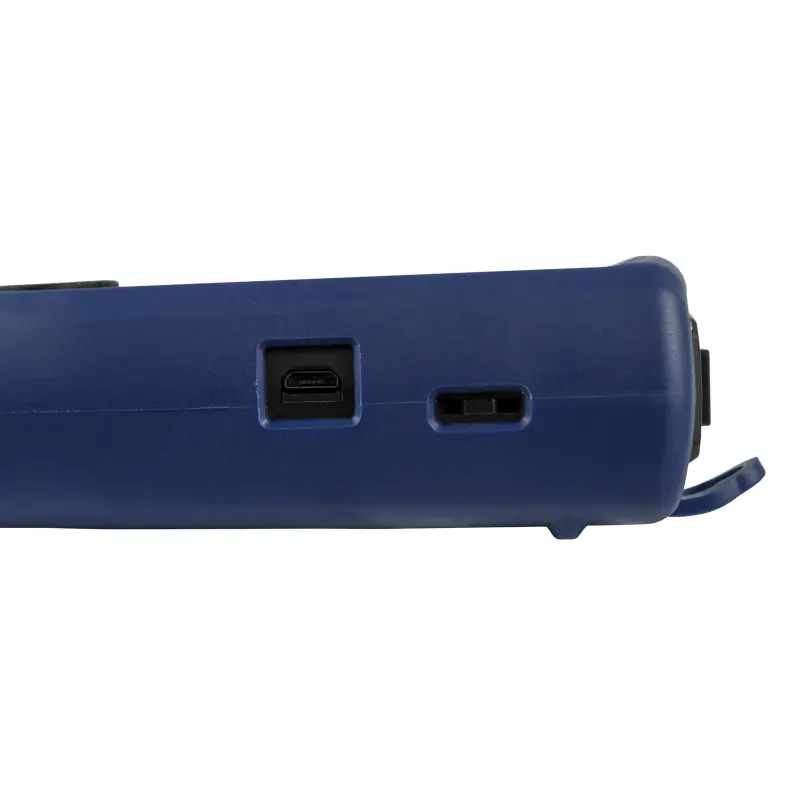

InterfaceMicro-USB
Power supply
3 x 1.2 V AAA rechargeable batteries
 3 x 1.5 V AAA batteries
Battery lifeca. 190 hours
 (without backlight, battery capacity
 1200 mAh, ambient temperature 25 °C)
Operating conditions-10 ... 50 °C / 14 … 122 °F
Storage conditions-20 ... 60 °C / -4 … +140 °F (without batteries)
Dimensions173 x 71 x 38 mm / 6.8 x 2.8 x 1.5"
Weightca. 226 g /  7.9 oz

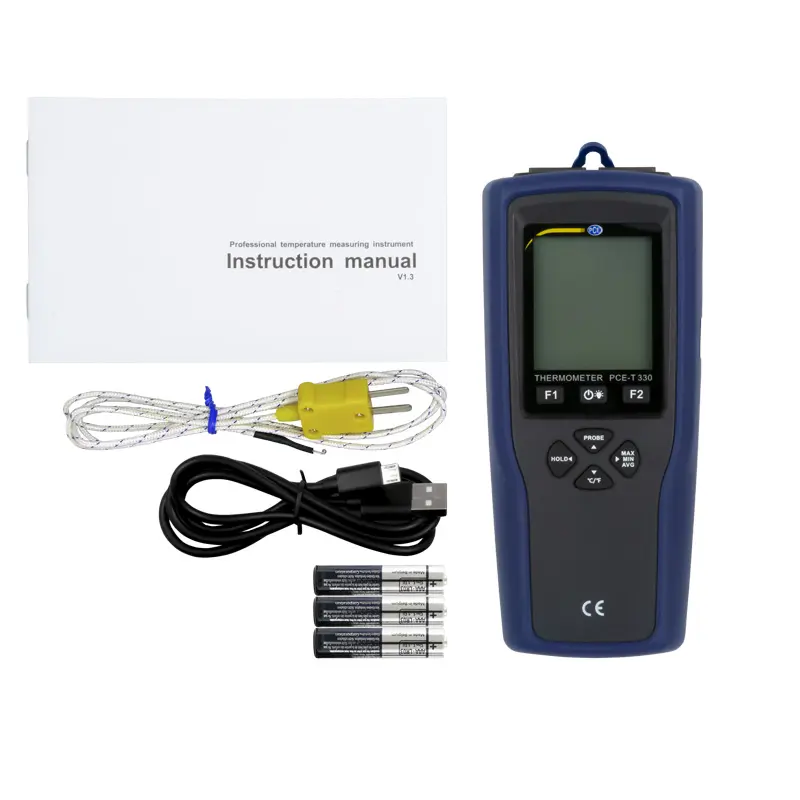

Delivery Scope

1 x Thermometer PCE-T 330
1 x Thermocouple Type K
1 x Micro-USB cable
3 x 1.5 V AAA batteries
1 x User manual
