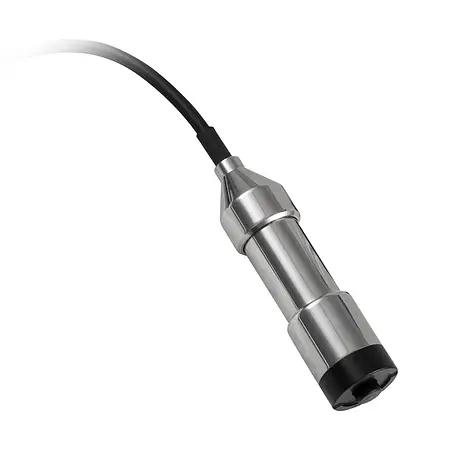

FN0.5 Sensor PCE-CT 80-0D5-PROBE

Order no.: PCE-CT 80-0D5-PROBE
GTIN (EAN):
US$ 195.00
ex. VAT, ex. delivery costs
PCE-CT 80-0D5-PROBE
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Measuring range: Fe: 0 ... 500 / 0 ... 19.7 mils
Measuring range: NFe: 0 ... 500 / 0 ... 19.7 mils
Accuracy: ± (1% of Mw + 1 μm / 0.04 mils)
Diameter: 17 mm
Calibration foils: 50 μm / 2 mils, 100 μm / 3.9 mils, 250 μm / 9.8 mils, 500 μm / 19.7 mils, 1000 μm / 39.4 mils
FE and N Material plates

Application: FN0.5 Sensor for measurements on iron / steel and non-ferrous metals

Delivery Scope

1 x FN0.5 sensor PCE-CT 80-FN0.5
1 x Set of calibration foils 50 μm / 2 mils, 100 μm / 3.9 mils, 250 μm / 9.8 mils, 500 μm / 19.7 mils, 1000 μm / 39.4 mils
1 x Calibration plates FE and N
