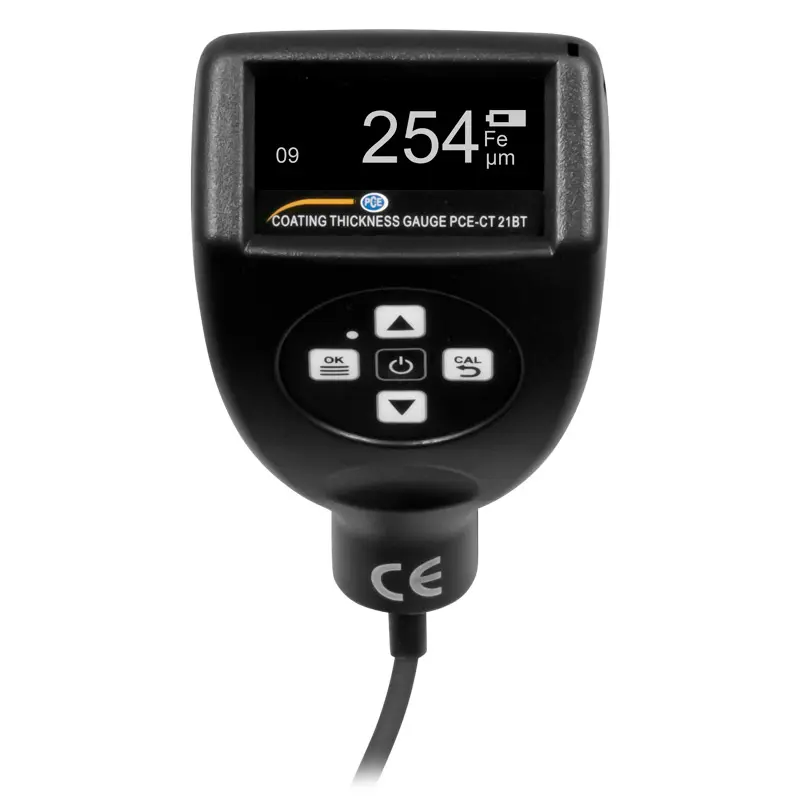

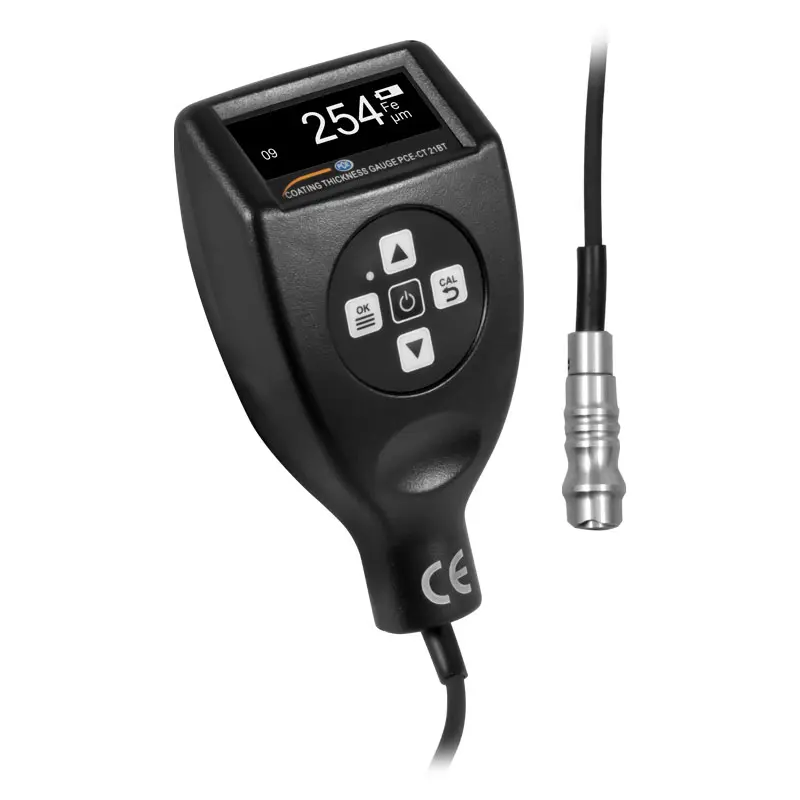

Coating Thickness Meter PCE-CT 21BT

Order no.: PCE-CT 21BT
GTIN (EAN): 4250348722218
US$ 395.00
Wireless
ex. VAT, ex. delivery costs
:
4250348722218
PCE-CT 21BT
Available in: 1-2 days
–
External

Description

Coating Thickness Meter with 5-point calibration / various interfaces /
for measurement on ferrous metals / app connection /
external probe / data storage

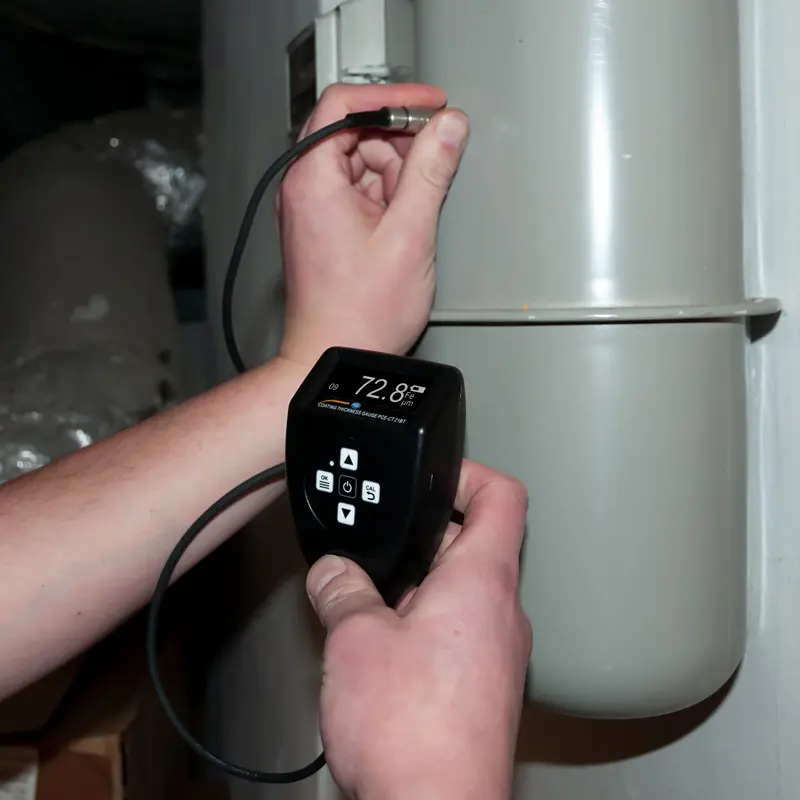

With this Coating Thickness Meter, layer thicknesses on metallic surfaces can be reliably determined. The Coating Thickness Meter has a measuring range of 1500 µm. This means that the Coating Thickness Meter is used, for example, in a paint shop, for incoming goods inspection or for an expert. With the Bluetooth interface on the Coating Thickness Meter, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values ​​is also possible via the free app with the Coating Thickness Meter.

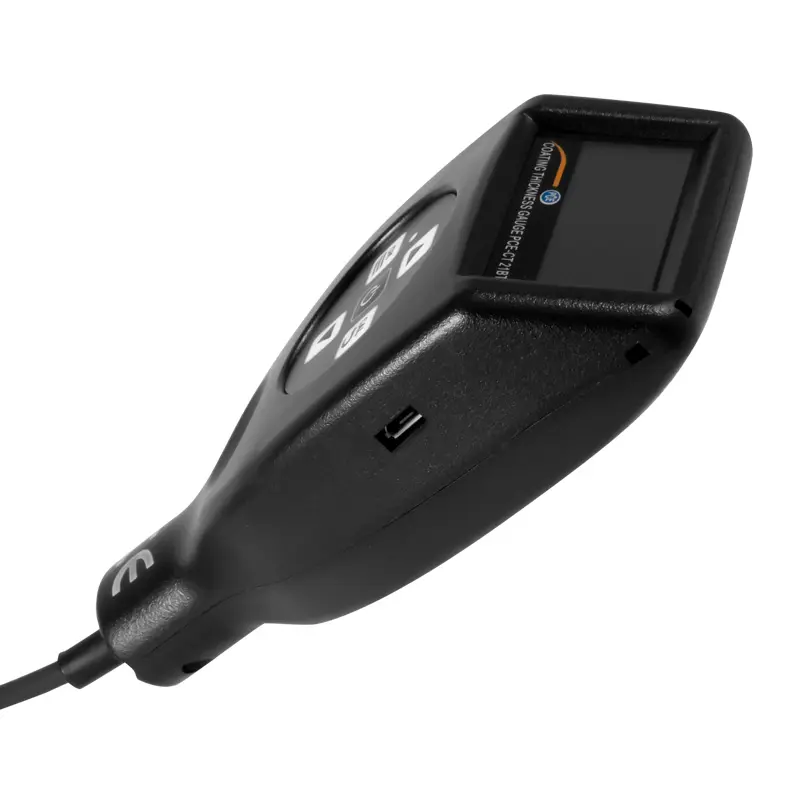

In addition to the Bluetooth interface, the Coating Thickness Measuring Device has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the Coating Thickness Measuring Device. Another special feature of this interface is that the Coating Thickness Measuring Device can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.

Highlights

- Micro USB and Bluetooth interface
- Calibration foils included
- Adjustable alarm gene values
- Backlit display
- Data storage for up to 600 measured values
- Measuring range up to 1500 µm

Specification

Measurable substratesFe

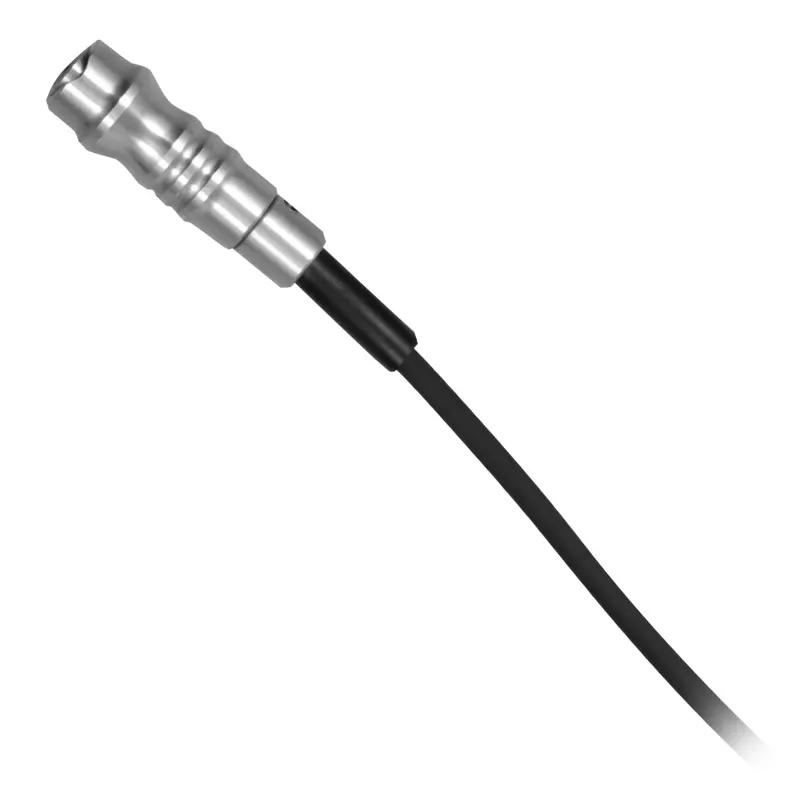

probeexternal

measuring range0… 1500 µm
resolution0.1 µm (in the measuring range 0… 99.9 µm)
 1 µm (in the measuring range 100… 1500 µm)
accuracy± (1 µm + 2% of the layer thickness)
unitsµm, mil
Smallest curvatureconvex 5 mm, concave 5 mm
Smallest measuring area10 x 10 mm
Minimum thickness of the substrate   0.4 mm
interfaceBluetooth, micro USB
memory10 groups with 60 measurements each
power supply2 x 1.5 V AA batteries, 5 V USB interface
Environmental conditions-10… 50 ° C, 10… 85% RH
Dimensions126 x 69 x 35 mm (without sensor)
Weightapprox. 97 g (without batteries)

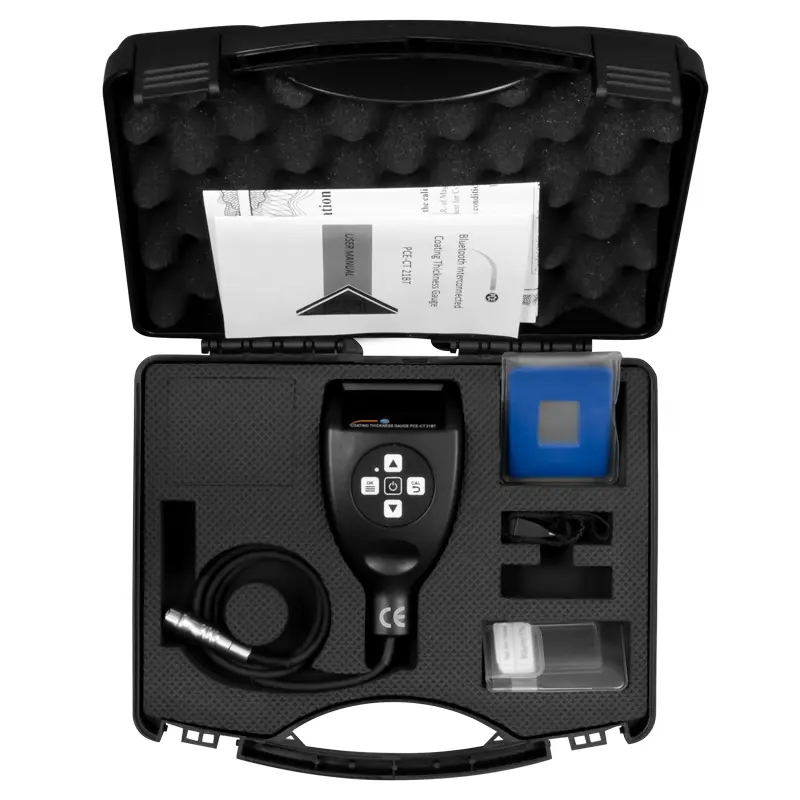

Delivery Scope

1 x PCE-CT 21BT Coating Thickness Meter
5 x calibration foil reference
1 x Fe zero standard
1 x transport loop
2 x 1.5 V AA batteries
1 x carrying case
1 x instruction manual
