Coating Thickness Meter PCE-CT 22BT-ICA incl. ISO Calibration Certificate

Name: Coating Thickness Meter PCE-CT 22BT-ICA incl. ISO Calibration Certificate
Brand: PCE Instruments
SKU: 5951020
Price: 696 USD
Availability: InStock

Order no.: PCE-CT 22BT-ICA

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

ISO Calibration Certificate for Coating Thickness Meter

US$ 228.00

Description

Coating Thickness Meter with 5-point calibration / various interfaces /
for measurement on ferrous and non-ferrous metals / app connection / internal probe / data storage / incl. ISO Calibration Certificate

With this Coating Thickness Meter, layer thicknesses on metallic surfaces can be reliably determined. The Coating Thickness Meter has a measuring range of 1500 µm. This means that the Coating Thickness Meter is used, for example, in a paint shop, for incoming goods inspection or for an expert.

With the Bluetooth interface on the Coating Thickness Meter, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values is also possible via the free app with the Coating Thickness Meter.

In addition to the Bluetooth interface, the Coating Thickness Meter has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the Coating Thickness Meter. Another special feature of this interface is that the Coating Thickness Meter can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.

Highlights

- Micro USB and Bluetooth interface
- Calibration foils included
- Adjustable alarm thresholds
- Backlit display
- Data storage for up to 600 measured values
- Measuring range up to 1500 µm
- incl. ISO Calibration Certificate

Specification

Measurable substrates	Fe, NFe
Probe	internal

Measuring range	0… 1500 µm
Resolution	0.1 µm (in the measuring range 0… 99.9 µm)
	1 µm (in the measuring range 100… 1500 µm)
Accuracy	± (1 µm + 2% of the layer thickness)
Units	µm, mil
Smallest curvature	convex 5 mm, concave 5 mm
Smallest measuring area	10 x 10 mm
Minimum thickness of the substrate	0.4 mm
Interface	Bluetooth, micro USB
Memory	10 groups with 60 measurements each
Power supply	2 x 1.5 V AA batteries, 5 V USB interface
Environmental conditions	-10… 50 °C, 10… 85% RH
Dimensions	126 x 69 x 35 mm (without sensor)
Weight	approx. 97 g (without batteries)

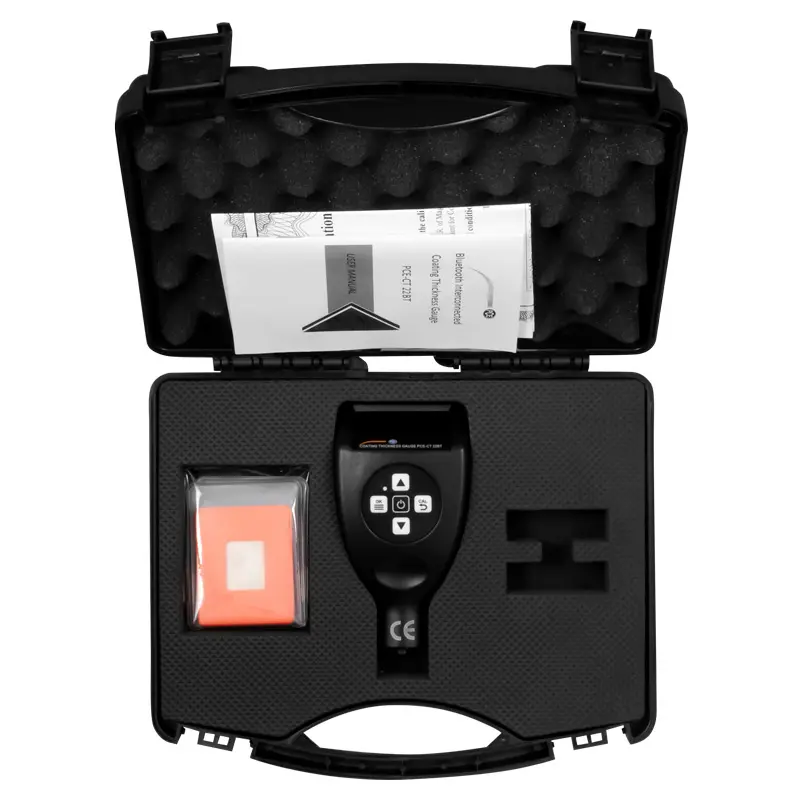

Delivery Scope

1 x PCE-CT 22BT-ICA Coating Thickness Meter
5 x Calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x Wrist strap
2 x 1.5 V AA batteries
1 x Carrying case
1 x Instruction manual
1 x ISO Calibration Certificate
