Thickness meter for various materials, such as metals, glass, homogeneous plastics ..., (with external probe for temperatures up to 400°C / 752°F) (displays in mm only)

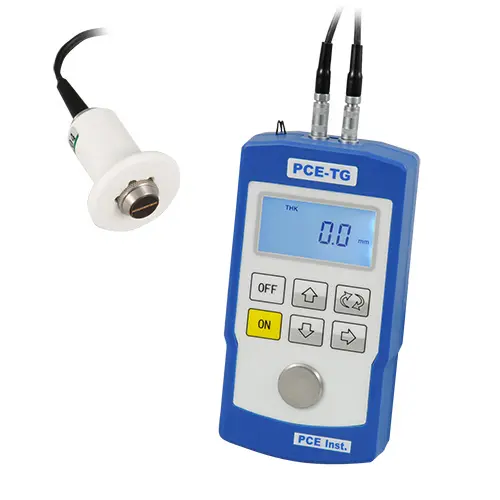

The thickness meter PCE-TG 110 is a thickness gauge with external high-temperature probe for ferrous and non-ferrous metals etc. The PCE-TG 110 is an ideal material thickness meter for water pipes, steam pipes and pipes for chemicals. Too thin wall thickness of a pressure line involves a high risk for employees, and this can be prevented with the thickness meter. If the wall thickness is too thin, the bursting pressure drops considerably. The thickness meter PCE-TG110 is a thickness gauge for various materials, such as metals, glass, homogeneous plastics. The thickness meter is preset with five sound speeds (in memory) for different material.
With the thickness meter, you can determine the material thicknesses of metal, glass, plastics and other homogeneous materials in seconds. The speed of sound can be freely adjusted on the thickness meter and thus adapted to a wide variety of materials. The ultrasonic probe of the thickness meter has a measuring head that can be used at surface temperatures of up to 400°C / 752°F. The measuring head is special coated to ensure maximum protection against skin burns. The thickness meter is delivered calibrated. As an accessory, you can order an ISO laboratory calibration including certificate.
Measurement range | 2.5 mm ... 200 mm / 0.10 in ... 7.87 in |
Measurable materials | Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets) |
Frequency | Standard 5 MHz, diameter probe 12 mm / 0.5 in |
Resolution | 0.1 mm / 3.94 mil |
Calibration | 3.0 mm / 0.1 in integrated steel block |
Accuracy | ± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in ± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in |
Sound velocity range | 1000 ... 9999 m/s (freely adjustable, depending on the material to be tested) |
Sound velocity resolution | 1 m/s |
Display | 4 digit LCD display |
Surface temperature for probe | Standard -10 ... 400°C / 14 ... 752°F |
Measuring head shape | Straight |
Operating temperature range | 0 ... 40°C / 32 ... 104°F |
Ambient humidity | 20 ... 90% r.H. |
Battery status | Low power indicator |
Power supply | 2 x 1.5V AA batteries |
Battery life | 250 h |
Auto shutdown | For battery conservation (after about 3 minutes without operation) |
Dimensions | 127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D) |
Weight | 270 g / < 1 lb incl. batteries |
1 x PCE-TG 110 Thickness Meter
1 x High-temperature contact transducer with 1 m (3.3 ft) cable
2 x Batteries
1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
