Thickness Meter PCE-TG 250

Order no.: PCE-TG 250

GTIN (EAN): 4250348703002

Accessory

Replacement standard probe for PCE-TG 250

US$ 297.00

Description

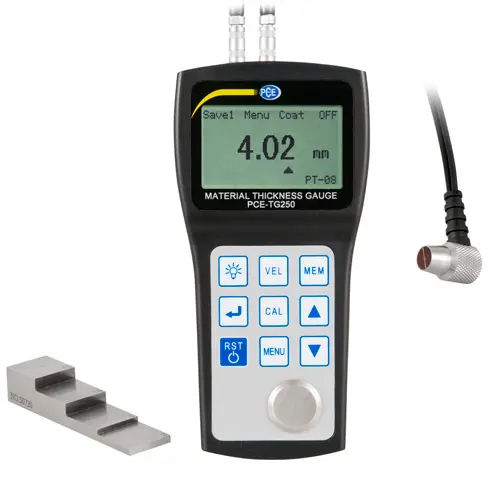

PCE-TG 250 Thickness Meter

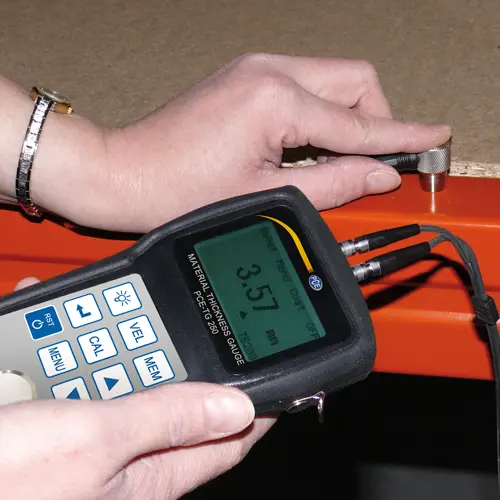

PCE-TG 250 is a portable Thickness Meter with an easy-to-read 4-digit display. This ultrasound-based Thickness Meter uses a contact transducer (included) to measure the thickness of coated and uncoated ferrous and non-ferrous metal, glass, plastic, and other homogeneous materials including aluminum, brass, copper, iron, lead, nickel, steel, gold, titanium, pyrex and quartz glass, nylon, polyethylene, and silicone rubber. See accessories for replacement contact gel and ISO calibration options.

Highlights

- Measurement range: 1 mm ... 250 mm / 0.04 in ... 9.84 in (uncoated steel)
- 2.5 mm ... 20 mm / 0.1 in ... 0.79 in (coated surfaces)
- Accuracy: ±0.5% of measured value + 0.02 mm / 0.0008 in
- Resolution: 0.01 mm / 0.1 mm (0.0004 in / 0.004 in)
- Sound velocity: 1000 m/s ... 9999 m/s / 3280 ft/s ... 32805 ft/s
- Adjustable velocity speed in increments of 1 m/s
- Requires use of contact gel or paste
- Features a built-on 4 mm (0.2 in) steel calibration standard and user-friendly DIY calibration procedure

Specification

Measurement range	1.00 ... 250.00 mm / 0.04 ... 9.84 in (uncoated steel) 2.50 ... 20.00 mm / 0.1 ... 0.79 in (coated surfaces)
Resolution	±0.01 mm / 0.0004 in (to 100 mm / 3.9 in steel) ±0.1 mm / 0.004 in (over 100 mm / 3.9 in steel)
Accuracy	±0.5 % of measured value + 0.02 mm / 0.0008 in
Contact transducer (incl.)	5 MHz frequency Measuring surface ca. Ø 10 mm / 0.39 in

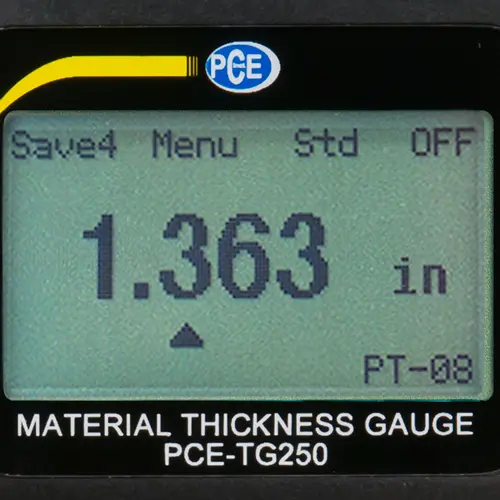

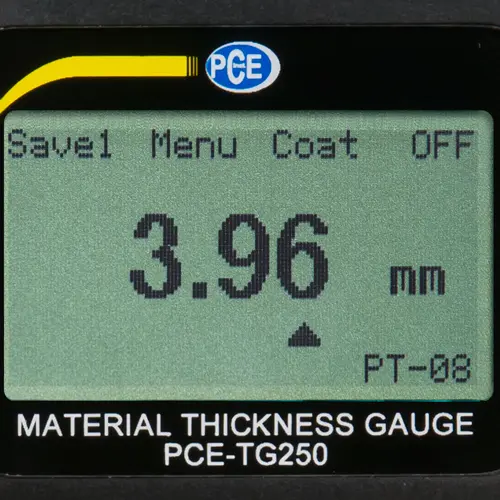

Display	128 x 64 LCD (backlit)
Ambient temperature	0 ... +50 °C / 32 ... 104 °F
Measuring unit	mm / inch (selectable)
Sound velocity range	1000 ... 9999 m/s / 3280 ... 32805 ft/s
Memory	for 500 measured values
Automatic switch-off	after ca. 3 minutes
Power supply	2 x 1.5 V AA batteries
Battery status indicator	too low voltage is displayed
Dimensions	149 x 73 x 32 mm / 5.87 x 2.88 x 1.26 in
Weight	350 g / 12.3 oz

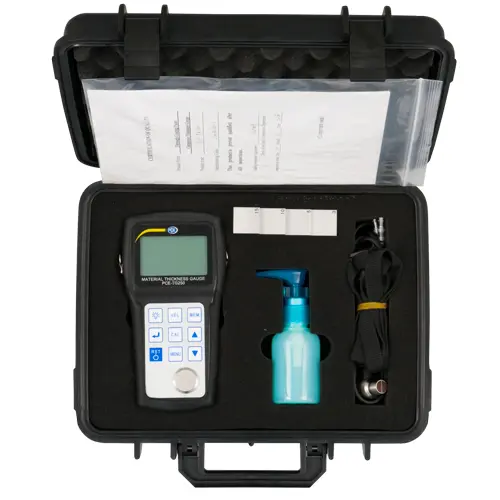

Delivery Scope

1 x PCE-TG 250 Thickness Meter
1 x Contact transducer with cable

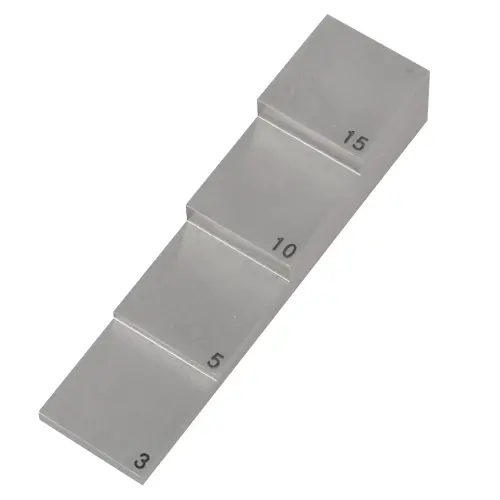

4 x Calibration standards
1 x Manufacturer's certificate of quality
2 x AA batteries
1 x Bottle of contact gel
1 x Carrying case
1 x User manual
