Torque Meter PCE-TM 80

Order no.: PCE-TM 80
GTIN (EAN): 4250348707512
US$ 1,064.00
ex. VAT, ex. delivery costs
:
4250348707512
PCE-TM 80
Available in: 1-2 days
Digital
Handheld
147 Ncm
Yes (via PC)
Yes (RS-232)
Ncm, kgfcm, lbfin
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

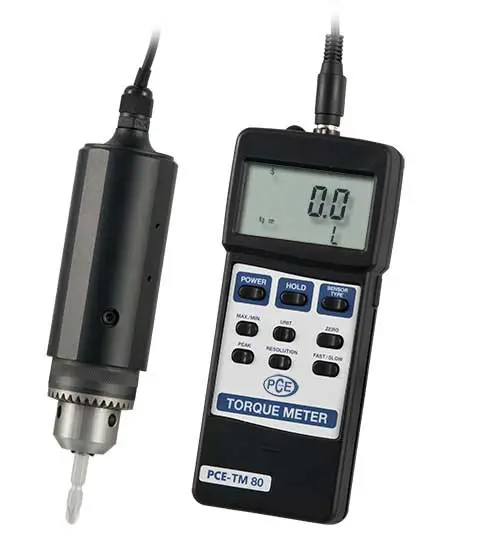

Digital Torque Meter PCE-TM 80
meter to determine the “torque moment” up to 147 Ncm / PC interface and software (optional) / Peak-Hold function / external torque sensor / selection of diverse units / selection of resolution

The Digital Torque Meter PCE-TM 80 with external sensor to measure the static or startup torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to easily perform static torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the option to enlarge the 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. Use of the optional software allows real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very robust to ensure both long duration and reliability.

**Note the chuck does not rotate, the force is static or "startup" force


Highlights

- Range 0 ... 147 Ncm
- Selection of 3 units (Ncm, kgfcm, lbfin)
- Digital output RS-232
- External rotational torque sensor

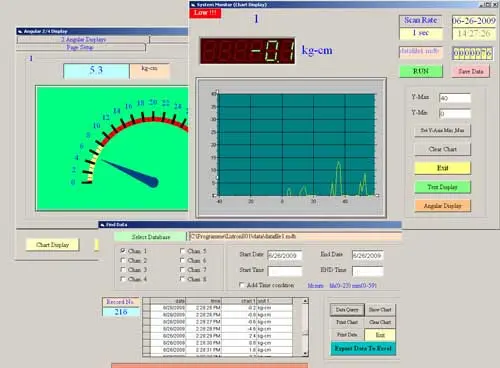

- Optional software
- Selection of the resolution - Automatic shut-off
- Peak-Hold function
- ISO Calibration certificate (optional)

Specification

Technical specifications
Measurement range147.1 Ncm / 13.02 lbfin / 15 kgfcm
Resolution
 - High resolution
 - Low resolution
0.1 Ncm / 0.01 lbfin / 0.01 kgfcm
1 Ncm / 0.1 lbfin / 0.1 kgfcm
Accuracy±1.5 % + 5 digits
Peak-hold function Yes
Additional functionsData-hold / max. and min. / peak-hold
UnitsNcm, lbfin, kgfcm (Default is kgfcm)
Overload protectionMax. 150 %
OutputRS-232
SoftwareOptional
DisplayLCD
Operating temperature0 ... +50 ºC, below 80 % RH
Power supply9 V battery
Weight
 - Main unit
 - External sensor
Approx. 225 g
Approx. 665 g
Dimensions
 - Main unit
 - External sensor
180 x 72 x 32 mm
Ø 48 x 160 mm

Delivery Scope

Delivery contents
1 x PCE-TM 80 torque meter
1 x external torque sensor
1 x chuck key
1 x plastic carrying case
1 x user manual
