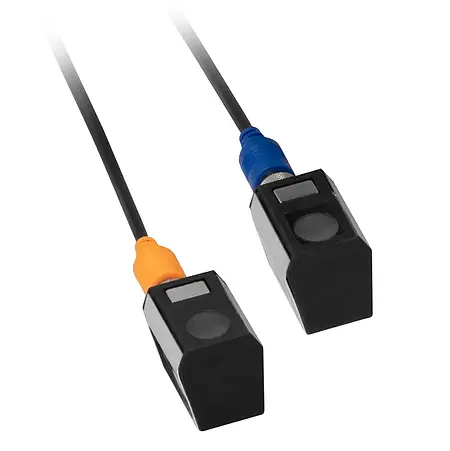

Medium-sized sensor pair for pipe diameters DN 15 ... 100 / 20 ... 108
mm. Suitable for flow measurement on medium-sized pipes. The sensors of
the ultrasonic flow meter can be attached to ferrous pipes with the
built-in magnets. Alternatively, the sensors can be mounted to the pipe
with detachable cable ties. The temperature resistance is between -30
... 160 °C.
Highlights
- Pipe diameter: DN 15 ... 100 / 20 ... 108 mm / 0.6 ... 3.9 / 0.7 ... 4.2" - Temperature resistance: from -30 ... 160 °C / -22 ... 320 °F - Dimension: 45 x 30 x 30 mm / 1.7 x 1.1 x 1.1"
- Important! If you order the sensor later, we need the PCE-TDS 200 handheld unit, to adjust the sensor to the handheld unit!
Delivery Scope
1 x PCE-TDS 200 S SENSOR (pair) for the ultrasonic flow meter
- Important! If you order the sensor later, we need the PCE-TDS 200 handheld unit, to adjust the sensor to the handheld unit!
