  5. Ultrasonic Flow Tester PCE-TDS 75

Ultrasonic Flow Tester PCE-TDS 75

Order no.: PCE-TDS 75
GTIN (EAN): 4250348722560
US$ 2,068.00
ex. VAT, ex. delivery costs
:
4250348722560
PCE-TDS 75
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

K-Gel High Temperature Coupling Gel
K-Gel High Temperature Coupling Gel
US$ 131.00

Description

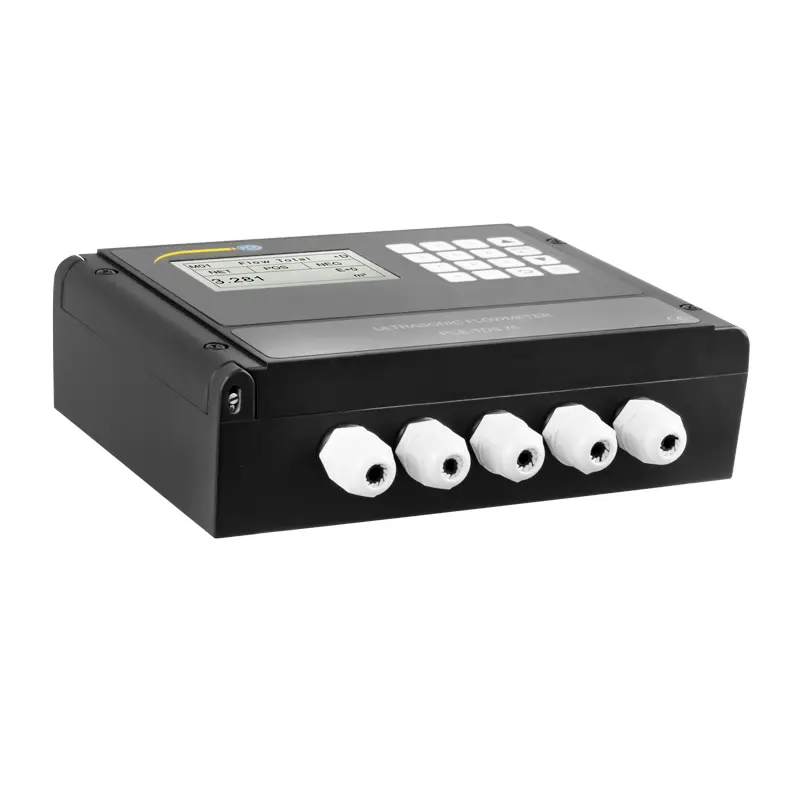

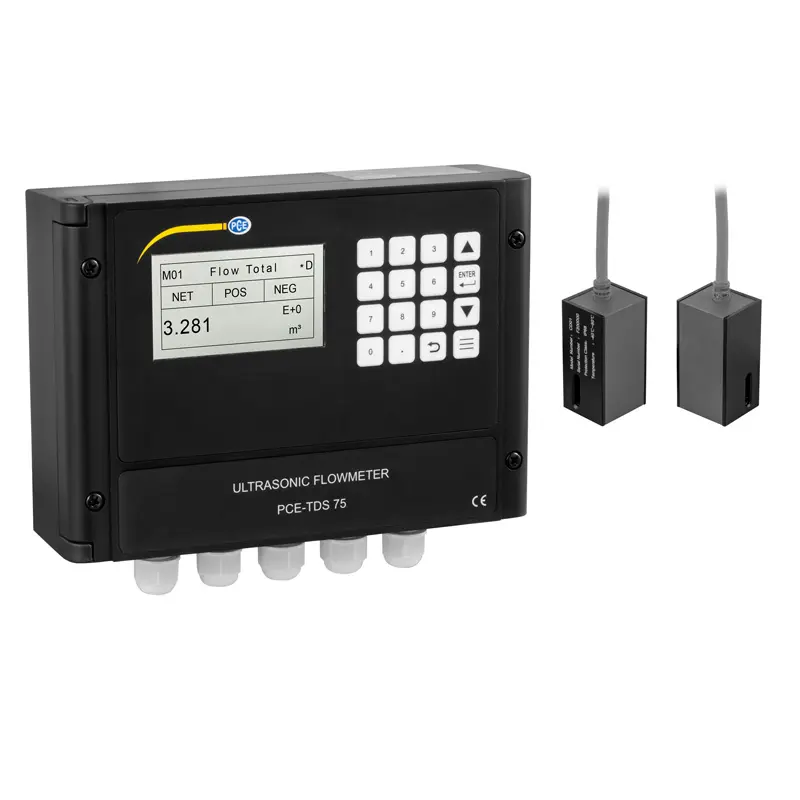

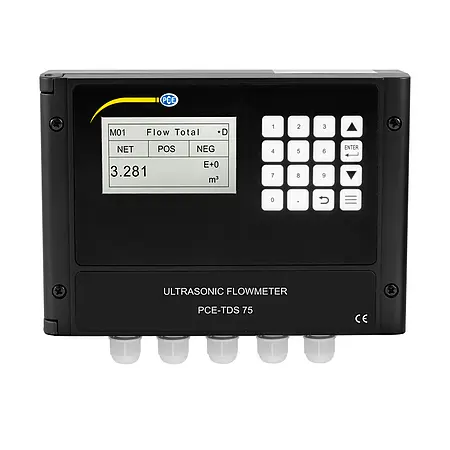

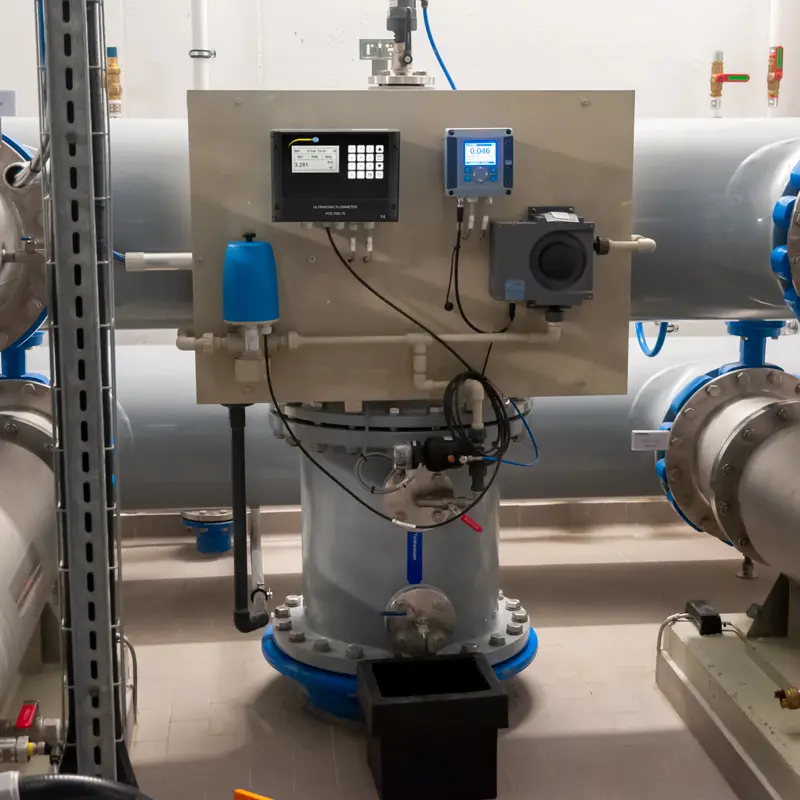

Ultrasonic Flow Tester PCE-TDS 75
Flow meter for fixed installation / Various process connection options / Measurement accuracy of 1% / Up to a pipe diameter of 1200 mm (47.2 in) / Flow rate determination

The flow measuring device is a measuring device for fixed installation. The flow rate of liquids in pipes can be determined with this flow meter. The sensors from the flow meter can be mounted directly on the pipes to be measured without having to cut them open. This enables the flow meter to be installed even during operation.

Another special feature of the flow meter are the different outputs. It is possible to get the flow rate converted by the flow meter into an analog 4… 20-mA signal. Any other measurement value can be transmitted via the pulse output (OCT) from the flow meter. It is also possible to receive the measured values ​​directly via the Modbus outputs RS232 and RS485. This allows the flow meter to be integrated directly into the process control.


Highlights

- Flow meter for fixed installation
- Different outputs for process connection
- For fixed installation
- For pipe diameters 25 ... 1200 mm / 1 in ... 47.2 in

Specification

Measuring range           ± 0.03 ... ± 5 m / s (± 0.09 ... ± 16 ft / s)
Measurement accuracy± 1% of the measured value
Repeatability   0.2%


Pipe diameter25 ... 1200 mm (1 ... 48 in)
Analog output0/4 ... 20 mA (maximum load 750 Ω)
Pulse output0 ... 9999 Hz OCT
 (Frequency limits are adjustable)
Relay output1 A at 125V AC, 2 A at 30V DC
 Maximum frequency 1 Hz
Communication interface                RS232 & RS485
Power supply10 ... 36V DC
Power consumption   1 A
DisplayLCD, 256 x 128 pixels, with backlight
Ambient conditions base                              -40 ... 60°C / -40 ... 140°F
0 ... 99% RH non-condensing
Ambient conditions sensor -40 ... 80°C / -40 ... 176° F
0 ... 99% RH non-condensing
Housing material basePC / ABS
Protection class base  IP 65
Protection class sensorIP 68
Cable length9 m / 30 ft
Dimensions16 x 23 x 28 cm / 6.3 x 9.1 x 11"
Weight3.2 kg / 7.1 lbs



Delivery Scope

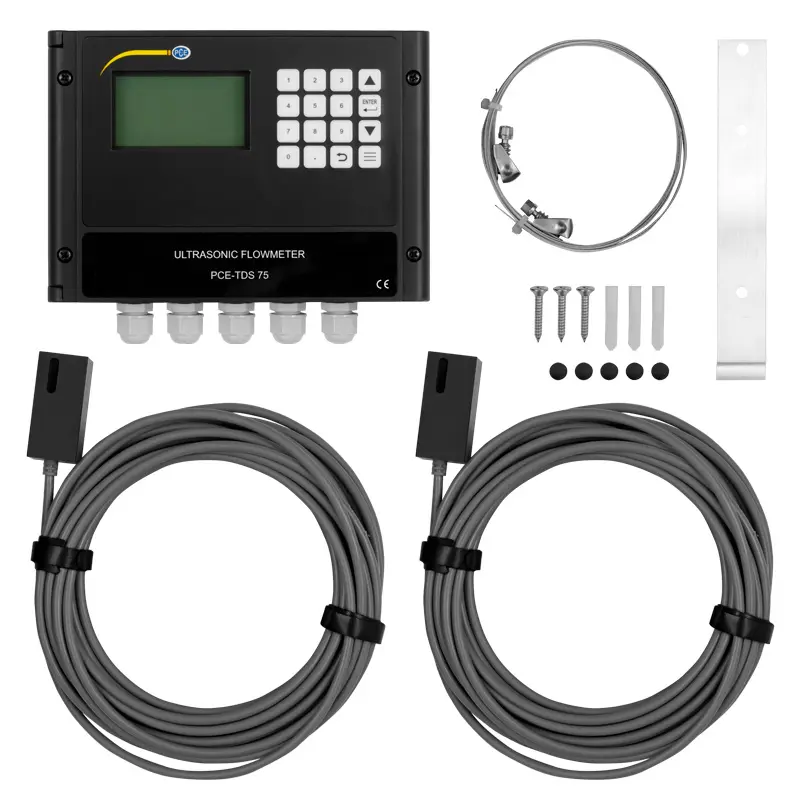

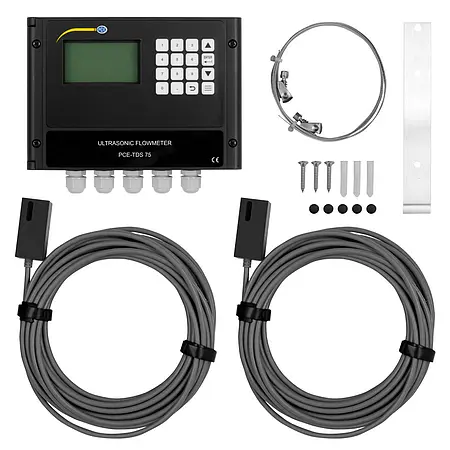

1 x Ultrasonic flow tester PCE-TDS 75

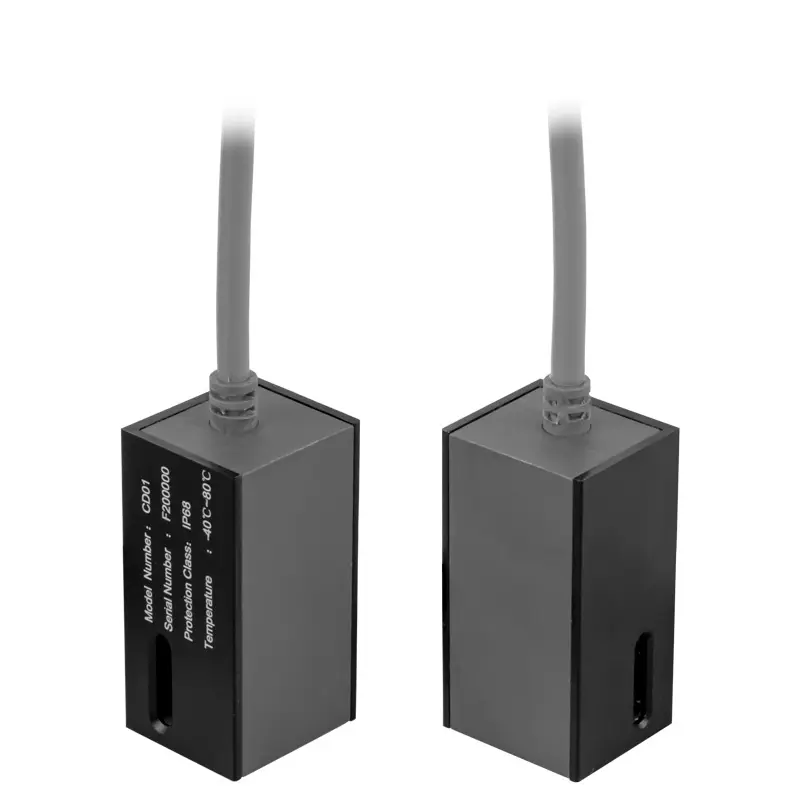

2 x Flow sensors
1 x Wall mounting set
2 x Hose clamps
1 x Instruction manual
