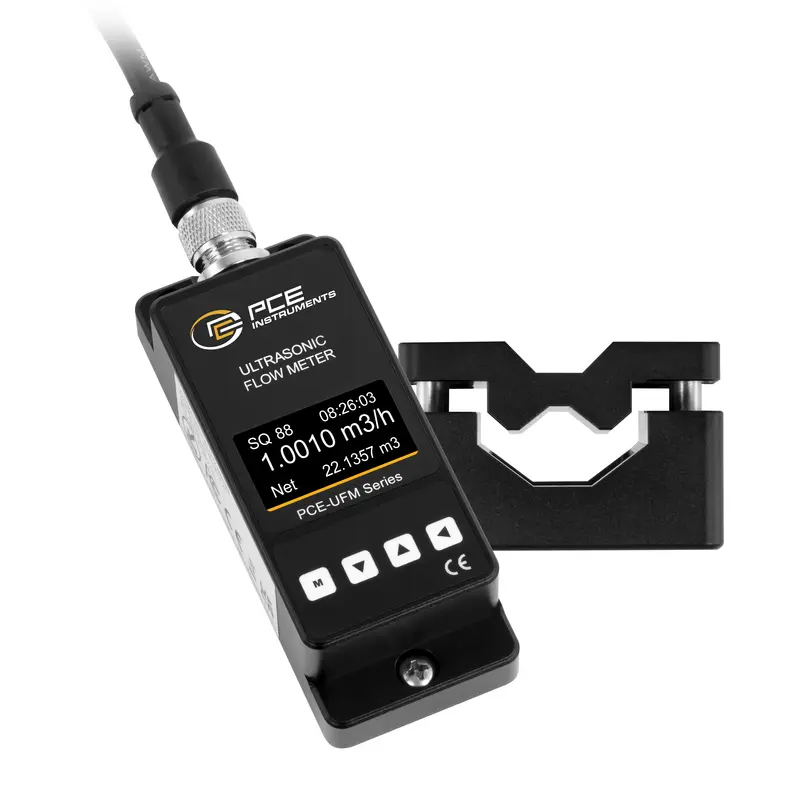

Ultrasonic Flow Tester PCE-UFM 10

Order no.: PCE-UFM 10
GTIN (EAN): 4250348732613
US$ 1,227.00
ex. VAT, ex. delivery costs
:
4250348732613
PCE-UFM 10
Available in: 5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Ultrasonic Flow Tester / Measurement of Flow and Volume Flow via Ultrasonic / Compatible with Various Pipe Materials and Fluids / Analog Output 4 ... 20mA / RS485 Interface

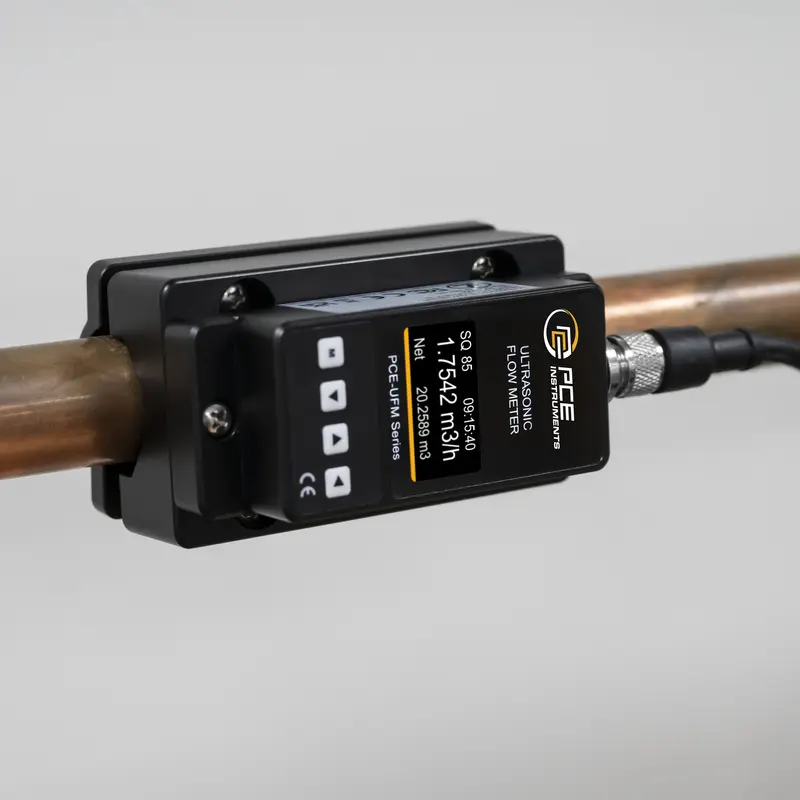

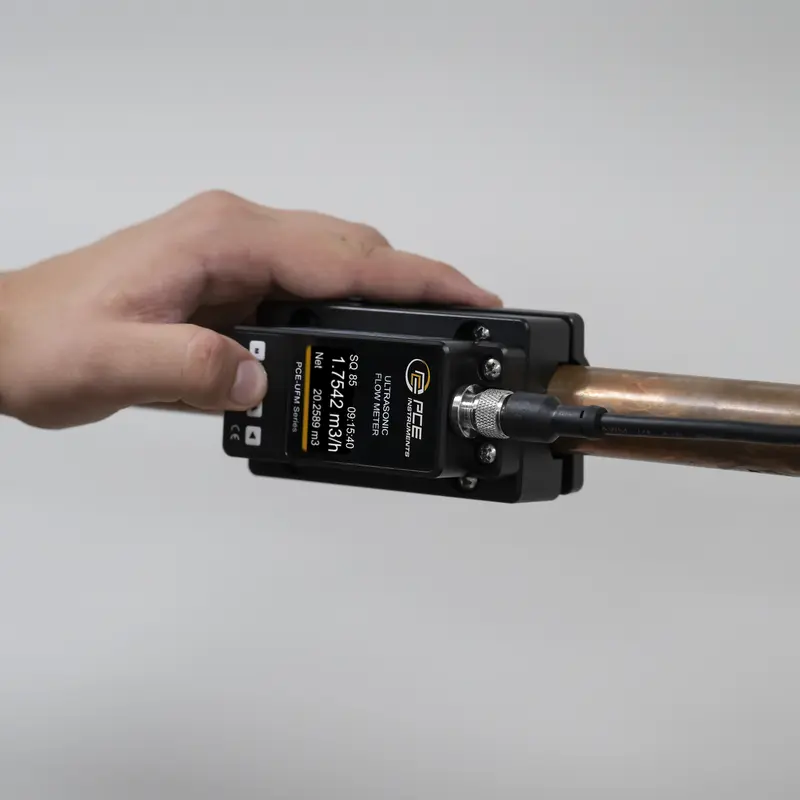

Our ultrasonic flow tester offers the capability to measure flow rates from ±0.1 m/s to ±5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN10 / 3/8" and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe.

The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface.

With a power supply range of 9 ... 36 V DC, the ultrasonic flow tester is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission.

This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.

Highlights

- Measurement Range ±0.1 m/s ... ±5 m/s
- Display of Flow, Volume Flow
- Pipe Size: DN10
- Suitable for Various Pipe Materials and Media
- Analog Output: 4 ... 20mA
- Interface: RS485

Specification


Velocity m/s
Measurement Range0.1 ... 5 m/s
Resolution0.001 m/s
Accuracy2%
Pipe SizeDN10

General Technical Data
Display TypeOLED
Analog Output4 ... 20mA
Data InterfaceRS485
Voltage Supply9 ... 36 V DC
MaterialsPVC, Steel, Stainless Steel, Copper, PVDF (Polyvinylidenfluorid), PFA (Perfluoralkoxy-Polymere), PTFE (Polytetrafluorethylen), PU (Polyurethane), Aluminum
Measuring MediumWater, Seawater, Oil, User-defined (manual input of sound velocity for the medium)
Menu LanguageEnglish
Protection ClassIP54
Weight515 g
Device Weight with Accessories652 g
Device Weight with Accessories and Packaging892 g
Dimensions (L x W x H)110 x 58 x 67 mm
Dimensions including Packaging (L x W x H)210 x 153 x 104 mm
Operating Conditions0 ... 50 °C
Operating Condition r.H.< 95%
Storage Conditions0 ... 50 °C
Storage Conditions r.H.< 95%


Delivery Scope

1 x Ultrasonic Flow Tester PCE-UFM 10
1 x 2m Connection Cable
4 x Coupling Pads
1 x User Manual
