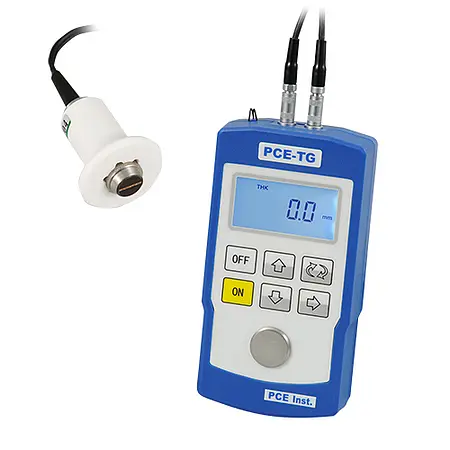

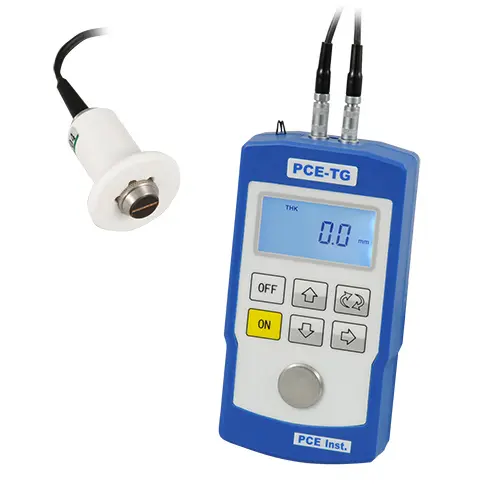

Ultrasonic Thickness Tester PCE-TG 110

Order no.: PCE-TG 110
GTIN (EAN): 4250348701411
US$ 749.00
ex. VAT, ex. delivery costs
:
4250348701411
PCE-TG 110
Available in: 1-2 days
Thickness
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Ultrasonic thickness tester for various materials, such as metals, glass, homogeneous plastics ..., (with external probe for temperatures up to 400°C / 752°F)  (displays in mm only)

The ultrasonic thickness tester PCE-TG 110 is a thickness gauge with external high-temperature probe for ferrous and non-ferrous metals etc. The PCE-TG 110 is an idea ultrasonic thickness tester for water pipes, steam pipes and pipes for chemicals. Too thin wall thickness of a pressure line involves a high risk for employees, and this can be prevented with the thickness meter. If the wall thickness is too thin, the bursting pressure drops considerably. The ultrasonic thickness tester PCE-TG110 is a thickness gauge for various materials, such as metals, glass, homogeneous plastics. The ultrasonic thickness tester is preset with five sound speeds (in memory) for different material.

With the ultrasonic thickness tester, you can determine the material thicknesses of metal, glass, plastics and other homogeneous materials in seconds. The speed of sound can be freely adjusted on the ultrasonic thickness tester and thus adapted to a wide variety of materials. The ultrasonic probe of the ultrasonic thickness tester has a measuring head that can be used at surface temperatures of up to 400°C / 752°F. The measuring head is special coated to ensure maximum protection against skin burns. The ultrasonic thickness tester is delivered calibrated. As an accessory, you can order an ISO laboratory calibration including certificate.


Highlights

- Suitable for homogeneous materials such as metals, glass, ...
- Including special coated 5 MHz probe (usable up to 400°C /  752°F)
- Resolution 0.1 mm (displays in mm only)
- 4-digit LC display
- Easy to use
- Battery status indicator
- Coupling display between probe and test piece
- Automatic calibration when switching on the thickness gauge
- Integrated 3.0 mm steel block for calibration
- Backlight

Specification

Measurement range 2.5 mm ... 200 mm / 0.10 in ... 7.87 in
Measurable materials Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)
Frequency Standard 5 MHz, diameter probe 12 mm / 0.5 in
Resolution 0.1 mm / 3.94 mil
Calibration 3.0 mm / 0.1 in integrated steel block
Accuracy ± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in
± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in
Sound velocity range 1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)
Sound velocity resolution 1 m/s
Display 4 digit LCD display
Surface temperature for probe Standard -10 ... 400°C / 14 ... 752°F
Measuring head shape Straight
Operating temperature range 0 ... 40°C / 32 ... 104°F
Ambient humidity 20 ... 90% r.H.
Battery status Low power indicator
Power supply 2 x 1.5V AA batteries
Battery life 250 h
Auto shutdown For battery conservation (after about 3 minutes without operation)
Dimensions 127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)
Weight 270 g / < 1 lb incl. batteries

Delivery Scope

1 x PCE-TG 110 Ultrasonic Thickness Tester
1 x High-temperature contact transducer with 1 m (3.3 ft) cable
2 x Batteries
1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
