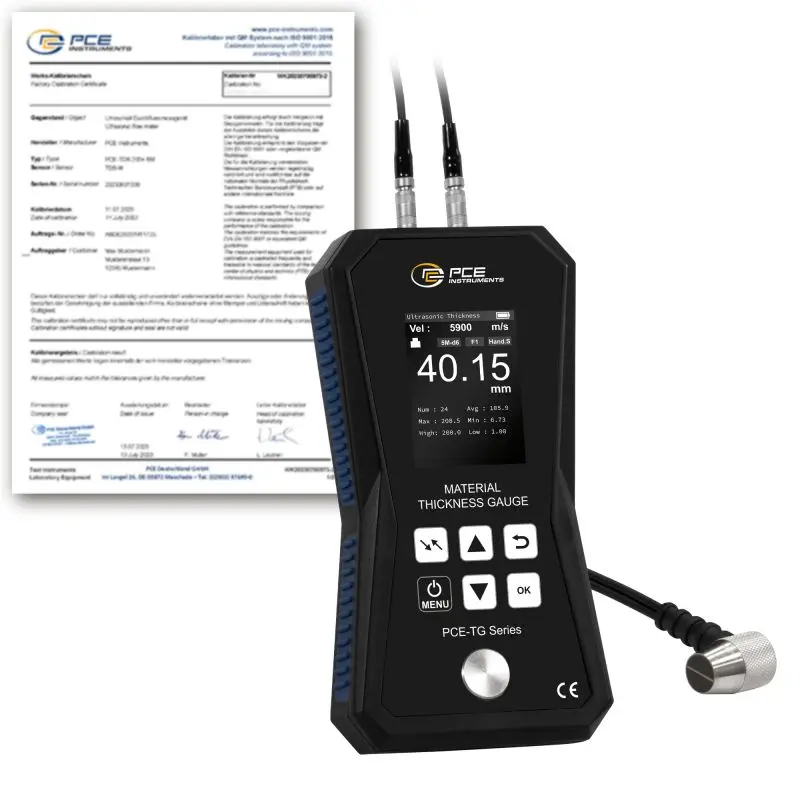

Ultrasonic Thickness Tester PCE-TG 75A-ICA incl. ISO calibration certificate

Order no.: PCE-TG 75A-ICA
GTIN (EAN): 4250348735614

US$ 686.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348735614
PCE-TG 75A-ICA
Available in: up to 10 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Ultrasonic Thickness Gauges with data memory / adjustable sonic velocity / calibration reference mounted on the housing / material thickness measurement up to 225 mm / limit value alarm / optionally with ISO calibration certificate

The ultrasonic thickness gauges can measure material thicknesses up to 225 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the ultrasonic thickness gauges. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the ultrasonic thickness gauges can be used universally.

Individual maximum and minimum values can be stored with the ultrasonic thickness gauges's limit value function. If the measured value of the test specimen is outside the limits, the ultrasonic thickness gauges signals this visually. If required, the ultrasonic thickness gauges can also provide acoustic signalling in addition to the visual display. The ultrasonic thickness gauges is therefore used, for example, in quality assurance and incoming goods inspection.

The ultrasonic thickness gauges has a data memory on which the measured values can be recorded. After a measurement process, the stored measured values can be analysed directly on the ultrasonic thickness gauges. The stored data is displayed graphically by the ultrasonic thickness gauges. In addition, each individual measuring point can be approached and read in the graphic of the ultrasonic thickness gauges. To simplify the analysis of the measured values, the average, the largest and smallest measured values are displayed on the ultrasonic thickness gauges. The ultrasonic thickness gauges can optionally be equipped with an ISO calibration certificate.


Highlights

- Measured value memory
- Calibration reference on housing
- Automatic switch-off
- Material thickness measurement up to 225 mm
- Battery status display
- Optional with ISO calibration certificate

Specification

Material thickness
Measuring range  1 mm ... 99.99 mm
Resolution  0.01 mm
Accuracy  ±0.5 % v. Mw. + 0.05 mm

Material thickness
Measuring range  100 mm ... 225 mm
Resolution  0.1 mm
Accuracy  ±0.5 % v. Mw. + 0.05 mm

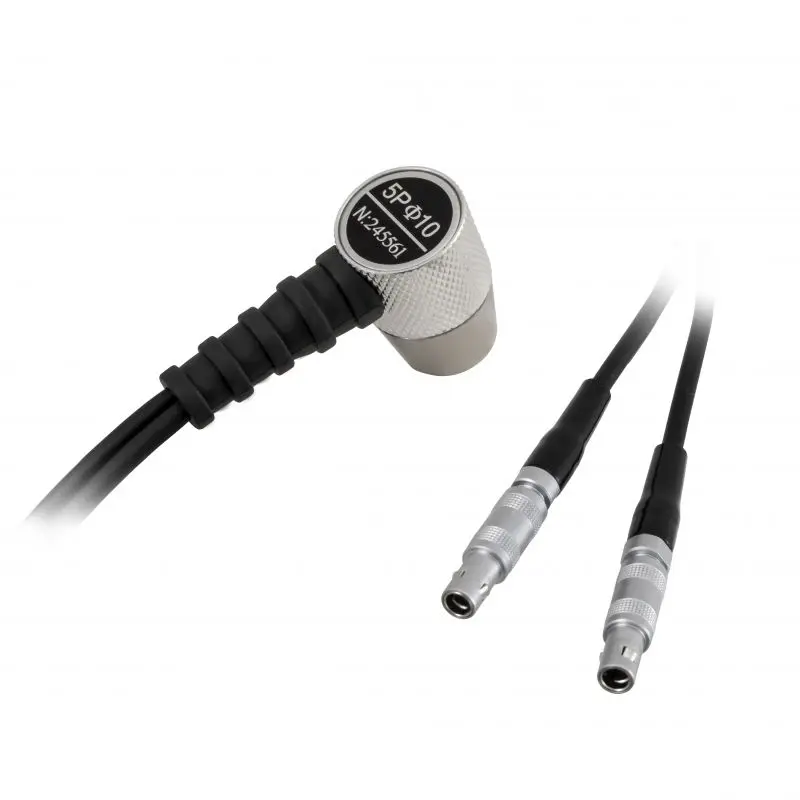

Sensor
Designation  PCE-TG 5M10d
Frequency  5 MHz
Temperature range  -10 ... 60 °C
Measurable materials  Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials
Minimum diameter of pipes  30 mm
Additional description  Standard probe for flat materials
Dimensions  Ø10 mm x 23.4 mm
Weight  39.5 g

General technical data
Units  mm
Display type  TFT colour display
Display size  2.4 inch
Storage medium  Internal memory
Memory capacity  500 values
Automatic switch-off from...to  2 ... 30 min.
Automatic switch-off can be deactivated  Yes
Sonic speed adjustable  1000 ... 9999 m/s
Menu language  English (US), Chinese
Protection class (device)  IP52
Weight  230 g
Dimensions (L x W x H)  168 x 87 x 35 mm
Operating conditions  0 ... 40 °C , 0 ... 90 % r.H
Storage conditions  0 ... 40 °C , 0 ... 90 % r.H
Accumulator/battery  3x 1.5 V AA battery , alkaline-manganese
Capacity  3000 mAh

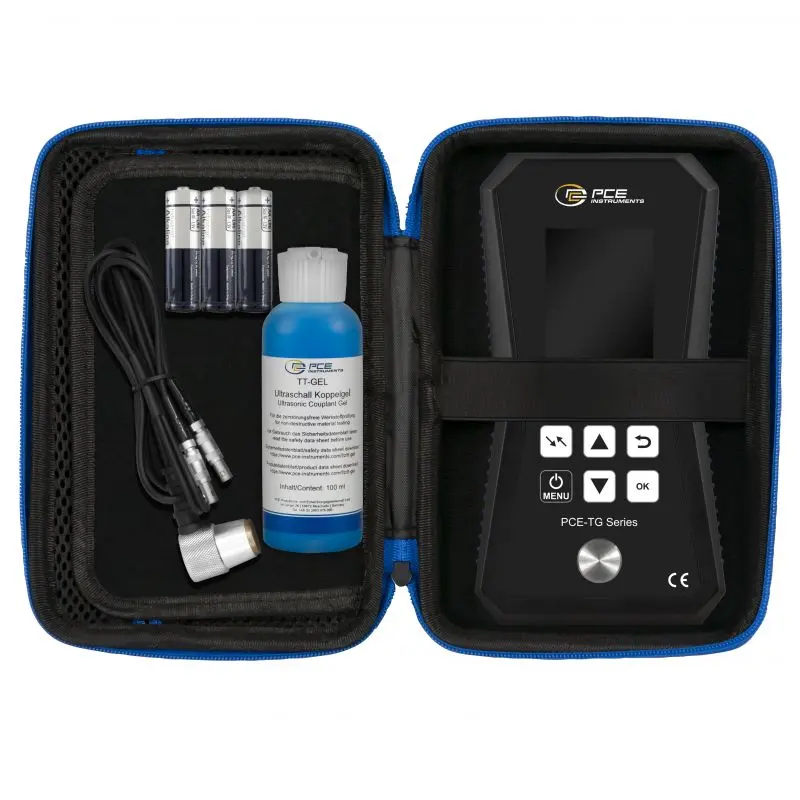

Delivery Scope

1 x PCE-TG 75A-ICA ultrasonic thickness gauges
1 x PCE-TG 5M10d sensor
1 x coupling gel (TT-GEL)
1 x transport bag
3 x 1.5 V AA batteries
1 x quick start guide
1 x ISO calibration certificate
