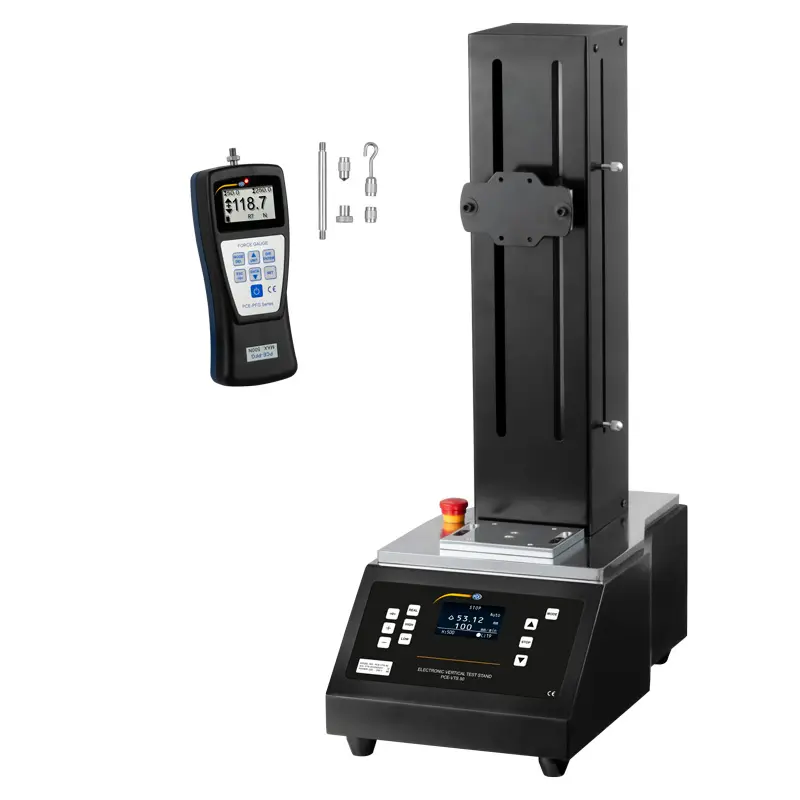

PCE-VTS 50-PFG 500-KIT incl. Force Test Stand and Force Gauge

Order no.: PCE-VTS 50-PFG 500-KIT
GTIN (EAN):
US$ 2,689.00
ex. VAT, ex. delivery costs
PCE-VTS 50-PFG 500-KIT
Available in: 1-2 days
digital
internal
yes
yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

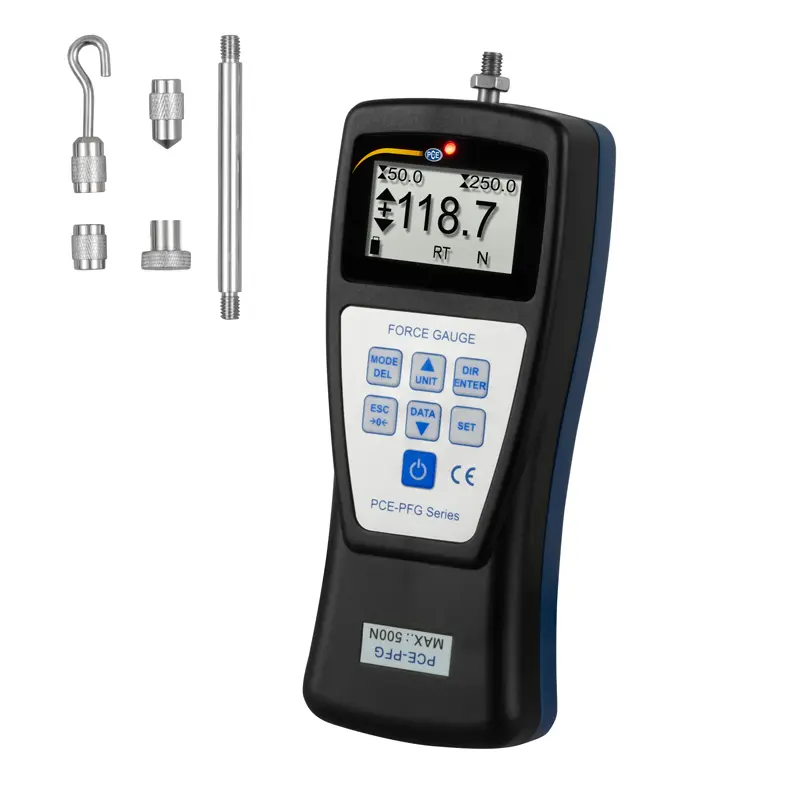

Force gauge PCE-PFG 500
with internal S load cell, graphic display, memory and USB-B interface


The PCE-PFG force gauge is a handy, digital measuring device for measuring tensile and compressive forces. The force measuring device offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (Average) and automatic measurement storage of up to 100 measurements.

The measurement data and a statistical evaluation of the data stored in the force gauge (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC via the USB interface. In addition, the force measuring device offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow / green / red) and switching contacts.

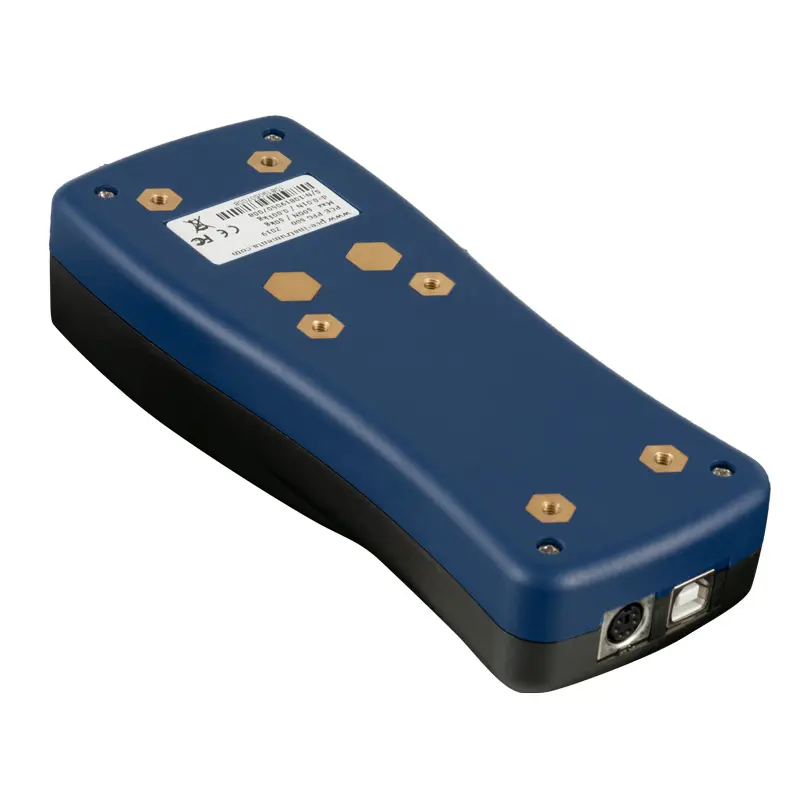

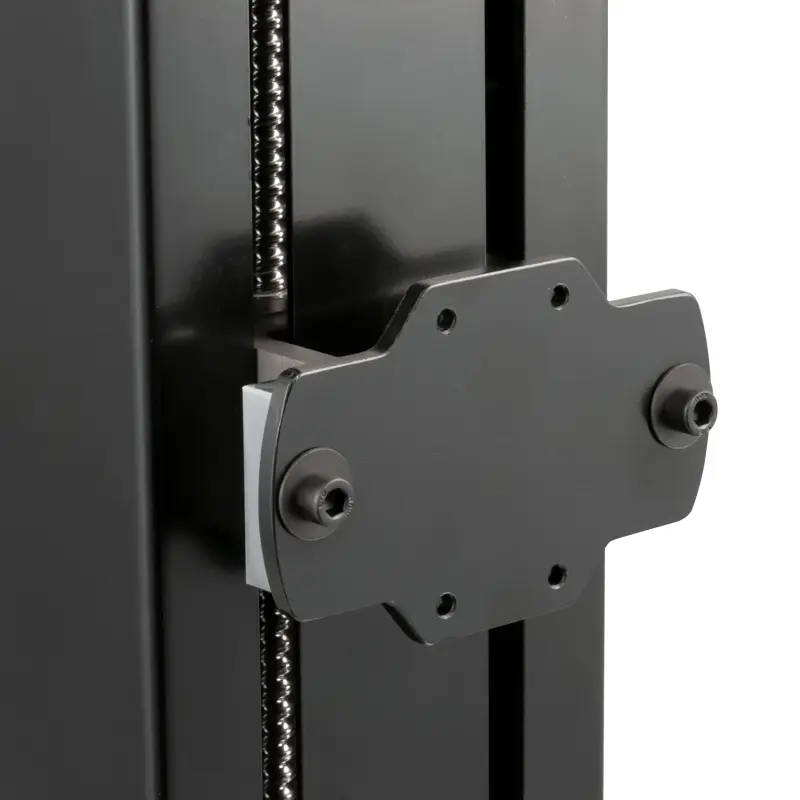

The graphic display can be rotated and the force gauge can be securely attached to a test stand using the M4 threaded holes on the back. The force is introduced into the internally installed load cell via an M6 threaded rod. Various mounting pieces are included in the scope of delivery of the force measuring device. The force measuring device can be operated continuously for up to 36 hours on a single charge (without background lighting) and is a reliable partner as a mobile force measuring device.


Highlights

Force Gauge PCE-PFG 500
- 4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement)
- Internal memory for up to 100 measured values
- Statistics evaluation (MIN / MAX / average)
- Rotatable display
- Alarm function with multi-colored LED (yellow / green / red) and switching contact output 2.85 V.

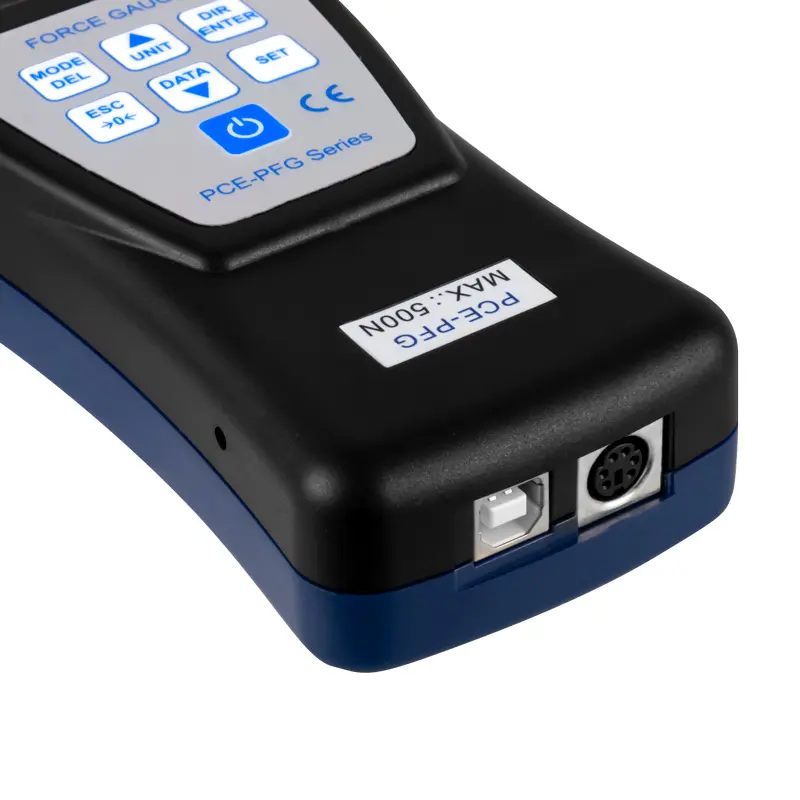

- USB B interface
- Battery life up to 36 hours

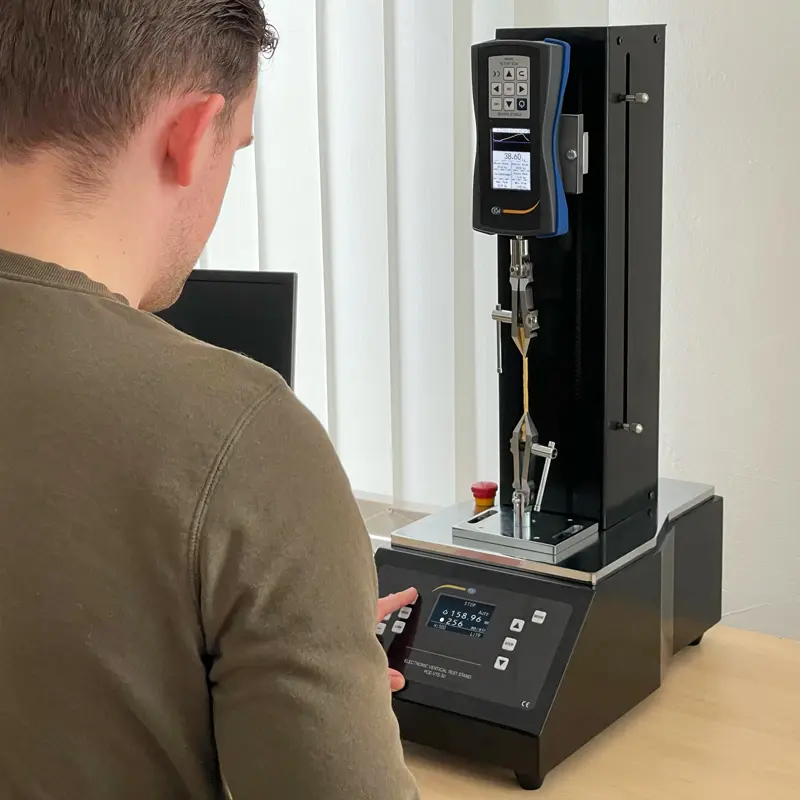

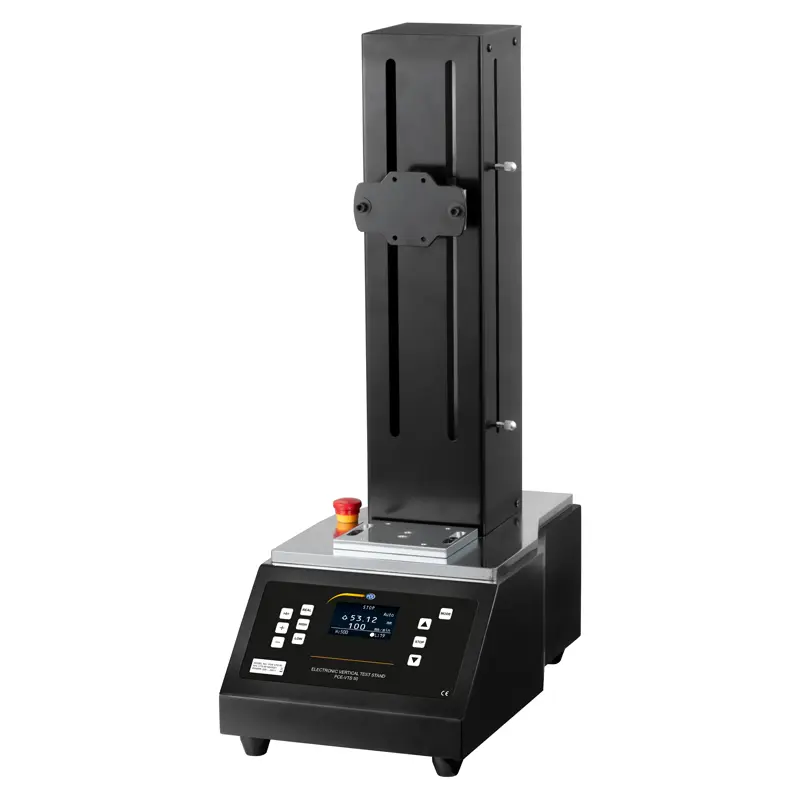

Motorised Force Test Stand PCE-VTS 50

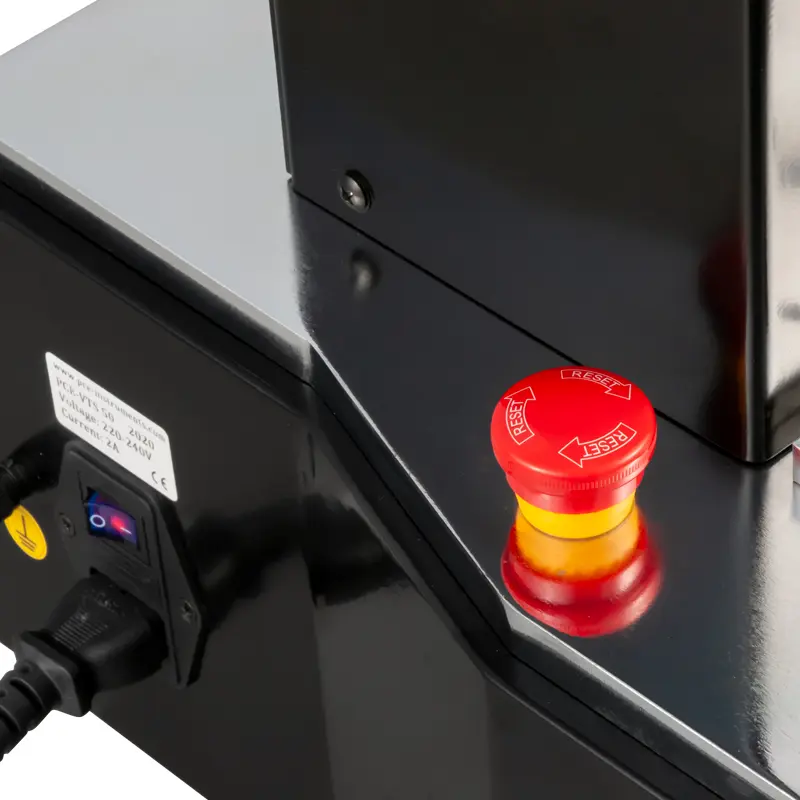

- Emergency stop switch for switching off
- Adjustable limit switches
- Tensile and compression testing
- Automatic and manual mode
- Large travel

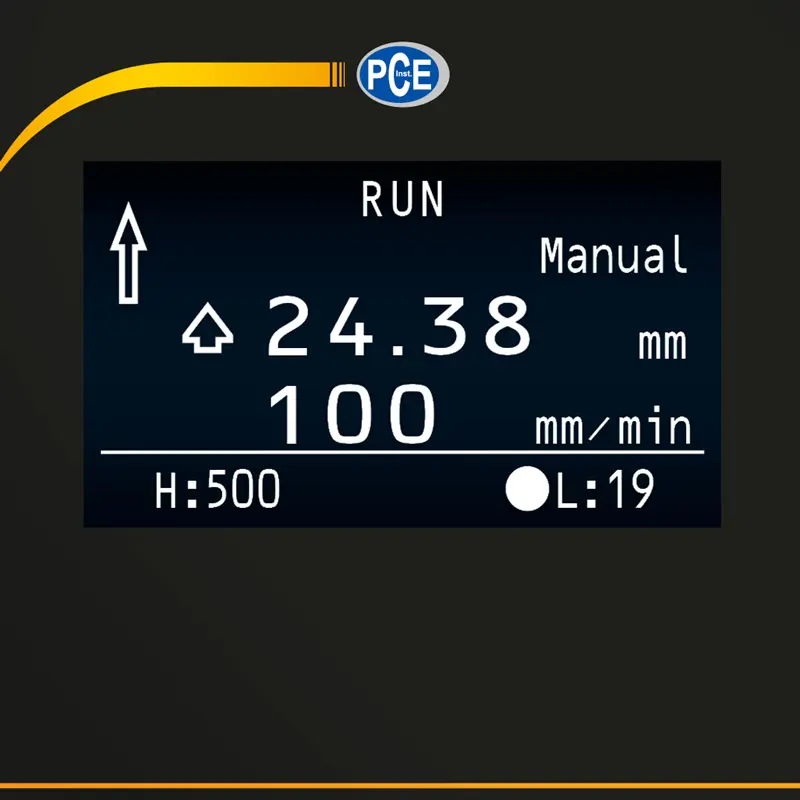

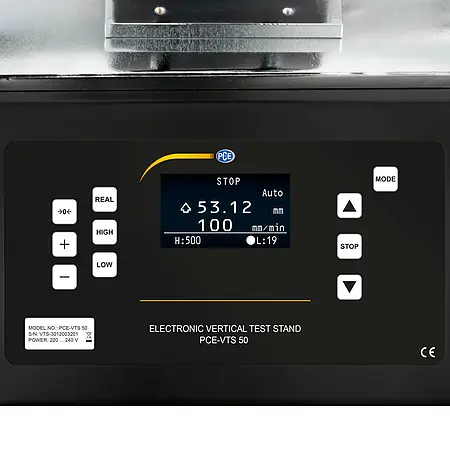

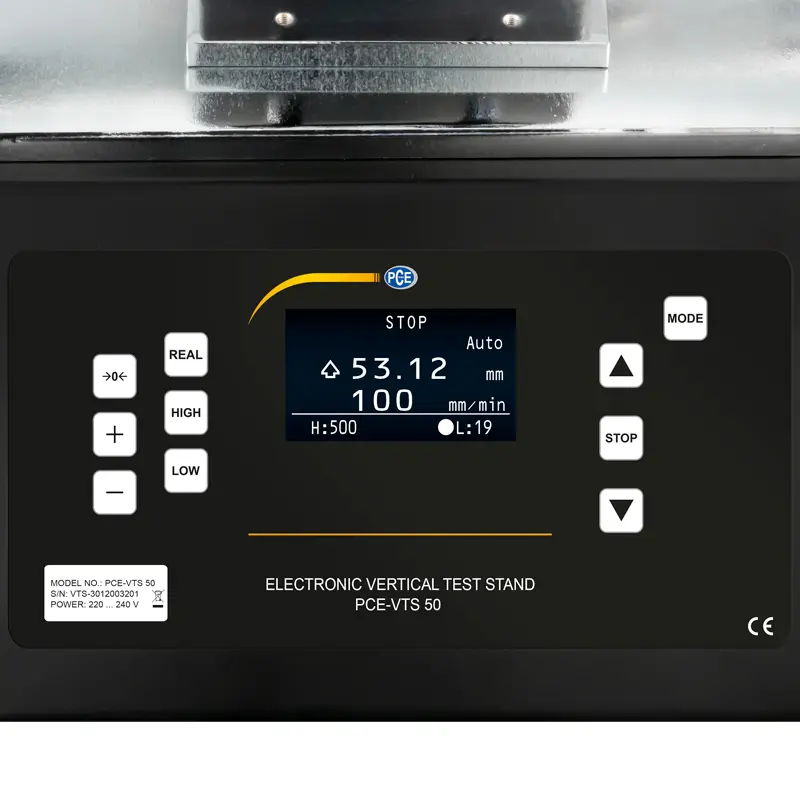

- Travel indication on the display

Specification

Measuring range0 ... 500 N
Resolution
0.1 N
Accuracy
±0.3 % of the measuring range
Measurement units N, kgF, lbF
Display 1.8" graphic display
Alarm modes Below, Inside, Outside
Sampling rate 500 Hz
Memory
100 measurements
Power supply lithium battery 3.7 V / 1500 mAh
Battery life up to 36 hours
Power supply / USB charging adapter 5 V / 1 A
Outputs
interface: USB B
Switching output / alarm modes: MD6 with 2.85 V if active
Protection class IP 54
Operating and storage conditions
5 ... 45 °C
35 ... 65 % r.H. not condensing
Force application M6 x 10 mm thread
Dimensions
189 x 707 x 34 mm
Weight
450 g

Motorised Force Test Stand

Force range 500 N / 50 kg / 110 lb
Distance display resolution   0.02 mm
Travel path 270 mm / 10.6"
Speed 1 ... 500 mm/min
Resolution 1 mm/min
Speed accuracy
2 %
Power supply 220 ... 240 V AC, 1.5 A
Fuse 2 A
Ambient conditions 20 °C ±10 °C, 15 ... 80 % RH
Dimensions 45 x 26 x 68 cm / 17.7 x 10.2 x 26.7"
Weight 35 kg / 77 lb

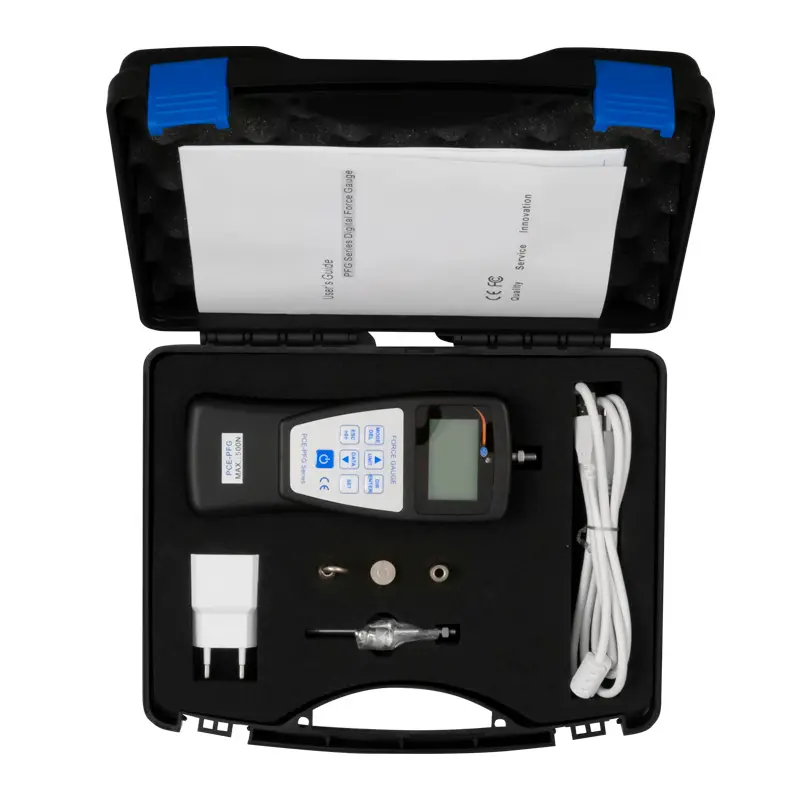

Delivery Scope

1 x Force Gauge PCE-PFG 500

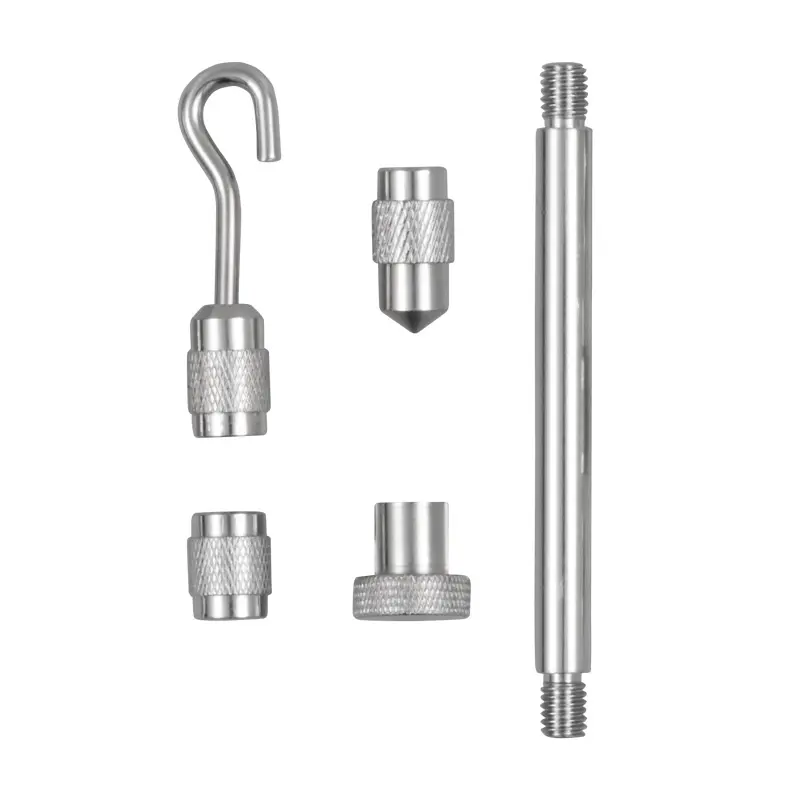

1 x Flat head adapter Ø13 mm
1 x Pointed head adapter
1 x Hook adapter
1 x Extension rod (75 mm)
1 x USB cable
1 x USB charger
1 x Plastic carrying case

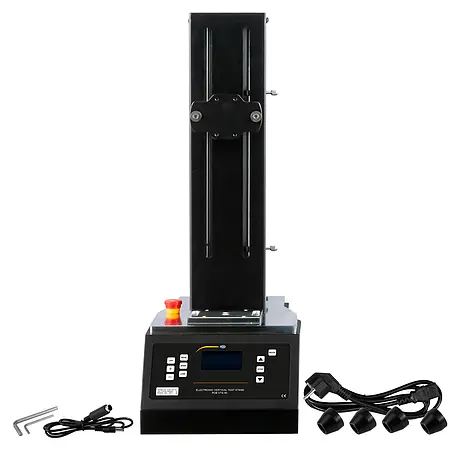

1 x Vertical Force Test Stand PCE-VTS 50
1 x Pulse cable for PCE-PFG series (version 1.0.3 or higher)
4 x Rubber feet
2 x Allen keys
1 x Power cable
1 x Instruction manual
