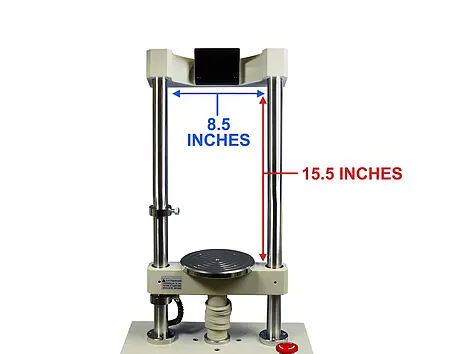

Our motorised test stand can be coupled and operated in a wide range of variants with our force gauges, the PCE series. The motorised test stand allows you to realise almost all your compression and tensile force applications and to perform them with repeatable accuracy. The use of the motorised test stand offers the operator the most precise equality of test stand and specimen.
The maximum force range of the motorised test stand is 500 kg. The use of the motorised test stand requires a power connection. The feed rate is variably adjustable between 30 mm/min and 230 mm/min. The motorised test stand ensures precise and accurate measurements. The force-displacement measuring stand is compatible with the following device series: PCE-FB series, PCE-FM series, PCE-LFG series and the PCE-PTR 200.
Attention: A force gauge must always be ordered as an option for the motorised test stand!

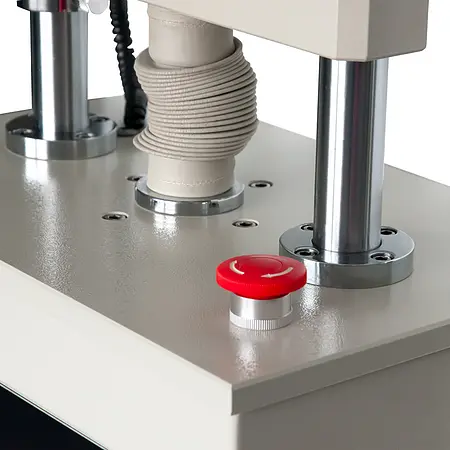

The motorised test stand comes into play wherever the human body reaches its limits in terms of force measurement. The user of the motorised test stand is obliged to carry out a hazard analysis. If this analysis shows that the type of application and the samples pose a risk to the user, a safety device may be required, especially for test frames operated by electric motors.
*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***
Force range | max. 5000 N (500 kg / 1100 lbs) |
Travel distance | max. 300 mm / 11.8" |
Feed rate | 30 ... 230 mm/min / 1.18 ... 9.05 in/min |

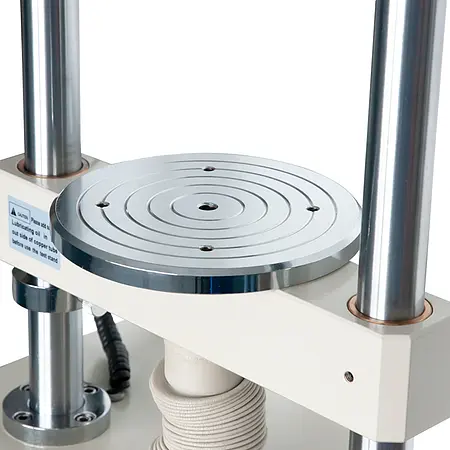

Test table | Ø 160 mm/ 6.3" |
Sample width | max. 200 mm / 7.9" |
Guide columns | Ø 32 mm / 1.3" |
Dimensions | 1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8" |
Weight | ca. 60 kg / 132 lbs |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
ex. VAT, ex. delivery costs
Adapter-stamp for pressure force test of spring and sponge etc.
ex. VAT, ex. delivery costs
Force-displacement adapter is a useful extension to the material test stand in conjunction with a force gauge. This extension allows force-displacement diagrams and curves to be created.
ex. VAT, ex. delivery costs
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.
ex. VAT, ex. delivery costs
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.
ex. VAT, ex. delivery costs
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
ex. VAT, ex. delivery costs
Fork holder for tensile and pressure tests.
ex. VAT, ex. delivery costs
Adapter clamps for tensile testing of wire and filaments.
ex. VAT, ex. delivery costs
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
ex. VAT, ex. delivery costs
Tensioning device for tensile tests.
ex. VAT, ex. delivery costs
Clamping device with large opening width for peel test of block, glass and cardboard.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Set of thrust washers (square) for engine test stand PCE-MTS500.
ex. VAT, ex. delivery costs
Thrust washer set (round) for engine test bench PCE-MTS500.
ex. VAT, ex. delivery costs
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
