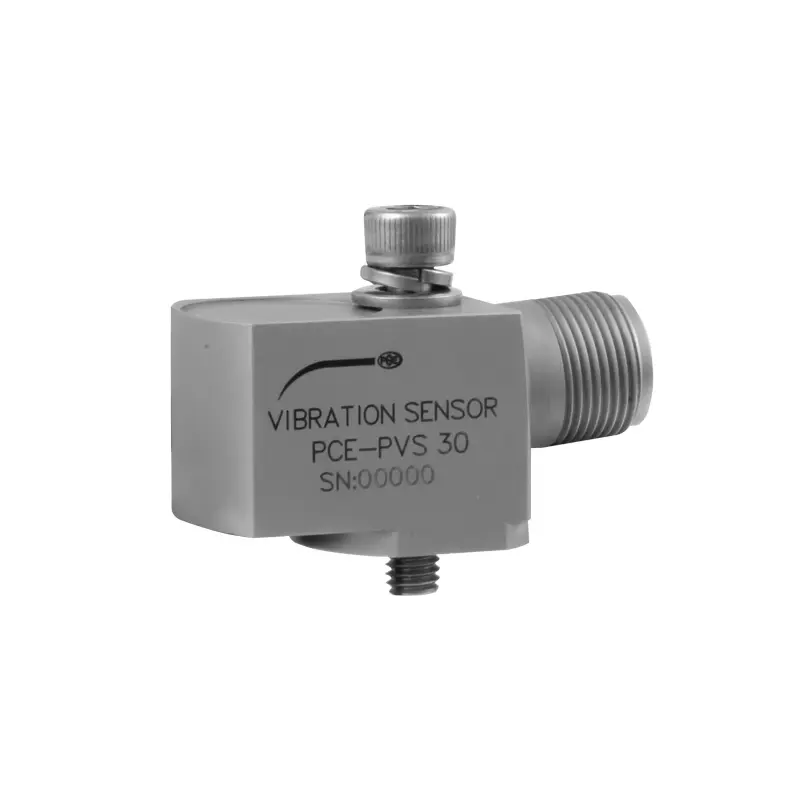

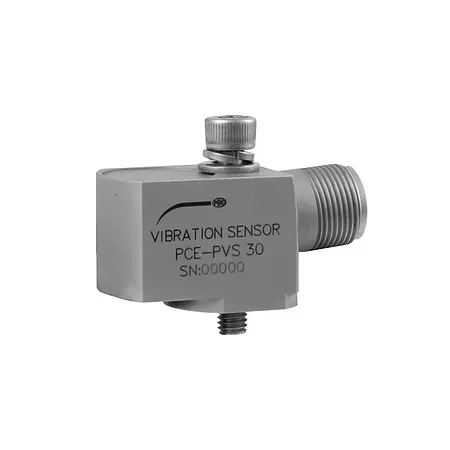

Vibration Analyser PCE-PVS 30

Order no.: PCE-PVS 30
GTIN (EAN): 4250348722607
US$ 721.00
ex. VAT, ex. delivery costs
:
4250348722607
PCE-PVS 30
Available in: 1-2 working days
Machine vibration
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Panel Indicator PCE-DPD-U
Panel Indicator PCE-DPD-U
US$ 237.00
Digital Universal Indicator PCE-N30U
Digital Universal Indicator PCE-N30U
US$ 249.00

Description

Vibration Analyser  for monitoring the vibration speed / 4 ... 20 mA output
MIL-C-5015 connection / 3 ... 1500 Hz bandwidth

The Vibration Analyser has been developed for the continuous monitoring of the vibration speed. The Vibration Analyser is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Analyser measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz.

The measured vibration speed is output as a 4 ... 20 mA process current. The Vibration Analyser is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Analyser can be operated with a voltage of 12 ... 24 V DC.

Highlights

- horizontal or vertical installation
- Process signal output
- MIL-C-5015 connector
- M6 process connection
- different measuring ranges
- robust construction

Specification

Measuring range
± 12.7 mm / s
frequency range3 ... 1500 Hz
output2 conductors 4 ... 20 mA
sensitivity<5%
Shock limit± 1000 g
Power supply12 ... 24 V DC in current loop
Isolation from ground> 108 ohms
Output impedance<100 ohms
designhorizontal connection
Electrical connections     Pin A: + 4 ... 20 mA
 Pin B: - 4 ... 20 mA

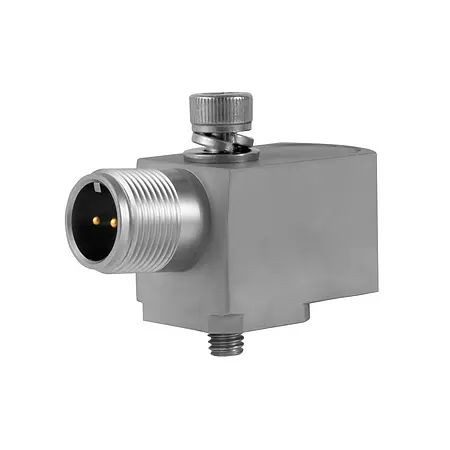

Connection type2 pin MIL-C-5015
operating temperatur-40 ... 85 ° C
DimensionsØ22 x51
Mounting threadM6

Delivery Scope

1 x Vibration Analyser PCE-PVS 30

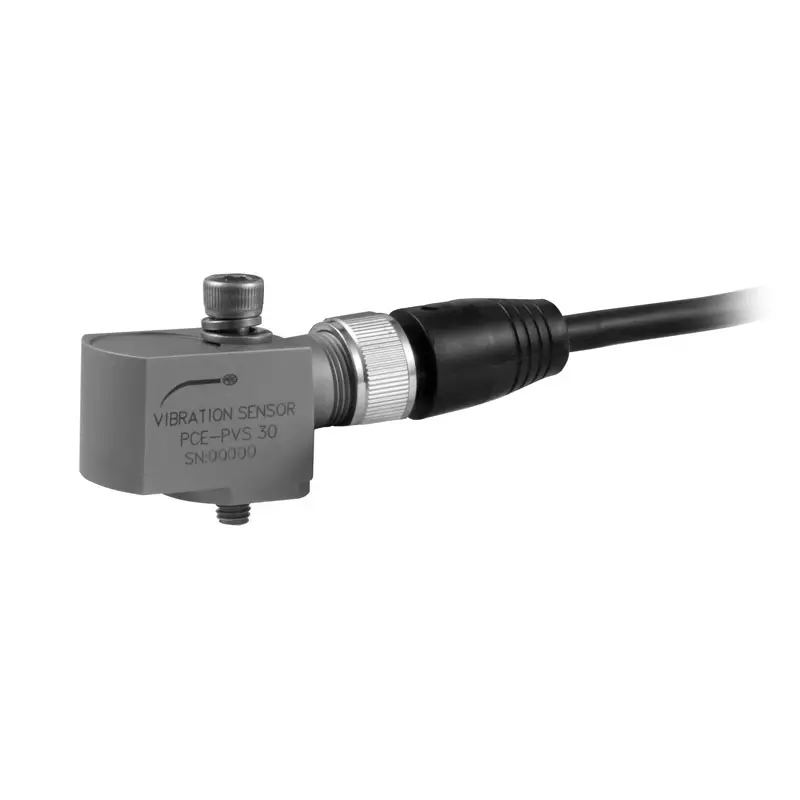

1 x MIL-C 5015 plug to 5 m cable
1 x instruction manual
