Vibration Analyser PCE-S 41

Order no.: PCE-S 41
GTIN (EAN): 4250348701282
US$ 201.00
ex. VAT, ex. delivery costs
:
4250348701282
PCE-S 41
Available in: 1-2 days
Machine vibration
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

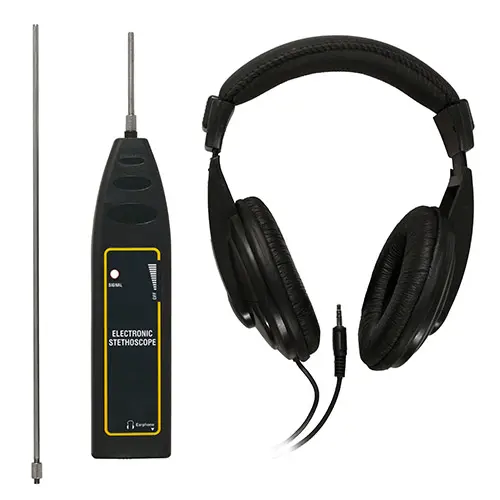

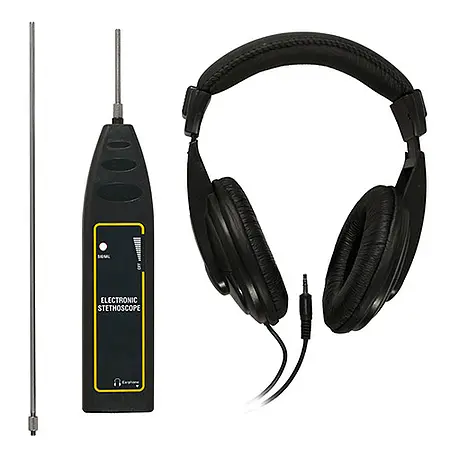

Vibration Analyser for use in machinery maintenance and repair

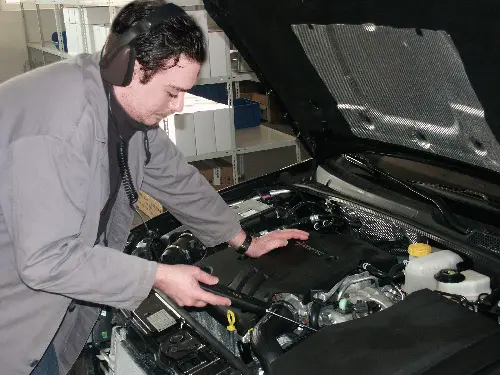

The PCE-S 41 Vibration Analyser is battery powered and easy to use. This Vibration Analyser can be used for detecting noise in machine components, such as gears, valves, vents and pumps. This makes the Vibration Analyser a useful tool in inspecting noise and vibration, giving the maintenance team the chance to locate the source of a problem before it becomes too costly. The enclosure of the Vibration Analyser is made of ABS plastic which is comfortable to hold and operate. The device uses a piezoelectric transducer which can detect very low resonant noises. The earpiece is equipped with an adjustable headset that has a 2 m cable.

Specification

Technical Specifications
Frequency range 100 Hz to 10 kHz
Volume adjustable
Power 9V battery
Enclosure ABS
Operating temperature -10 ... 55 °C / 14 ... 131 °F
Dimensions 206 x 50 x 32 mm / 8.11 x 1.9 x 1.2 in
Sensors (attachable) 1 mm x 290 mm ; 1 mm x 70mm (long)
0.04 in x 11.4 in ; 0.04 in x 2.8 in
Sensor composition Steel
Weight 240 g / 0.53 lbs with battery

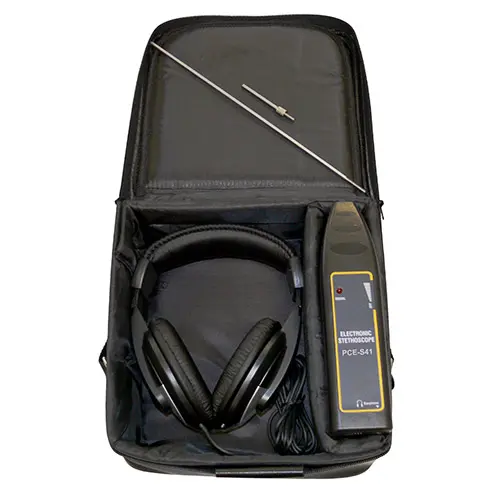

Delivery Scope

Delivery contents
1 x PCE-S 41 HVAC Meter
1 x Headphones
1 x 70mm sensor
1 x 290mm sensor
1 x Battery
1 x Carrying case
1 x User's manual
