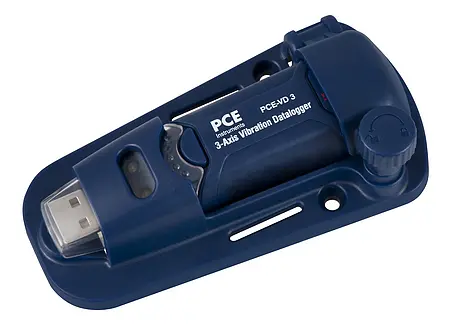

Vibration Analyzer PCE-VD 3-ICA incl. ISO Calibration Certificate

Order no.: PCE-VD 3-ICA
GTIN (EAN): 4250348726971
US$ 443.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348726971
PCE-VD 3-ICA
Available in: 10 - 14 days

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter
ISO Calibration Certificate CAL-V-I for Vibration Meter
US$ 285.00

Description

PCE-VD 3-ICA Vibration Analyzer incl. ISO Calibration Certificate
Measures 3-axis shock / Built-in accelerometer sensor / Logs and stores up to 168,042 records / Adjustable recording interval from 50 ms ... 12 hours / Connects to PC via USB port

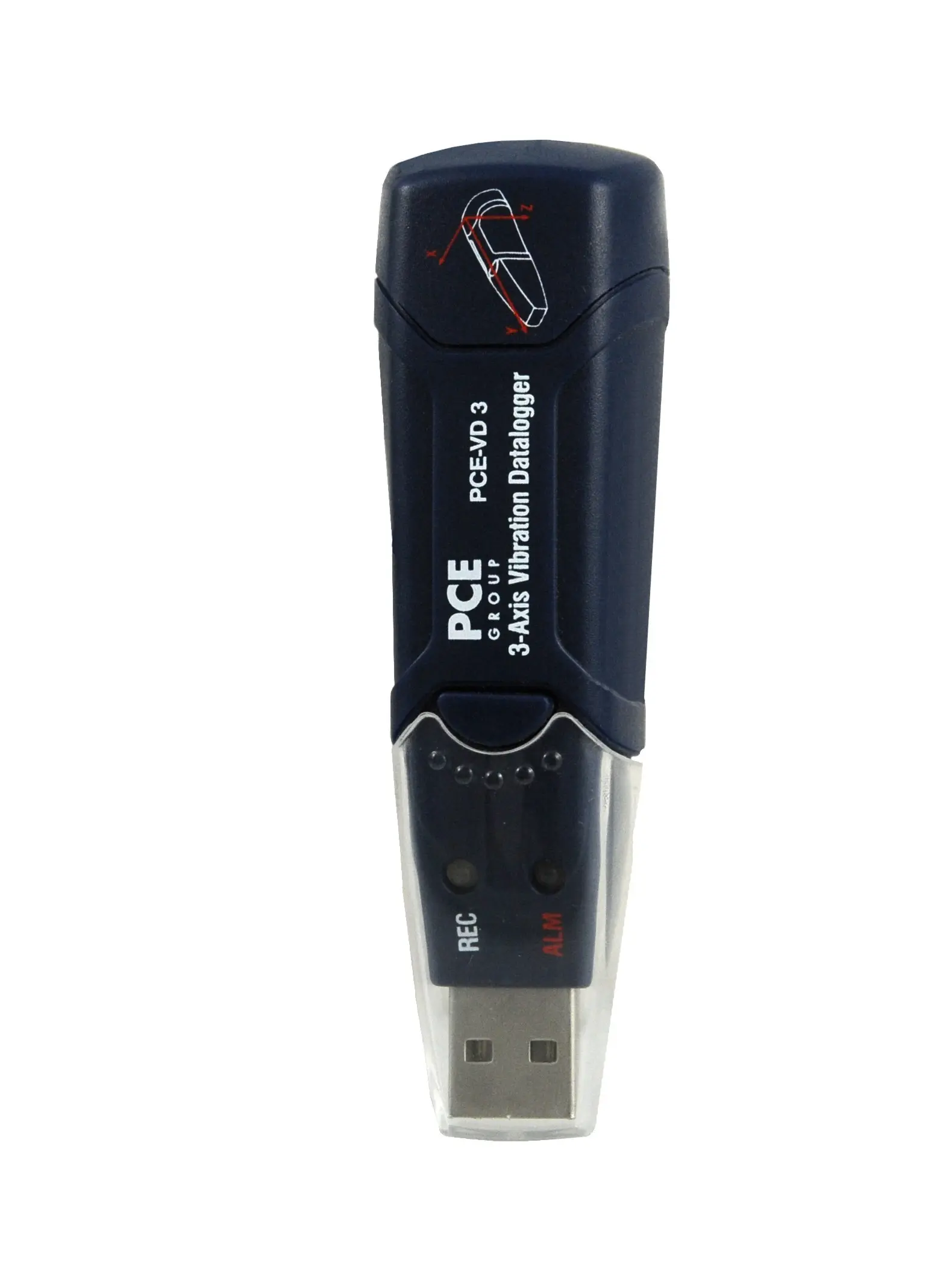

PCE-VD 3 is a vibration analyzer that measures 3-axis shock/vibration via a built-in accelerometer sensor. This vibration data logger records 3-axis acceleration (X, Y, Z) vibration measurement data for Fast Fourier Transform (FFT) waveform analysis. The vibration data logger connects to your PC via a USB port for configuration and for quick and easy data transfer.

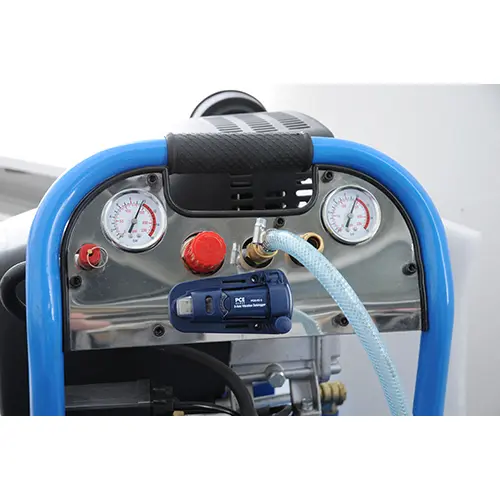

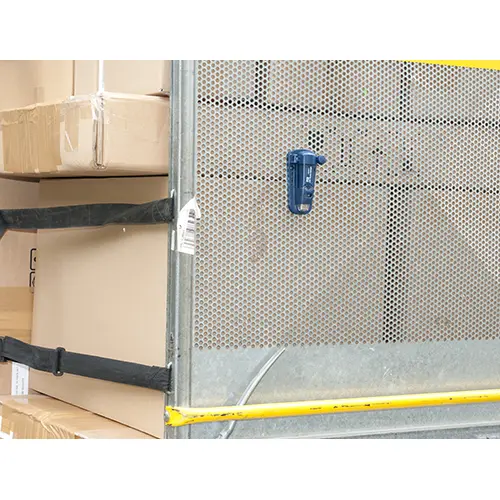

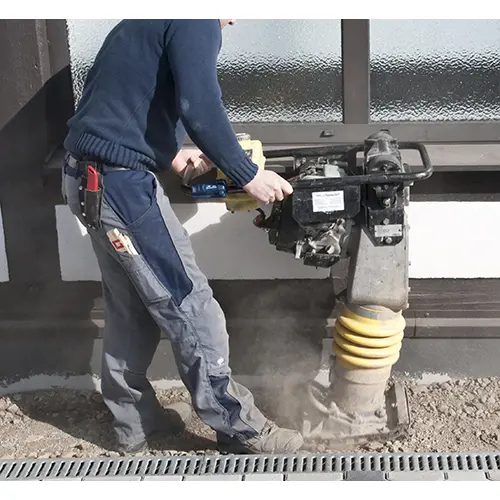

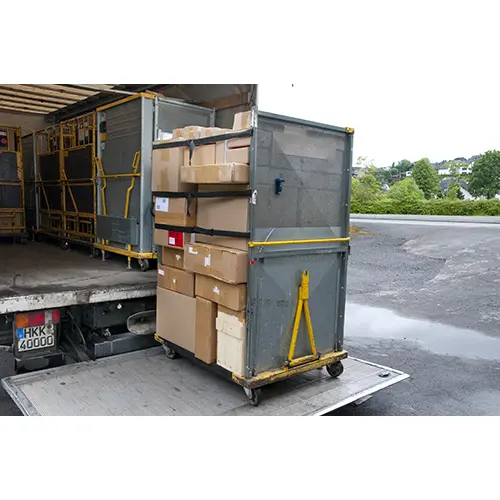

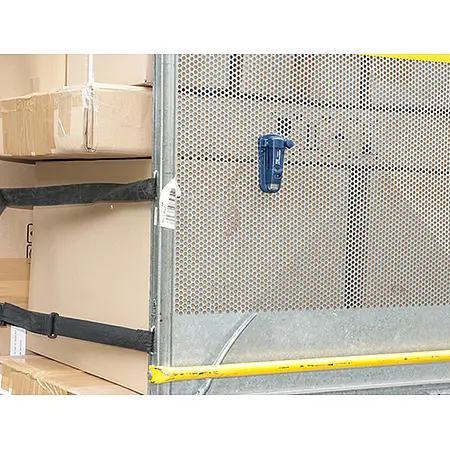

The vibration data logger can be placed almost anywhere due to its lightweight design and magnetic/wall-mounting bracket. The vibration data logger has many practical applications. It can be used for monitoring vibration during shipping, machine operation and more.

Note: The PCE-VD 3 vibration data logger must be configured with a PC before it will operate. Please follow the instructions in the user manual to program the device accordingly.


Highlights

- Measures 3-axis acceleration/shock
- Logs and stores up to 168,042 data records
- Adjustable interval from 50 ms ... 12 hours
- Lightweight design
- Connects to PC via USB port

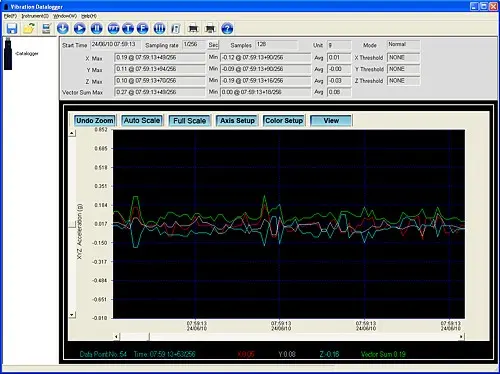

- PC software provided for configuration/data transfer

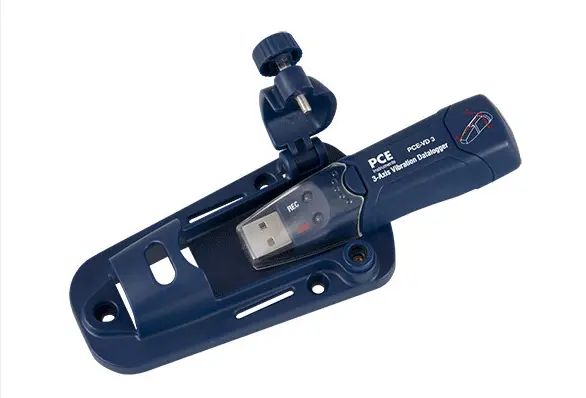

- Includes magnetic bracket with wall-mounting screws
- incl. ISO Calibration Certificate

Specification

Measurement range ±16 g
Accuracy ± 0.5 g
Resolution 0.004 g
Frequency range0 ... 60 Hz
Memory 8 Mbit

normal measuring mode: 168042 records

motion detection: 112028 records
Measurement rate / Record interval
50 ms ... 12 hours
Power supply1 x 3.6 V, 1/2 AA, 14250, battery
Power consumption
ca. 2.8 mA during a measurement

<1.5 µA idle
Battery life
ca. 400 hours
Status display
 via 2 LEDs (recording in progress / alarm)
Interface USB
Operating conditions 0 ... 40 ºC (32 ... 104 ºF), 10 ... 75 % RH non-condensing
Storage conditions -10 ... 60 °C (14 ... 140 °F), 10 ... 90 % RH, non-condensing
Dimensions of device
 95 x 28 x 21 mm / 3.7 x 1.1 x 0.8"
Dimensions of wall bracket 106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3"
Weight
 25 g / 0.88 oz

Delivery Scope

1 x PCE-VD 3-ICA vibration analyzer
1 x battery
1 x PC software
1 x bracket
2 x screws
1 x user manual
1 x ISO Calibration Certificate
