Vibration Analyzer PCE-VT 1100

Order no.: PCE-VT 1100
GTIN (EAN): 4250348714091
US$ 385.00
ex. VAT, ex. delivery costs
:
4250348714091
PCE-VT 1100
Available in: 1-2 working days
Machine vibration
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter
ISO Calibration Certificate CAL-V-I for Vibration Meter
US$ 285.00
Vibration Sensor PCE-VT-NF-45
Vibration Sensor PCE-VT-NF-45
US$ 51.00

Description

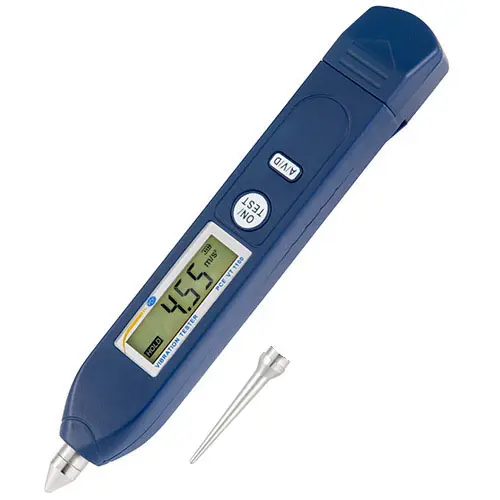

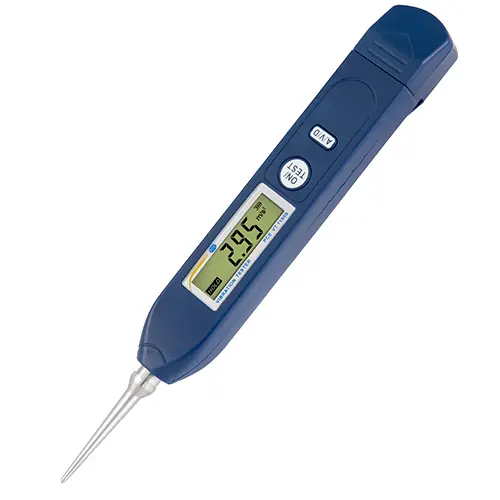

Vibration Analyzer PCE-VT 1100
Vibration analyzer for vibration measurement / Measurement memory for previous measurement / Measurement of acceleration, vibration velocity and displacement /
Large frequency range / Battery-operated hand-held measuring device / Automatic shutdown

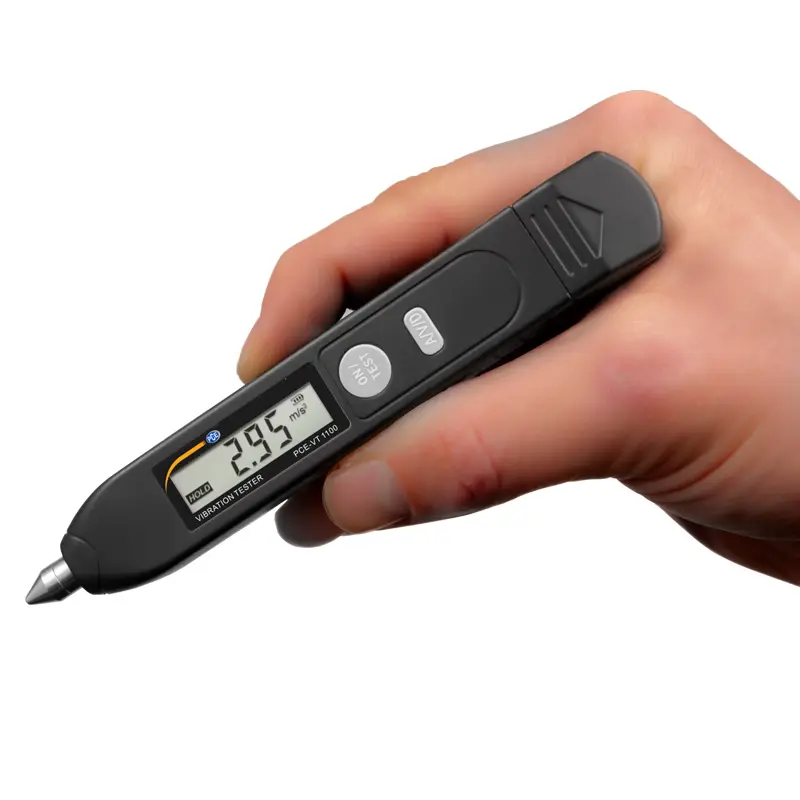

The vibration analyzer is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems. With the help of this vibration analyzer, the actual state can easily be determined on site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can be assessed. Thus, the vibration analyzer serves as a measuring device for a relative measurement on different machines.

The vibration analyzer serves essentially as precautionary or preventive maintenance of production machines. Very often, the vibration analyzer is used to assess the state of smaller electric motors.


Highlights

- Measures speed, distance, acceleration
- Keeps the value after every measurement
- Easy to handle, powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Low battery indicator

Specification

Parameter Measuring Range Frequency Range
Acceleration 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz
Vibration speed 0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz
Displacement 0.001 ... 1.999 mm p-p 10 ... 500 Hz
Measurement accuracy Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
General specifications
Display LCD, Response time approx. 1 second
Power supply 2 x 6 V CR2032 button cell
Battery life about 5 hours (in continuous operation)
Environmental conditions 0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.
Dimensions 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"
Weight ca. 40 g / 1.4 oz (incl. batteries)

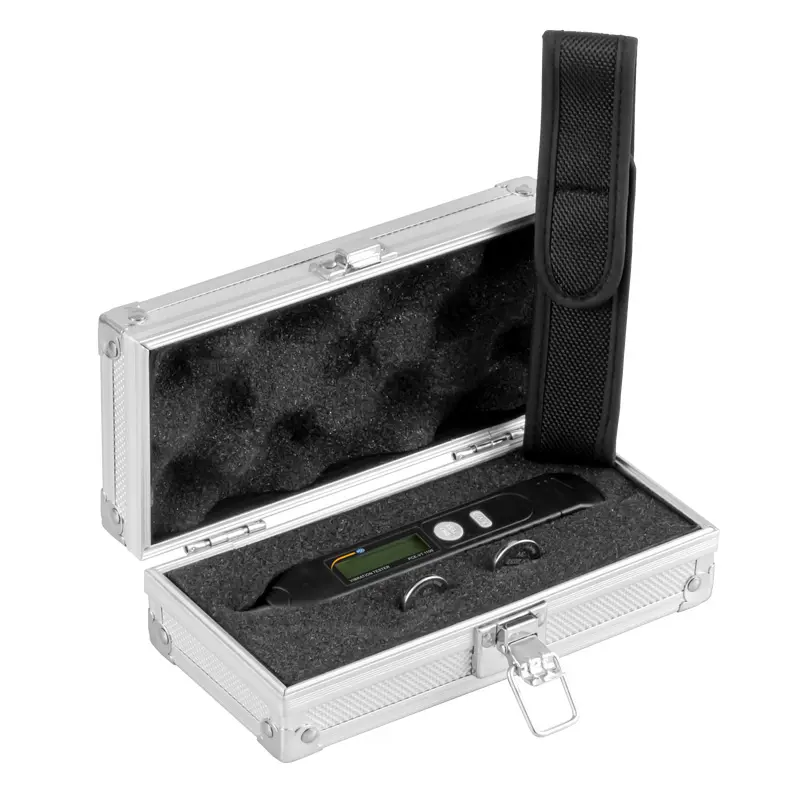

Delivery Scope

1 x Vibration Analyzer PCE-VT 1100
1 x PCE-VT-NF-10 standard probe (length 10mm)
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
