Vibration Analyzer PCE-VT 1100S

Order no.: PCE-VT 1100S

GTIN (EAN): 4250348718365

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter

US$ 285.00

Vibration Sensor PCE-VT-NF-10

US$ 49.00

Description

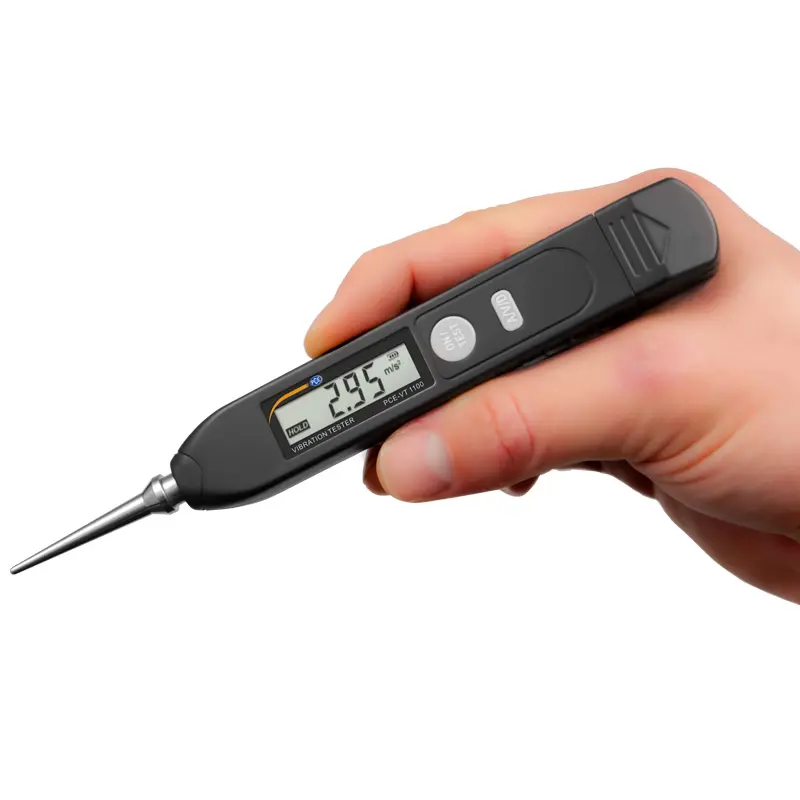

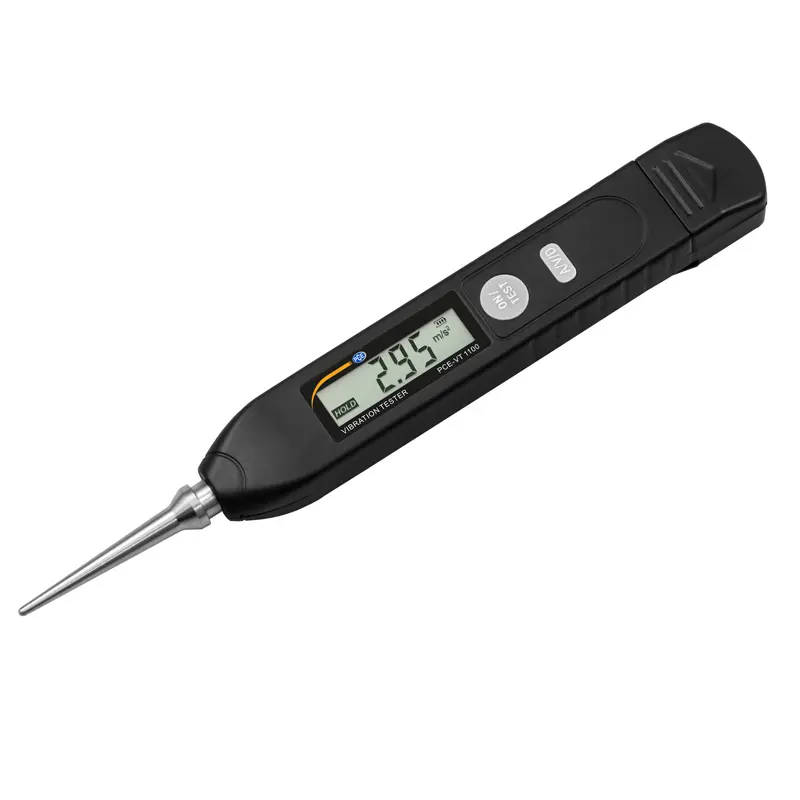

Vibration Analyzer PCE-VT 1100S

Vibration tester for vibration measurement / Measured values memory for previous measurements / Measurement of acceleration, vibration velocity and displacement / Large frequency range / Battery-operated hand-held measuring device / Automatic shutdown

The vibration analyzer is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this vibration analyzer the actual state can easily be determined on-site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the vibration analyzer serves as a measuring device for a relative measurement on different machines.

The vibration analyzer is essentially for precautionary or preventive maintenance of production machines. This vibration analyzer is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the vibration analyzer is also used to assess the status of smaller electric motors.

Highlights

- Measures speed, distance, acceleration
- Keeps the value after every measurement
- Easy to handle and powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Battery level indicator

Specification

Parameter	Measuring Range	Frequency Range
Acceleration	0.01 ... 199.9 m/s² peak	10 Hz ... 1 kHz
Vibration speed	0.01 ... 199.9 mm/s rms	10 Hz ... 1 kHz
Displacement	0.001 ... 1.999 mm p-p	10 ... 500 Hz
Measurement accuracy	Acceleration: ≤ 3 % Vibration speed: ±5 %, ±2 Digits Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
General specifications
Display	LCD, Response time approx. 1 second
Power supply	2 x 6 V CR2032 button cell
Battery life	about 5 hours (in continuous operation)
Environmental conditions	0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.
Dimensions	155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"
Weight	ca. 40 g / 1.4 oz (incl. batteries)

Delivery Scope

1 x Vibration analyzer PCE-VT 1100S
1 x PCE-VT-NF-45 needle probe (length 45mm / 1.77")
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
