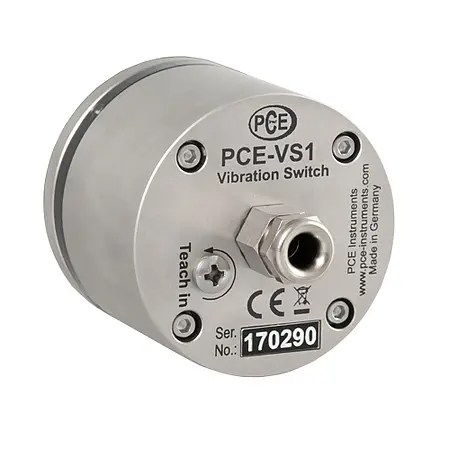

PCE-VS10 Vibration Analyzer Sensor Switch
Setup via USB and PC / Includes software for detailed vibration analysis
PCE-VS10 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS and peak value of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features a red and green visual warning or alarm with programmable high pass and low pass filters.
- Ideal for machine condition monitoring and quality control applications
- Measures RMS and peak value of vibration velocity or acceleration
- Piezoelectric accelerometer
- IP67 ingress protection rating against water and dust

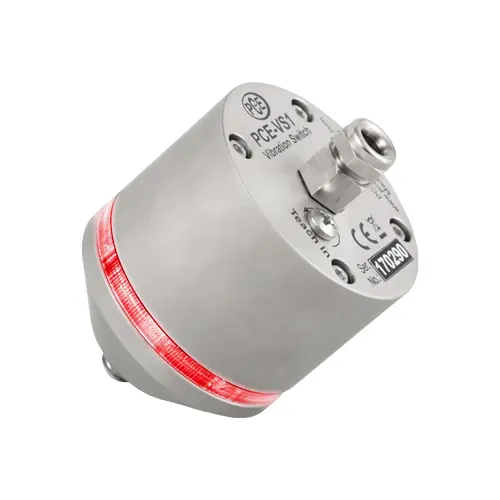

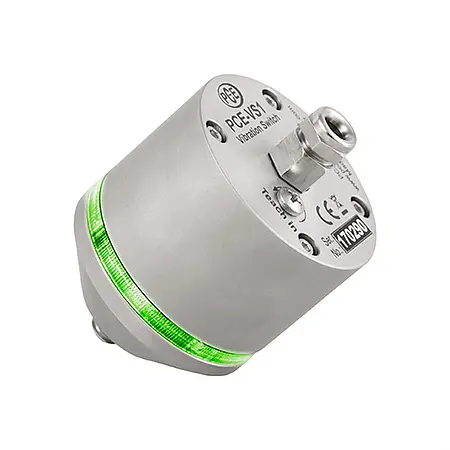

- Features a red and green visual warning or alarm
- Programmable high pass and low pass filters
- Emergency shut-off
- Setup via USB and PC

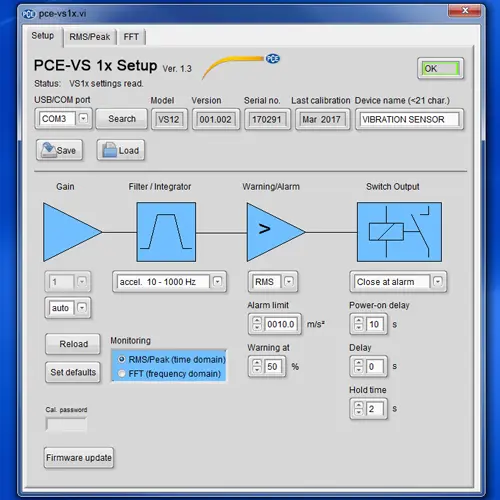

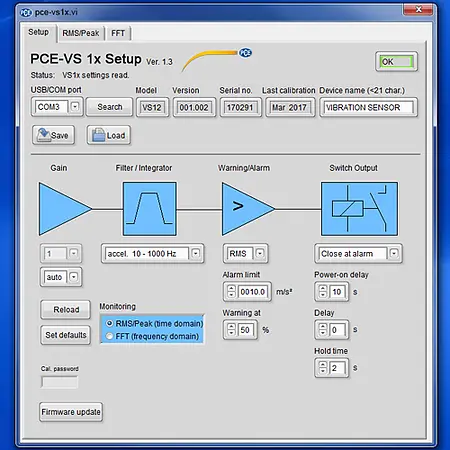

- Includes software for detailed vibration analysis
| Measuring range | 0.1 ... 1000 m/s² acceleration Frequency dependent velocity |
| Monitoring values | Peak value of vibration acceleration or vibration velocity RMS value of vibration acceleration or vibration velocity |
| High pass filter | 0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration 2 / 5 / 10 / 20 / 50 Hz velocity |
| Low pass filter | 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration 1 kHz velocity |
| Relay output | PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via screw terminals |
| Teach-in function Warning / alarm Alarm delay / hold time |
Button for measuring the switching threshold Green and red LEDs 0 ... 99 s / 0 ... 9 s |
| Interfaces | USB 2.0 full speed for parameterization and measurement CDC mode / virtual COM port Micro USB port inside |
| External USB port Power supply voltage |
No 5 ... 30 V DC 5 V DC USB < 100 mA screw terminals |
| Ingress protection | IP67 rating |
| Operating temp. range | -40 ... +80 °C / -40 ... +176 °F |
| Approx. weight | 160 g / 0.36 lb |
| Approx. dimensions | 50 mm / 1.97" Ø 52 mm / 2.05" height |

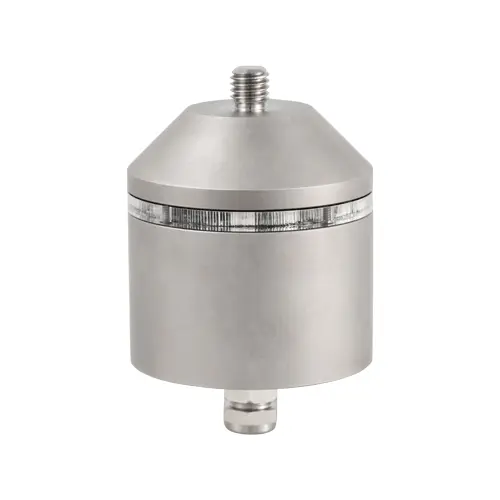

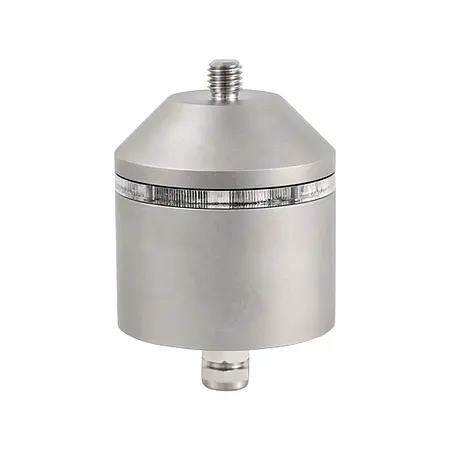

| Mounting | M8 thread pin 8 mm / ≈ 0.32" length 25 mm / ≈ 0.99" Ø coupling surface |
