Accelerometer
display and storage of acceleration, speed and displacement measurement of vibrations /

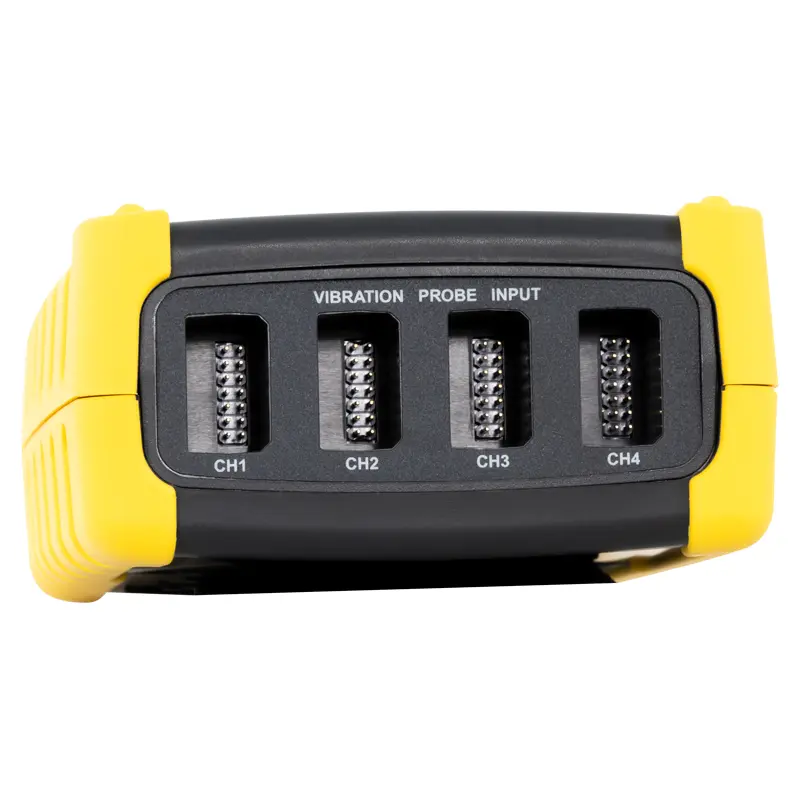

4-channel vibration Accelerometer indicates 4 channels of

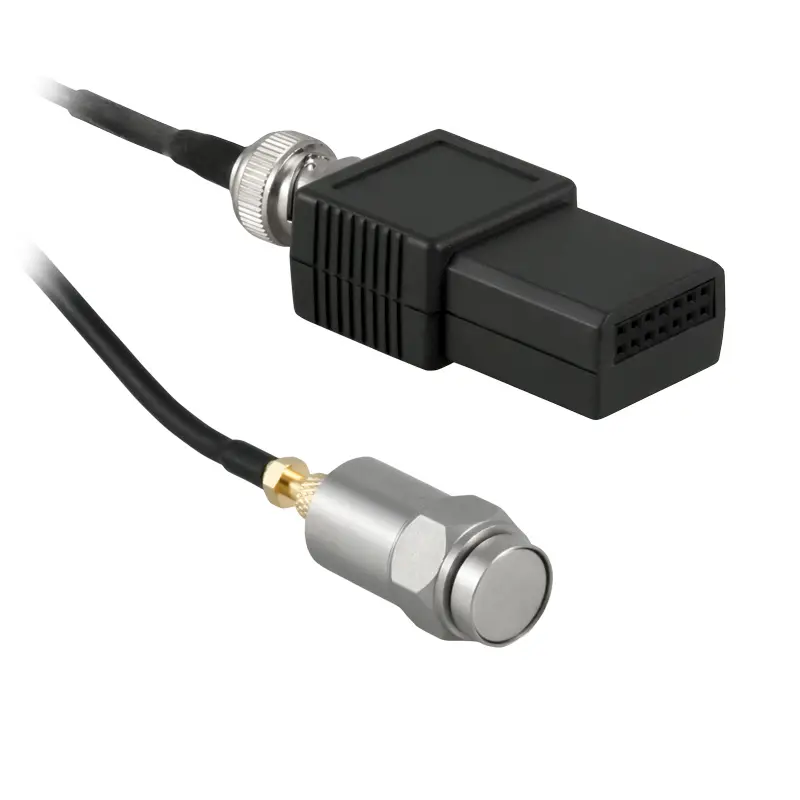

simultaneous Accelerometering through remote vibration sensors

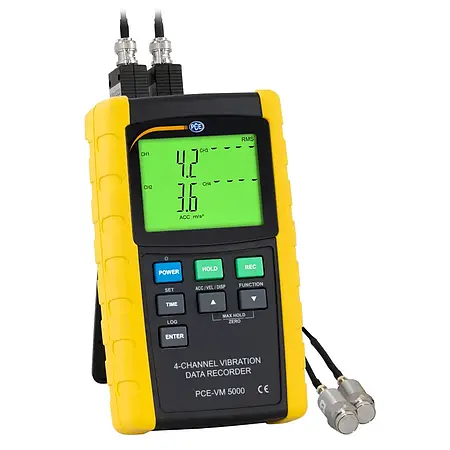

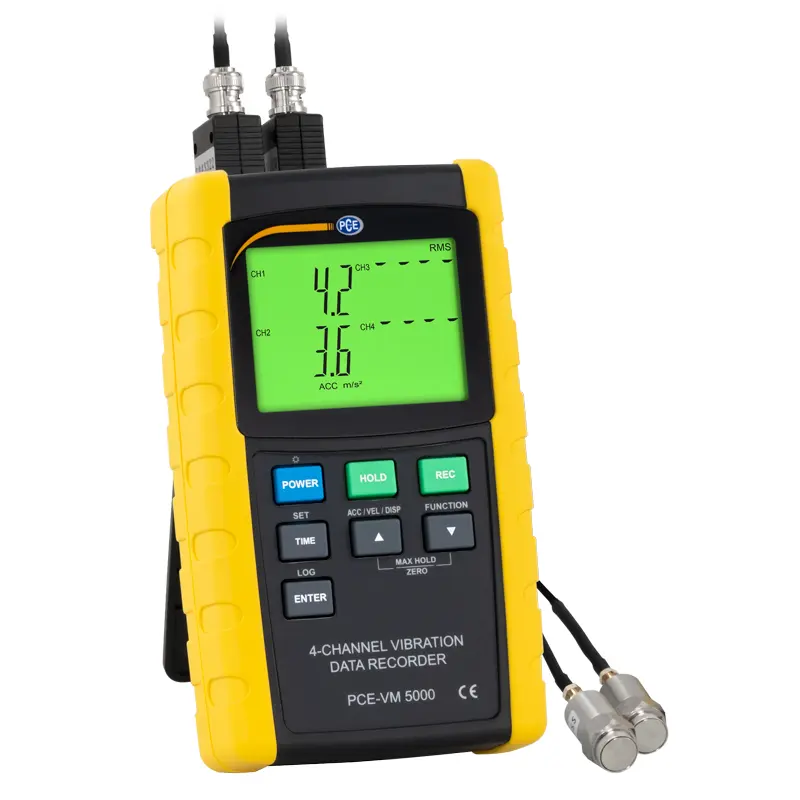

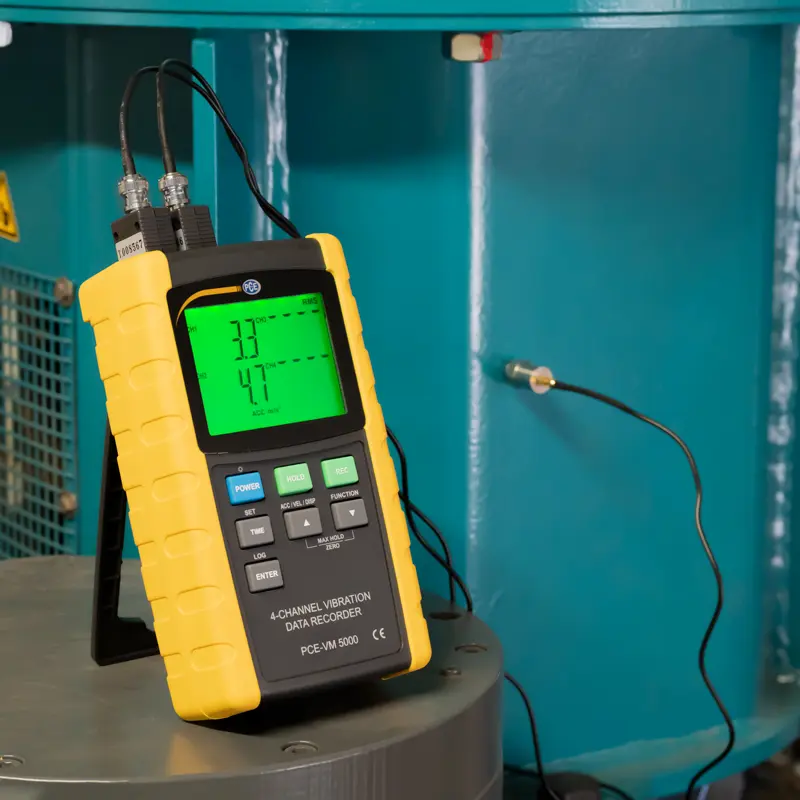

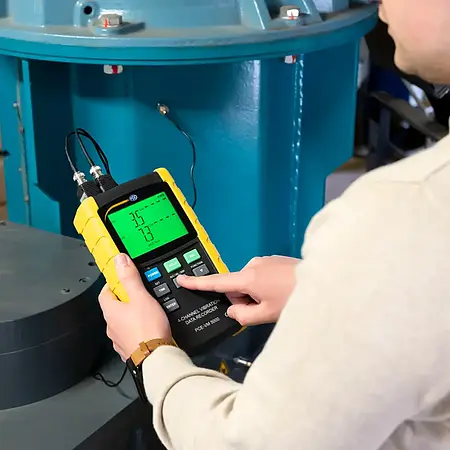

The 4-channel PCE-VM 5000 Accelerometer is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Accelerometer is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Accelerometer indicates a large, lighted LCD display for four channels of simultaneous vibration measurements from remote vibration sensors. The Accelerometer measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement.

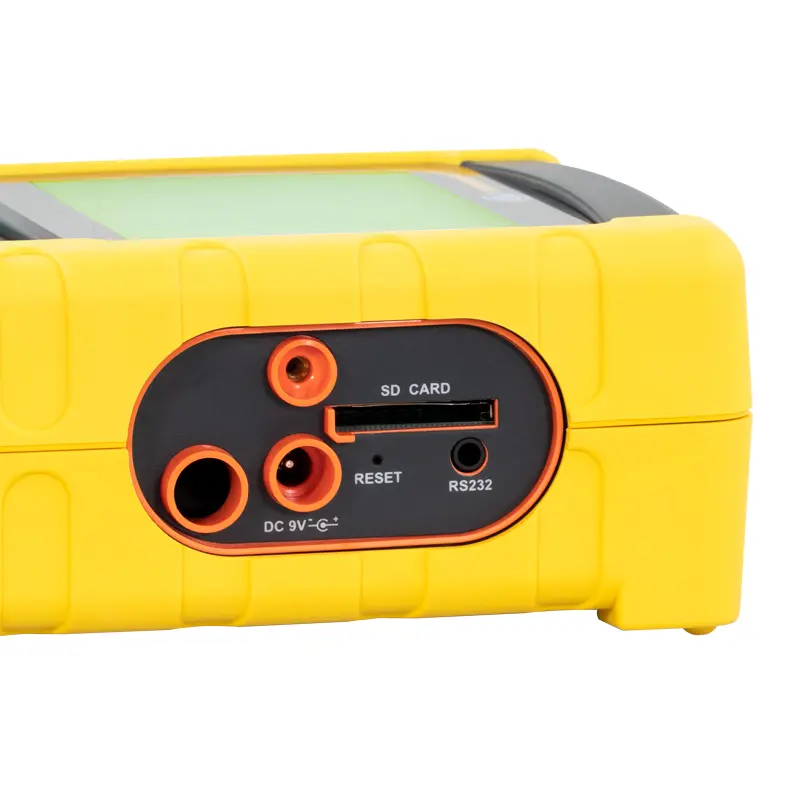

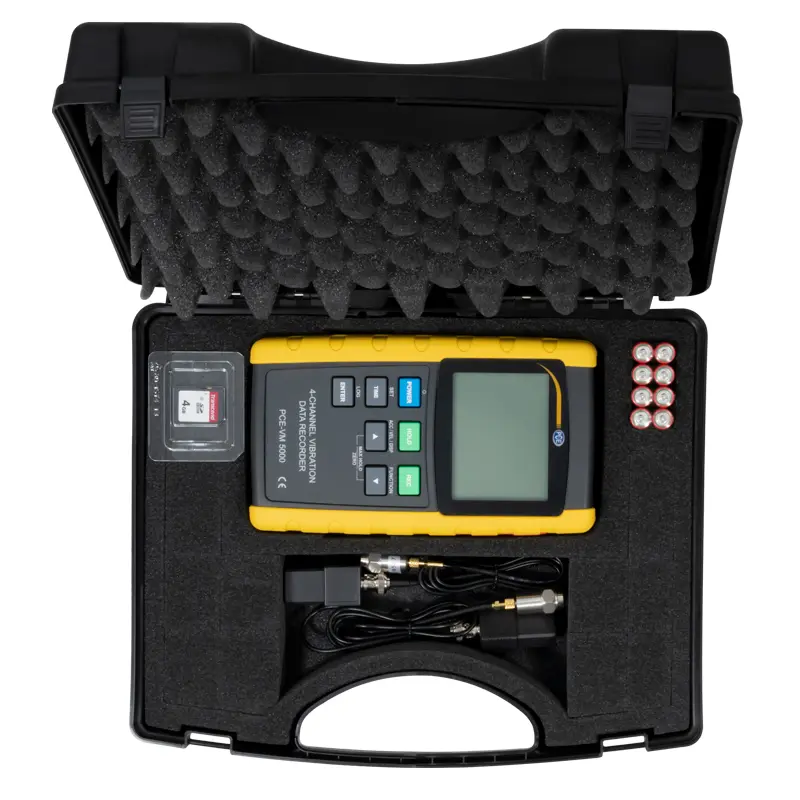

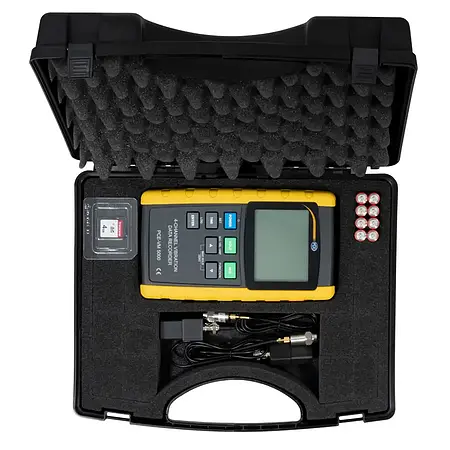

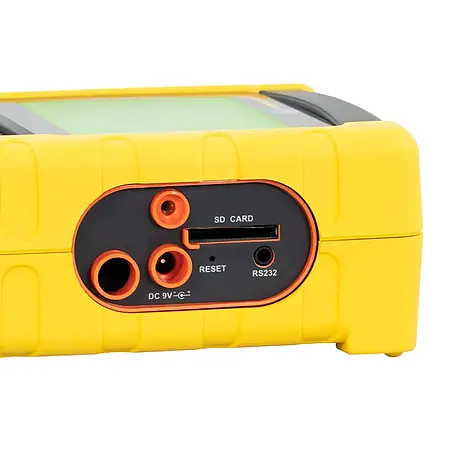

The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Accelerometer you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be choosen.
