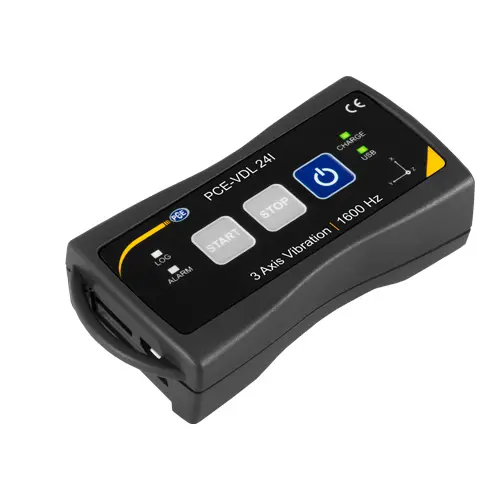

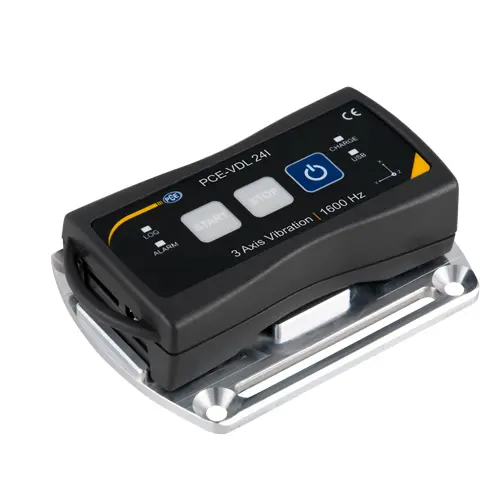

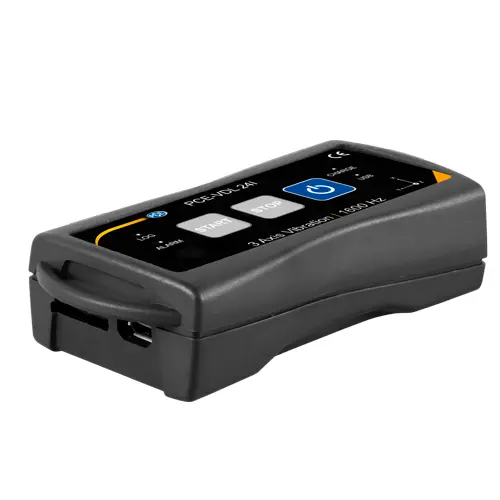

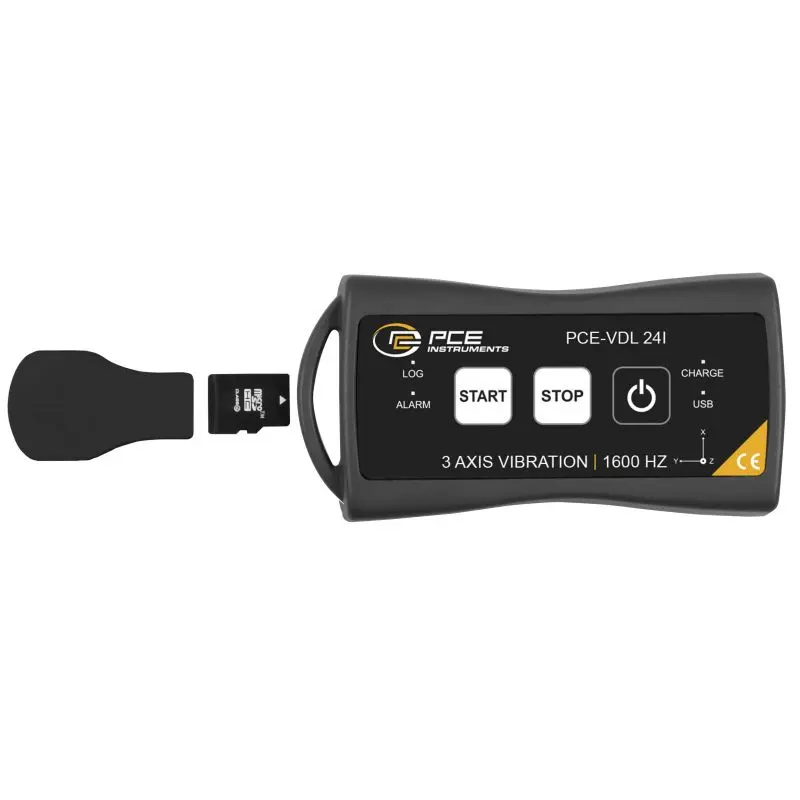

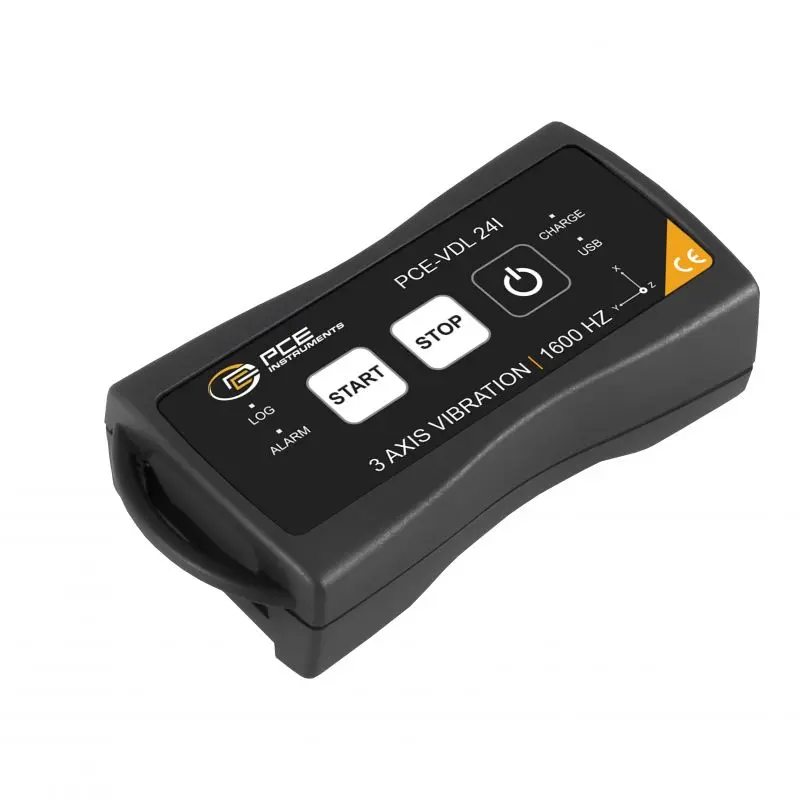

The vibration recorders of the PCE-VDL series are available in two versions. The vibration meter PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The PCE-VDL 24I has 3-axis acceleration and the max. sampling rate of the acceleration sensor is 1600 Hz.
With the vibration meter PCE-VDL 24I the acceleration sensor is even delivered with a sampling rate of 1600 Hz. The shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
| 3-Axis Acceleration Measured Variable | |
| Measuring range | ±16 g |
| Accuracy | ±0.24 g |
| Measurement / storage rate | 1 Hz ... 1600 Hz |
| General Technical Data of the 3-Axis Accelerometer | |

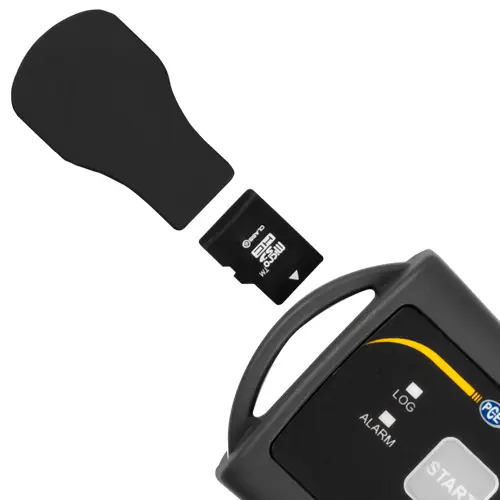

Storage capacity |

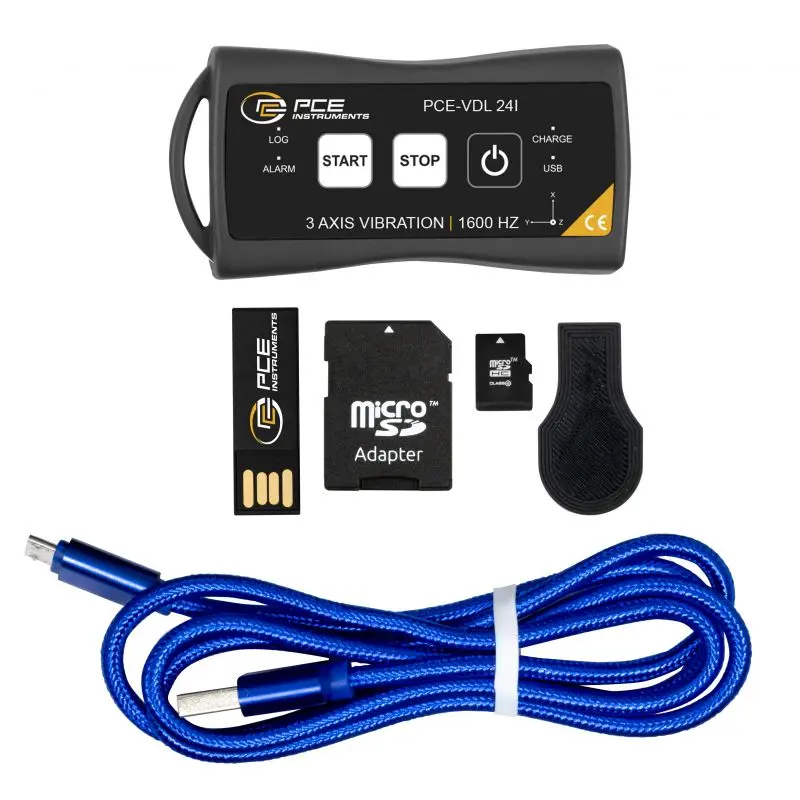

2.5 million measured values per measurement, 3.2 billion measured values with the enclosed 32 GB microSD memory card |
Button |
Start / stop of a measurement; On or off switch of the data logger |
LED |
Log: operating status |
Power supply |
Integrated Li-Ion battery 3.7 V / 500 mAh |
Integrated sensors |
3-axis acceleration |

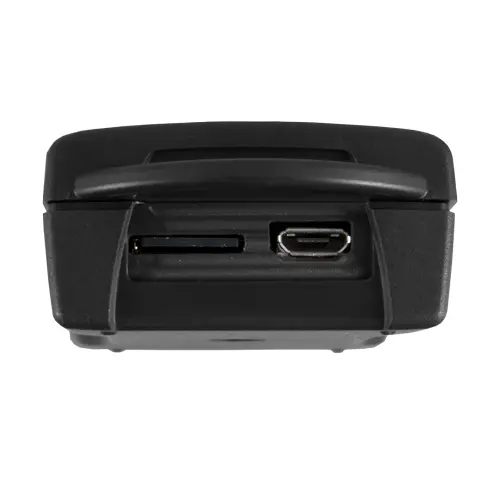

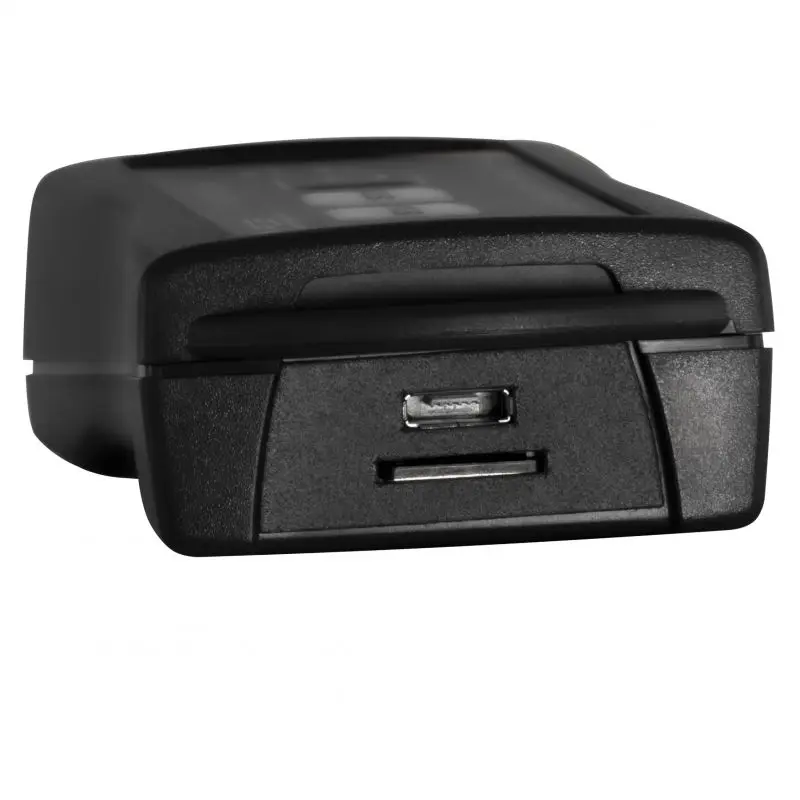

Interface |
USB |

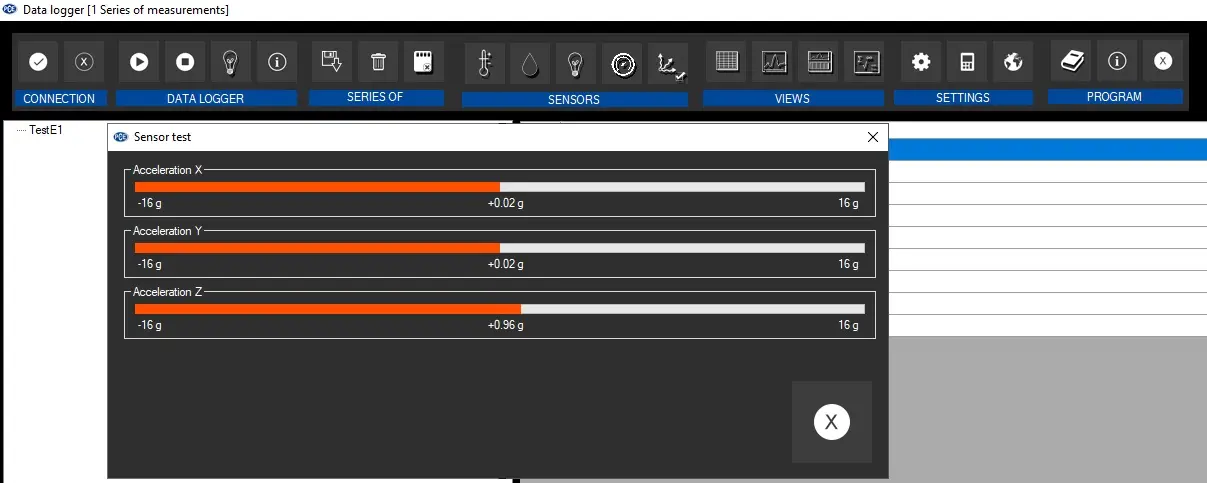

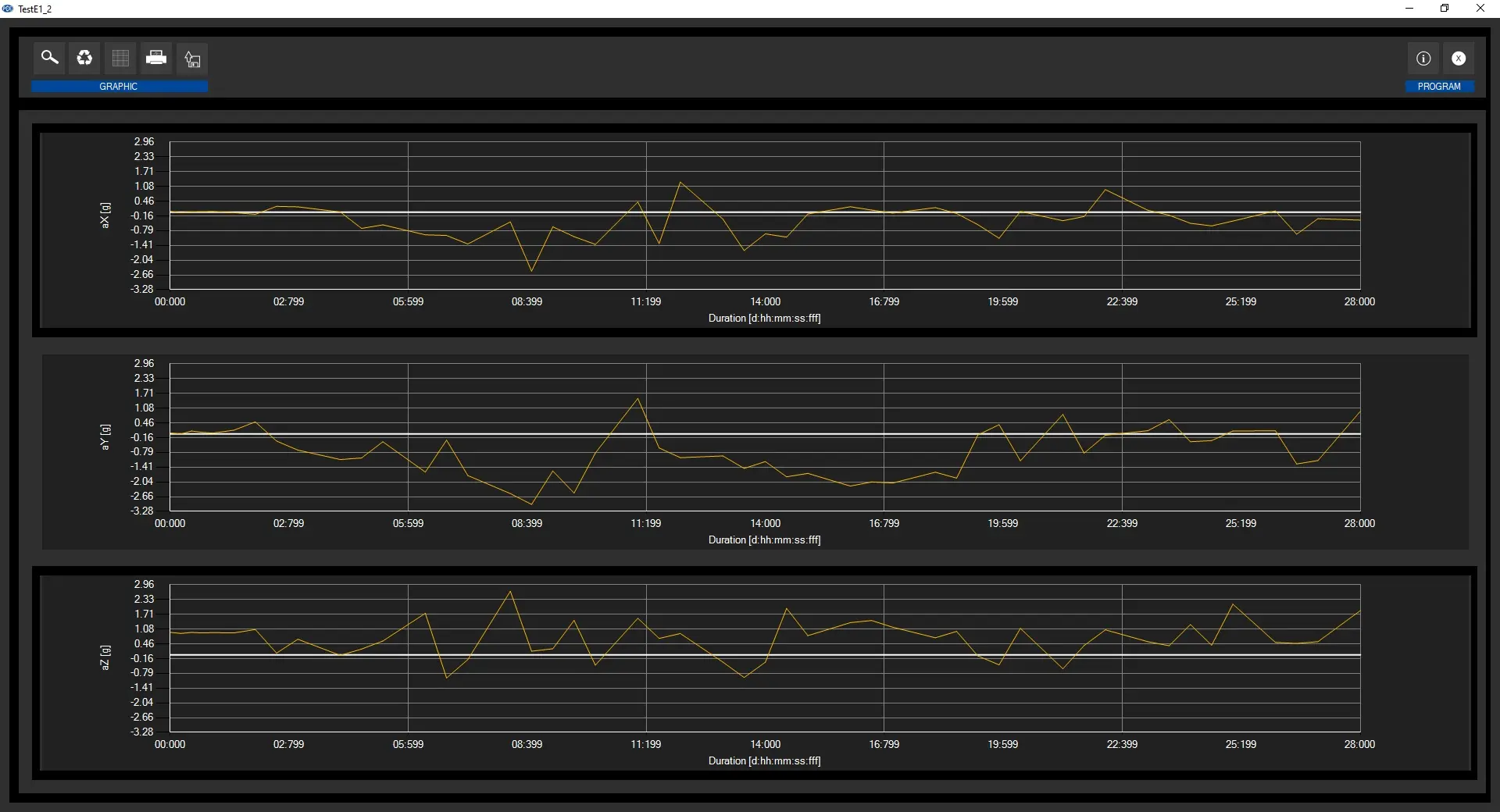

PC Software |

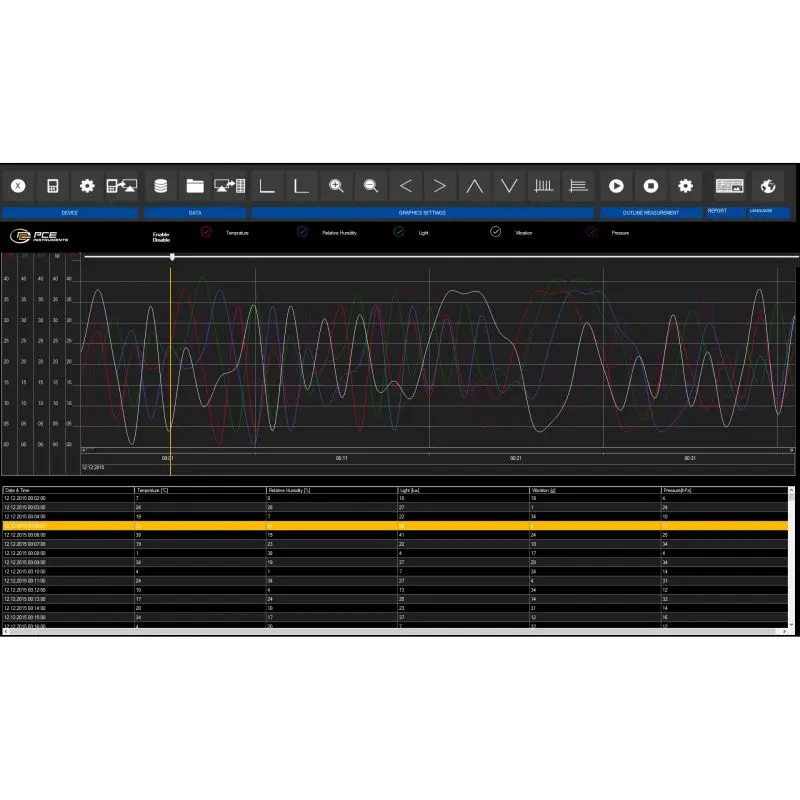

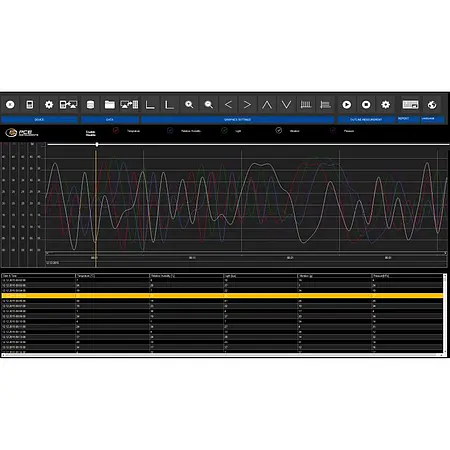

Free setup and evaluation software (Windows XP / Vista / 7/8/10 32-bit / 64-bit) for recording and evaluating the data. |
Operating conditions |
Temperature -20 ... +65 °C |
Storage conditions |
Temperature +5 ... +45 °C (ideal |
Standards |
The PCE-VDL 24I complies with the EU RoHS / WEEE directive. |
Weight |
ca. 60 g |
Dimensions (L x W x H) |
87 x 44 x 23 mm |
