Videoscope PCE-PIC 40

Order no.: PCE-PIC 40
GTIN (EAN): 4250348719324
US$ 3,151.00
ex. VAT, ex. delivery costs
:
4250348719324
PCE-PIC 40
Available in: 1-2 days
No
23 mm
40 m
–
No
–
Yes
yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Locator PCE-VE-LOC for videoscope
Locator PCE-VE-LOC for videoscope
US$ 1,709.00
Self-leveling Camera Head PCE-PIC-SCH
Self-leveling Camera Head PCE-PIC-SCH
US$ 1,110.00
Camera Head with Transmitter PCE-PIC-TCH
Camera Head with Transmitter PCE-PIC-TCH
US$ 1,027.00

Description

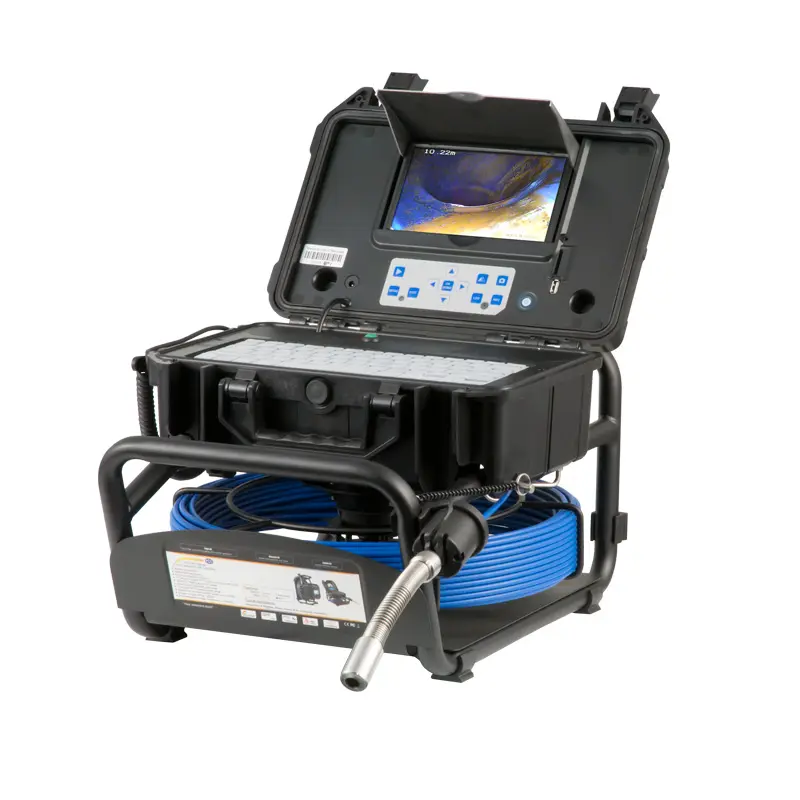

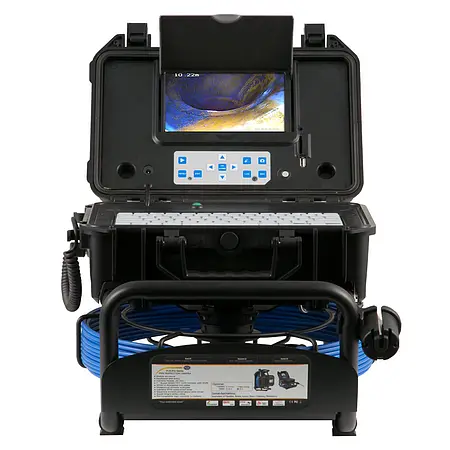

PCE-PIC 40 Videoscope
Inspection camera with 40 m (131 ft) push cable / Waterproof up to 20 m (66 ft) / Meter count / Keyboard input for comments possible / SD memory

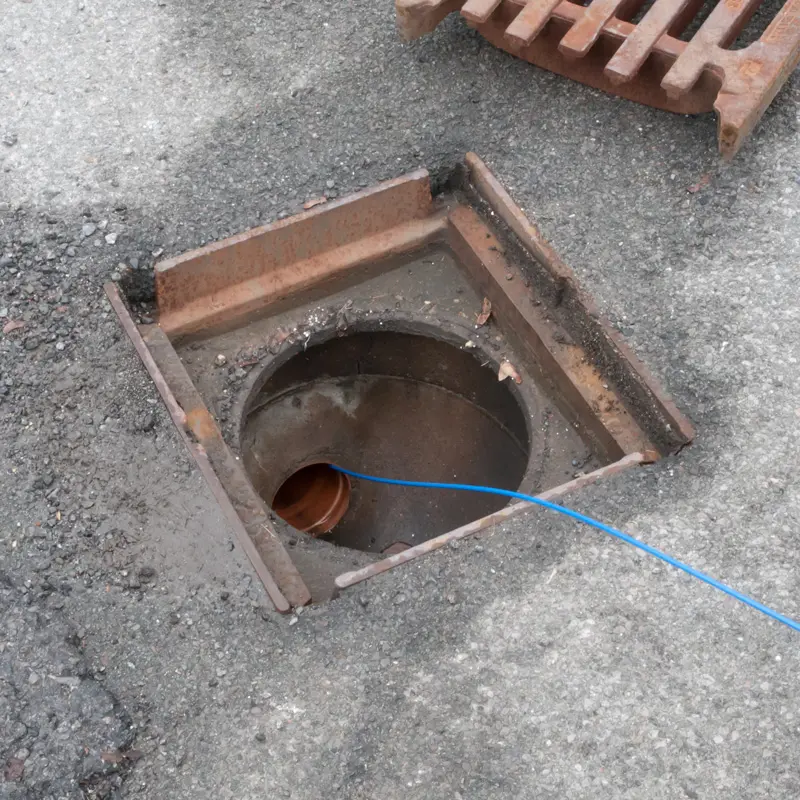

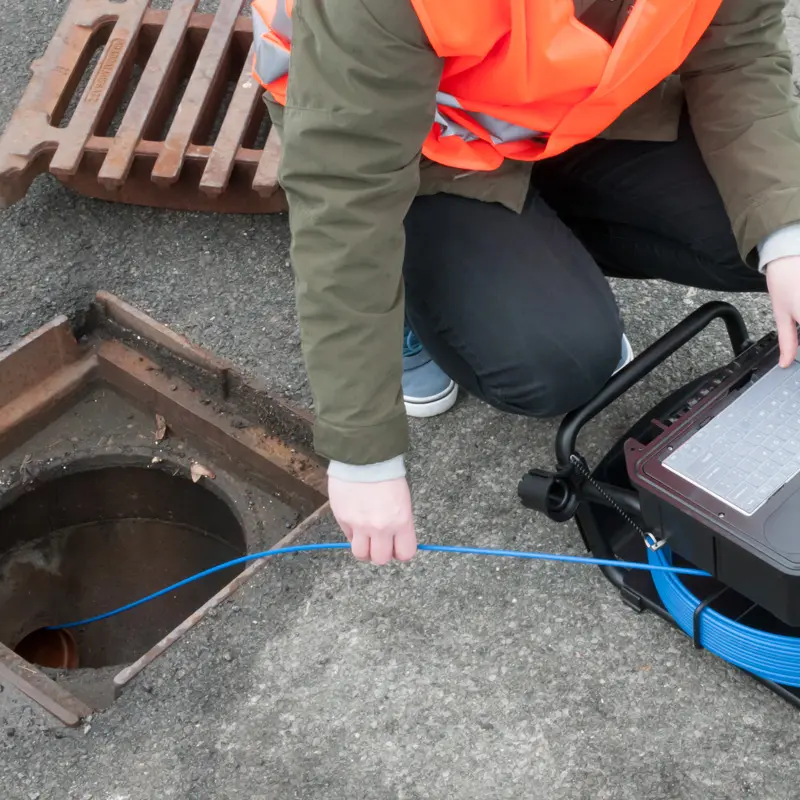

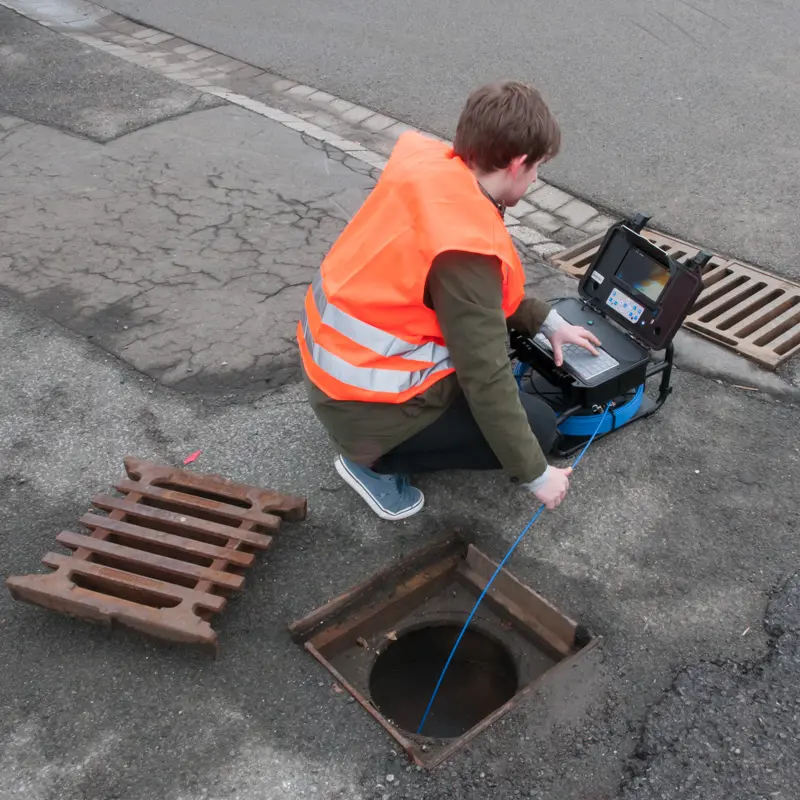

The inspection camera of the PCE-PIC series is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The inspection camera has a 23 mm / 0.9 in camera head, which is attached to a fiberglass push cable. The inspection camera is optimally suited for pipes and ducts DN 40 ... 150 mm / 1.6 ... 5.9 in. The camera of the inspection camera is waterproof up to 20 m / 66 ft. To facilitate the search for damaged areas on canals and pipes, the inspection camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the inspection camera. For better documentation, comments can be added to the pictures and videos via the keyboard.

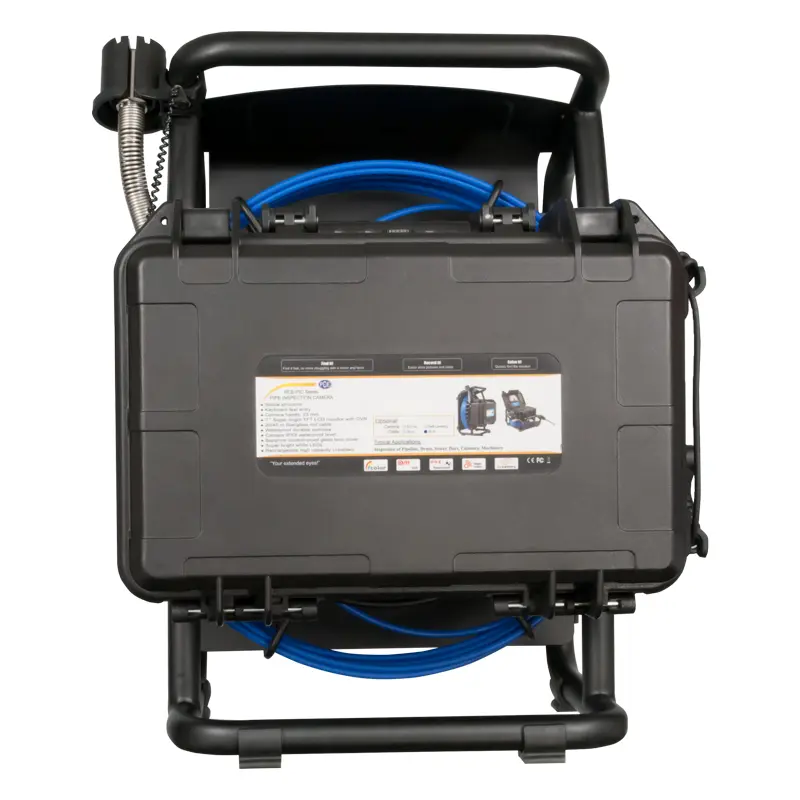

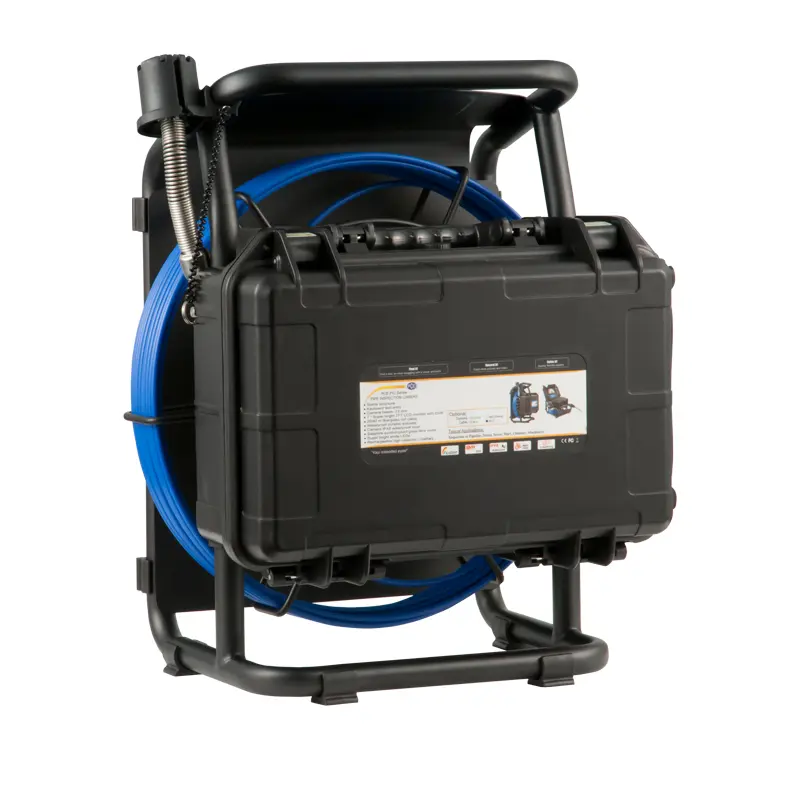

The inspection camera is delivered in a waterproof case. The case of the inspection camera is mounted directly on the cable roller. Thus, the inspection camera takes up little space during transport. The inspection camera PCE-PIC is equipped with a rechargeable battery, which enables a mobile working. About a power supply or the car charger, the battery of the inspection camera is charged.

Highlights

- 40 m / 131 ft push cable
- Electronic meter counting

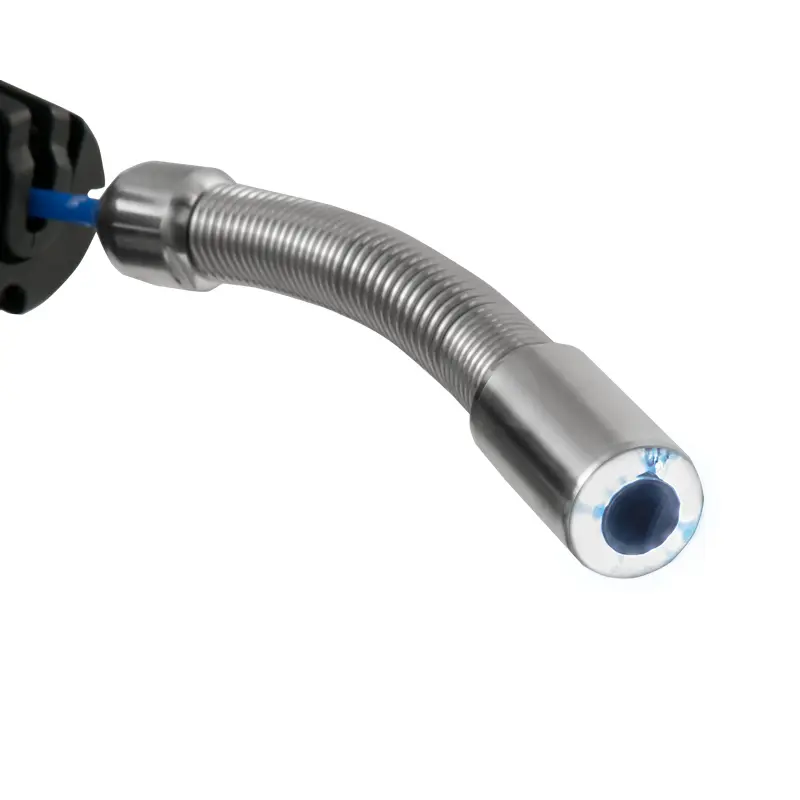

- 23 mm / 0.9 in camera head

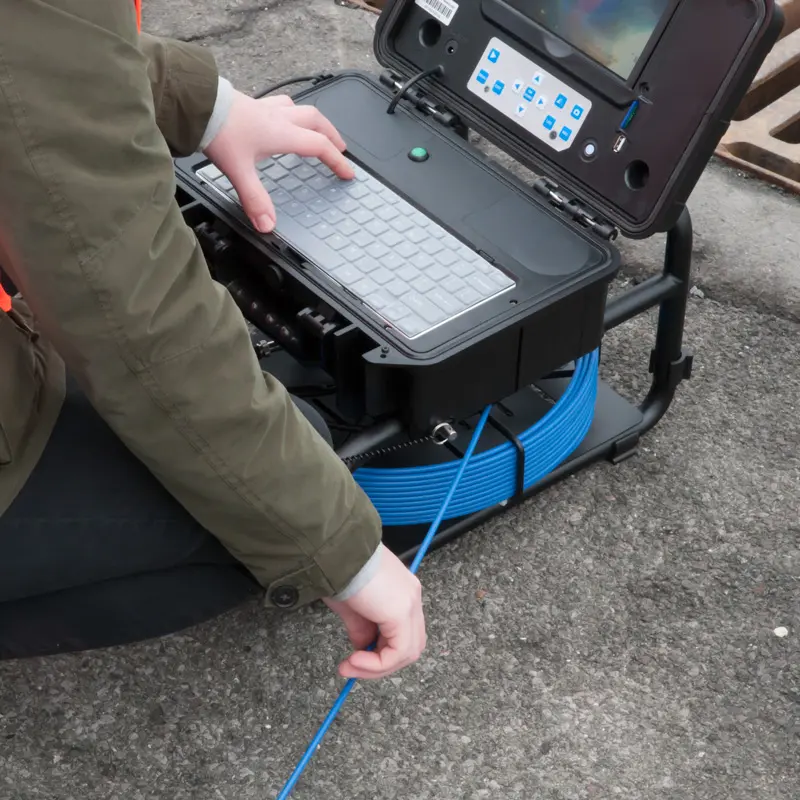

- Keyboard for comment input
- Braked endoscope line
- 12x LED lighting
- Battery and mains operation, A/C power adapter
- Waterproof up to 20 m / 66 ft
- IP66 Carrying Case
- 90° radius of curvature at min. Ø 45 mm / 1.8 in

Specification


Cable diameter / head diameter23 mm / 0.9 in
Cable lengthPCE-PIC 40: 40 m / 131 ft


Sight depth20 ... 100 cm
Perspective 120°
Lighting12 x LED (dimmable)
White balanceAutomatically
Image sensor1/3" Sony CCD
 720 x 576 pixels
Display7" LC display
InterfaceUSB 2.0
Memory optionVideo, photo and sound
Image memory SD card up to 32 GB
Video output format PAL 720 x 576 pixels
  NTSC 720 x 488 pixels
Menu navigation Multilingual:
  German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian
Length measurement 0 ... 40 m / 0 ... 131 ft
Data entry By keyboard possible
Operating conditions -10 ... 50°C / 14 ... 122°F, 30 ... 90% rh
Storage conditions -20 ... 60°C / -4 ... 140°F, 30 ... 90% rh
Power supply Power supply 110V ... 240V AC / 12V / 1.2 A DC
  Li-Ion battery 7.4 / 5400-mAh
Protection class Display: IP66
  Camera head: waterproof up to 20 m / 66 ft
Dimensions Complete: 55 x 43.5 x 34.5 cm
  Camera head: 23 x 45 mm / 0.9 x  1.8 in (total length: 150 mm / 5.9 in)
Weight About 13 kg / 28.7 lbs

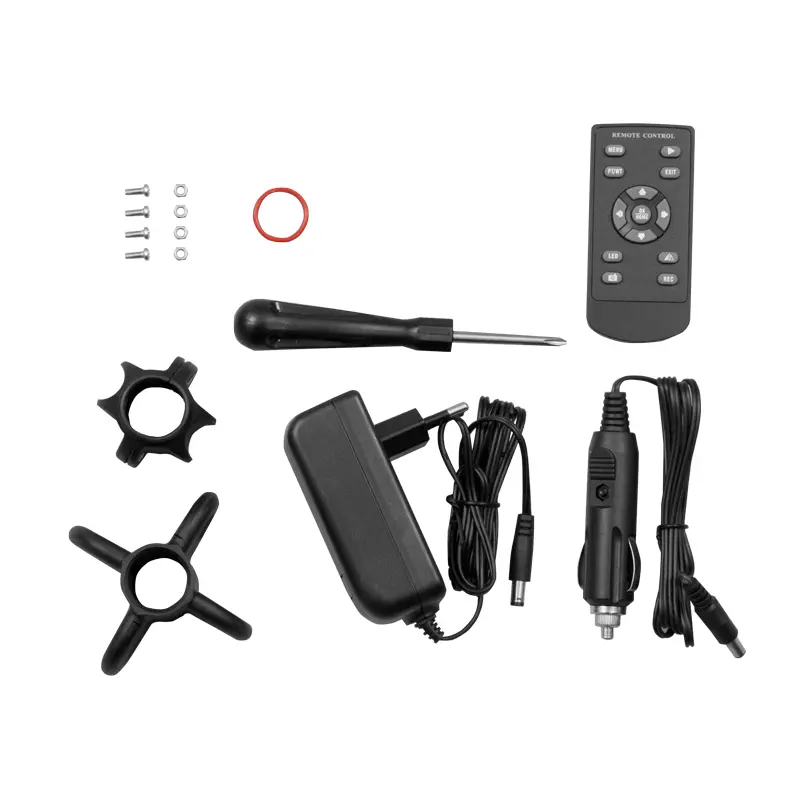

Delivery Scope

1 x Videoscope PCE-PIC 40
1 x Standard camera head
1 x Main unit with case
1 x Cable roller and push cable
1 x Mains power adapter
1 x Car charger adapter
1 x Keyboard
1 x Remote control
1 x 46 mm / 1.8 in guide
1 x 80 mm / 3.1 in guide
1 x User manual

Please note: The video endoscopes are not suitable for medical purposes!
