Videoscope PCE-VE 180

Order no.: PCE-VE 180
GTIN (EAN):
US$ 396.00
ex. VAT, ex. delivery costs
PCE-VE 180
Available in: 1-2 days
Yes
3.9 mm
1 m
1280 x 980 pixels
No
Image, Video
Yes (Micro SD)
No
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

PCE-VE 180 Videoscope
LED illumination / MicroSD memory / Detachable remote control display / Small 3.9 mm (.16 in) cable diameter / 1 m (3.28 ft) cable length

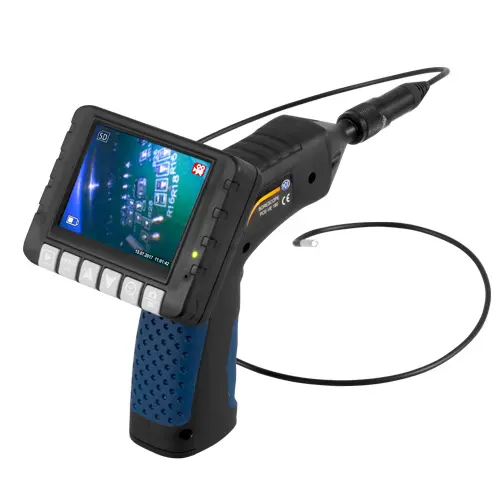

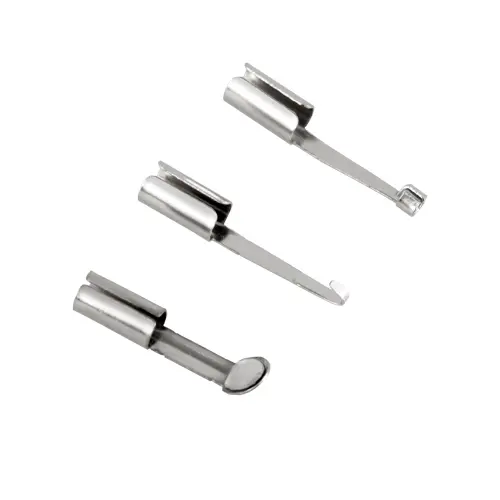

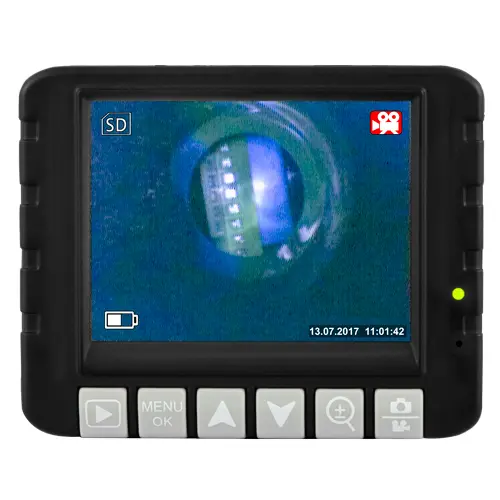

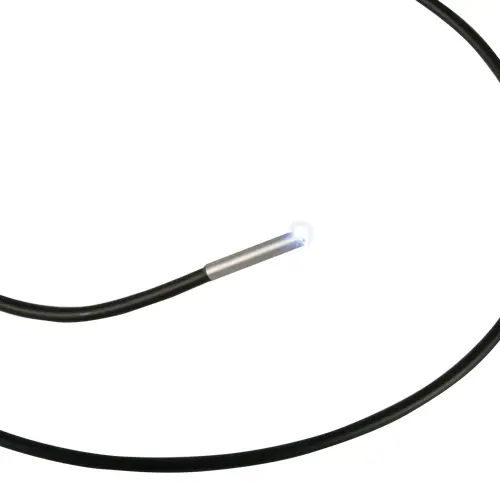

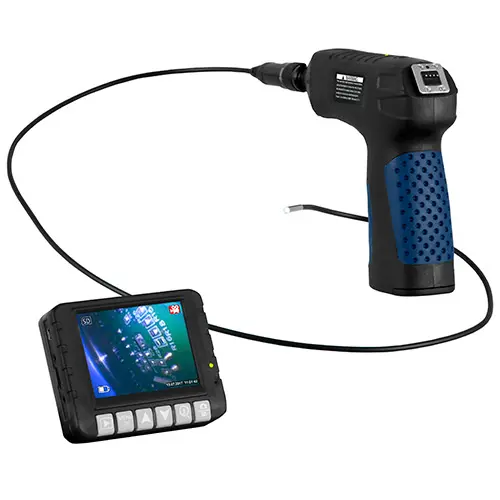

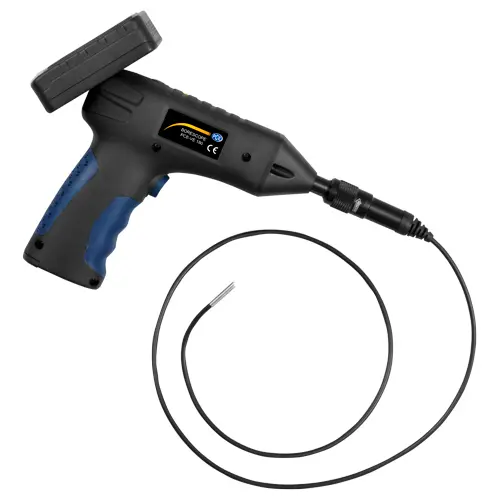

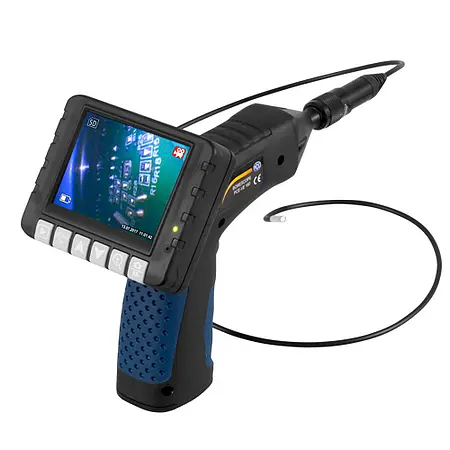

PCE-VE 180 is a rechargeable handheld pistol-grip videoscope or video borescope inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the PCE-VE 180 borescope features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz. The borescope is powered by a rechargeable battery that allows for up to 3 hours of continuous use. Recorded images and videos are saved to a MicroSD memory card with a capacity of up to 32 GB. The semi-flexible gooseneck cable of the borescope has a small diameter of just 3.9 mm / .16 in for insertion into tiny cavities. An IP67 ingress protection rating protects the borescope against dust and water, allowing for use in adverse conditions. The borescope comes with three different attachments: a 90 ° angle mirror for viewing side walls and around corners, as well as a hook and a magnet for pulling parts out of cavities.

***Not for medical use***


Highlights

- Semi-flexible gooseneck cable
- 1 m / 3.28 ft cable length
- 3.9 mm / .16 in cable diameter
- IP67 ingress protection rating against water, oil and dust
- Image capture and video recording functionality
- 30 ... 80 mm / 1.18 ... 3.15 in focal distance
- 2.4 GHz remote control radio transmission
- Powered by rechargeable battery
- 1280 x 980 pixel interpolated resolution
- Includes AC power adapter / battery charger

Specification

Cable length 1 m / 3.28 ft
Type of cable Semi-flexible (gooseneck)
Cable diameter 3.9 mm / .16 in
Illumination 2 LEDs
Resolution 1280 x 980 pixels (interpolated)
Ingress protection rating IP67 protection against water, oil and dust
Focal distance 30 ... 80 mm / 1.18 ... 3.15 in
Field of view 60°
Display size 3.5" / 320 x 240 pixels
Memory formats Images: JPG / BMP
Video: AVI

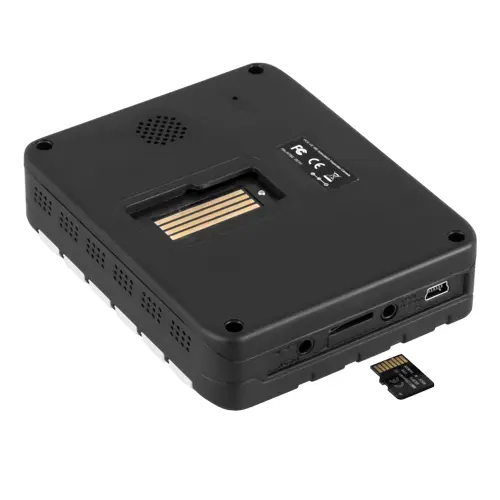

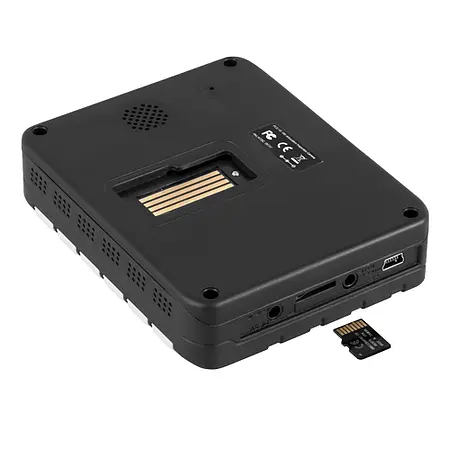

Memory Micro SD card (max. 32 GB)
Radio transmission 2.4 GHz
Power supply Remote / display: Li-Ion 3.7 V 1200-mAh
Pistol grip: Li-Ion 3.7 V 1600-mAh
AC power adapter / battery charger: 5V / 2 A
Battery life Approx. 1 ... 3 hours continuous use

Delivery Scope

1 x PCE-VE 180 videoscope
1 x Mirror attachment
1 x Hook attachment
1 x Magnet attachment
1 x AC power adapter / battery charger
1 x User manual
