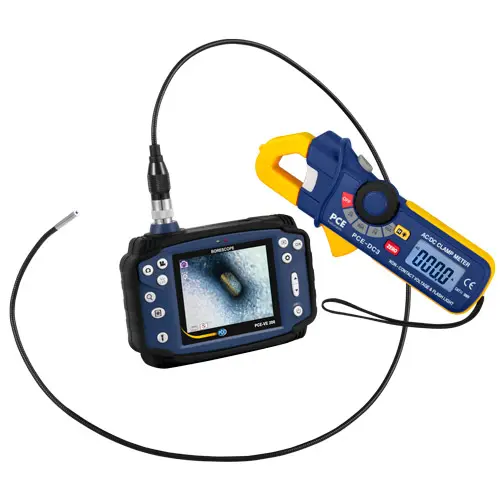

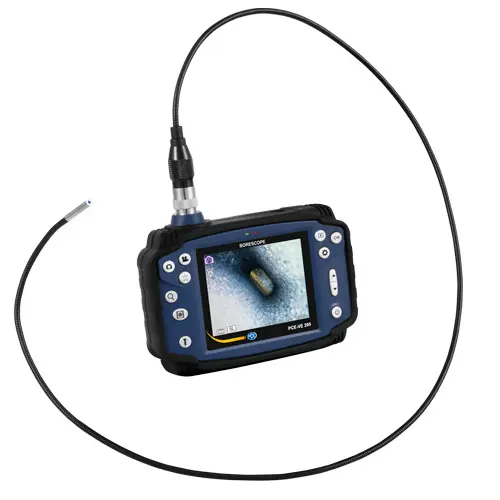

PCE-VE 200 is a video inspection camera, for nondestructive evaluation (NDE) and machine diagnostics. The PCE-VE 200 video borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing hard-to-reach places, the scope can be rotated 180 ° and offers 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
The borescope stores the recorded images and videos directly to a micro SD card memory. The 3.28 ft cable length and 0.18 in cable diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.
This Clamp Meter has been developed to determine indirectly, the the AC/DC currents with high accuracy. A non-contact clamp meter and a torch to illuminate the area being measured, have been integrated into this device.
The small size of this Clamp Meter, makes it possible to use in small spaces with limited access. The large illuminated display of this Clamp Meter guarantees clear readings in dark places such as in distribution boards. The non-contact Clamp Meter will help you when exposed to potential risk and to locate with precision, break points in cables within distribution boards, etc.
Videoscope
|
|

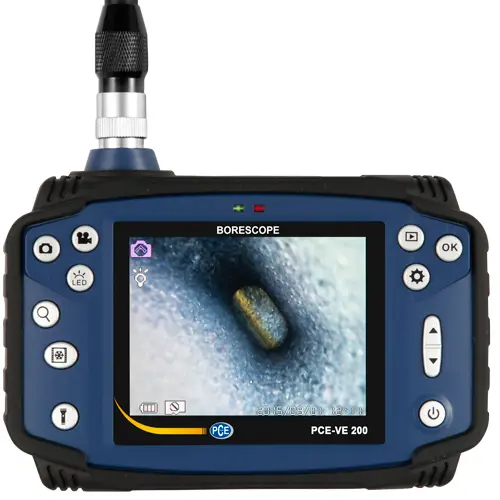

Display | LCD, 3.5 in |
Resolution | 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video |
Image rotation | 180 ° and mirror functionality |
Freeze functionality | Yes |
Zoom | Up to 4 times digital image magnification |
Menu languages | English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese |
Cable diameter | 4.5 mm / 0.18 in cable diameter |
Cable length | 1 m / 3.28 ft |
Cable rigidity | Semi-flexible (semi-rigid spiral) |
Camera head | 1/8 in CMOS chip image sensor |
Lighting | 6 white LEDs (adjustable intensity) |
Field of view / perspective | 90 ° |
Sight depth | 15 ... 100 mm/0.59 ... 3.93701 in |
Storage medium | Micro SD card |

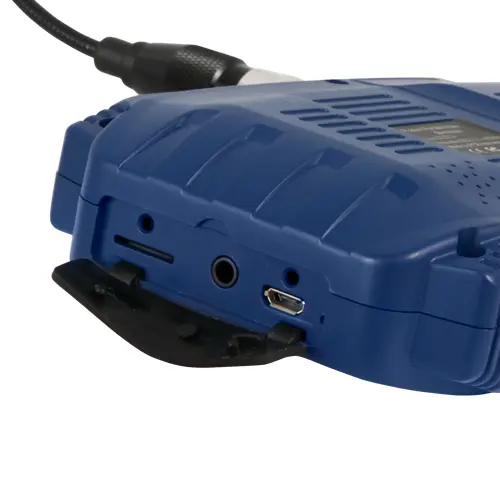

Interfaces | Micro USB 2.0, TV output (PAL), Micro SD card slot |
Power supply | Li-ion battery |
Battery capacity | 2600 mAh |
Operating conditions | |
Main unit and probe, in air | -10 ... +50 ° C / +14 ... +122 ° F, rel. humidity 15 ... 90% |
Probe, in water | +5 ... +50 ° C / +41... +122 ° F |
Fluid resistance | |
Main unit and probe | Machine oil, light oil or 5% saline |
Protection against | |
Main unit | Blowing rain (battery compartment must be closed), not underwater |
Probe | Water, oil and dust, according to protection class IP67 |
Clamp Meter |
|
AC current | (50 / 60 Hz) |
Range / Resolution / Accuracy 2 A / 1 mA / ± 2.8 % + 10 dgt 80 A / 100 mA / ± 3.0 % + 8 dgt |
|
DC current | Range / Resolution / Accuracy 2 A / 1 mA / ± 3.0 % + 10 dgt 80 A / 100 mA / ± 3.0 % + 8 dgt |
AC overload protection (non-contact) |
100 VAC up to 600 VAC 50 / 60 Hz |
Measurement area illumination | white LED |
Conductor diameter | 18 mm maximum |
Display | 3 2/3 digit LCD display with backlighting |
Power | 2 - 1.5V AAA batteries |
Casing | PVC |
Dimensions | 164 x 65 x 32 mm |
Weight | 175 g |
Standards | EN61010-1; CAT II / 600V EN61010-2-032; CAT III / 300V |
1 x PCE-VE 200 Videoscope ***Not for medical use***
1 x USB cable
1 x USB adapter
1 x User Manual
1 x PCE-DC 3 Clamp Meter
1 x case
2 x batteries
1 x user's manual
