Videoscope PCE-VE 270HR

Order no.: PCE-VE 270HR
GTIN (EAN): 4250348722621
US$ 4,299.00
ex. VAT, ex. delivery costs
:
4250348722621
PCE-VE 270HR
Available in: 1-2 days
1600 x 1200 pixels
Video borescope
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Borescope Cable PCE-VE 270HR-SV-PROBE
Replacement Borescope Cable PCE-VE 270HR-SV-PROBE with side camera
US$ 3,790.00
Replacement Borescope Cable PCE-VE 270HR-2,1-PROBE extra thin
Replacement Borescope Cable PCE-VE 270HR-2,1-PROBE extra thin
US$ 5,095.00
Spare Borescope Cable PCE-VE 270HR-PROBE
Replacement Borescope Cable PCE-VE 270HR-PROBE
US$ 3,300.00
Camera cable with front and side camera 9 mm PCE-VE 200-SCSV1 Length: 1 m
Camera cable with front and side camera 9 mm PCE-VE 200-SCSV1 Length: 1 m
US$ 319.00
Camera cable with front and side camera 9 mm PCE-VE 200-SCSV3 Length: 3 m
Camera cable with front and side camera 9 mm PCE-VE 200-SCSV3 Length: 3 m
US$ 418.00
Camera cable 3.7 mm PCE-VE 200-SCS3 Length: 3 m
Camera cable 3.7 mm PCE-VE 200-SCS3 Length: 3 m
US$ 632.00
Camera cable 3.7 mm PCE-VE 200-SCS1 Length: 1 m
Camera cable 3.7 mm PCE-VE 200-SCS1 Length: 1 m
US$ 495.00
Spare Battery for PCE-VE 200 Series
Spare Battery for PCE-VE 200 Series
US$ 46.00
Spare Cable PCE-VE 200
Semi-Flexible Camera Cable for PCE-VE 200 Series
US$ 264.00

Description

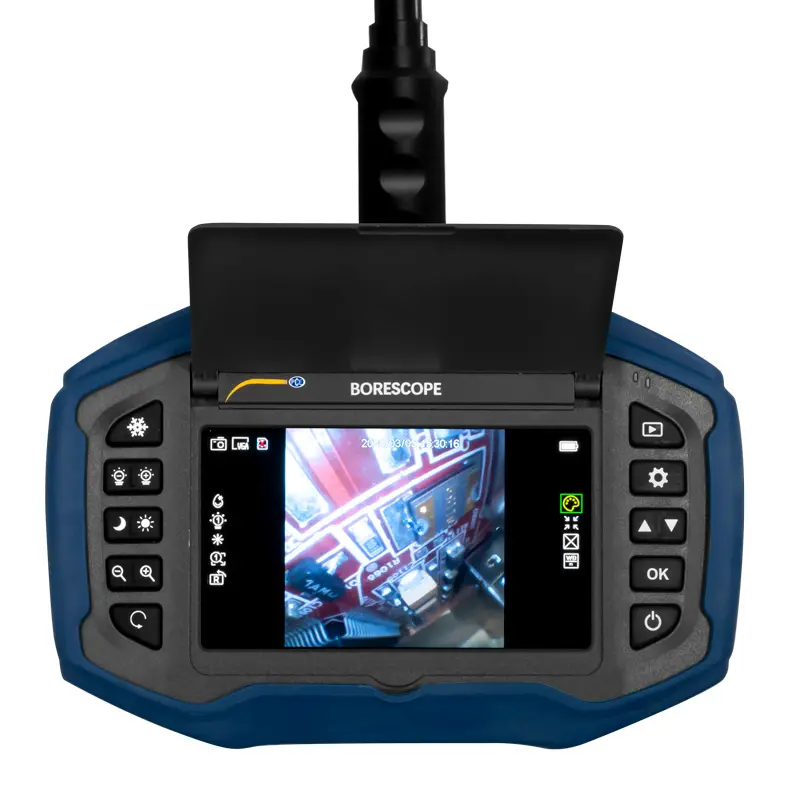

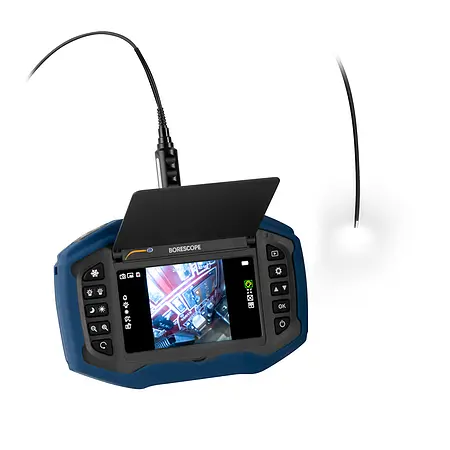

Videoscope PCE-VE 270HR
Battery-operated inspection camera with 2.8 mm (0.11 in) diameter / For inspecting motors and machine parts / Memory / HDMI output / Various camera cables

The inspection camera gives you new, visual insights into the interior of motors and systems. The inspection camera is the ideal tool for maintenance and repair in workshops or industrial companies. Optical analysis with an inspection camera has never been so easy. Guide the flexible cable through a hole or a cavity near the point to be inspected and look at everything on the display from the inspection camera. Thanks to the flexible guidance, the low weight and the excellent optics, you can use this inspection camera to identify weak spots and problem areas very easily and early and thus take preventive measures without having to carry out complex disassembly first.

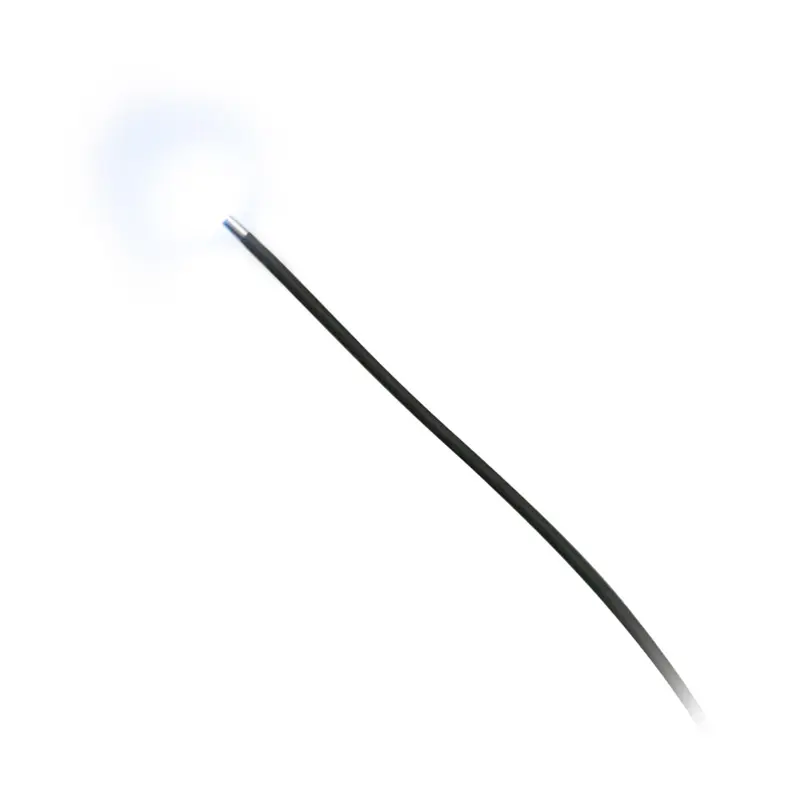

This inspection camera is extremely versatile, particularly due to the length of the flexible part (2000 mm) and the small diameter of 2.8 mm / 0.11 in. LEDs on the inspection camera illuminate the cavities. The waterproof lens and camera can also be used in liquids without hesitation. Make your daily work easier and use the inspection camera for the maintenance and inspection of your operational systems and machines. The inspection camera can be used to save images and videos for documentation on a memory card. The inspection camera can be connected to a monitor via the HDMI interface.

Highlights

- 2 m / 6.56 ft cable length
- 2.8 mm / 0.11 in cable diameter
- Storage function on micro SD card
- LED light
- 0° viewing angle
- Miniature probe cable with 90° viewing angle option

Specification

Cable length2 m / 6.56 ft
Cable typeFlexible
Cable diameter2.8 mm / 0.11 inch
Degree of protectionIP 67
Field of view5 ... 50 mm / 0.2 ... 1.98 in
Field of vision120°
Perspective0°
Lighting4 LEDs
ExposureAutomatically
Anti-reflective coatingAutomatically
Image sensor1/18" CMOS
Camera resolution / image sensor     400 x 400 px
Display5" TFT screen
InterfaceMicro USB, HDMI
Storage optionImage and video
StorageMicro SD memory card
Picture formatJPEG (400 x 400 Px)
Video formatMP4 (400 x 400 Px)
Video outputHDMI
Menu navigationGerman, English, Chinese, Spanish, Portuguese,
 French, Russian, Japanese, Korean
Operating and storage temperature-10 ... 50°C / 14 ... 122°F
Power supply3.7 V Li-ion battery, 5200-mAh
Battery lifeMin. 6 h
Dimensions200 x 130 x 58 mm / 7.9 x 5.1 x 2.3 inch
Weight595 g / 1.3 lb

Delivery Scope

1 x Videoscope PCE-VE 270HR

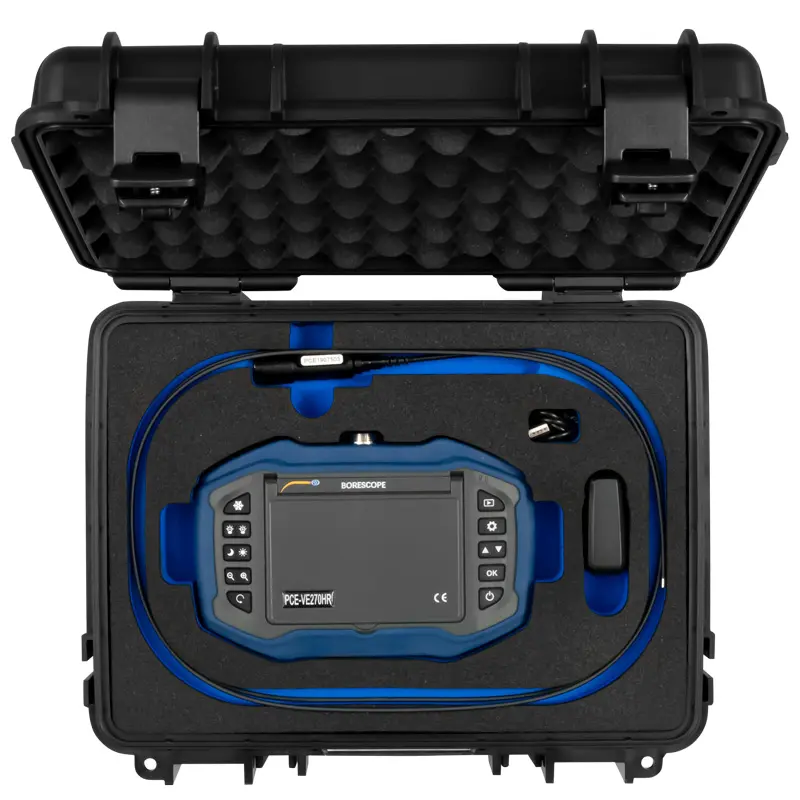

1 x Carrying case
1 x Charger
1 x HDMI cable
1 x Micro USB cable
1 x Stand
1 x Instructions
