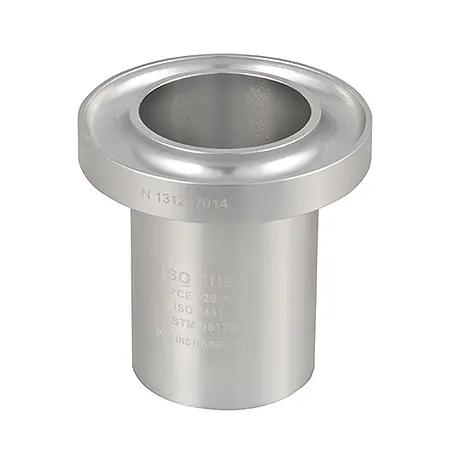

ISO Flow Cup Viscometer PCE-128/8

Order no.: PCE-128/8
GTIN (EAN):
US$ 286.00
ex. VAT, ex. delivery costs
PCE-128/8
Available in: 1-2 days
Handheld
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

ISO flow cup viscometer for measuring viscosity /
International standard DIN 53224 / Cup made of anodized aluminum

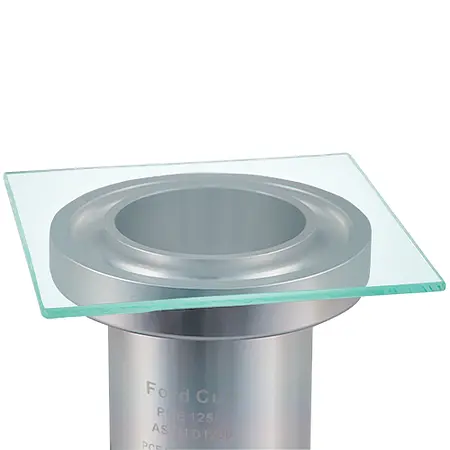

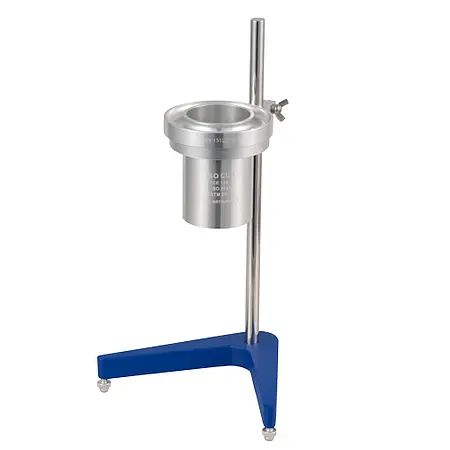

ISO flow cup viscometers are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production. For handling, the nozzle must be closed and the material to be measured must be poured into the flow cup. By placing the glass plate on the cup, you create a vacuum, which enables the cup to be placed in the tripod for time measurement. When the glass plate is then pulled from the flow cup, the measurement can be started. As soon as the flow comes to a standstill, the time must be stopped. For a relative value, this method is perfectly adequate in many areas. To ensure the accuracy of the cup, it is important to clean it after each use. It is important to ensure that the surface inside the cup is not damaged. Any scratches or dried material residues will affect the further measurements.

Highlights

- Highly polished and finely machined for a
   high discharge accuracy
- Factory calibration certificate included
- With overflow channel
- Complies with international standards
- Stand available as optional accessory

Specification

Technical specifications
ModelMeasuring range (cSt)  Flow time (sec.) Outlet nozzle Ø (mm)
PCE-128/8
600 ... 2000 cSt 30 ... 100 s 8.0 mm




Materialcup: anodized aluminum
nozzle: stainless steel
StandardsISO 2431, DIN 53224, EN 535, ASTM D5125
DimensionsØ inside 50 mm
Ø outside 85 mm
height 85 mm
Weightca. 310 g

Delivery Scope

1 x ISO Flow Cup Viscometer PCE-128/8
1 x Glass plate
1 x Factory calibration certificate
1 x Instruction manual
