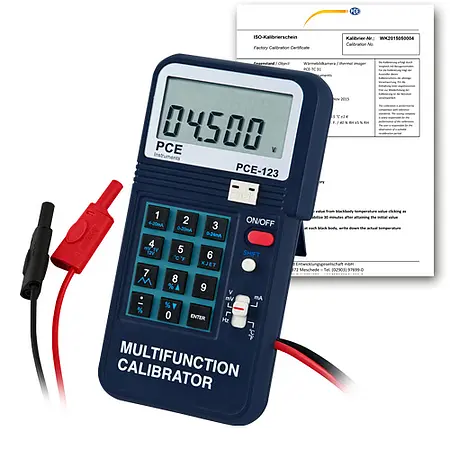

Voltage calibrator PCE-123-ICA
Digital, electrical, current,
voltage or process calibrator, tester or multimeter for simulation and
measurement of standardized electrical signals / Control signals as well as
frequencies and temperature / Incl. ISO Calibration Certificate
The PCE-123 is a network-independent multifunction calibrator used to test and calibrate a variety of parameters of controllers and measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.
The calibrator also has automatic step and ramp functions as well as the possibility to pre-select the output signal steps (0 … 100 %) by using the arrow keys and to directly specify an output value (e. g. 13.8 mA). Operation via the keypad is very easy and intuitive. The PCE-123 multifunctional calibrator is an important tool in any electronics workshop as well as in any measuring and control department in trade, industry and automation.
| mA DC current (maximum load at 1kΩ, powered by 24V) |
|
| Range | 4 to 20-mA / 0 to 20-mA / 0 to 24-mA |
| Resolution | 1µA |
| Accuracy | ±0.025% ±3µA |
| Alert | Beeps when there is a short circuit or ouput current >1mA . |
| mV current, V DC (power 1-mA) |
|
| Ranges | 0 to 100.00 mV
0 to 10.000 V 0 to 1.0000 V |
| Resolution | 10 µV
1 mV 1.0000 V |
| Accuracy | ± 0.05% ±30 µV
± 0.05% ±3 mV ± 0.05% ±300 µV |
| Alert | Beeps when there is a short circuit or ouput current >10mV. |
| Temperature sensor thermocouple type-K, J, E, T (1 kΩ min.) |
|
| Ranges | K: -200 ... 0°C / -328 ... 32°F and 0 ... 1370°C / 32 ... 2498°F
J: -100 ... 0°C / -148 ... 32°F and 0 ... 760°C / 32 ... 1400°F E: -10 ... 0°C / 14 ... 32°F and 0 ... 700°C / 32 ... 1292°F T: -200 ... 0°C / -328 ... 32°F and T: 0 ... 400°C / 32 ... 752°F |
| Resolution | 1°C / 1.8°F (across entire range) |
| Accuracy | K: ± 1.1°C / 2°F and ± 0.8°C / 1.4°F J: ± 0.9°C / 1.6°F and ± 0.7°C / 1.3°F E: ± 0.9°C / 1.6°F and ± 0.7°C / 1.3°F T: ± 1.0°C / 1.8°F and ± 0.8°C / 1.4°F |
| Frequency | |
| Range | 1 to 125Hz and 126 to 62.5kHz |
| Resolution | 1 to 125Hz / 1Hz 126 to 62.5kHz / 604 readings |
| Accuracy | ±0.04Hz |
| Selection | 604 frequencies |
| General characteristics | |
| Display | 5 position LCD |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, <85% r.h. |
| Storage conditions | -20 ... 60°C / -4 ... 140 °F; <85% r.h. |
| Power | 1 9V battery or 6 x 1.5V batteries |
| Consumption | 60-mA to 180-mA (depending on output) |
| Battery indicator | 5.5V for 150-mA |
| Dimensions | 88 x 168 x 26 mm / 3.4 x 6.6 x 1 in |
| Weight | 330 g / 11.6 oz |
