Wall Moisture Meter PCE-PMI 2

Order no.: PCE-PMI 2
GTIN (EAN): 4250348714244
US$ 204.00
ex. VAT, ex. delivery costs
:
4250348714244
PCE-PMI 2
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Wall Moisture Meter / Optical moisture estimation alarm by LED /
Humidity measurements of concrete, wood, plaster, etc. / Characteristic curves / MAX-Function / Automatic shutdown / LCD display with backlight

Using the wall moisture meter you can quickly perform humidity control of wood, walls, and screeds. The wall moisture meter fits well in the hand, thereby ensuring a pleasant measuring process of wall materials and other materials. To measure moisture of walls, wood, concrete, charcoal, etc. the wall moisture meter provides characteristic curves, based on the density of the material. These are easy to change via the function keys.

Further features of the wall moisture meter include an alarm function which can be fully adjusted. The LED above the control panel allows an optical moisture evaluation. It is therefore the ideal companion on construction sites, for material input checks and to reference measurements in production. With the wall moisture meter the workforce is therefore optimally equipped for everyday labour.


Highlights

- Electrical resistance measuring principle
- Non-destructive, non-invasive
- Penetration depth up to 50 mm / 1.96 inches
- For concrete, cement, cork, wood, plaster, rubber and more
- Alarm function when exceeding threshold levels

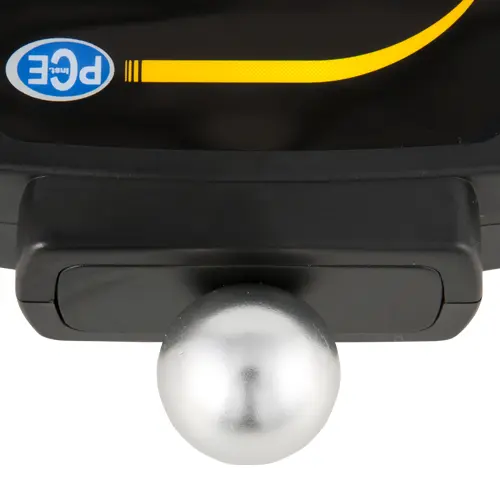

- Metallic sphere or ball sensor
- Adjustable LCD backlight
- Auto-off power-saving function
- Zero / self-calibration function
- Max hold function

Specification


Measuring range

0 ... 200 digits

Measurement accuracy

± 0.5% of reading + 0.5 digits

Resolution

0.1 digits

Measuring depth

50 mm

Measuring principle

Capacitive

Sensor type

Metal spheroid

Display

LCD Display

Operating temperature

0 ... 50 °C

Ambient humidity

< 90 % r.H.

Power supply

4 x 1.5V AAA batteries

Dimensions

165 mm x 62 mm x 26 mm
6.5 in x 2.4 in x 1.0 in

Weight

119 g / 0.26 lbs (without batteries)

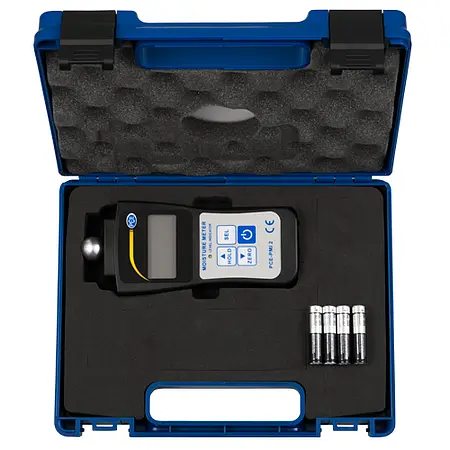

Delivery Scope

1 x Wall Moisture Meter PCE-PMI 2
1 x Battery
1 x Carrying case
1 x User manual
