Wall Thickness Meter PCE-TG 100

Order no.: PCE-TG 100
GTIN (EAN): 4250348701404
US$ 629.00
ex. VAT, ex. delivery costs
:
4250348701404
PCE-TG 100
Available in: 1-2 days

Description


Wall Thickness Meter for homogeneous materials, Ultrasonic speed adjustable, Internal calibration standard, Measuring range up to 225 mm / 8.86 in  (displays in mm only)

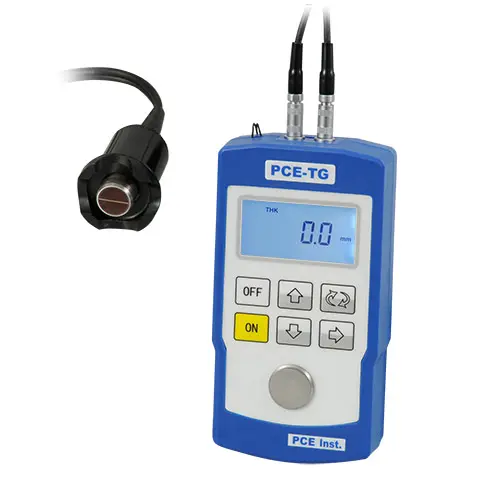

This is a compact wall thickness meter for homogeneous materials. This wall thickness meter works with an external ultrasonic probe; this probe conducts ultrasonic waves into the material to be tested. Different materials conduct ultrasound at different speeds, so you can choose different ultrasonic speeds on the wall thickness meter. The step size is 1 m/s with a setting range of 500 to 9999 m/s. The meter is factory pre-set with five different sound speeds for different material.

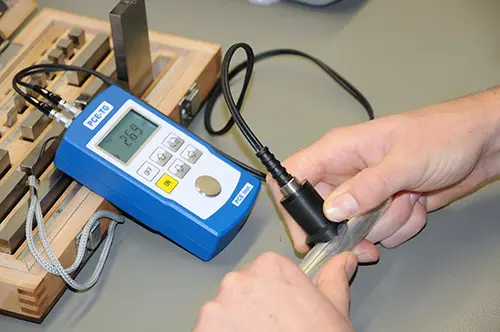

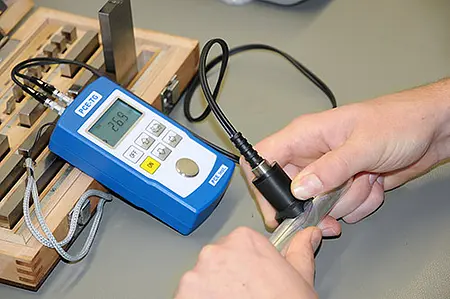

With the wall thickness meter, you can determine the material thicknesses of metal, glass, plastics and other homogeneous materials in seconds. Operation of the wall thickness meter is very easy via the six buttons. The ultrasound probe has a measuring head, which is fitted in a resilient black spring washer. The spring ring in turn has round cutouts, so that a measurement on straight, even or round material surfaces is possible. The wall thickness meter is delivered calibrated. As an accessory, you can order an ISO laboratory calibration including certificate at the time of initial order or recalibration.


Highlights

- Suitable for metals, glass, plastics
- 5 MHz probe
- Resolution 0.1 mm
- 4-digit LCD display, mm only display
- Up to 225 mm (8.8") material thickness
- Battery status indicator
- Automatic calibration
- Integrated 3.0 mm (0.11") calibration block

Specification

Measurement range 0.8 mm ... 225 mm / 0.03 in ... 8.86 in  (displays in mm only)
Measurable materials Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)
Frequency 5 MHz
Resolution 0.1 mm / 3.94 mil

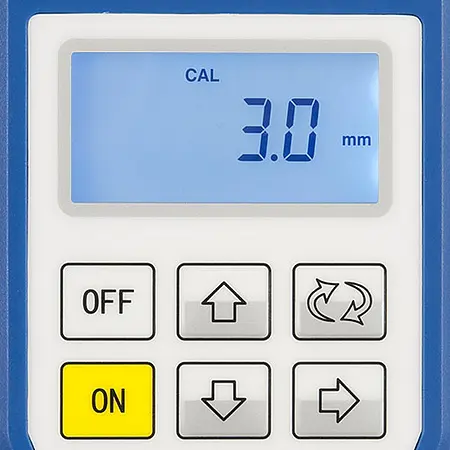

Calibration 3.0 mm / 0.1 in integrated steel block
Accuracy ±(0.5% + 0.1 mm) at 0.8 ... 99.9 mm
±(1% + 1 mm) at 100 ... 300 mm
Sound velocity range 1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)
Sound velocity resolution 1 m/s
Display 4 digit LCD display
Surface temperature for probe Standard -10 ... 50°C / 14 ... 122°F
Measuring head diameter 10 mm / 0.4 in
Measuring head shape Straight
Operating temperature range 0 ... 40°C / 32 ... 104°F
Ambient humidity 20 ... 90% r.H.
Battery status Low power indicator
Power supply 2 x 1.5V AA batteries
Battery life 250 h
Auto shutdown For battery conservation (after about 3 minutes without operation)
Dimensions 127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)
Weight 270 g / < 1 lb incl. batteries

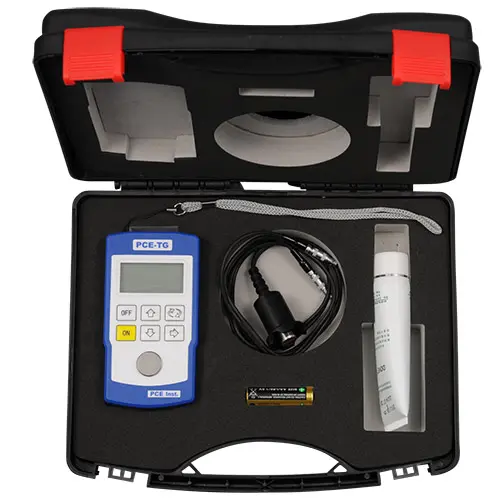

Delivery Scope

1 x PCE-TG 100 Wall Thickness Meter
1 x Contact transducer with 1 m (3.3 ft) cable
2 x Batteries

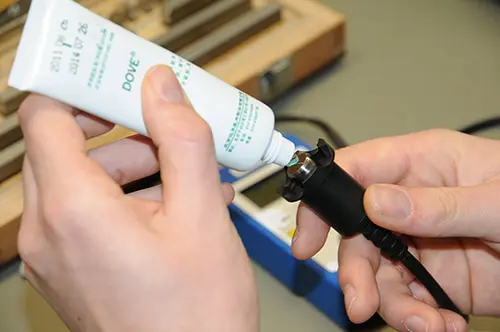

1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
