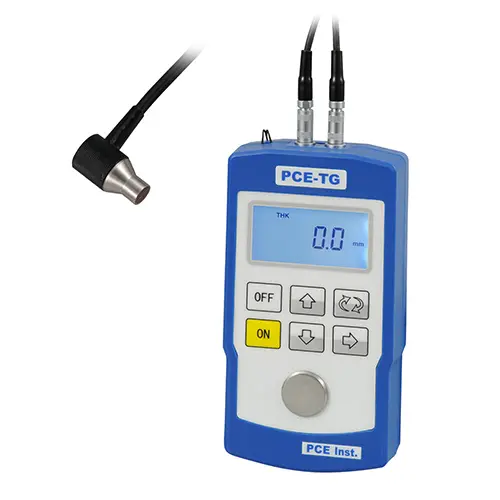

Wall Thickness Meter PCE-TG 120

Order no.: PCE-TG 120
GTIN (EAN): 4250348701428
US$ 798.00
ex. VAT, ex. delivery costs
:
4250348701428
PCE-TG 120
Available in: 1-2 days

Description


Wall Thickness Meter for homogeneous materials / With special test probe for edges and thin tubes / Adjustable ultrasonic speed / Easy operation / May only be used on a clean and flat surface / Not suitable for welding seams (displays in mm only)

The wall thickness meter is a very easy-to-use wall thickness gauge for all materials. This wall thickness meter works to accurately measure the material thickness / wall thickness with ultrasound. Different materials require different ultrasonic speeds. The wall thickness meter is factory pre-set with five different sound velocities for different material. With the wall thickness meter, you can determine the material thicknesses of metal, glass, plastics and other homogeneous materials in seconds. The speed of sound can be freely adjusted on wall thickness meter and thus adapted to a wide variety of materials. The test head of the wall thickness meter is designed in such a way that it can easily measure on angular workpieces.

The wall thickness meter is delivered calibrated. As an accessory, you can order an ISO laboratory calibration including certificate at the time of initial order or recalibration.

Highlights

- Suitable for all materials, on small edges and thin tubes
- Including 5 MHz probe
- Resolution 0.1 mm (displays in mm only)
- 4-digit LC display
- Backlight
- Battery status indicator
- Coupling display between probe and test piece
- Automatic calibration
- Integrated 3.0 mm steel block for calibration

Specification

Measurement range 1 ... 30 mm / 0.04 ... 1.18 in
Measurable materials Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)
Frequency 5 MHz
Resolution 0.1 mm / 3.94 mil
Calibration 3.0 mm / 0.1 in integrated steel block
Accuracy ± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in
± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in
Sound velocity range 1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)
Sound velocity resolution 1 m/s
Display 4 digit LCD display
Surface temperature for probe 0  ... 50°C / 32 ... 122°F
Measuring head diameter 7 mm / 0.27 in
Measuring head shape Square
Operating temperature range 0 ... 40°C / 32 ... 104°F
Ambient humidity 20 ... 90% r.H.
Battery status Low power indicator
Power supply 2 x 1. V AA batteries
Battery life 250 h
Auto shutdown For battery conservation (after about 3 minutes without operation)
Dimensions 127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)
Weight 270 g / 9.5 oz incl. batteries

The thickness gauge may only be used on a clean and flat surface and is not suitable for welding seams!


Delivery Scope

1 x PCE-TG 120 wall thickness meter
1 x Miniature contact transducer with 1 m (3.3 ft) cable
2 x Batteries
1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
