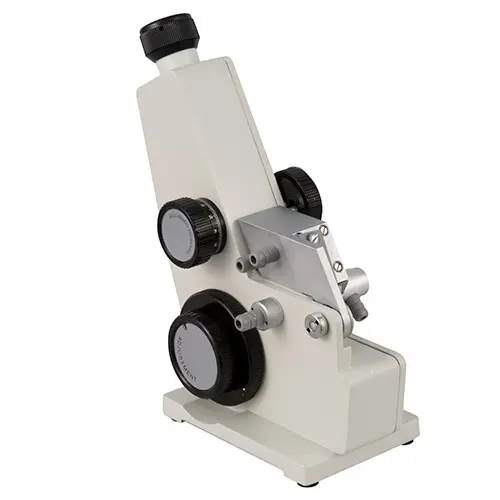

ABBE-REF 1 Water Analysis Meter -
Abbe Refractometer
Measures refractive indexes (nD), sucrose or sugar contents (% Brix) and mean dispersion values (nF-nC)
ABBE-REF 1 is a high-precision Abbe refractometer for the accurate measurement of refractive indexes (nD), sucrose or sugar contents (% Brix) and mean dispersion values (nF-nC) of transparent and translucent liquids and substances. This bench-top Abbe refractometer can be used to determine refractive indexes in a temperature range from 0 ... +70 ºC. Temperature control of the prisms is achieved using water, the included thermostat and flexible piping.
This Abbe refractometer is ideal for use with food, alcohol, pharmaceuticals, solvents, petrochemicals, paints, coatings, lacquers, oil, gas and other lubricants. Self-calibration of the Abbe refractometer is possible using contact liquid or distilled water.
- For refractive index, sugar content and mean dispersion value measurements
- Durable metal housing ensures instrument longevity
- Easy-to-read digital display of temperature units
| Measurement ranges | |
| Refractive index | 1.300 ... 1.700 nD |
| Sugar content | 0.0 ... 95 % Brix |
| Temperature | 0 ... +70 ºC |
| Resolution and accuracy | |
| Refractive index | 0.0002 nD |
| Sugar content | 0.1 % Brix |
| Scale division | |
| Refractive index | 0.0005 nD |
| Sugar content | 0.25 % Brix |
| Indicator | Split scale for dual measurement of % Brix / nD |
| Weight | Approx. 3 kg / 6.61 lbs |
1 x water analysis meter ABBE-REF 1
1 x screwdriver
1 x thermometer
1 x user manual
