Water Analysis Meter PCE-228WINE

Order no.: PCE-228WINE
GTIN (EAN): 4250348719294
US$ 781.00
ex. VAT, ex. delivery costs
:
4250348719294
PCE-228WINE
Available in: 1-2 days
Handheld
0 ... 50 °C / 32 ... 122 °F
0 ... 14 pH
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

PCE-228WINE water analysis meter for pH value, redox and temperature / Large, easy-to-read display SD card memory (1 ... 16 GB), saved data is saved as an Excel file /
RS-232 interface and optional software for direct transmission to the PC

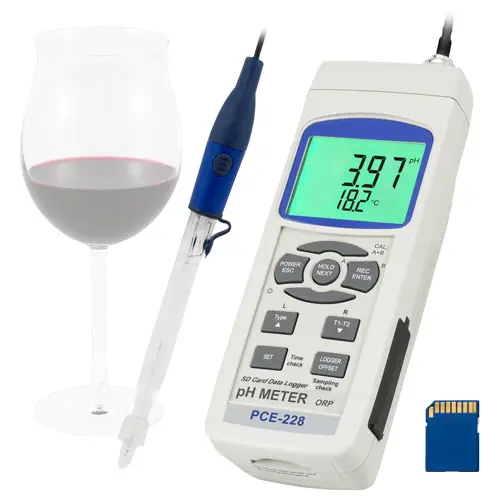

The PCE-228 water analysis meter is a very easy-to-use handheld pH / mV / °C meter. The pH value and the temperature can be saved directly on the SD card (Excel file) or transferred directly from the pH meter to a PC via the RS-232 interface. For this purpose, we optionally offer software and the appropriate RS-232 interface cable as accessories. The temperature compensation takes place either manually or automatically using the temperature sensor supplied.

All of this allows a quick and reliable pH measurement. The pH meter has a three-point calibration, which is carried out automatically. The combination measuring device can be used to determine the pH value, the temperature or the REDOX potential (ORP). For the latter measurement parameter, however, a REDOX electrode must be ordered additionally. Here we recommend the ORP electrode ORP-14. The pH meter is battery operated (6 x 1.5 V batteries are included).

Highlights

- Optimal price / performance ratio
- SD card memory (1 ... 16 GB)
- The data is saved directly as an Excel file on the SD card
   (no software is required for evaluation)

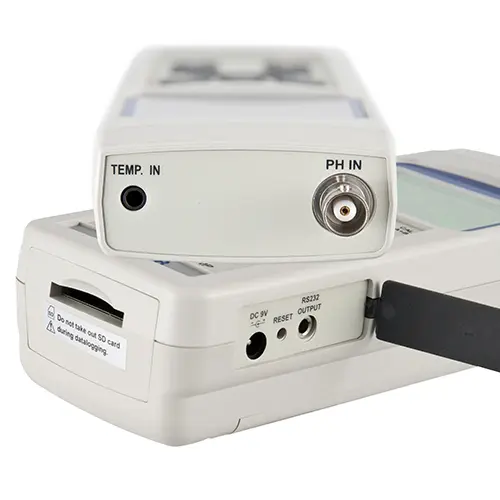

- RS-232 interface for online data transfer
- Measures pH value, redox and temperature
- High precision
- Large LCD display
- Robust housing
- Including pH electrode PE-03 and stainless steel temperature sensor
- Automatic calibration
- Manual or autom. temperature compensation
- BNC connector
- Suitable for laboratory and on-site pH measurement
- Additional REDOX electrode
- Adjustable measuring rate
- Easy to use

Specification

Measurement range pH

0.00 ... 14.00 pH

Resolution 0.01 pH
Accuracy ±(0.02 pH + 2 digits)

Measurement range redox -1999 ... 0 ... 1999 mV
(only with the optional Redox electrode)
Resolution 1 mV
Accuracy ±(0.5 % + 2 digits)

Measurement range temperature 0.0...65.0 °C / 32 ... 149 °F (only with the temperature sensor)
Resolution 0.1 °C
Accuracy (@20°C / 68°F) ±0.5 °C

Calibration automatic three-point calibration
Temperature compensation automatic from 0 to 65°C or manual between 0 and 100°C removing the temperature sensor
Electrode pH electrode PCE-PH-WINE
Temperature range 0 ... 60 °C / 32 ... 140 °F
Measurement rate adjustable from 1 second up to
8 hours 59 min 59 sec
Display LC display 52 x 38 mm
Data memory flexible via SD card memory 1 ... 16 GB
Interface RS-232
Software optional
Power supply 6 x 1.5 V AA batteries / 9 V mains adapter (optional)
Operating conditions 0...50 °C max. 85 % r.H
Dimensions 177 x 68 x 45 mm / 6.9 x 2.7 x 1.7"
Weight 490 g / 17 oz

Delivery Scope

1 x Water analysis meter PCE-228 (basic unit)

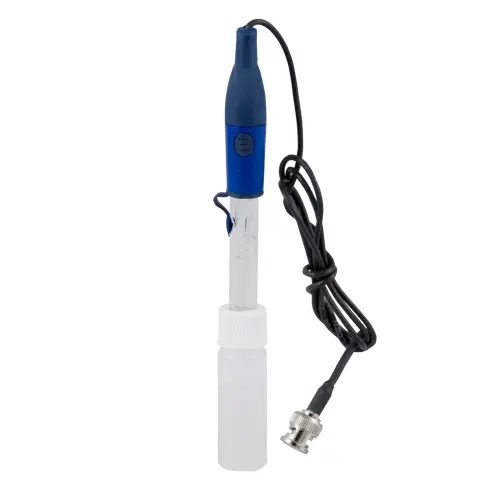

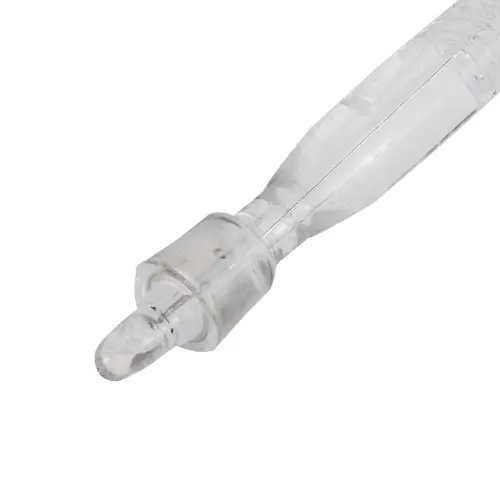

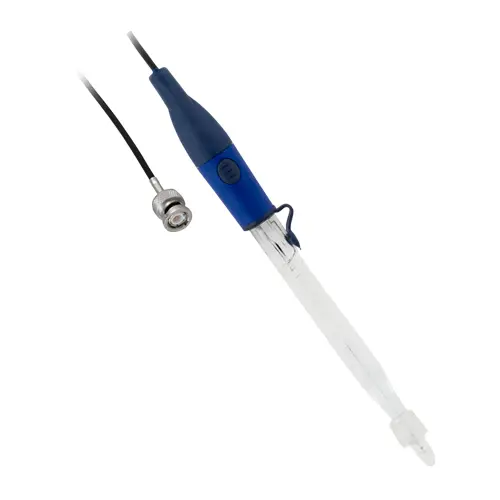

1 x pH electrode PCE-PH-WINE
1 x SD memory card (2 GB)
1 x Card reader
1 x Temperature sensor
6 x Battery
1 x Instruction manual
