Water Analysis Meter PCE-PH 228-ICA incl. ISO-Calibration Certificate

Order no.: PCE-PH 228-ICA
GTIN (EAN): 4250348734136
US$ 800.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348734136
PCE-PH 228-ICA
Available in: 5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

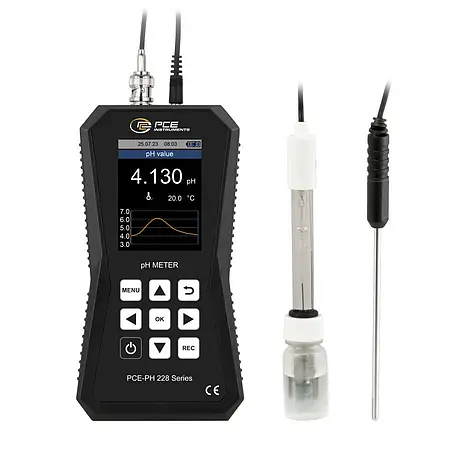

Water Analysis Meter with GLP Data Management / High Accuracy ± 0.002 pH + 2 Digits / Data Logger / User with Password Protection / Includes Electrode / Battery-Powered

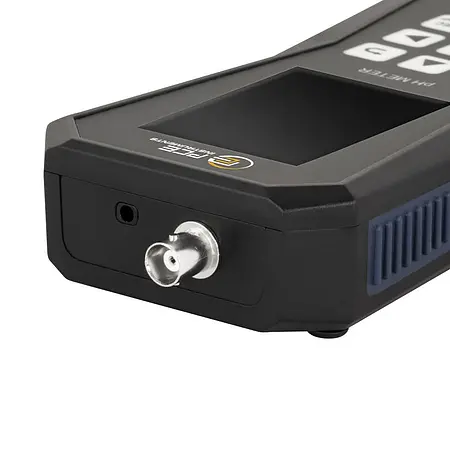

The advanced water analysis meter stands for precision, user-friendliness, and GLP compliance (Good Laboratory Practice). With a high-resolution LCD display, the water analysis meter provides a clear and concise presentation of measurement values. GLP compliance is ensured through automatic data recording and traceable documentation. It allows measurement of pH or redox value and temperature with external sensors.

A Permanent Measurement Verification (PMV) indicates to the operator, using a color bar, where the measurement value is located within the calibration range, providing insight into whether the measurement is in the correct range.

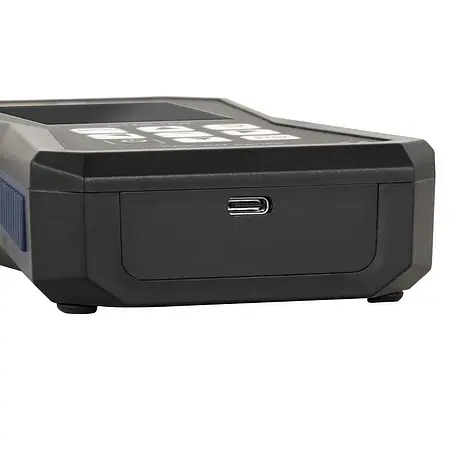

The graphically guided calibration makes the process simple and user-friendly. User and sample management enable easy navigation and adjustment of measurement parameters on the water analysis meter. Sample information can be stored to facilitate the management and identification of measurements. A generous internal data storage saves extensive records without the need for external storage. The USB-C port on the water analysis meter ensures fast data transfer and charging. A powerful LiPo battery allows hours of measurements before needing to be recharged.

Overall, this water analysis meter represents a significant step in the development of handheld and laboratory instruments. The high accuracy of ± 0.002 pH + 2 Digits, graphically guided calibration, GLP compliance, user and sample management, and data storage make it an indispensable tool for scientists, researchers, and laboratory technicians relying on precise pH measurements. It not only enhances the accuracy and efficiency of experiments but also streamlines daily work in industry, quality assurance, and the laboratory.

Highlights

- Fast, precise pH and temperature measurement
- Redox measurement (with optional electrode)
- GLP data management
- Easy 2, 3, 4, and 5-point calibration
- Calibration reminder
- Permanent Measurement Verification (PMV)
- Graphical display of measurement history
- Data logger

Specification

pH
Measurement Range-2 pH ... +20 pH
Resolution0.001 pH
Accuracy± 0.002 pH + 2 digits

Electrode
DesignationPE-03
Measurement Range+1 pH ... +13 pH
Temperature Range5 ... 60 °C
ApplicationAqueous non-corrosive media
Reference ElectrolyteAg/AgCl
Shaft MaterialEpoxy resin
Shaft Length160 mm
Shaft Diameter12 mm
Cable Length1 m

Redox
Measurement Range-2000 mV ... +2000 mV
Resolution1 mV
Accuracy± 2 mV

Temperature Sensor
Minimum Temperature-20 °C
Maximum Temperature100 °C
Resolution0.1 °C
Accuracy± 0.5 °C (@ 20 °C)

General Technical Data
Storage MediumInternal memory
Storage Interval from1 s
Storage Interval to12 h
Storage Capacity32 GB
Storage Capacity Additional Information100 records with a maximum of 100,000 data points per record
InterfaceUSB-C
Menu LanguageGerman, English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese
Protection Class (Device)IP52
Power Supply5 V DC, 500 mA
Weight252 g
Dimensions (L x W x H)178 x 85 x 32 mm / 7 x 3,3 x 1,2 in
Operating Conditions-20 ... 65 °C , 10 ... 95 % r.H
Storage Conditions-20 ... 65 °C , 10 ... 95 % r.H
Languages of the ManualGerman, English

Batteries and Accumulators
TypeLithium polymer battery
Lithium InfoLithium in the product (built-in or included)
Capacity2500 mAh
Voltage3.7 V
SystemSecondary: Rechargeable battery
Quantity1

Delivery Scope

1 x Water Analysis Meter PCE-PH 228-ICA
1 x pH Electrode PE-03
1 x Temperature Sensor
1 x Service Pouch
1 x USB-C Cable
1 x Quick Start Guide
1 ISO-Calibration Certificate
