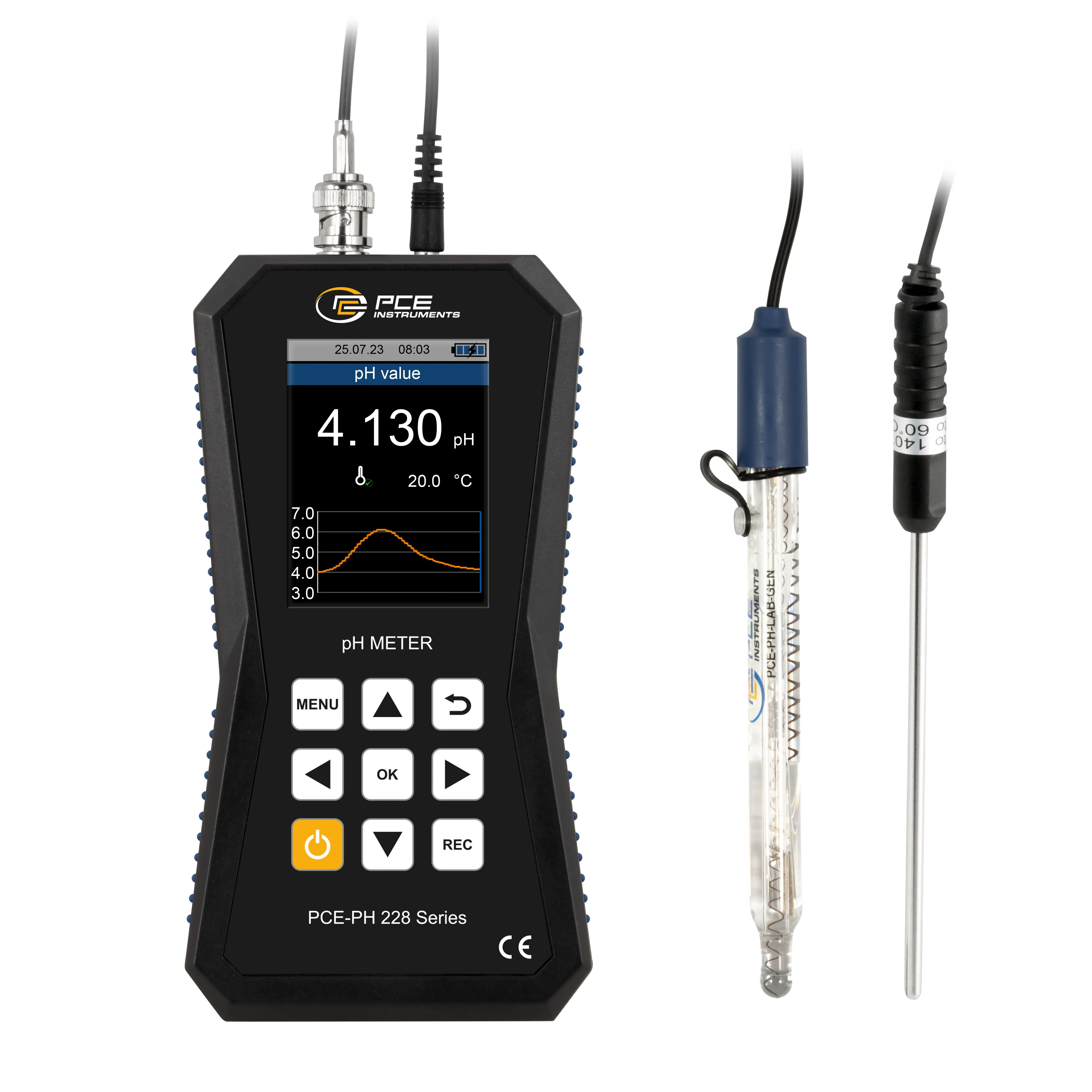

The Water Analysis Meter stands for precision, user-friendliness and GLP (Good Laboratory Practice) conformity. With a high-resolution LC display, the Water Analysis Meter provides a clear and concise display of the measured values. GLP compliance is guaranteed by automatic data recording and traceable documentation. It is possible to measure pH or redox values and temperature with external sensors.
Permanent Measurement Verification (PMV) shows the user where the measured value is within the calibration range using a coloured bar in order to determine whether the measurement is made within the correct range.
The graphically guided calibration makes the process simple and user-friendly. User and sample management allow easy navigation and setting of measurement parameters on the pH meter. Sample information can be saved to facilitate the management and identification of measurements. A generous internal data memory saves extensive records without the need for external storage. The USB-C port on the pH meter ensures fast data transfer and charging. A powerful rechargeable LiPo battery enables hours of measurements before it needs to be recharged. The electrode is refillable. The integrated ion exchanger in the reference prevents the chemical reaction of the measuring solution with AgCl and prevents "electrode poisoning".
Overall, this Water Analysis Meter represents a significant step in the development of hand-held and laboratory instruments. The high accuracy of ±0.002 pH + 2 digits, graphically guided calibration, GLP compliance, user and sample management and data storage make it an indispensable tool for scientists, researchers and laboratory technicians who rely on precise pH measurements. It not only improves the accuracy and efficiency of experiments but also facilitates everyday work in industry, quality assurance and the laboratory.
pH | |
Measurement range up to | -2 ... +20 pH |
Resolution | 0,001 pH |
Accuracy | ±0.002 pH +2 digits |

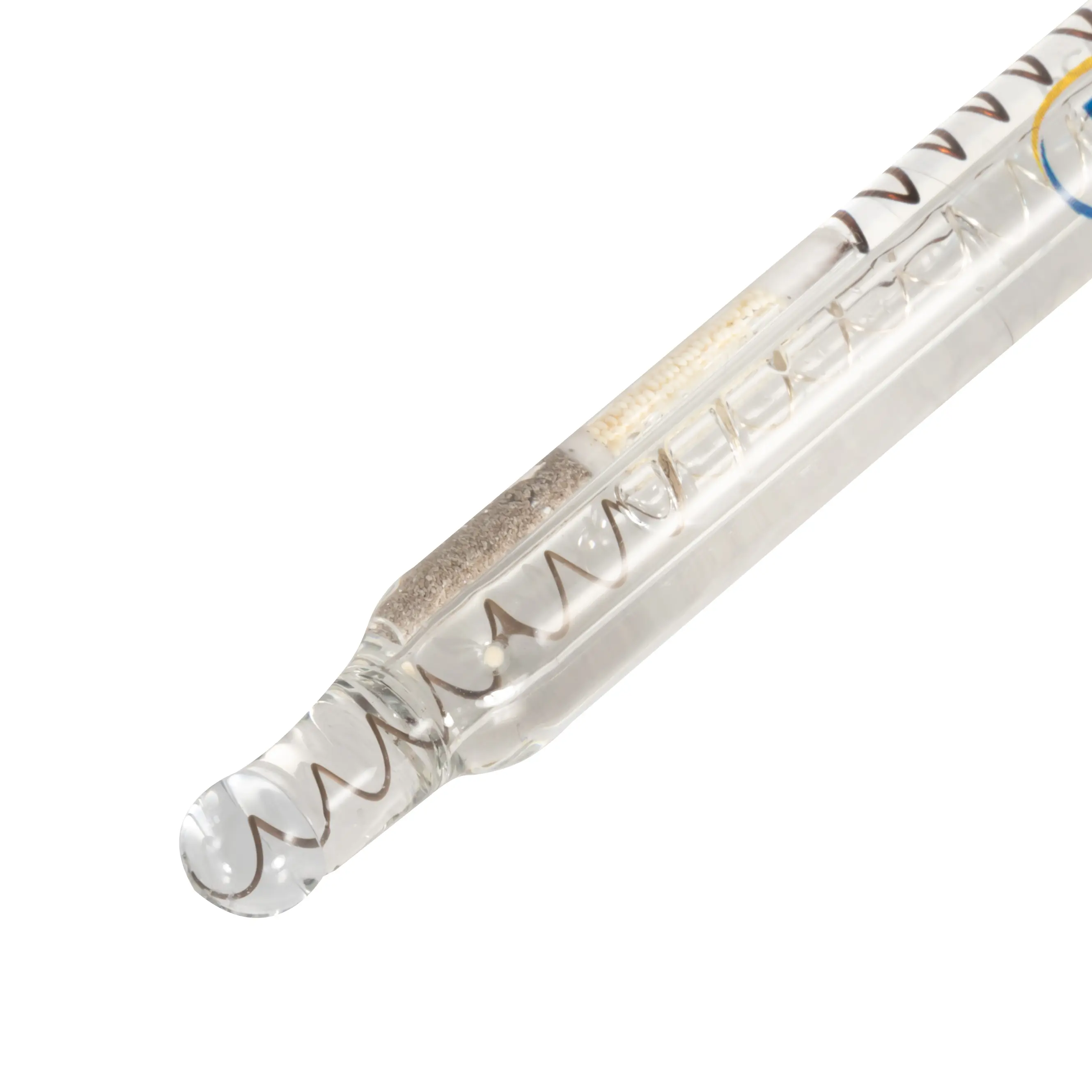

Electrode | |
Designation | PCE-PH-LAB-GEN |
Measurement range up to | 0 ... 14 pH |
Temperature range | -5 ... 100 °C |
Application | for the chemical, pharmaceutical and food industries |
Reference electrolyte | Ag/AgCl with ion exchanger |
Shank material | Glass |
Shank length | 120 mm |
Shank diameter | 12 mm |
Min. immersion depth | 22 mm |
Cable length | 1 m |
Redox | |
Measurement range up to | -2000 ... +2000 mV |
Resolution | 1 mV |
Accuracy | ±2 mV |
Temperature sensor | |
Measurement range up to | -20 ... +100 °C |
Resolution | 0,1 °C |
Accuracy | ±0.5 °C (@ 20 °C) |
General technical data | |
Measuring functions | MIN, MAX |

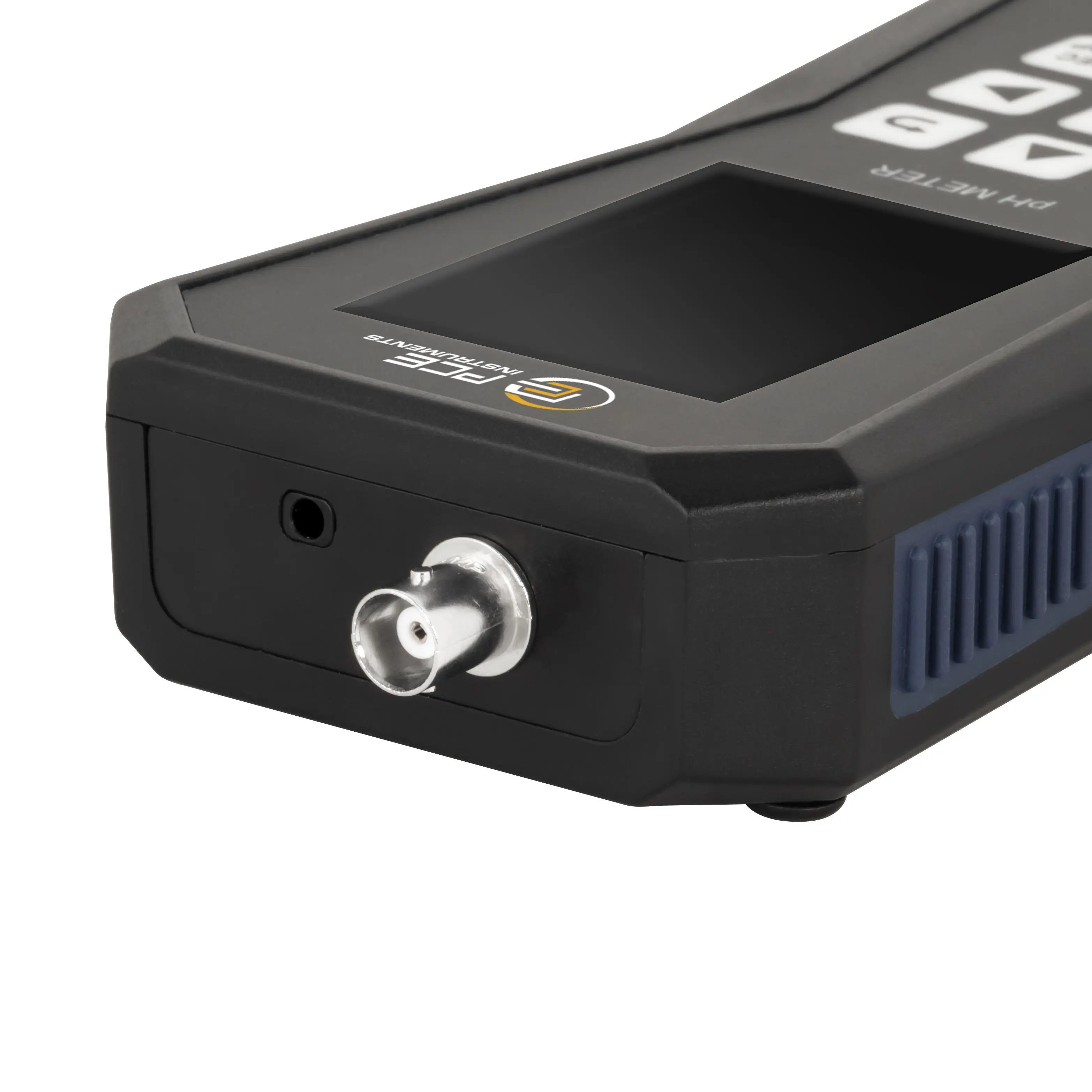

Connections | BNC |
Display type | LCD with backlight |
Storage medium | Internal memory |
Storage capacity | 32 GB |
Memory capacity (additional information) | 100 recordings with a maximum of 100,000 data points per recording |
Storage interval from | 1 s |
Storage interval to | 12 h |

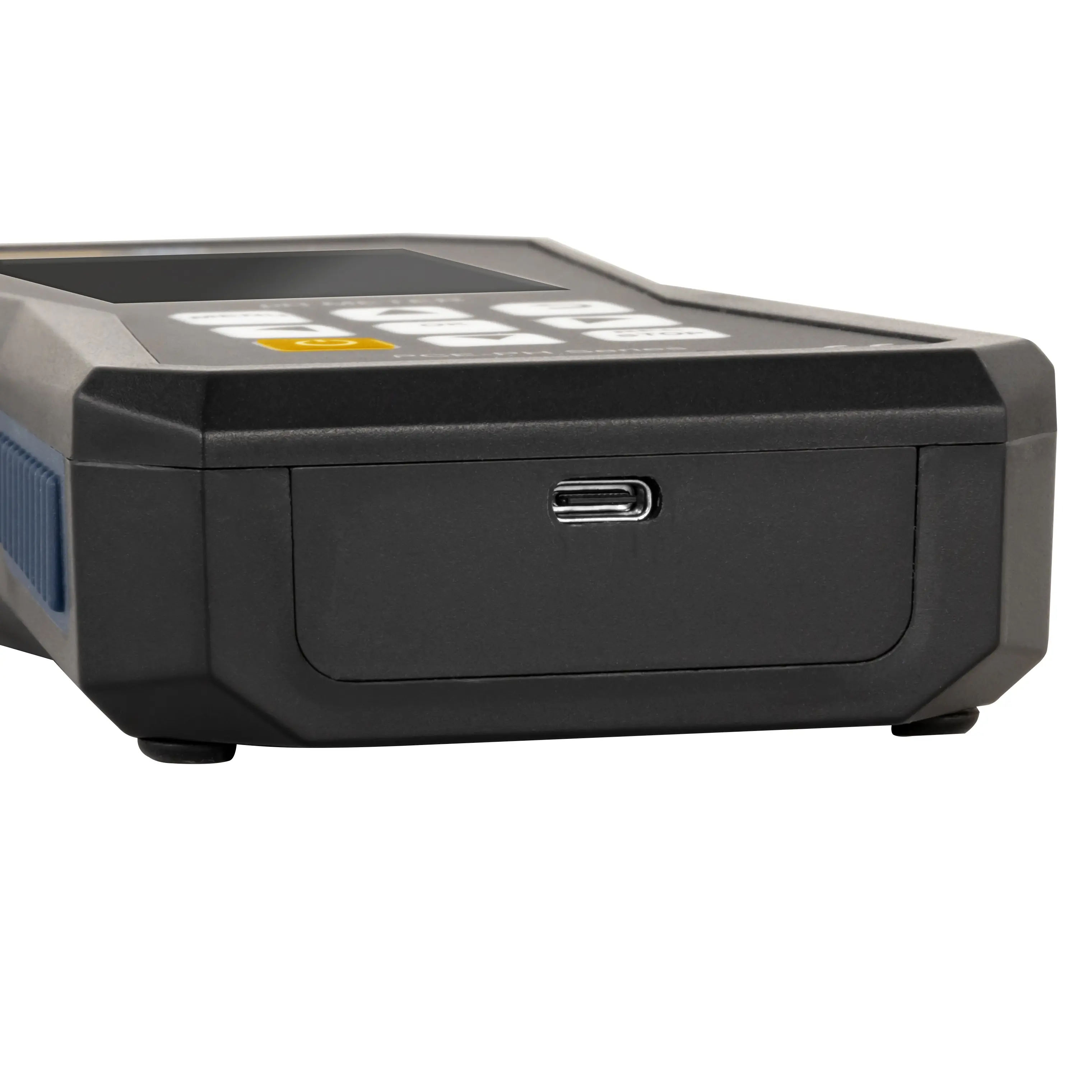

Interface | USB-C |
Number of calibration points | 5 |
Menu language | Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese |
Protection class (device) | IP52 |
Power supply | 5 V DC, 500 mA |
(Rechargeable) battery | 1 x 3,7 V internal , Lithium polymer battery |
Capacity | 2500 mAh |
Operating conditions | -20 ... 65 °C , 10 ... 95 % RH |
Storage conditions | -20 ... 65 °C , 10 ... 95 % RH |
Dimensions ( L x W x H ) | 178 x 85 x 32 mm |
Weight | 252 g |
