Water Hardness Meter PCE-CP 21

Order no.: PCE-CP 21
GTIN (EAN): 4250348727411
US$ 504.00
Wireless
ex. VAT, ex. delivery costs
:
4250348727411
PCE-CP 21
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Reagent Kit Bromine or Chlorine Dioxide in Water containing Chlorine
Reagent Kit Bromine or Chlorine Dioxide in Water containing Chlorine
US$ 28.00
Reagent Tablets for Iron Measurement
Reagent Tablets for Iron Measurement
US$ 26.00
DPD N° 3 Reagent Tablets for Free Chlorine, Total Chlorine
DPD N° 3 Reagent Tablets for Free Chlorine, Total Chlorine
US$ 12.00
Reagent Tablets for pH Value Measurement
Reagent Tablets for pH Value Measurement
US$ 12.00
DPD N° 1 Reagent Tablets for Free Chlorine
DPD N° 1 Reagent Tablets for Free Chlorine
US$ 12.00
Bromine Auxiliary Tablets PCE-CP X0 Tab Glycine
Bromine Auxiliary Tablets PCE-CP X0 Tab Glycine
US$ 16.00
Calibration Set PCE-CP X0 Cal-Set
Calibration Set PCE-CP X0 Cal-Set
US$ 226.00
Replacement Cuvette PCE-CP X0 Cuvette
Replacement Cuvette PCE-CP X0 Cuvette
US$ 28.00
Carrying Case PCE-CP X0 Case
Carrying Case PCE-CP X0 Case
US$ 91.00
Light Protection Cover PCE-CP X0 Cuvette Cover
Light Protection Cover PCE-CP X0 Cuvette Cover
US$ 25.00
Microfiber Cloth PCE-CP X0 Microfibre Cloth
Microfiber Cloth PCE-CP X0 Microfibre Cloth
US$ 5.00
PCE-CP X0 PIP
Dosing Pipette 10 ml
US$ 3.00
Plastic stirring stick (10.5 cm) for the PCE-CP Series.
Stirring Stick for the PCE-CP Series PCE-CP X0 Spurtle
US$ 6.00
Cyanuric Acid Tablets PCE-CP X0 Tab Cyanuric Acid
Cyanuric Acid Tablets PCE-CP X0 Tab Cyanuric Acid
US$ 18.00
Tablets Starter Kit PCE-CP X0 Tab Starter Kit
Starter Tablets Kit PCE-CP X0 Tab Starter Kit
US$ 25.00

Description

Multi-parameter water hardness meter with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

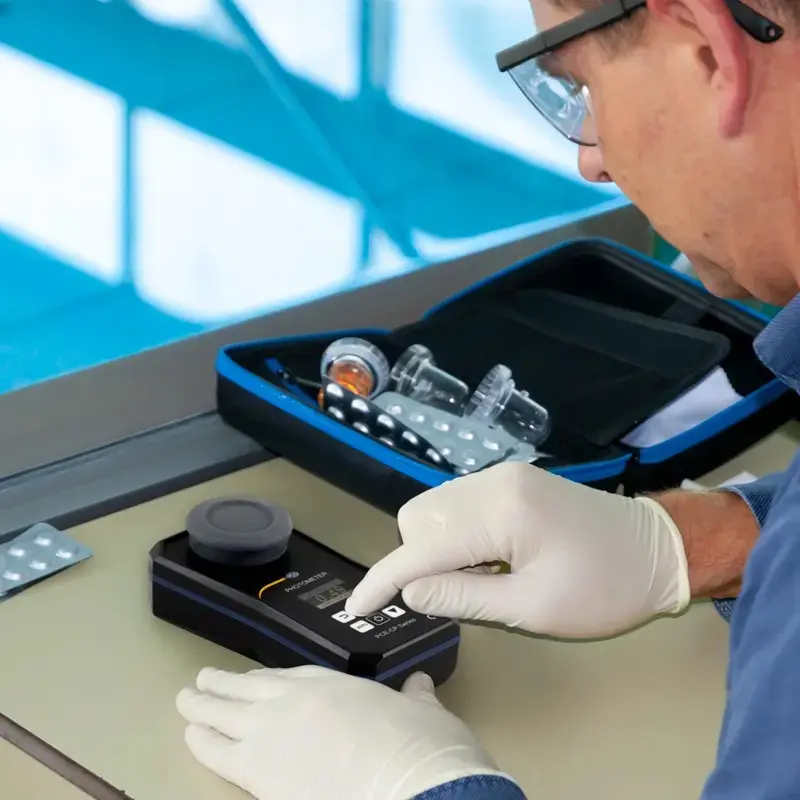

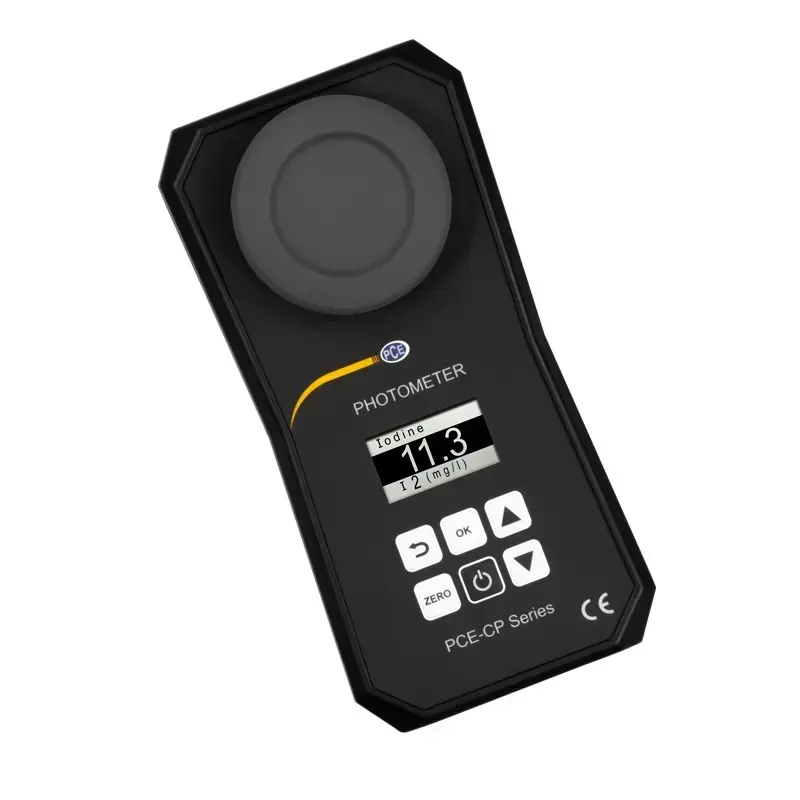

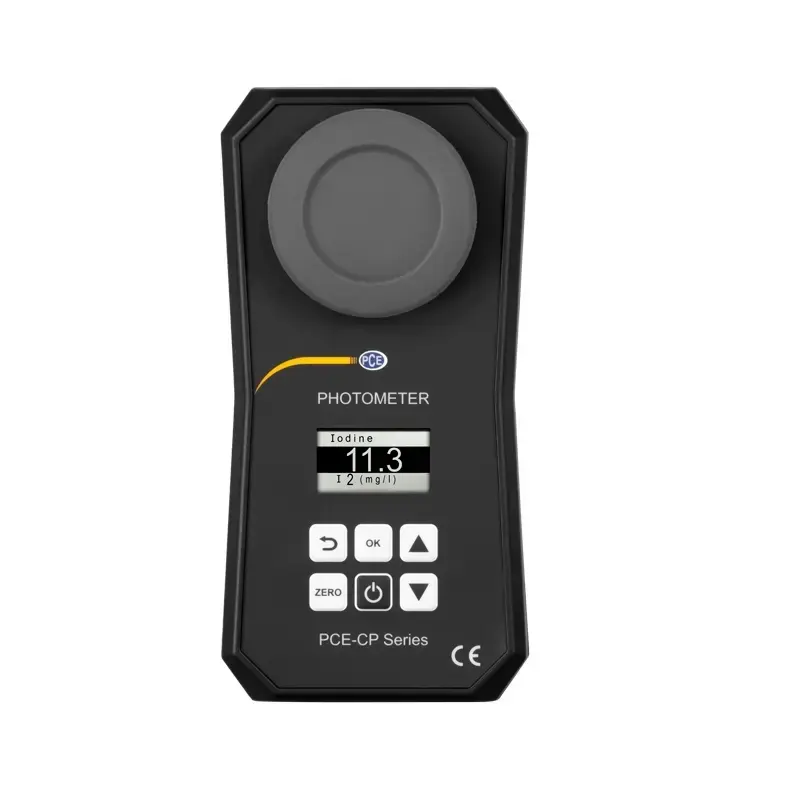

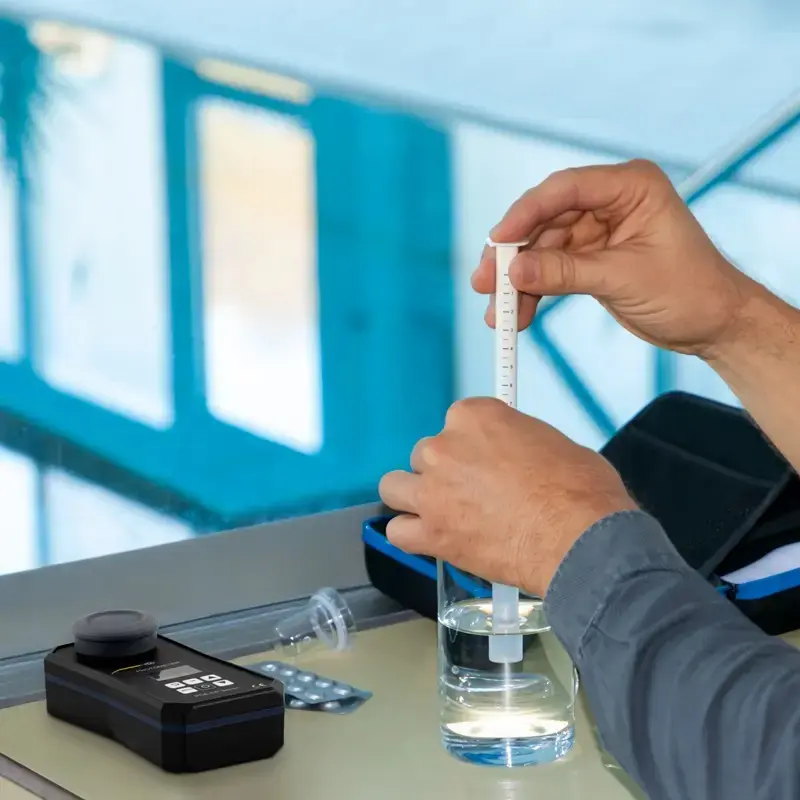

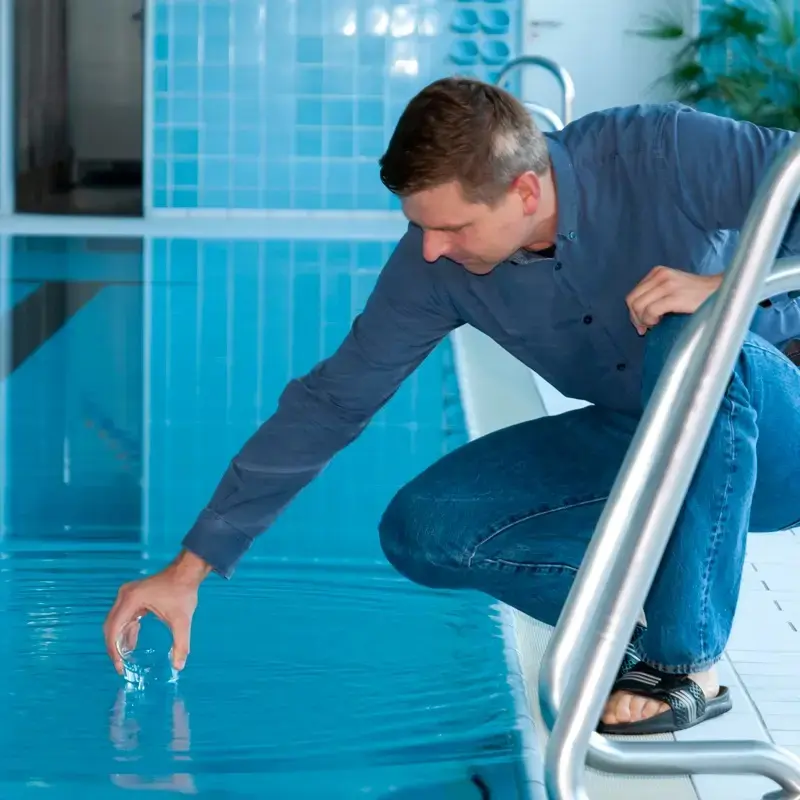

The multi-parameter water hardness meter is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter water hardness meter. With this multi-parameter water hardness meter, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter water hardness meter, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter water hardness meter generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

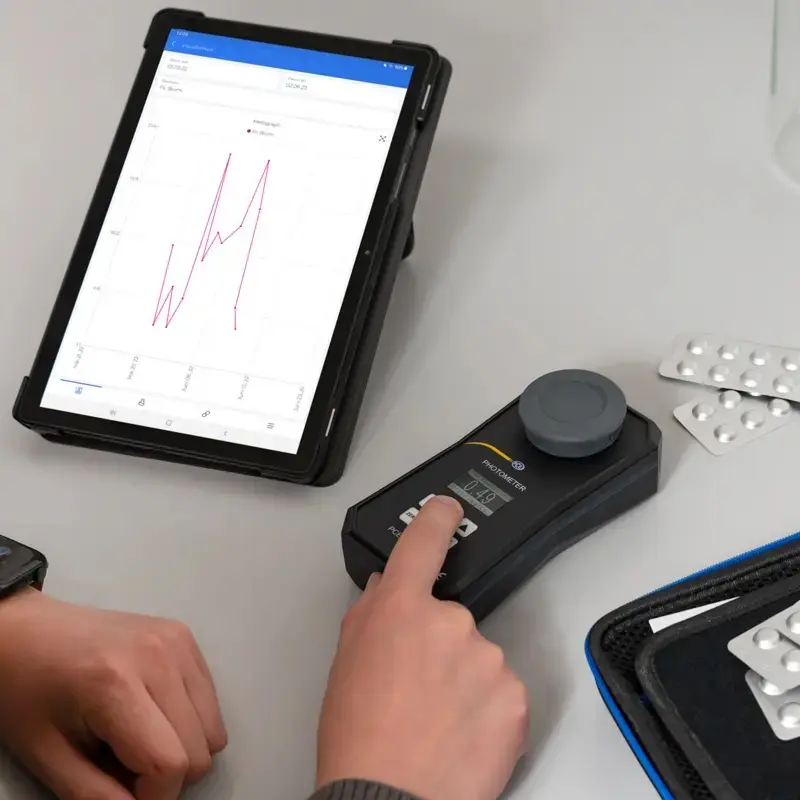

Each measurement is automatically saved by the multi-parameter water hardness meter . The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter water hardness meter. A free app is available to analyze the measured values ​​from the multi-parameter water hardness meter. It is also possible to establish a Bluetooth connection between the multi-parameter water hardness meterand a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter water hardness meter, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter water hardness meter is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Chlorine
Measuring range   0.00 … 2.00 mg/l
    2.00 … 3.00 mg/l
    3.00 … 4.00 mg/l
    4.00 … 8.00 mg/l

Accuracy   0.10 mg/l
    0.23 mg/l
    0.75 mg/l
    1.00 mg/l

Resolution   0.01 mg/l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Iron
Measuring range     0.00 … 0.20 mg/l
      0.20 … 0.60 mg/l
      0.60 … 1.00 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.08 mg/l

Resolution     0.01 mg/l

Cyanuric acid
Measuring range     0 … 15 mg/l
    15 … 50 mg/l
    50 … 120 mg/l
  120 … 160 mg/l

Accuracy   1 mg/l
    5 mg/l
  13 mg/l
  19 mg/l

Resolution   1 mg/l

Bromine
Measuring range     0.0 … 2.5 mg/l
      2.5 … 6.5 mg/l
      6.5 … 11.0 mg/l
    11.0 … 13.5 mg/l

Accuracy   0.2 mg/l
    0.6 mg/l
    1.7 mg/l

  2.3 mg/l

Resolution   0.1 mg/l

Iodine
Measuring range     0.0 … 5.0 mg/l
      5.1 … 10.0 mg/l
    10.1 … 15.0 mg/l
    15.1 … 21.4 mg/l

Accuracy   0.5 mg/l
    0.8 mg/l
    2.7 mg/l

  3.6 mg/l

Resolution   0.1 mg/l

Further specification


Units
 mg/l, ppm
Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette   36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / 8.1 oz

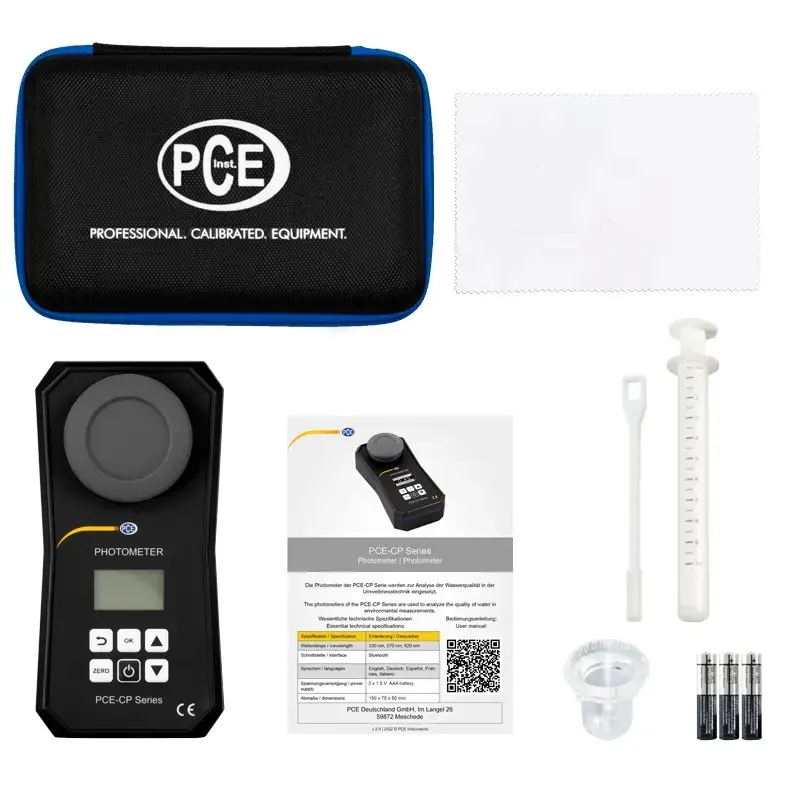

Delivery Scope

1 x Multi-parameter Water Hardness Meter PCE-CP 21 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
