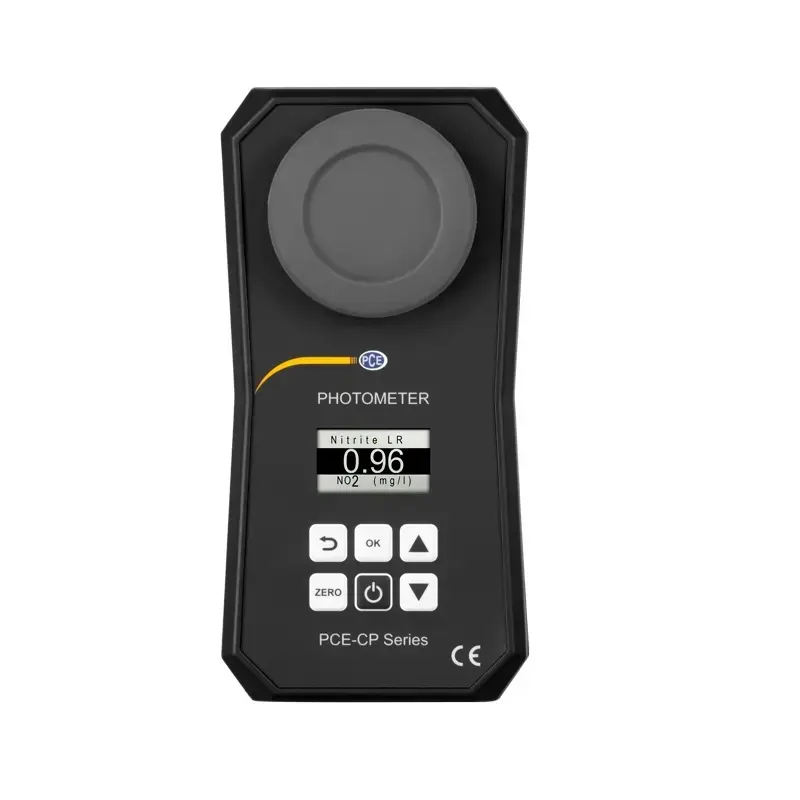

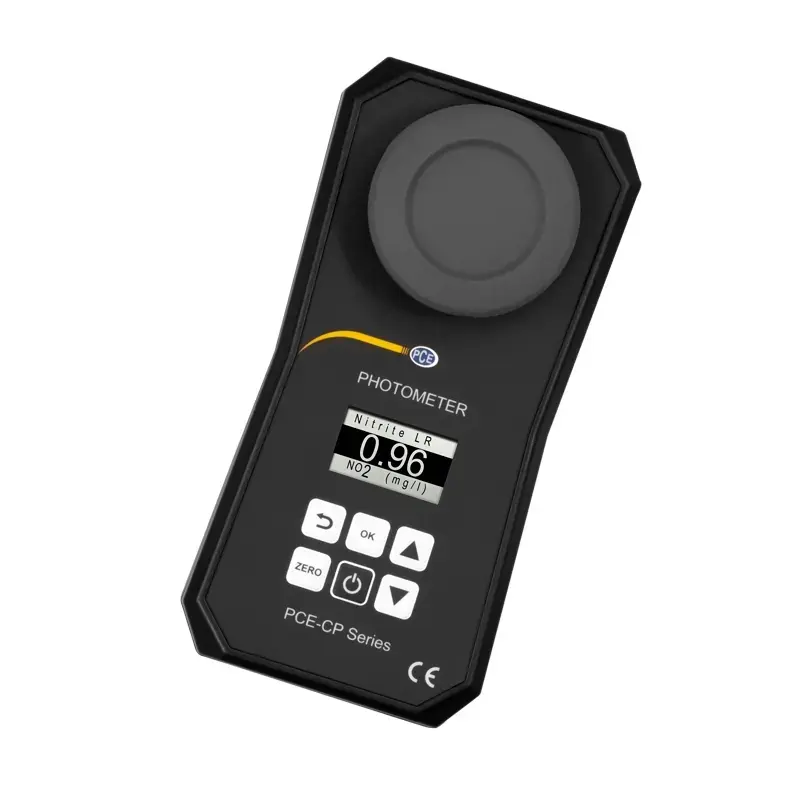

Water Hardness Tester PCE-CP 22

Order no.: PCE-CP 22
GTIN (EAN): 4250348727428
US$ 504.00
Wireless
ex. VAT, ex. delivery costs
:
4250348727428
PCE-CP 22
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

25 ml Shaker for the Parameter Nitrate
ml Shaker for the Parameter Nitrate (25)
US$ 4.00
Reagent Tablets for Copper Measurement
Reagent Tablets for Copper Measurement
US$ 45.00
Reagent Kit Phosphate
Reagent Kit Phosphate
US$ 43.00
Reagent Tablets for Nitrite Measurement
Reagent Tablets for Nitrite Measurement
US$ 26.00
Reagent Kit Urea
Reagent Kit Urea
US$ 475.00
Reagent Tablets for Iron Measurement
Reagent Tablets for Iron Measurement
US$ 26.00
Reagent Tablets for pH Value Measurement
Reagent Tablets for pH Value Measurement
US$ 12.00
Liquid Reagent No. 1 for Urea
Liquid Reagent No. 1 for Urea
US$ 45.00
Liquid Reagent No. 2 for Urea
Liquid Reagent No. 2 for Urea
US$ 422.00
Ammonia No1 Tablets PCE-CP X0 Tab Ammonia No1
Ammonia No1 Tablets PCE-CP X0 Tab Ammonia No1
US$ 30.00
Ammonia No2 Tablets PCE-CP X0 Tab Ammonia No2
Ammonia No2 Tablets PCE-CP X0 Tab Ammonia No2
US$ 30.00
Calibration Set PCE-CP X0 Cal-Set
Calibration Set PCE-CP X0 Cal-Set
US$ 226.00
Replacement Cuvette PCE-CP X0 Cuvette
Replacement Cuvette PCE-CP X0 Cuvette
US$ 28.00
Carrying Case PCE-CP X0 Case
Carrying Case PCE-CP X0 Case
US$ 91.00
Light Protection Cover PCE-CP X0 Cuvette Cover
Light Protection Cover PCE-CP X0 Cuvette Cover
US$ 25.00
Microfiber Cloth PCE-CP X0 Microfibre Cloth
Microfiber Cloth PCE-CP X0 Microfibre Cloth
US$ 5.00
PCE-CP X0 PIP
Dosing Pipette 10 ml
US$ 3.00
Plastic stirring stick (10.5 cm) for the PCE-CP Series.
Stirring Stick for the PCE-CP Series PCE-CP X0 Spurtle
US$ 6.00
Tablets Starter Kit PCE-CP X0 Tab Starter Kit
Starter Tablets Kit PCE-CP X0 Tab Starter Kit
US$ 25.00

Description

Multi-parameter water hardness tester with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

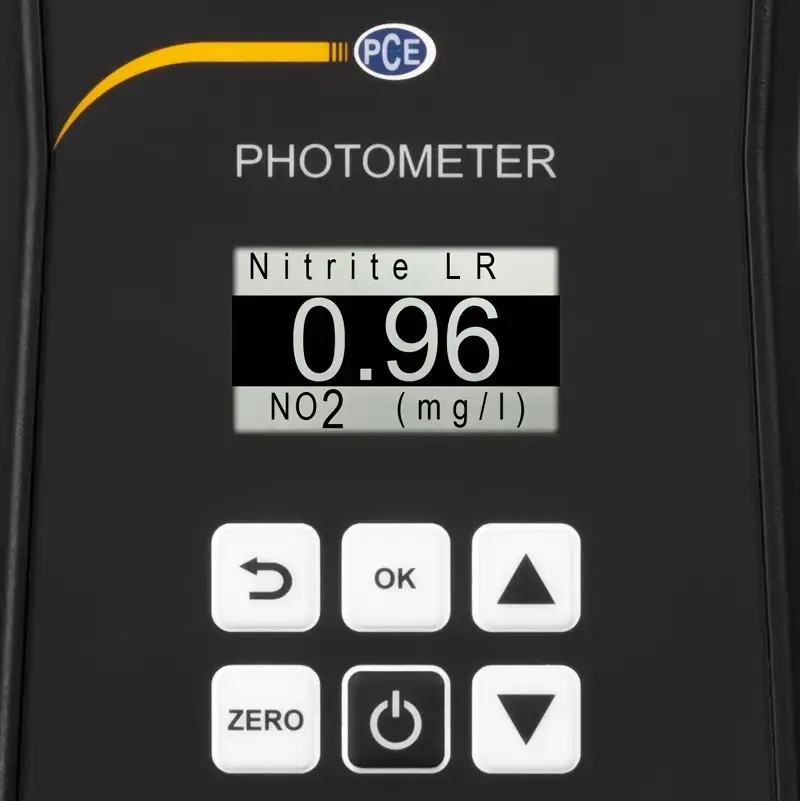

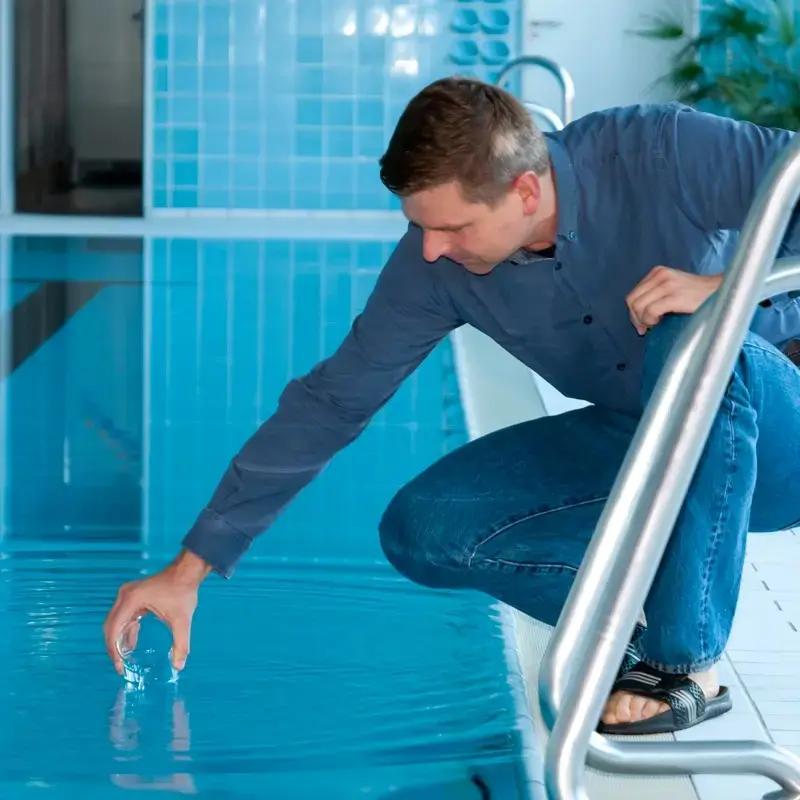

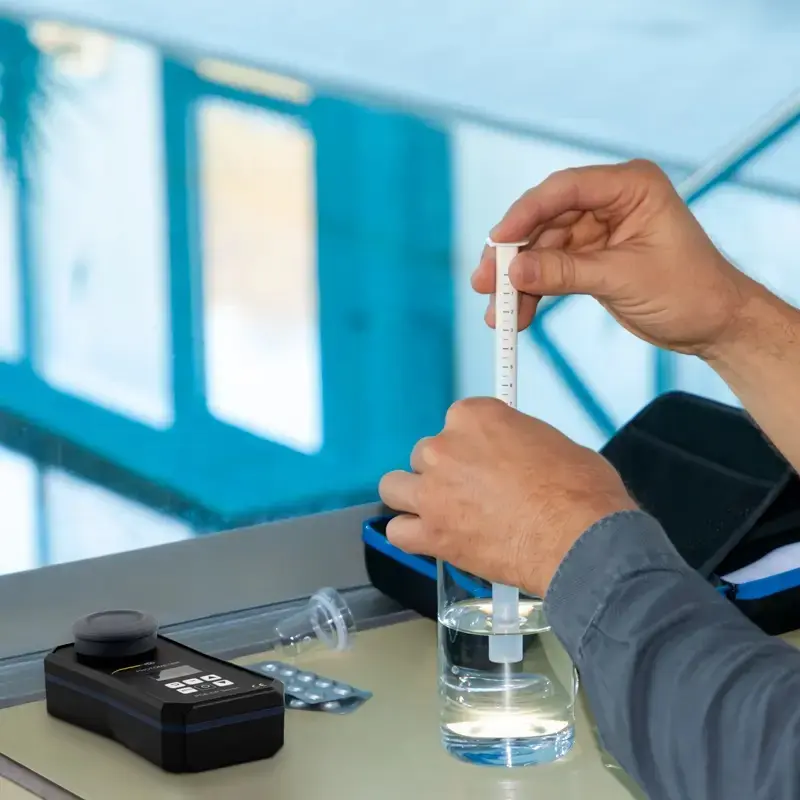

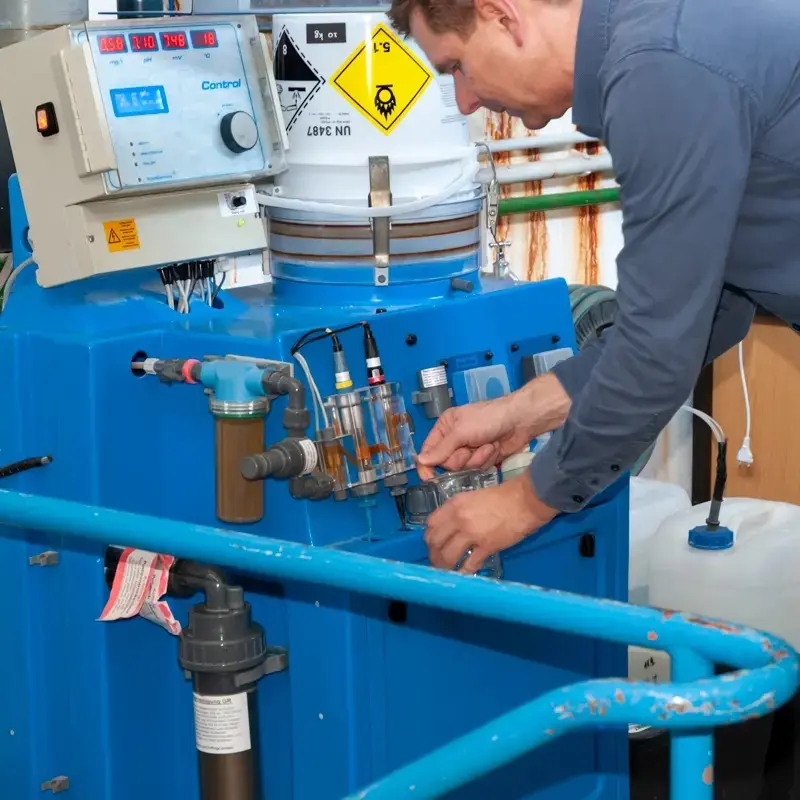

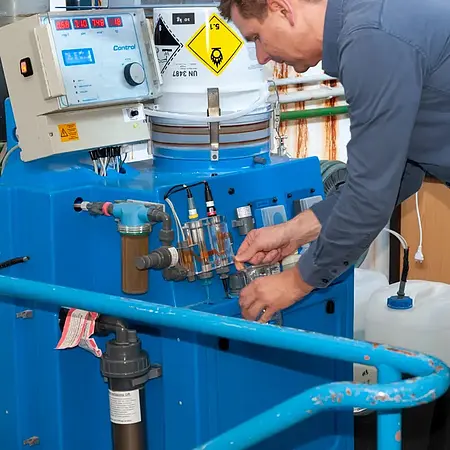

The multi-parameter water hardness tester is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the water hardness tester. With this water hardness tester, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the water hardness tester, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the water hardness tester generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

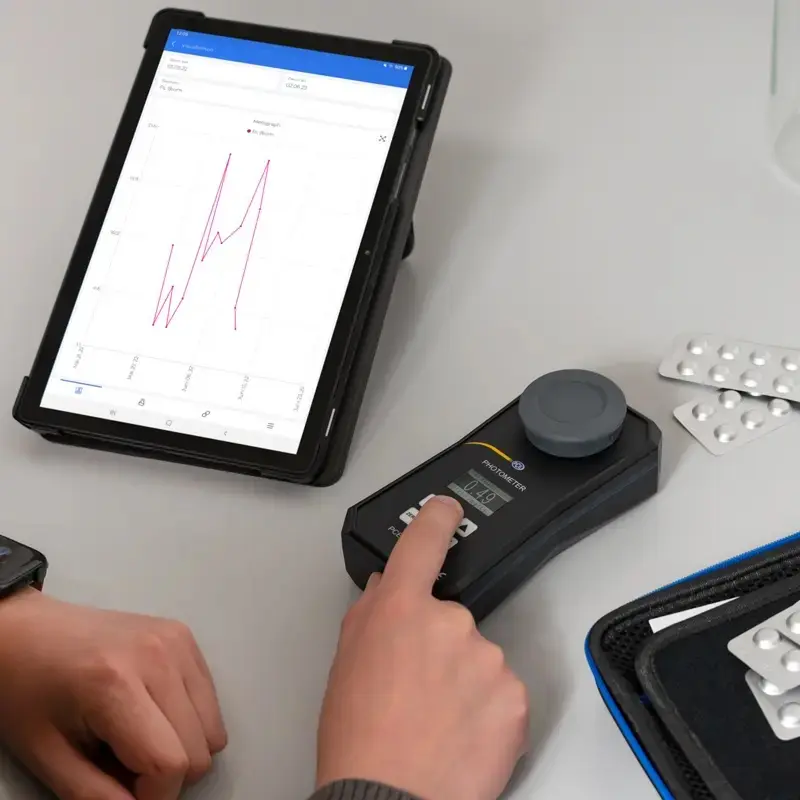

Each measurement is automatically saved by the multi-parameter water hardness tester. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the water hardness tester. A free app is available to analyze the measured values ​​from the water hardness tester. It is also possible to establish a Bluetooth connection between the water hardness tester and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the water hardness tester, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the water hardness tester is also free of charge.

Highlights

- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

Iron
Measuring range     0.00 … 0.20 mg/l
      0.20 … 0.60 mg/l
      0.60 … 1.00 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.08 mg/l

Resolution     0.01 mg/l

Urea
Measuring range     0.00 … 0.30 mg/l
      0.30 … 0.60 mg/l
      0.60 … 1.00 mg/l
      1.00 … 1.50 mg/l
      1.50 … 2.50 mg/l

Accuracy     0.05 mg/l
      0.06 mg/l
      0.09 mg/l
      0.12 mg/l
      0.19 mg/l

Resolution     0.01 mg/l

Nitrite
Measuring range     0.00 … 0.25 mg/l
      0.25 … 0.40 mg/l
      0.40 … 1.30 mg/l
      1.30 … 1.64 mg/l

Accuracy     0.02 mg/l
      0.06 mg/l
      0.09 mg/l
      0.12 mg/l

Resolution     0.01 mg/l

Nitrate
Measuring range     0 … 20 mg/l
      20 … 40 mg/l
      40 … 60 mg/l
      60 … 100 mg/l

Accuracy     2 mg/l
      4 mg/l
      6 mg/l
      10 mg/l

Resolution     1 mg/l

Phosphate
Measuring range     0.00 … 0.40 mg/l
      0.40 … 1.20 mg/l
      1.20 … 2.00 mg/l

Accuracy     0.04 mg/l
      0.12 mg/l
      0.20 mg/l

Resolution     0.01 mg/l

Ammonia
Measuring range     0.00 … 0.12 mg/l
      0.12 … 0.25 mg/l
      0.25 … 0.57 mg/l
      0.57 … 1.21 mg/l

Accuracy     0.02 mg/l
      0.04 mg/l
      0.06 mg/l
      0.09 mg/l

Resolution     0.01 mg/l

Copper
Measuring range     0.00 … 2.00 mg/l
      2.00 … 3.00 mg/l
      3.00 … 5.00 mg/l

Accuracy     0.20 mg/l
      0.31 mg/l
      0.44 mg/l

Resolution     0.01 mg/l

Potassium
Measuring range     0.8 ... 3.0 mg/l
      3.0 ... 7.0 mg/l
      7.0 ... 10.0 mg/l
      10.0 ... 12.0 mg/l

Accuracy     0.3 mg/l
      0.4 mg/l
      0.5 mg/l
      1 mg/l

Resolution     0.1 mg/l

Further specification


Units
 mg/l, ppm
Calibration Zero point calibration
Light source
 503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
 4 x 1.5V AA batteries
Dimensions of the cuvette   36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45 °C, 20 ... 90% RH non-condensing
Storage conditions 5… 45 °C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / 8.1 oz

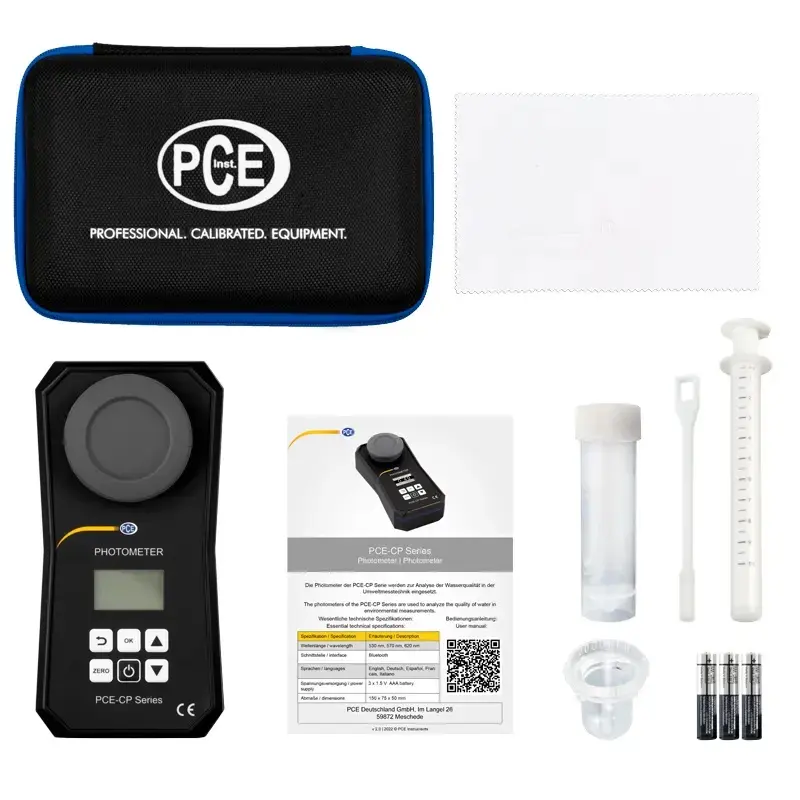

Delivery Scope

1 x Multi-parameter water hardness tester PCE-CP 22 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 25 ml shaker (for nitrate)
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
