Air Quality Station / Air Quality Monitor PCE-RCM 12

Order no.: PCE-RCM 12
GTIN (EAN): 4250348717900
US$ 616.00
ex. VAT, ex. delivery costs
:
4250348717900
PCE-RCM 12
Available in: 1-2 days
Home area
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

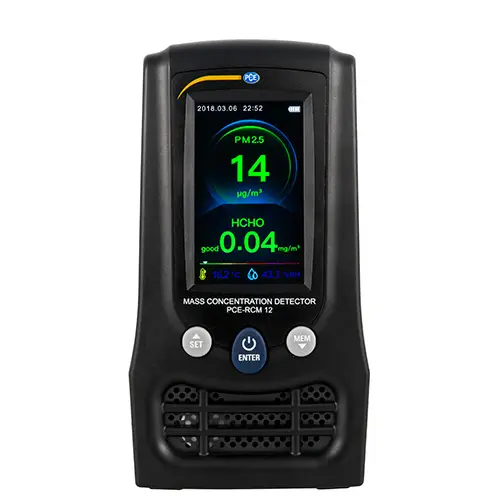

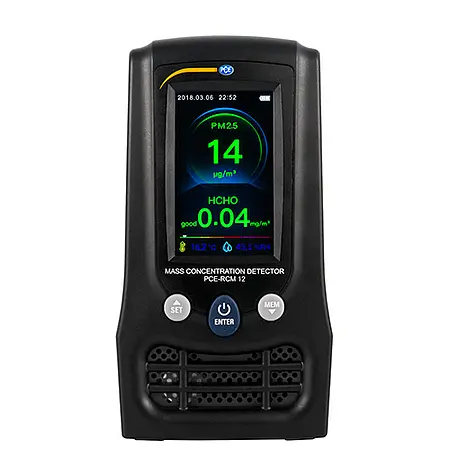

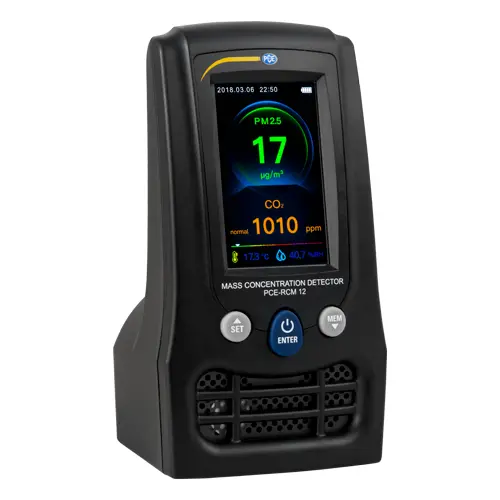

Air quality station / Air Quality Monitor

Air quality monitor for orienting measurement of environmental conditions /
determination of CO2, HCHO, fine dust (PM2,5 / PM10) /
temperature and relative humidity / 3 "TFT LCD display

Information on the Air Quality Monitor

The air quality monitor from PCE Instruments is a true all-rounder when it goes about the quality of the indoor air. The air quality monitor quickly and accurately determines several environmental parameters that are of enormous importance for well-being and concentration. The air quality monitor enables an effective and uncomplicated measurement of CO2, fine dust, temperature, formaldehyde and relative humidity.

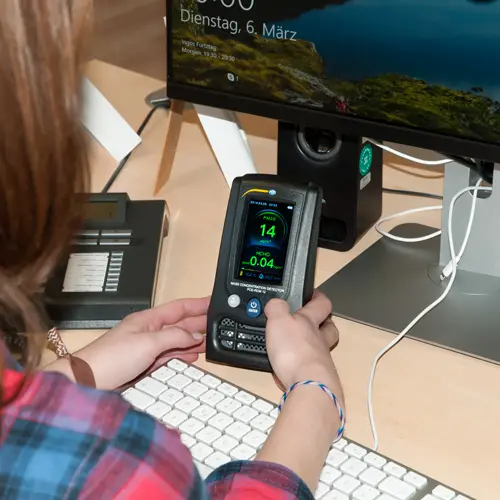

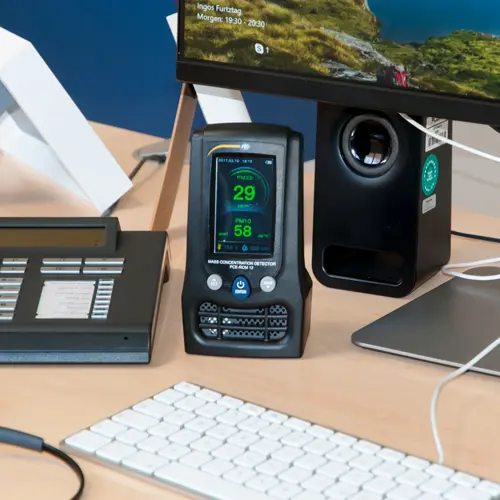

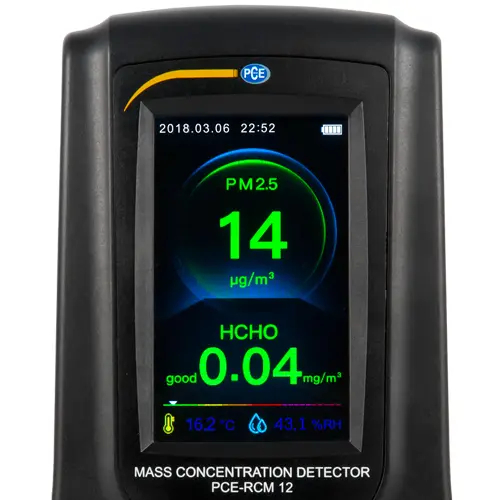

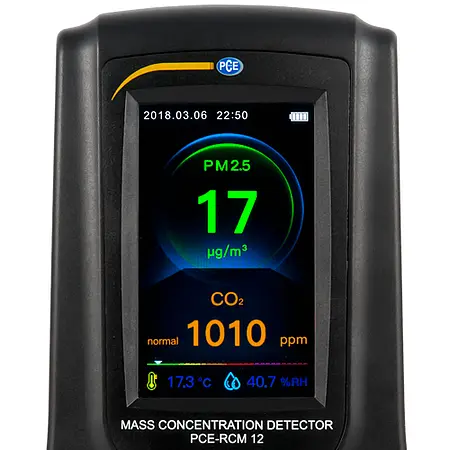

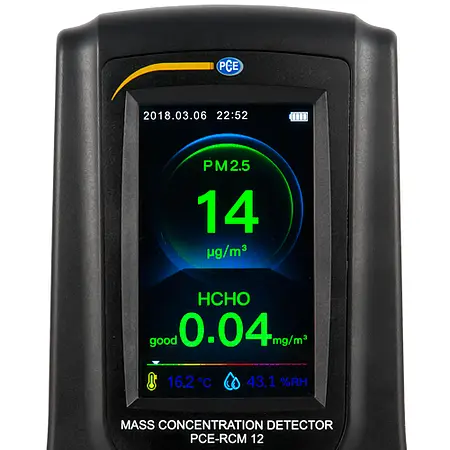

In order to control the air quality in the closed rooms under control, the producer has equipped the air quality monitor with the colour rating scale. This scale serves as an indicator and simplifies the user's orientation: as soon as a limit value is exceeded, this is shown in colour on the display. In addition, if desired, in case of a potential danger, the air quality monitor also makes an acoustic signal. air quality station - Air Quality Monitor application in office.This function is useful, for example, when measuring the pollutant substances in the indoor air. The air quality monitor, for example, makes it possible to effectively detect the fine dust load. Here, a distinction is made between fine dust particles with a maximum diameter of up to 10 μm (PM10) and fine dust particles with a diameter of up to 2.5 μm (PM2.5). In addition, the air quality monitor precisely indicates the formaldehyde concentration in the room air. For measuring carbon dioxide, the meter has a wide measuring range from 0 to 9,999 ppm. The manufacturer has also equipped the air quality monitor with a large memory for 5000 measuring groups as well as a practical date and time display. In addition, the air quality monitor provides reliable information about the temperature (-20 ° C ... +70 ° C) and humidity (0 ... 100% RH).
The easy-to-read display of the air quality monitor shows the measured values alternately. The user also has the opportunity to use the device for a while completely self-sufficient, without any connection to a power source. After five hours of continuous operation, the air quality station will need some energy. It takes two hours for the battery of the device to be fully charged again. In order to provide a continuous measurement of the environmental conditions, the manufacturer has equipped the air quality station with a USB port. In this way, the user can connect the meter with a power source.

Air Quality Monitor Application

air quality station - Air Quality Monitor application in university.Good indoor climate is important as it has a significant impact on the ability to concentrate, performance, overall well-being and health. In particular, the fact that the indoor air is often much more polluted than the outside air is increasingly putting the monitoring of the indoor air quality into focus.
The air quality monitor is an ideal tool to determine the important parameters related to the air quality. The air quality monitor from PCE Instruments is compact and flexible in use, and therefore, ideal for monitoring the air quality in a variety of indoor areas, in both, professional and private environments. Its diverse functions, combined with the ability to capture multiple environmental parameters, make the environmental meter an ideal device for factories, workplaces, schools or day care centres. Also, in a private sector, the air quality monitor is preferred because of its easy handling and appealing design.


Highlights

- measurement of CO2; formaldehyde
- specification of the room temperature / humidity
- fine dust measurement (PM2,5 / PM10)
- large CO2 measuring range up to 9999 ppm

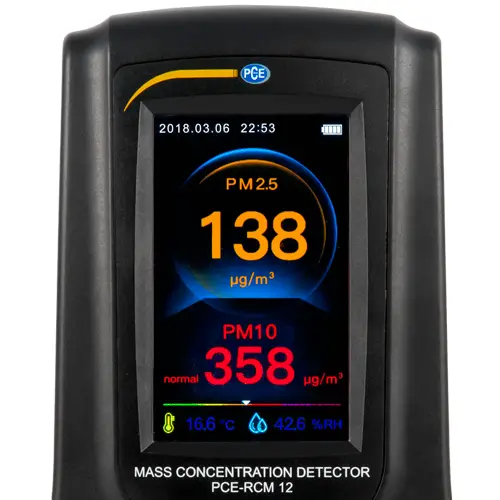

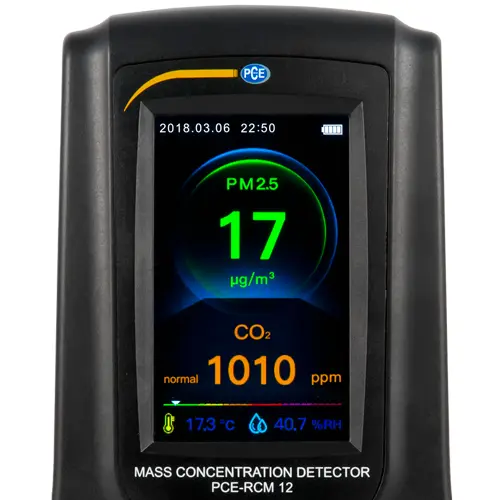

- changing display of the measured values
- memory for up to 5000 measuring groups
- date / time display
- USB interface
- 3 "large TFT-LCD display
- safe and easy handling

Specification

Measuring range fine dust PM2.5 / PM10
Measuring range particle measurement   0 ... 2000 µg/m³
Resolution particle measurement 1 µg/m³

Measuring range CO2 0 ... 9999 ppm
Accuracy CO2 ±5% of measured value or ±75 ppm
Resolution CO2 1 ppm

Measuring range formaldehyde 0.00 ... 5.00 mg/m³
Accuracy formaldehyde ±5% of measured value
Resolution formaldehyde 0.01 mg/m³

Measuring range humidity 0 ... 100% r.H.
Accuracy humidity ±3.5% r.H. (at 20 ... 80% r.H.)
± 5% r.H. (at 0 ... 20% r.H. / 80 ... 100% r.H)
Resolution humidity 0.1% r.H.%

Measuring range temperature -20 ... 70°C / -4 ... 158°F
Accuracy temperature ±2°C / 3.6°F
Resolution temperature 0.1°C / 0.18°F

Sound sensor Wake up function to APO
Power supply 2400-mAh, rechargeable battery
Battery life Continuous measurement for up to 5 hours
Charging Via USB 5V / 1 A
Charging time 2 hours (when switched off)
Automatic sleep mode Adjustable if necessary
Display 3" TFT LCD Display, 240 x 400 pixel
Data storage 5000 measurement groups
Operating temperature 0 ... 50°C / 32 ... 122°F
Storage temperature -10 ... 60°C / 14 ... 140°F
Dimensions 85 x 75 x 155 mm / 3.3 x 2.9 x 6.1 in
Weight 360 g / < 1 lb

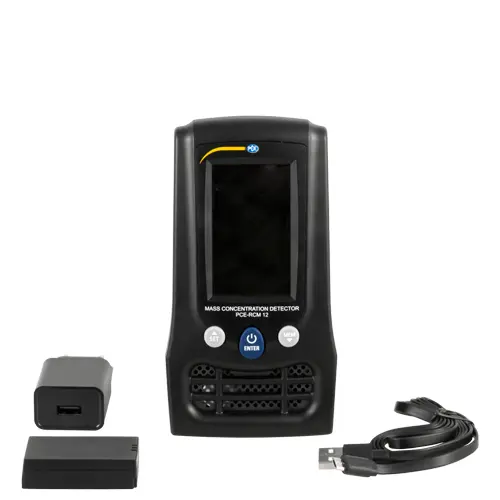

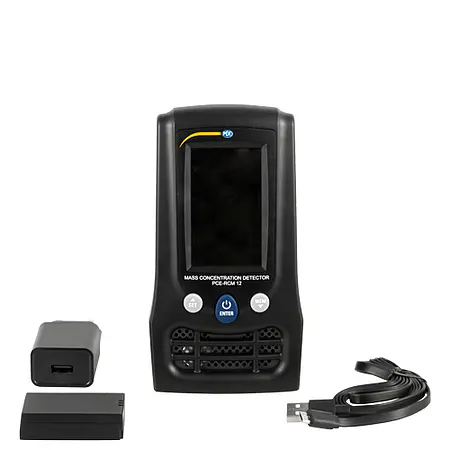

Delivery Scope

1 x Air Quality Station PCE-RCM 12
1 x USB cable
1 x Battery pack
1 x Charging adapter
1 x User manual
