Air Quality Station PCE-CMM 10

Order no.: PCE-CMM 10
GTIN (EAN): 4250348718914
US$ 326.00
ex. VAT, ex. delivery costs
:
4250348718914
PCE-CMM 10
Available in: 1-2 days
Home area

Accessory

USB Power Adapter NET-USB-WORLD
USB Power Adapter NET-USB-WORLD
US$ 26.00
ISO Calibration Certificate CAL-CO2
ISO Calibration Certificate CAL-CO2
US$ 161.00

Description

Air Quality Station
CO2 meter / Battery operation / Alarm limits / 400 ... 5000 ppm / Temperature measurement / Visual and acoustic alarm / Automatic switch-off / USB charging / Units can be changed / LC display / Temperature range -10 ... 50°C (4 ... 122°F)

The air quality station is a multi-function measuring device for measuring the air quality. This air quality station measures synchronously the CO2 concentration, the air temperature and the humidity. In addition, the air quality station has permanently programmed alarm limits. As soon as the currently measured CO2 measured value exceeds the alarm limit, the alarm is activated. The user is alerted to the air quality station by an audible and visual signal.

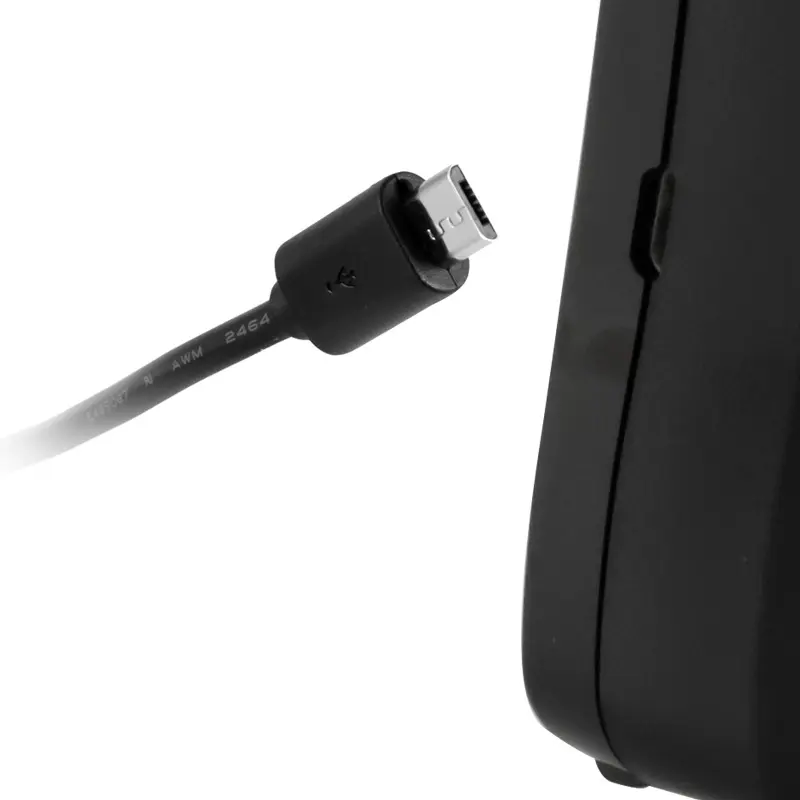

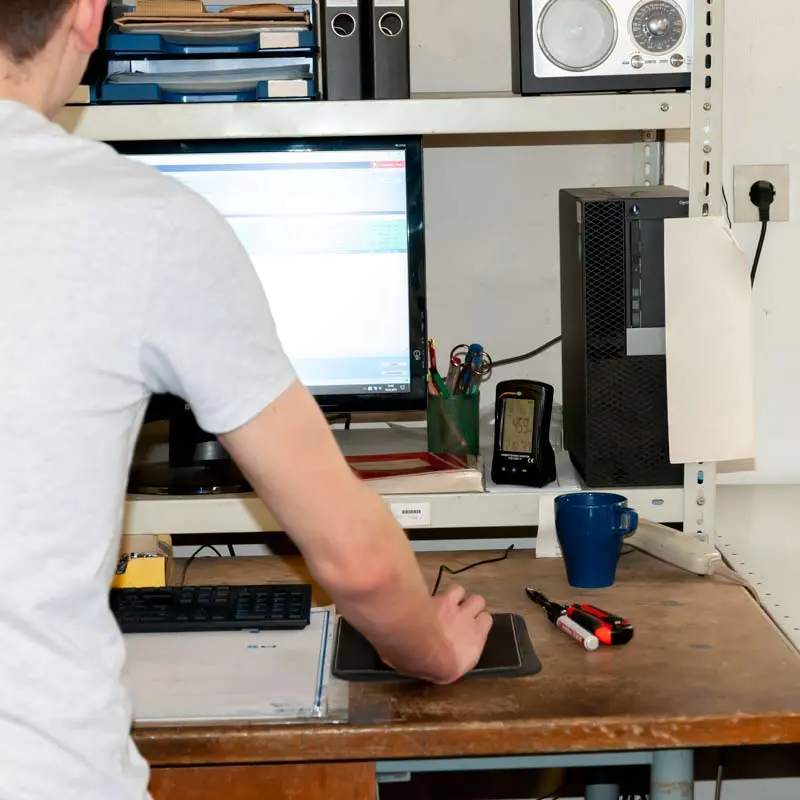

Using the built-in USB interface, you can continuously charge the air quality station to your PC workstation, for example. Thanks to the small blue shape, you can optimally position the air quality station at your workplace. Due to the 3 inch display and the strong backlight, you can read the measured values ​​optimally.

Highlights

- CO2 measurement
- Battery operation
- Limit exceeded
- Backlight
- Air temperature
- Table housing
- Humidity
- Beep

Specification

Measuring range CO2 400 ... 5000 ppm
Resolution 1 ppm
Accuracy ± (5% + 50 ppm) between 400 ... 2000 ppm
  and an atmospheric pressure of 1013 mbar


Measuring range temperature         -10.0 ... 50.0°C / 14 ... 122°F
Resolution 0.1°C / 0.18°F
Accuracy ± 1°C / 1.8°F

(can be influenced by its own waste heat)

Measuring range humidity 0 ... 99% rh
Resolution   1% rh
Accuracy  ± (5% at 25°C / 77°F) between 10 ... 90% rh

Sensor NDIR principle
ABC Automatic baseline correction
Audio alarm Buzzer

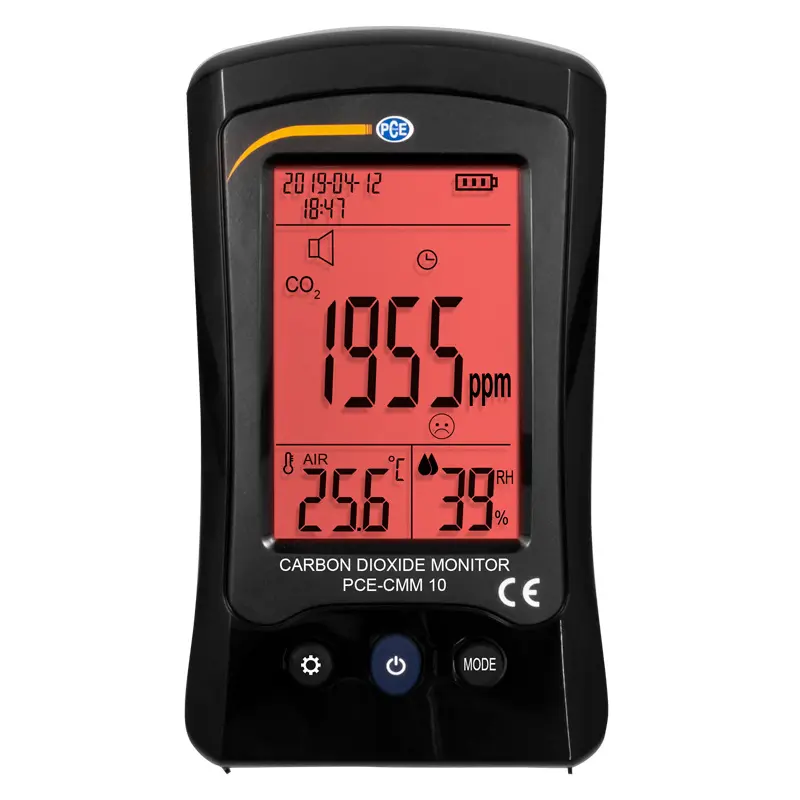

Visual alarm Red backlight

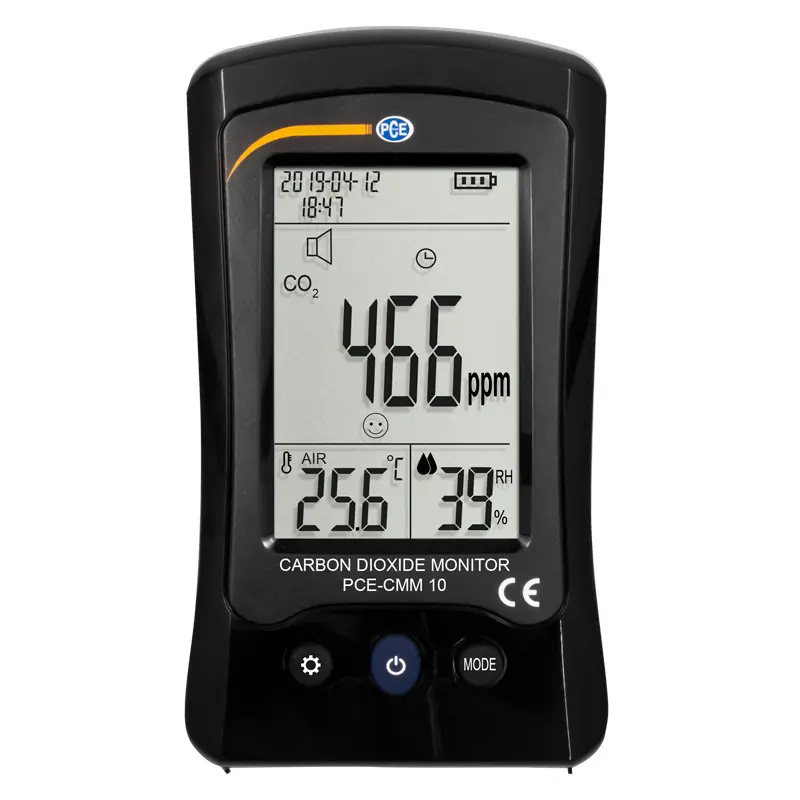

Display 3 inch LC display
battery indicator Four-level display
display frequency 3 seconds
Automatic shutdown   turns itself off after 2 hours
Backlight White backlight
Working conditions 0 ... 50°C / 32 ... 122°F, 0 ... 85% rh
Storage conditions -20 ... 60°C / -4 ... 140°F, 0 ... 95% rh
Power supply Built-in 3.7V DC battery
Weight 195 g / < 1 lb
Dimensions 75 x 55 x 130 mm / 3 x 2.2 x 5.1 in



Delivery Scope

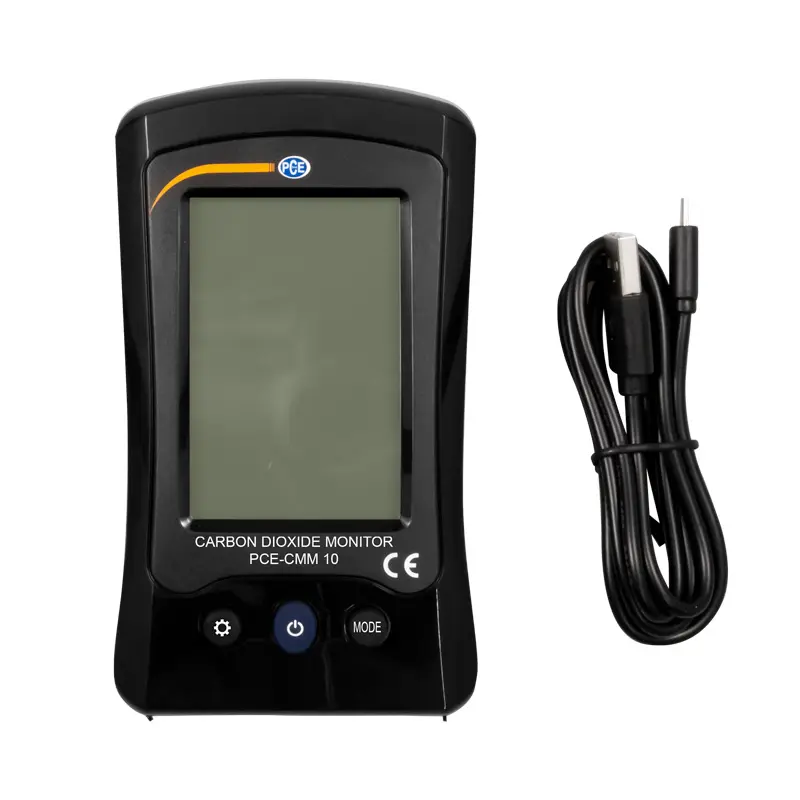

1 x Air Quality Station PCE-CMM 10
1 x USB cable
1 x User manual
