Air Quality Station PCE-CMM 8

Order no.: PCE-CMM 8
GTIN (EAN): 4250348723222
US$ 255.00
Topseller
ex. VAT, ex. delivery costs
:
4250348723222
PCE-CMM 8
Available in: min. 4 weeks
Home area
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

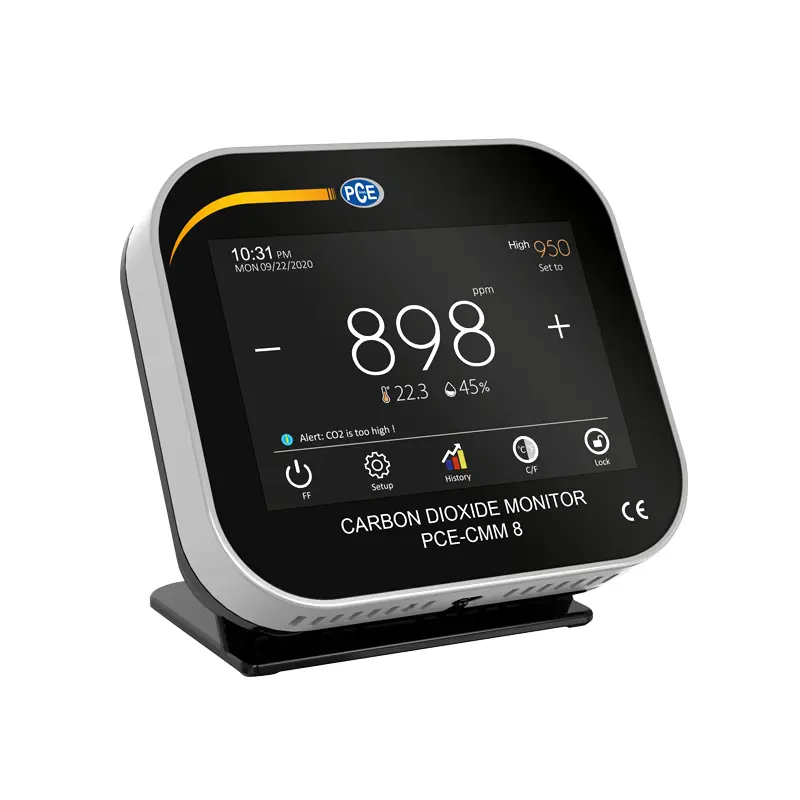

Air Quality Station for tabletop operation / Measures temperature, humidity and CO2 content of the air / CO2 measuring range from 0… 9999 ppm / Traffic light function / Touchscreen / USB supply

With the CO2 meter you can ensure the right climate in your office. In addition to the CO2 content of the air, the CO2 meter measures the relative humidity and room temperature. The CO2 meter shows carbon dioxide concentrations up to 9999 ppm, temperatures from -10… 50 °C, and relative humidity values ​​from 20 … 95%. On the 3.5" display of the CO2 meter, the corresponding values can be read off directly, and the color of the CO2 display changes to provide an objective statement about the quality of the room air based on the CO2 content. This makes it particularly easy to assess the indoor air quality using the CO2 meter. For these reasons, the CO2 meter is particularly suitable for offices, schools, public buildings or hospitals, and in general for all buildings and rooms in which people are present.

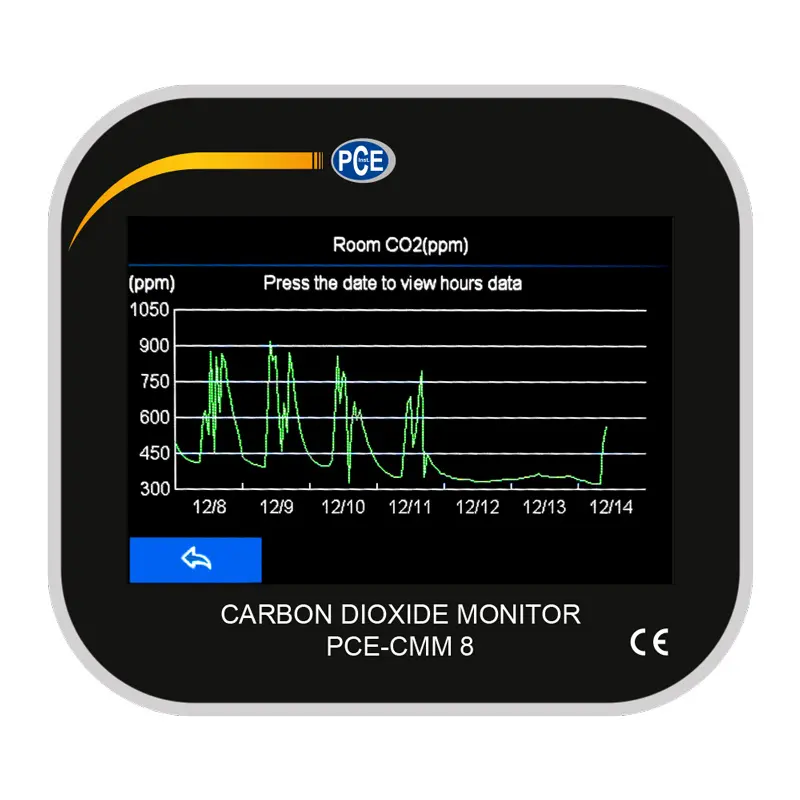

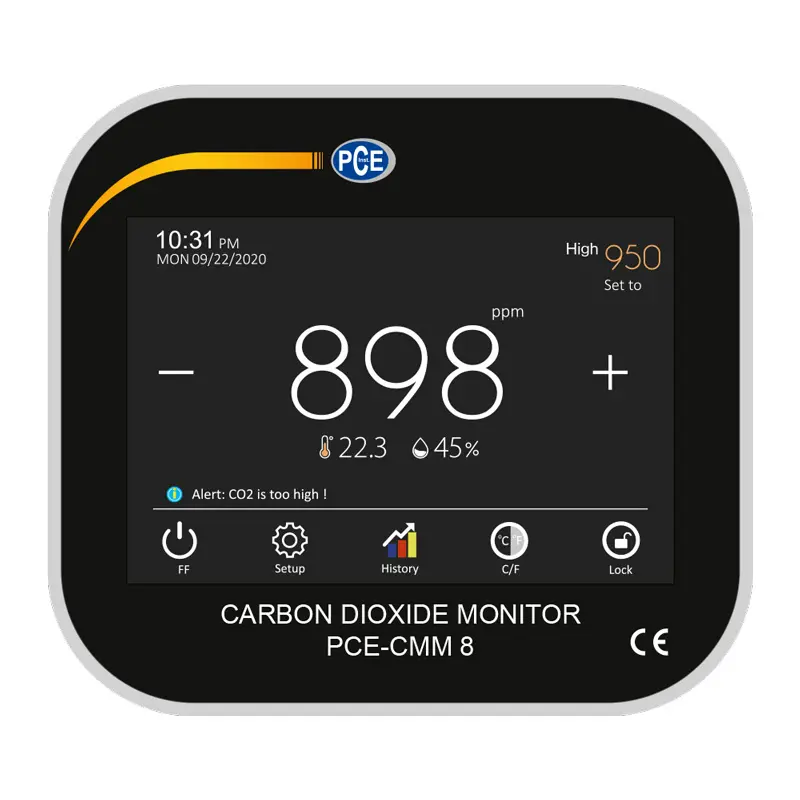

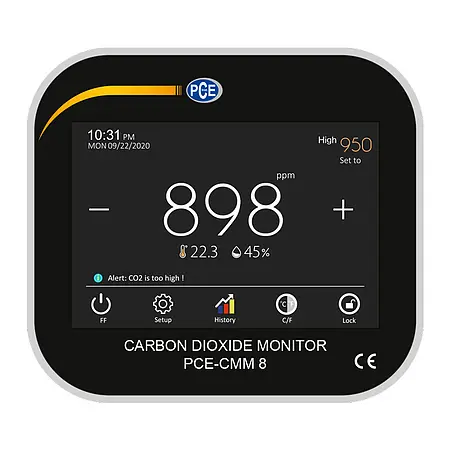

The CO2 meter displays the measured values ​​numerically and graphically on the touchscreen. Operation is intuitive. The menu structure is simple and user friendly. In addition to setting the date and time, the user can parameterize offsets for the measured values ​​of temperature, humidity and the CO2 content. The display can be dimmed automatically, for example at night. The CO2 meter is operated via the mini-USB interface with a 5 V / 2 A power supply unit (not included).


Highlights

- Traffic light function when the limit value is exceeded
- Touch display with lighting
- Numerical display of the CO2 measured value
- Progress display for °C, r.h., CO2
- USB supply
- Maintenance-free NDIR CO2 sensor
- Innovative design
- Measuring range up to 9999 ppm CO2

Specification

Measured variable CO2
Measuring range0 ... 9999 ppm
Accuracy
± 75ppm or ±5 % of measured value (whichever is greater)
Resolution
1ppm
CO2 sensor type
NDIR Sensor

Measured variable temperature
Measuring range-10 ... 50 °C / 14 ... 122 °F
Accuracy
±1 °C
Resolution
0.1 °C

Measured variable air humidity
Measuring range20 ... 95 % r.H.
Accuracy
±5 % r.H.
Resolution
1 % r.H.

Display
3.5" touch LC display
Power supply5 V Mini-USB
Standby power<0.5 W
Ambient conditions1 ... 85 °C / 34 ... 185 °F / 20 ... 85 % r.H.
Degree of protectionIP21
Dimensions
96 x 86 x 32.5 mm  / 3.7 x 3.4 x 1.2"
Weight
200 g / 7 oz

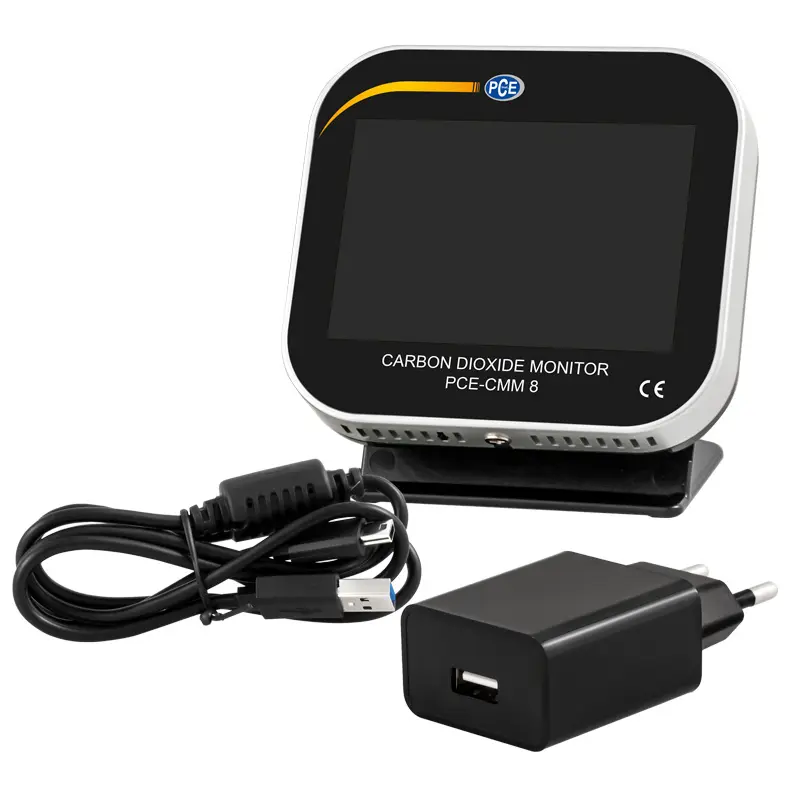

Delivery Scope

1 x Air Quality Station PCE-CMM 8
1 x User manual
