Weather Station PCE-FWS 20

Name: Weather Station PCE-FWS 20
Brand: PCE Instruments
SKU: 2131079
Price: 168 USD
Availability: InStock

Order no.: PCE-FWS 20

GTIN (EAN): 4250348701626

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Secondary display for PCE-FWS 20N

US$ 104.00

Description

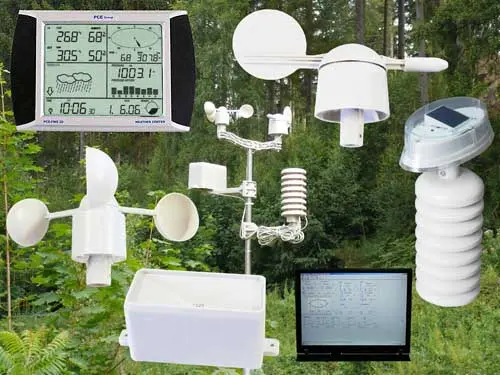

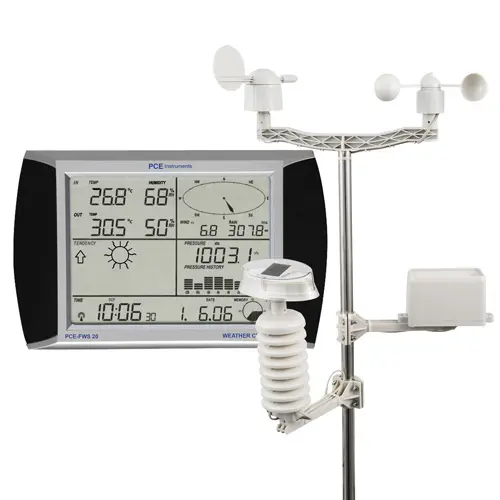

The PCE-FWS 20 is a multi-functional wireless digital weather monitoring device that will exceed your expectations. This manufacturer-calibrated meteorological instrument accurately measures temperature, relative humidity, precipitation, atmospheric pressure, wind speed and wind direction. Featuring a free-standing or wall-mountable touchscreen LED display with backlight, the PCE-FWS 20 makes a fantastic gift.

Furthermore, the PCE-FWS 20 weather station has different alarm functions for the available parameters. The weather data is sent by radio to the base unit from a distance up to 328 feet (100 meters). The included USB cable and CD-ROM allow the data to be uploaded to a PC for more detailed analysis. Much of the data can be date and time stamped to ensure it is analyzed effectively long after its collection. The included Windows-based software can present the data in graphs and diagrams illustrating different meteorological measurements over prolonged periods of time.

Highlights

Equipped with the latest technology used in meteorological analysis, the PCE-FWS 20:

- Displays indoor and outdoor temperature in Fahrenheit or Celsius

- Records indoor and outdoor relative humidity

- Shows atmospheric pressure in in Hg or hPa

- Affords relative or absolute humidity selection

- Measures rainfall in in or mm

- Indicates rainfall for 1 hour, 24 hours, 1 week, 1 month or from last reset

- Depicts wind speed in mph, km/h, m/s, knots or Beaufort

- Illustrates wind direction

- Features wind chill temperature and dew point indicators

- Provides weather forecasts, forecast trends and storm warnings

- Includes programmable alarm functions for different meteorological parameters

- Stores maximum and minimum measurement values

- Contains a calendar and clock with time zone specification

- Offers energy-saving functionality

Alarm functions

- Maximum indoor humidity alarm

- Maximum indoor temperature alarm

- Maximum outdoor humidity alarm

- Maximum outdoor temperature alarm

- Maximum wind chill alarm

- Maximum dew point alarm

- Maximum atmospheric pressure alarm

- Maximum wind speed alarm

- Maximum gust alarm

- Rainfall alarm, 1 hour

- Rainfall alarm, 24 hours

- Minimum indoor humidity alarm

- Minimum outdoor temperature alarm

- Minimum outdoor humidity alarm

- Minimum outdoor temperature alarm

- Minimum wind chill alarm

- Minimum dew point alarm

- Minimum atmospheric pressure alarm

Storable measurement values (with date and time)

- Maximum rainfall for 1 hour

- Maximum rainfall for 24 hours

- Maximum rainfall for one week

- Maximum rainfall for a month

- Minimum indoor humidity

- Minimum indoor temperature

- Minimum outdoor humidity

- Minimum outdoor temperature

- Minimum wind chill

- Minimum dew point

- Minimum atmospheric pressure

- Maximum indoor humidity

- Maximum indoor temperature

- Maximum humidity

- Maximum outdoor temperature

- Maximum wind chill

- Maximum dew point

- Maximum atmospheric pressure

- Maximum air velocity

- Wind direction

- Wind gust

Specification

Technical specifications

Indoor
Measurement ranges	Operating temperature: 0°C ... +60° / +32°F ...+140°F
	Humidity: 1 ... 99 %
	Atmospheric pressure: 919 ... 1,080 hPa
Resolution	Air temperature: 0.1 °C
	Humidity: 1 %
	Atmospheric pressure: 0.1 / 1.5 hPa
Radio control data update	48 seconds
Alarm duration	120 seconds
Outdoor
Measurement range	Operating temperature:-40°C ... +65°C / -40°F ... +149°F
	Humidity: 1 ... 99 %
	Rainfall: 0 mm ... 9,999 mm / 0 in ... 394 in
	Wind speed: 0 ... 180 km/h / 0 mph ... 112 mph
	Indication of the wind direction
Resolution	Air temperature: 0.1 °C
	Humidity: 1 %
	Rainfall: 0.1 mm (volume < 1,000 mm) / 0.004 in (volume < 40 in) 1 mm (volume > 1,000 mm) / 0.04 in (volume > 40 in)
Radio transmission data updated	48 seconds
Radio transmission range	up to 100 m / 328 ft in the open air
Port	USB
Component dimensions
Display unit	230 mm x 150 mm 9 in x 5 in
External sensors	660 mm x 540 mm 25 in x 21 in

Delivery Scope

Delivery contents

1 x Touchscreen LED display with backlight
3 x 1.5 V batteries
1 x Temperature sensor with support
1 x Solar unit
2 x 1.5 V rechargeable batteries
1 x Humidity sensor with support
1 x Rainfall sensor with support
1 x Air velocity sensor with support
1 x Wind direction sensor with support
1 x Vertical mast
1 x USB cable
1 x CD-ROM with analysis software (for Windows operating systems only)
