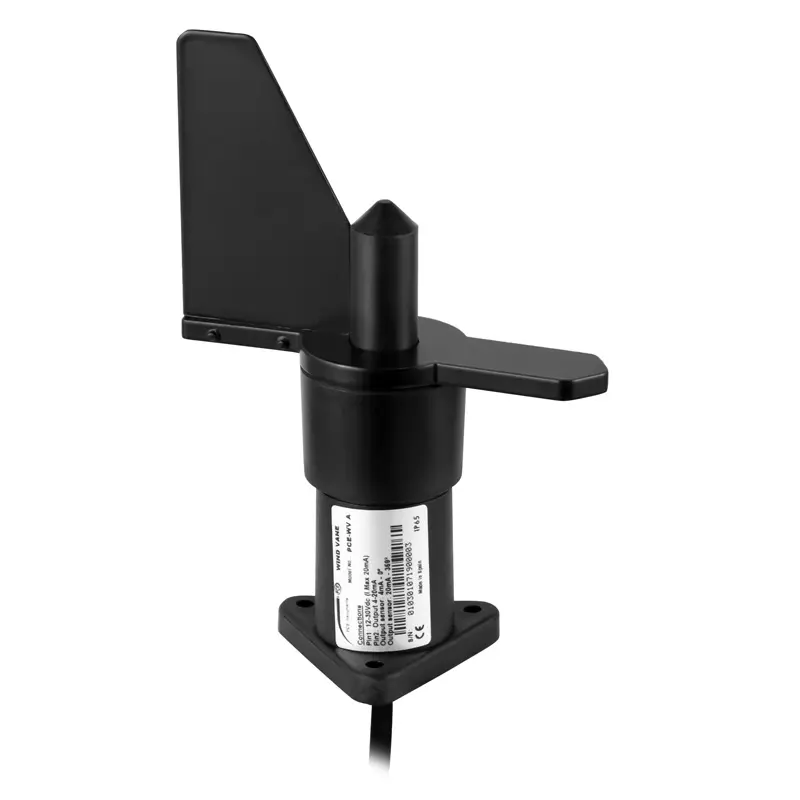

Weather Station PCE-WV A

Name: Weather Station PCE-WV A
Brand: PCE Instruments
SKU: 6133854
Price: 286 USD
Availability: InStock

Order no.: PCE-WV A

GTIN (EAN): 4250348722416

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Optional Mounting Kit PCE-WS/MOUNT

US$ 99.00

Description

Robust Weather Station for fixed installation / 4 ... 20 mA output /

for wind warning systems, building services and building automation

The weather station was developed to measure the wind direction in the industrial environment. This weather station can be connected to data loggers, process control systems, displays. A 4 ... 20 mA signal is available as an output signal on the weather station . The weather station has no dead center in the north and measures the wind direction from 0 ... 360 °. In order to protect the air flow meter from external weather influences, it is protected according to IP65.

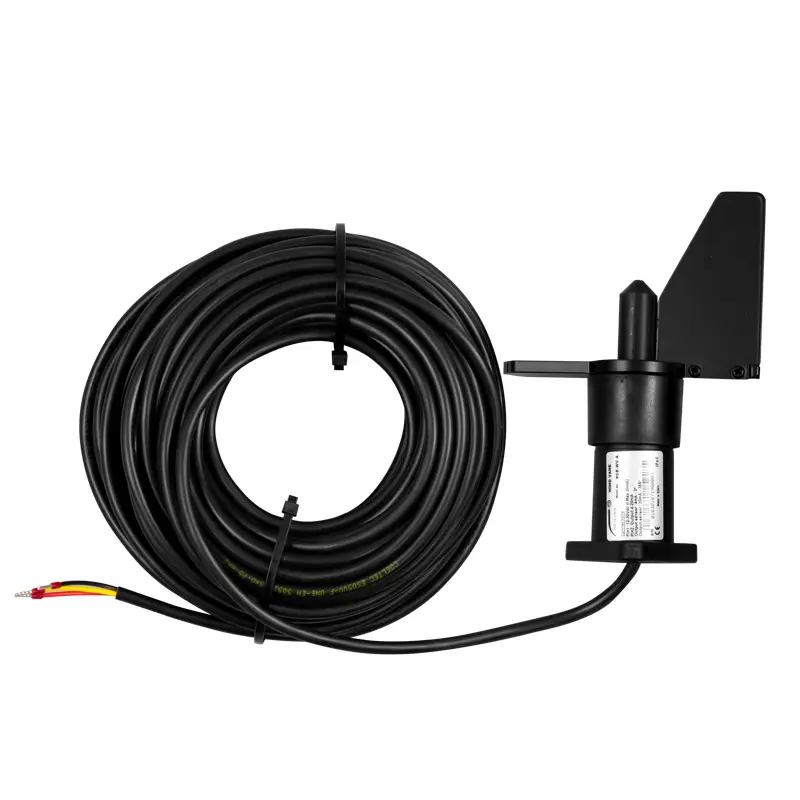

To connect the weather station to an evaluation, a 20 m cable is installed on the wind direction sensor. The weather station can be used for irrigation control, automation in greenhouses, on solar trackers, cable cars in ski areas, cranes, wind turbines, weather stations and wherever the wind or wind direction must be observed precisely.

Highlights

- Robust PA plastic housing

- IP 65 protection

- 4 ... 20 mA output

- Long lifetime

- 0 ... 360 ° measuring range

- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range	0 ... 360 °
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	4 ... 20 mA
Accuracy	± 3 °
Resolution	± 25.5 °
Maximum wind speed	123 mph, 180 ft/s, 55 m / s
Operating temperature range	-4 ... +176 ° F, -20 ... +80 ° C at ≤95% rel. humidity

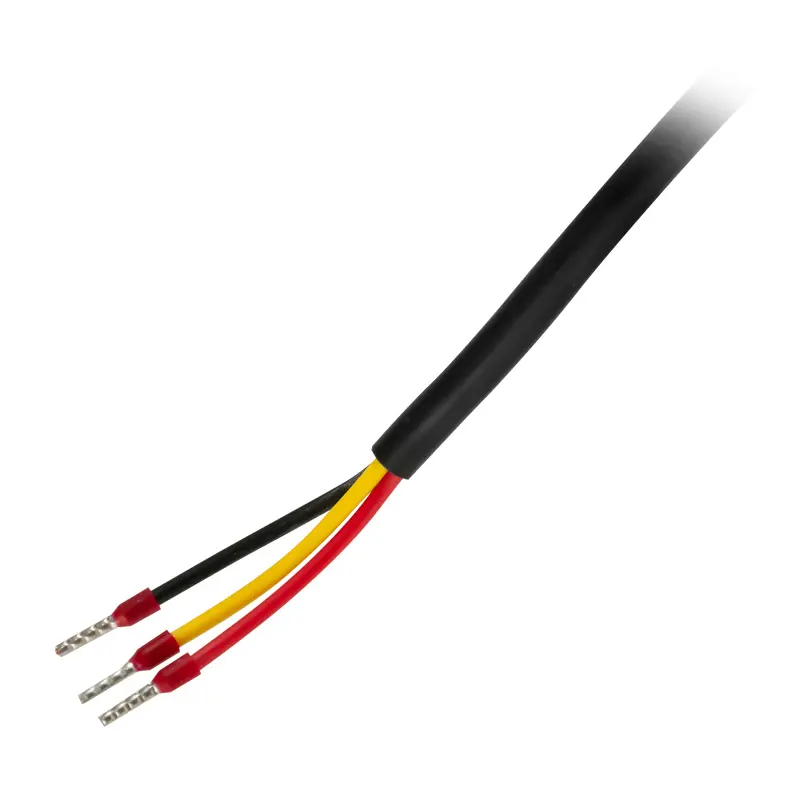

Electrical connection	65.6 ft, 20 m connection cable
Operating voltage	12 ... 30 V DC
Protection class	IP65
