Whiteness Meter PCE-WSB 1

Name: Whiteness Meter PCE-WSB 1
Brand: PCE Instruments
SKU: 5885955
Price: 2324 USD
Availability: InStock

Order no.: PCE-WSB 1

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

PCE-WSB 1 Whiteness Meter
Measures the whiteness degree of blue light (Wb = R457) / Meets ISO 2470 and ISO 3688 standards / Compact, lightweight and user-friendly

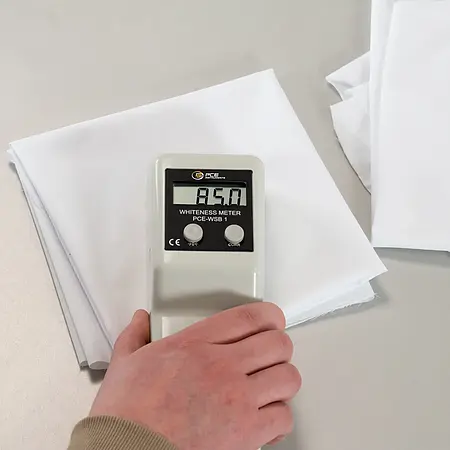

PCE-WSB 1 is a portable handheld battery-powered whiteness color meter used to measure the brightness level of paper, cardboard, cellulose, pulp, textiles, paint, enamel, plastic, porcelain, cement, concrete, building materials, chemicals, powders, talc, starch, flour, salt, detergents, cosmetics and other non-metal substances.

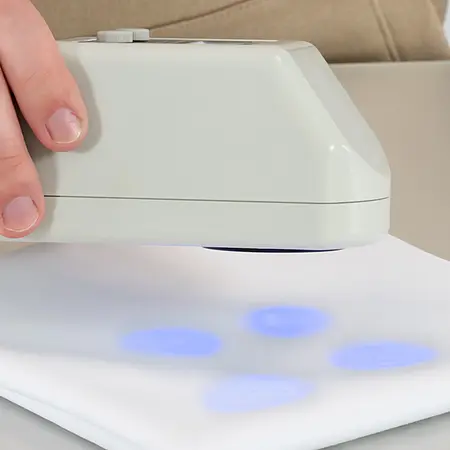

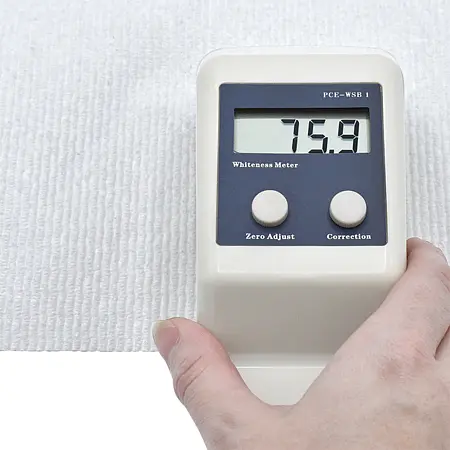

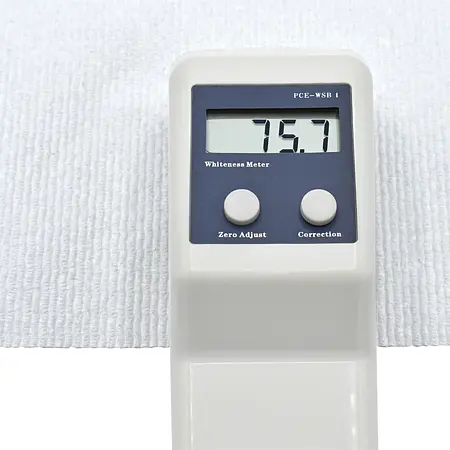

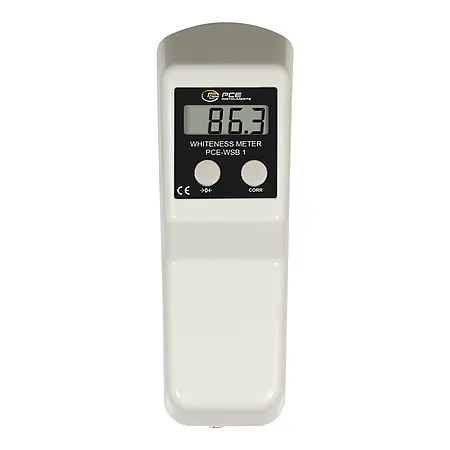

Ideally used on flat surfaces, the whiteness meter features an easy-to-read liquid crystal display (LCD) screen. The device determines the brightness level by measuring the intensity of the light reflection diffused on a scale of 100. The level of brightness of an absolutely black surface is defined by the meter as 1. Included with the meter are black, white and brilliance standards for DIY calibration as needed to ensure accurate, repeatable measurements are consistently obtained.

Highlights

- Measures the whiteness degree of blue light (Wb = R457)
- Meets ISO 2470 and ISO 3688 standards
- Compact, lightweight and user-friendly

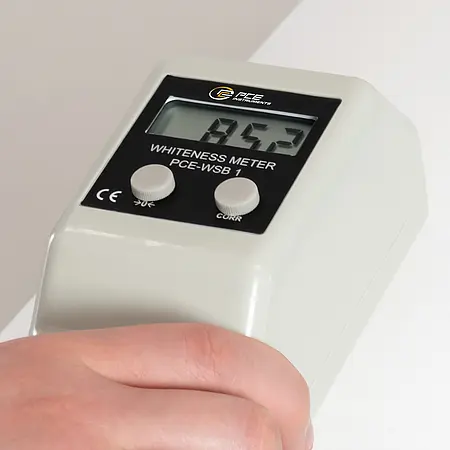

- Easy-to-read liquid crystal display (LCD) screen
- Includes black, white and brilliance standards for DIY calibration
- Resolution: 0.1
- Repeat accuracy : ±0.1

Specification

Measuring range	0 … 100.0 (displays values up to 199.9)
Whiteness degree formula	Whiteness degree of blue light Wb = R457

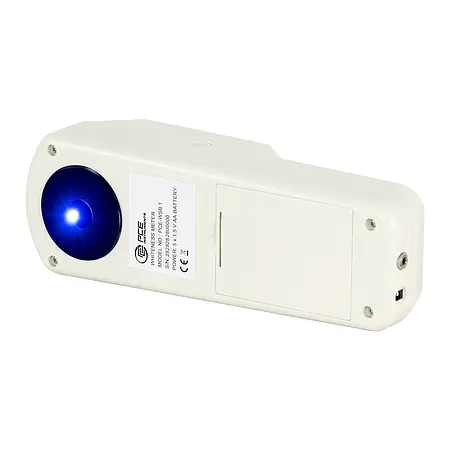

Light source	Approximating A; simulating D65
Light measuring conditions	45/0
Display resolution	0.1
Display accuracy	± 0.1
Standards	ISO 2470; ISO 3688
Display	Liquid crystal display (LCD)

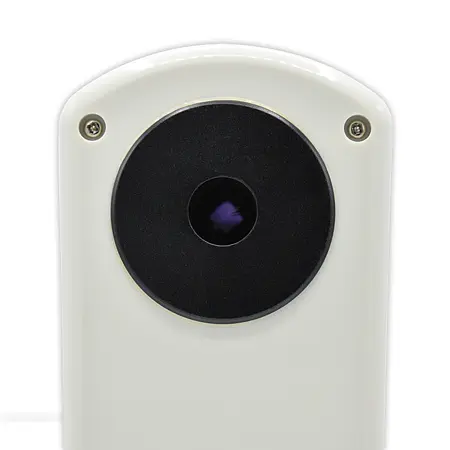

Measuring aperture	Diameter Ø 15 mm / 0.6"
Power supply	5 x 1.5 V AA batteries
Operating conditions	+5 ... +35 °C / +41 ... +95 °F; < 85 % RH
Dimensions	Approx. 235 x 75 x 65 mm / 9.25 x 2.9 x 2.5"
Weight	Approx. 500 g / 1.2 lbs
See user manual for complete details.

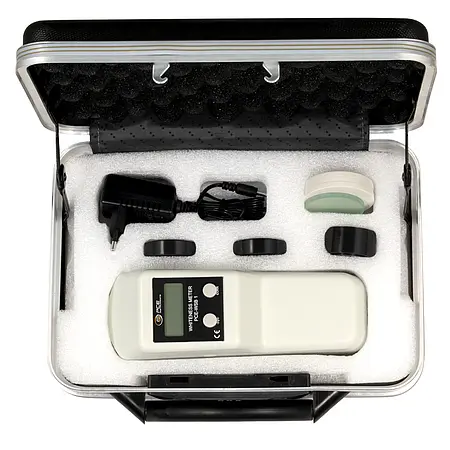

Delivery Scope

1 x PCE-WSB 1 whiteness meter

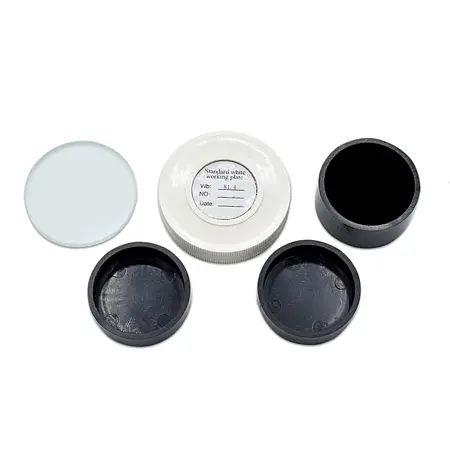

1 x brilliance calibration standard
1 x black calibration standard
1 x white calibration standard
2 x powder test boxes
1 x user manual
1 x carrying case
