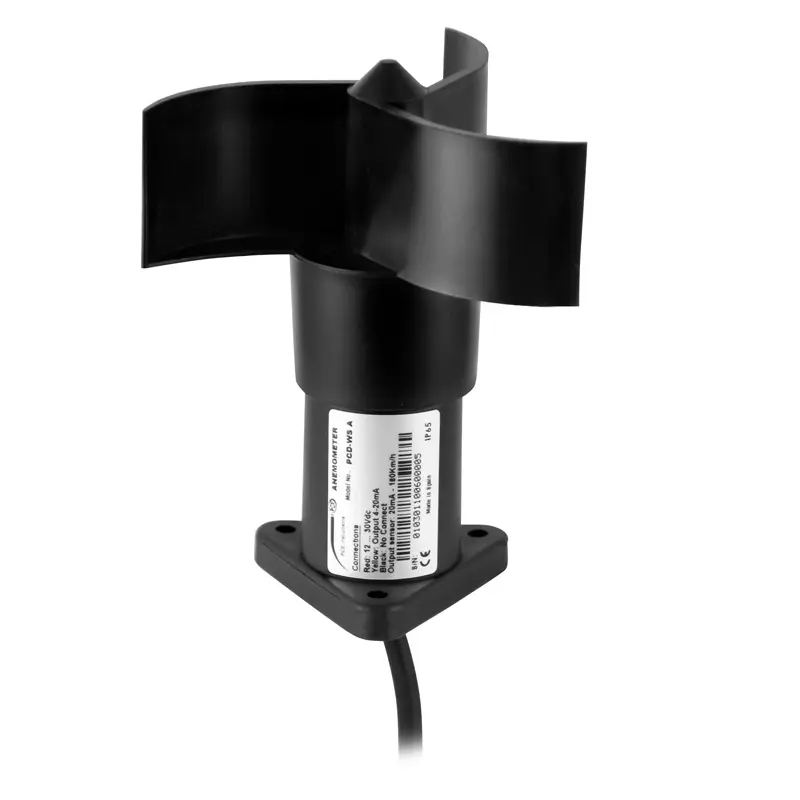

Wind Measurement Device PCE-WS RS485

Name: Wind Measurement Device PCE-WS RS485
Brand: PCE Instruments
SKU: 6133892
Price: 668 USD
Availability: InStock

Order no.: PCE-WS RS485

GTIN (EAN): 4250348722461

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Panel Indicator PCE-N50B

US$ 131.00

Optional Mounting Kit PCE-WS/MOUNT

US$ 99.00

Description

Robust Wind Measurement Device for fixed installation / various output signals /

for wind warning systems, building services and building automation

The Wind Measurement Device impresses with its compact design and various output signals. The Wind Measurement Device can be used for applications in warning technology, building automation and home technology. Depending on the Wind Measurement Device, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Wind Measurement Device is designed as a star, so that operation independent of the wind direction is guaranteed.

The Wind Measurement Device is made of robust plastic and is therefore resistant to rust and corrosion. The Wind Measurement Device is also protected to IP65. The design of the Wind Measurement Device also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Wind Measurement Device has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Wind Measurement Device is optionally available.

Highlights

- Robust PA plastic housing

- IP 65 protection

- mA, V, pulse or Modbus output

- Long lifetime

- Direct measurement of wind speed

- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range	2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	Modbus RTU
Accuracy	<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
	> 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage	12 ... 30 V DC
Operating temperature range	-4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed	180.45 ft/s, 123 mph, 55 m / s
Electrical connection	65 ft, 20 m connection cable
Protection class	IP65

Delivery Scope

1 x Wind Measurement Device PCE-WS RS485

1 x instruction manual

Downloads

man-wind-measurement-device-pce-ws-rs485-en.pdf

Manual

Datasheet
