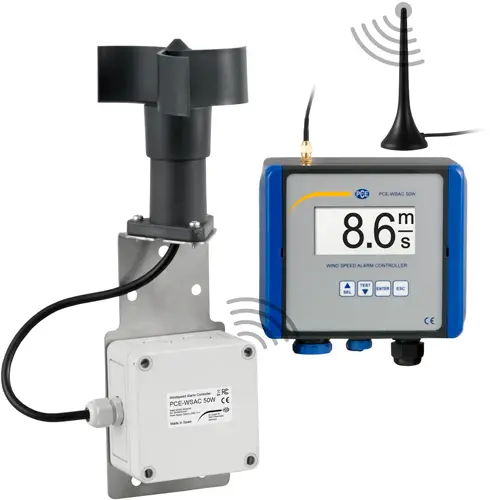

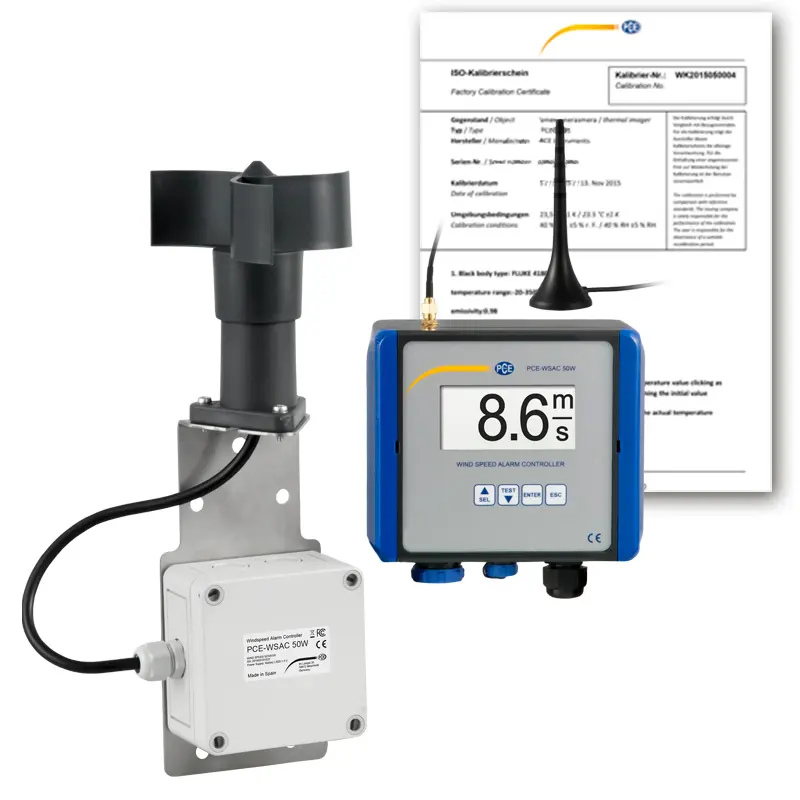

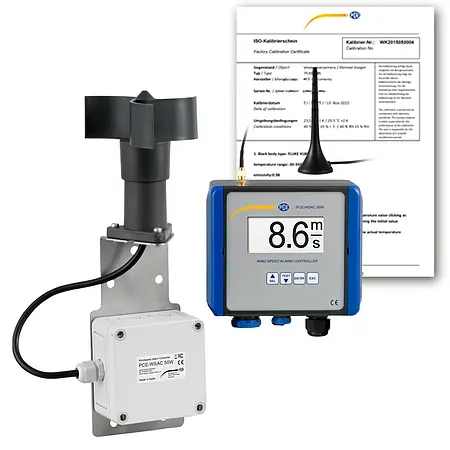

Wind Speed Alarm PCE-WSAC 50W 24-ICA incl. ISO Calibration Certificate

Order no.: PCE-WSAC 50W 24-ICA
GTIN (EAN):
US$ 1,752.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-WSAC 50W 24-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Sensor cable PCE-WSAC 50-SC05 (5 m / 16 ft)
Sensor cable PCE-WSAC 50-SC05 (5 m / 16 ft)
US$ 131.00
Sensor cable PCE-WSAC 50-SC15 (15m)
Sensor cable PCE-WSAC 50-SC15 (15 m / 49 ft)
US$ 149.00
Sensor cable PCE-WSAC 50-SC50 (50m)
Sensor cable PCE-WSAC 50-SC50 (50 m / 164 ft)
US$ 189.00
Wind Speed Alarm / Wind Alarm Controller PCE-FST-200-201-I
Wind Speed Alarm / Wind Alarm Controller PCE-FST-200-201-I
US$ 286.00
Sensor cable PCE-WSAC 50-SC25 (25m)
Sensor cable PCE-WSAC 50-SC25 (25m)
US$ 154.00

Description

 PCE-WSAC 50W 24-ICA Wind speed alarm incl. ISO calibration certificate
Radio Wind Warning System / Wind Monitoring on Construction Cranes / 4 ... 20-mA analog output / Power supply 110 ... 230V AC or +24V DC

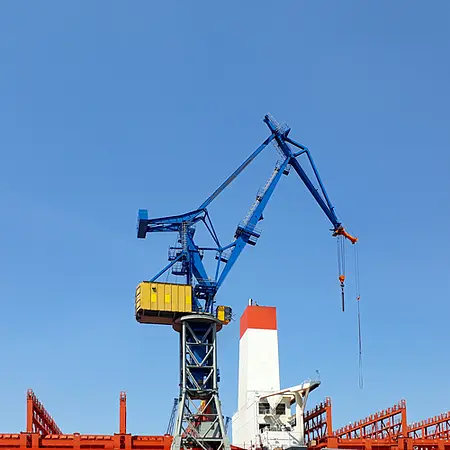

The wind speed alarm PCE-WSAC 50W is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The wind speed alarm  PCE-WSAC 50W is equipped with alarm relay for a pre-alarm or main alarm.

Due to the high measuring range of up to 50 m / s of the wind speed alarm , stormy gusts can also be monitored. The radio range of the wind speed alarm  is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the wind alarm PCE-WSAC 50W in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.

Highlights

- Robust plastic housing
- Units: km / h, mph, m / s
- 4 ... 20-mA analog output
- 128 x 64 pixel LC display
- Alarm relay
- Measuring range up to 180 km / h
- Durable stainless steel ball bearings
- Ambient temperature -20 ... 70°C /  -4 ... 158°F
- Radio transmission
- Incl. ISO calibration certificate

Specification

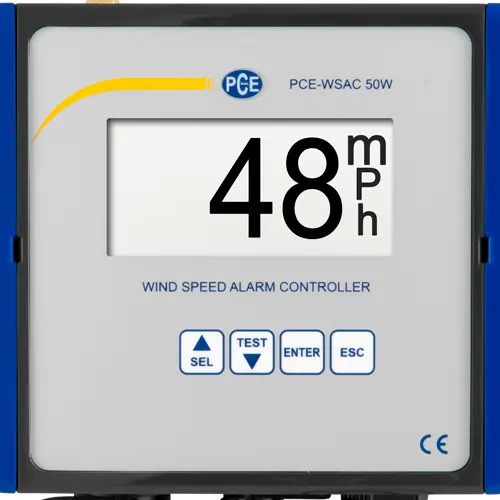

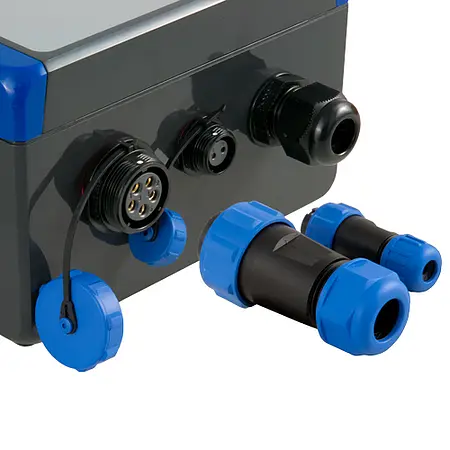

Display of wind speed alarm PCE-WSAC 50W 24
EntrancePulse, analog (4 ... 20-mA) or radio
RadioIEEE 802.15.4 ISM 2.4 GHz
Units km / h, mph, m / s
Power supply for sensors+15V DC
Analog output4 ... 20-mA
Maximum input impedance 500 Ω
Resolution of the analog output10 bits
Accuracy of the analog output± 1.5%
Alarm relayMax. 250V AC, 8 A

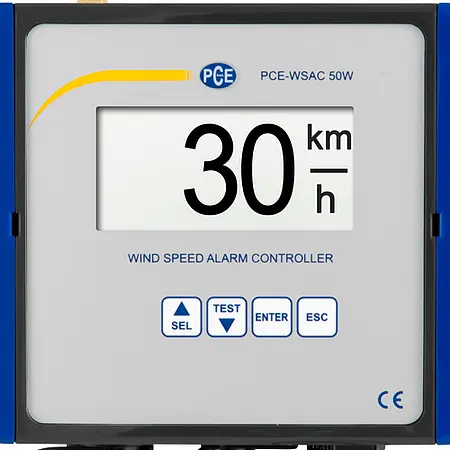

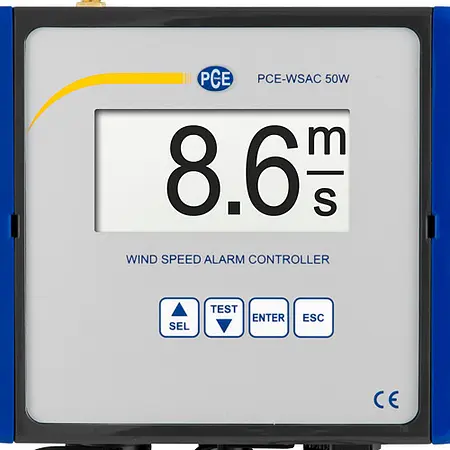

Display Backlit 128 x 64 pixel LC display
CasingRobust plastic housing
Protection classIP65
Dimensions145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in
Weight 650 g / 1.4 lbs

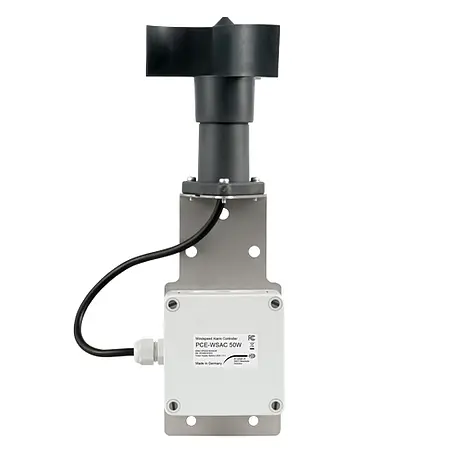

Sensor of wind speed alarm PCE-WSAC 50W
Measuring range 4 ... 180 km / h
Minimum start speed 8 km / h
Accuracy ± 1 km / h in the range 4 ... 15 km / h
  ± 3% in the range 16 ... 180 km / h

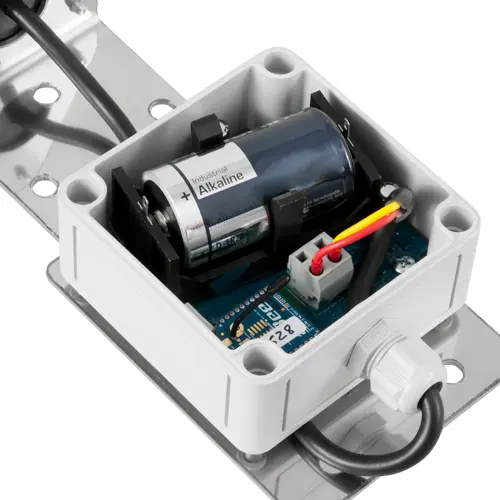

Power supply Battery mono cell D 1.5V DC
Power consumption Approx. 0.3 W with 1.5V DC power supply
Housing material PA + FG
Ball-bearing Stainless steel X65Cr13
Holder Stainless steel AISI 304
Weight (with standard bracket) About 680 g / 1.5 lbs
Weight with self-leveling bracket About 900 g / 2 lbs
Dimensions 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in
Storage temperature -35 ... 70°C / -31 ... 158°F
Ambient temperature -20 ... 70°C / -4 ... 158°F
Protection IP65



Delivery Scope

1 x Display of wind speed alarm PCE-WSAC 50W 24-ICA

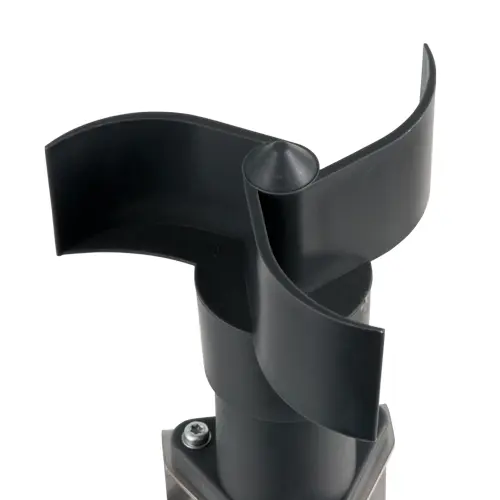

1 x Wind sensor of the wind speed alarm

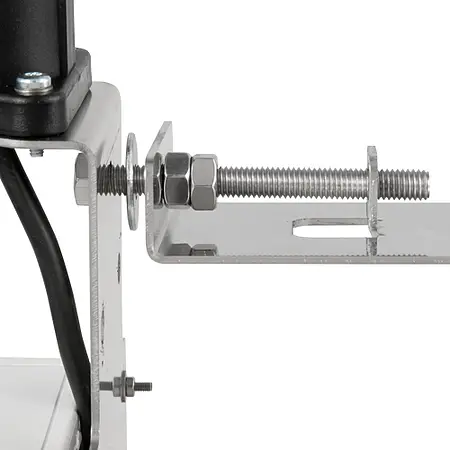

1 x Self-leveling additional bracket

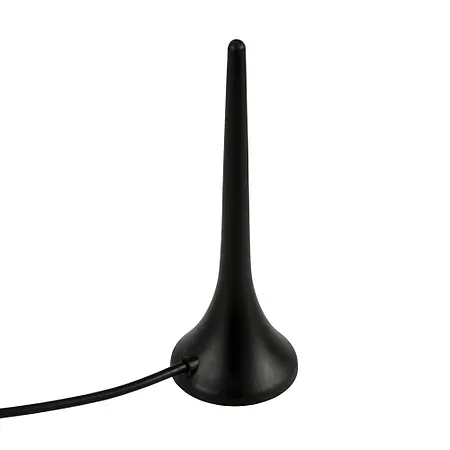

1 x Radio antenna
1 x Battery Monocell D 1.5V DC
1 x User manual
1 x ISO calibration certificate
