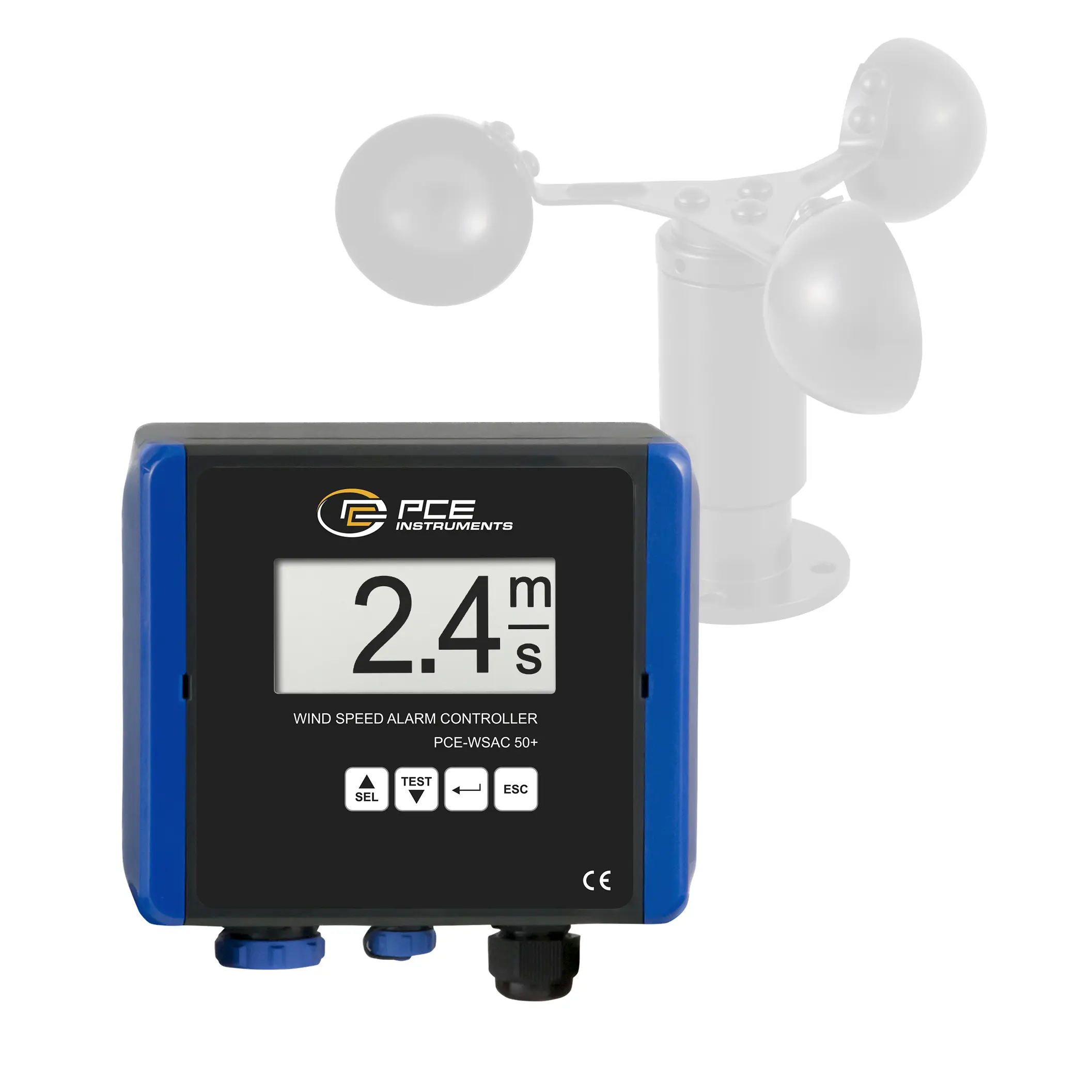

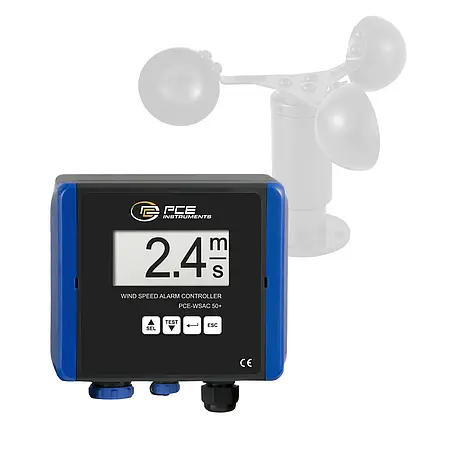

Wind Speed Alarm / Wind Alarm Controller PCE-WSAC 50+ 24

Order no.: PCE-WSAC 50+ 24
GTIN (EAN): 4250348734532
US$ 1,245.00
ex. VAT, ex. delivery costs
:
4250348734532
PCE-WSAC 50+ 24
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Wind Speed Alarm / Wind Alarm Controller / pre-alarm and alarm / RS485 interface / wind speed display / with data logger / display of average speed over the last 2 and 5 minutes

The Wind Speed Alarm / Wind Alarm Controller can be used in various fields of application. In use, the wind speed meter with cable and data logger 24 V starts measuring even the slightest wind movements. On the one hand, the wind speed meter can be used to monitor the current wind speed. On the other hand, it is also possible to use the wind speed meter with cable and data logger 24 V to measure average values for the last two or five minutes. If the wind speed values are higher than the pre-set values, a pre-alarm is activated before the alarm is triggered. Both alarms are emitted visually and audibly on the Wind Speed Alarm / Wind Alarm Controller. If the pre-alarm is activated, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. If the regular alarm needs to be activated, the red LED will flash and the device will beep continuously.

In general, the wind speed meter is used wherever wind monitoring is required. This is often the case in factories, mines, wind turbines and the like. If required, a relay can also be connected to the Wind Speed Alarm / Wind Alarm Controller. In addition to the low wind speeds, the wind speed meter is characterised by its high reliability and high accuracy.


Highlights

- 2 alarm types
- supply voltage: 24 V AC
- input signal: 4...20 mA
- communication: RS485

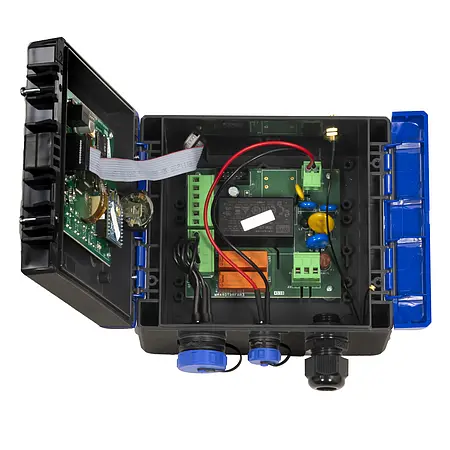

- 2 alarm relays installed
- integrated beeper for alarming
- sensor supply via evaluation unit

Specification

Speed
Measurement range from  0 m/s
Measurement range up to  50 m/s
Resolution  0.1 m/s
Accuracy  ±0.3 m/s v.Mb.

General technical data
Inputs  4 ... 20 mA, Pulse
Outputs  4 ... 20 mA, max. 250 V AC, 8 A, 15 V DC
Units  m/s, km/h, mph

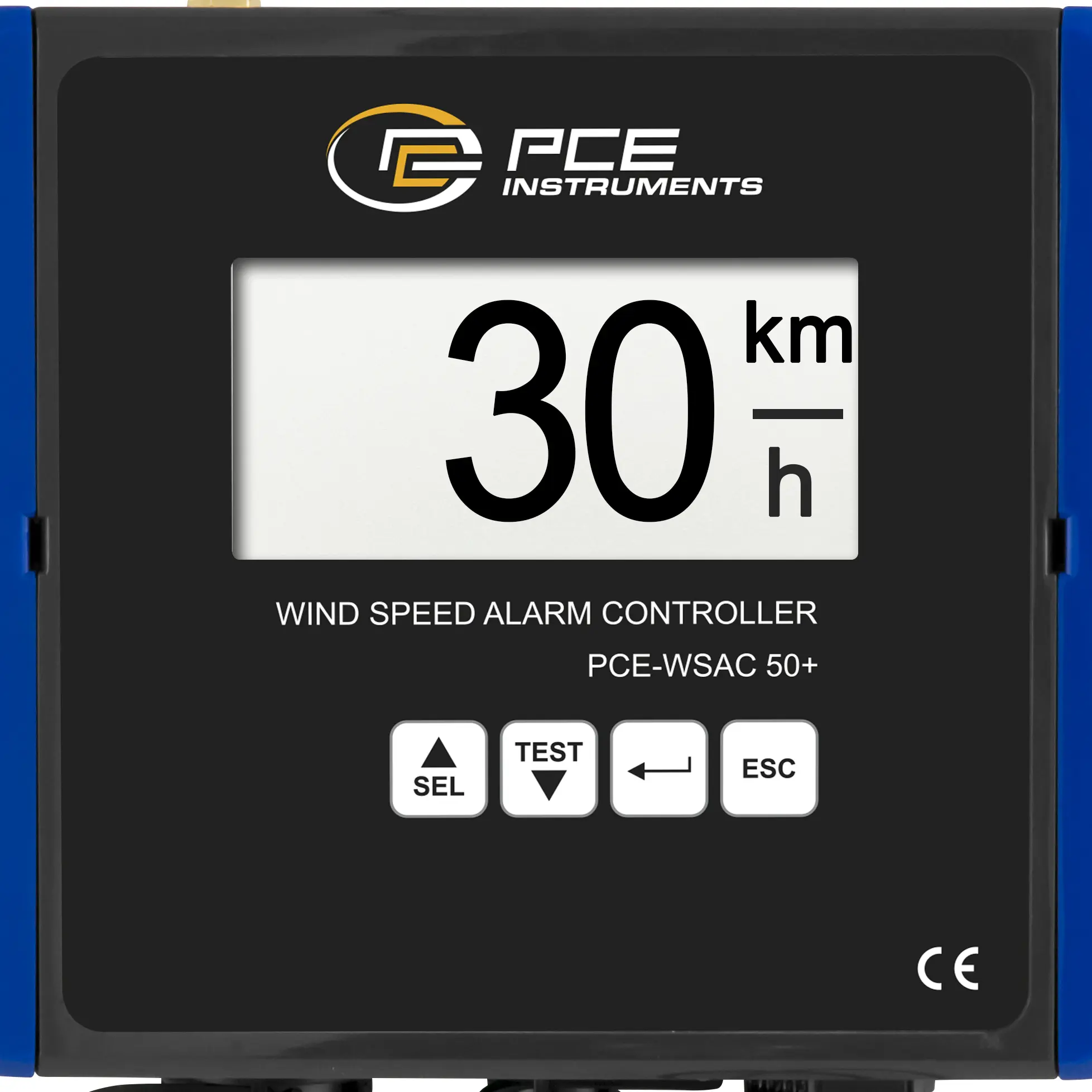

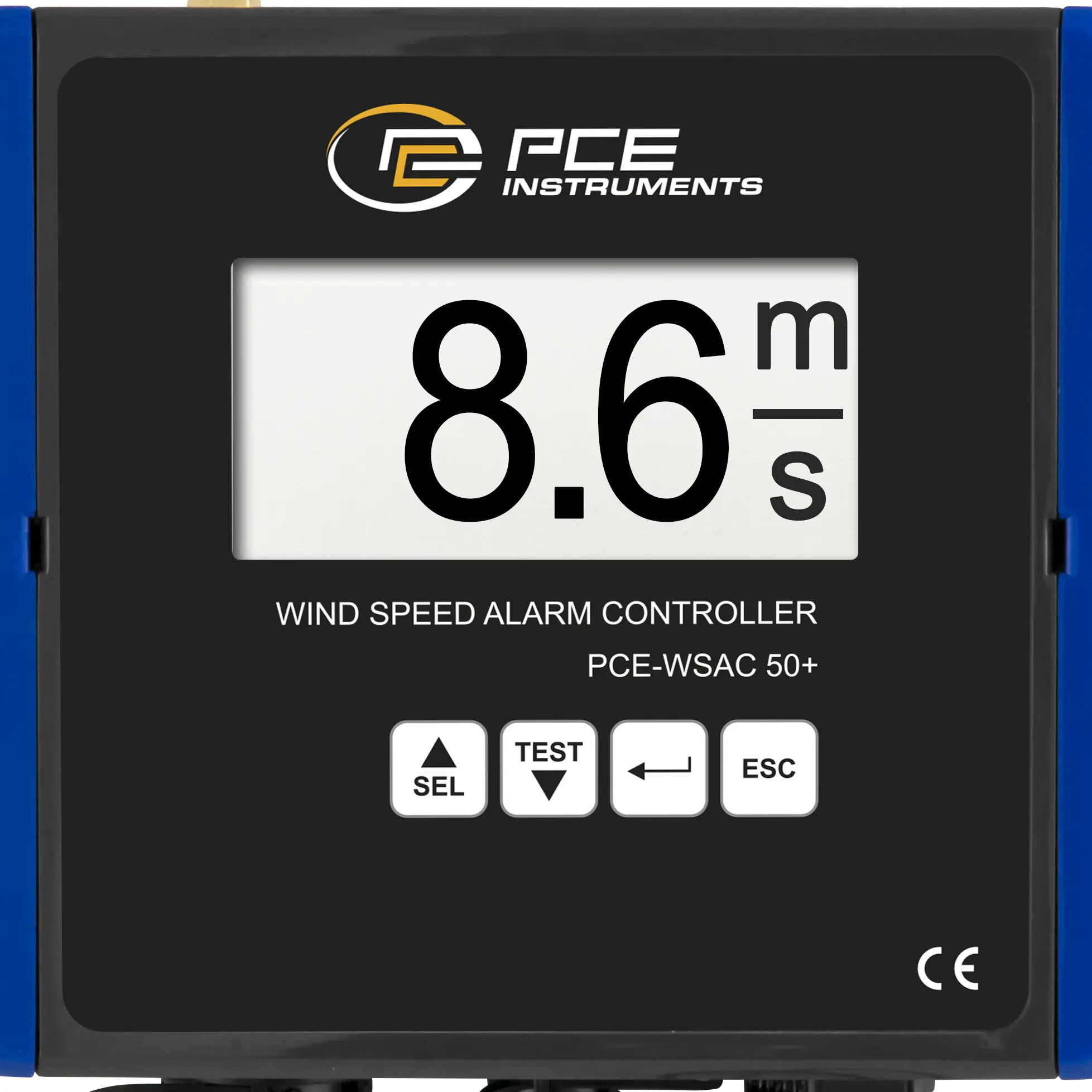

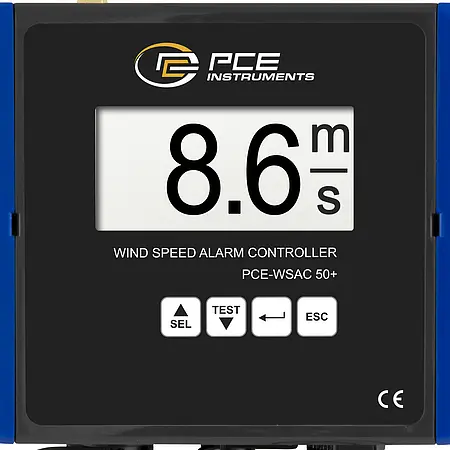

Display type  LCD
Display size  3 Inch
Display resolution  128 x 64 pixels
Storage medium  Micro SD card, Internal memory
Storage capacity  30000 Data records
Memory capacity (additional information)  External memory: max. capacity 32 GB (8 GB SD card included)
Storage interval from  10 s
Storage interval to  1 h
Interface  RS485
Sensor supply  12 ... 24 V DC / max. 150 mA
Protection class (device)  IP65
Power supply  Display: 24 V DC
Weight  570 g
Operating conditions  -20 ... 70 °C , 0 ... 95 % r.F
Storage conditions  -35 ... 70 °C , 0 ... 95 % r.F
Dimensions ( L x W x H )  150 x 160 x 93 mm

Delivery Scope

1 x Wind Speed Alarm / Wind Alarm Controller PCE-WSAC 50+ 24
1 x 8 GB microSD card
1 x user manual

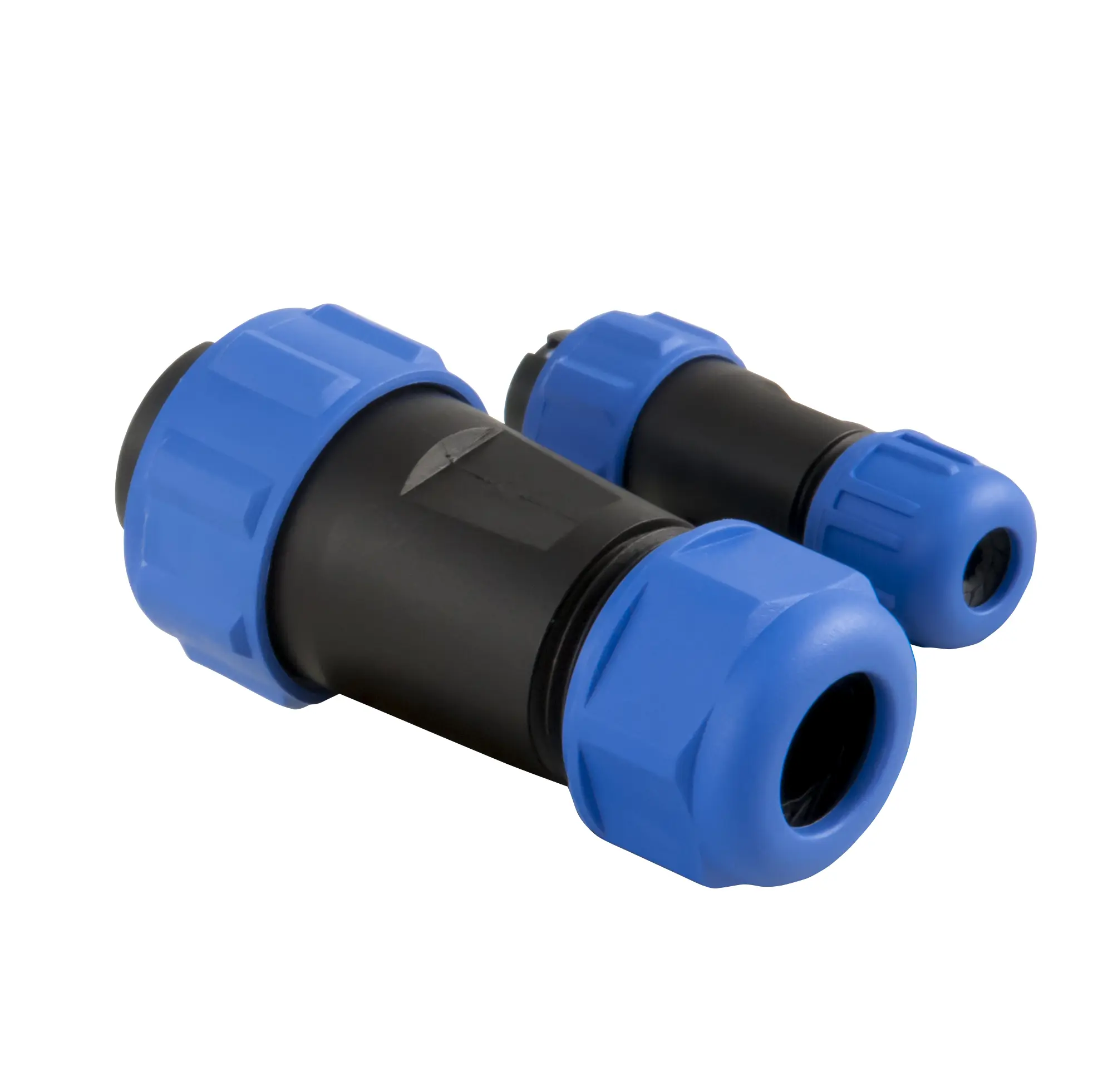

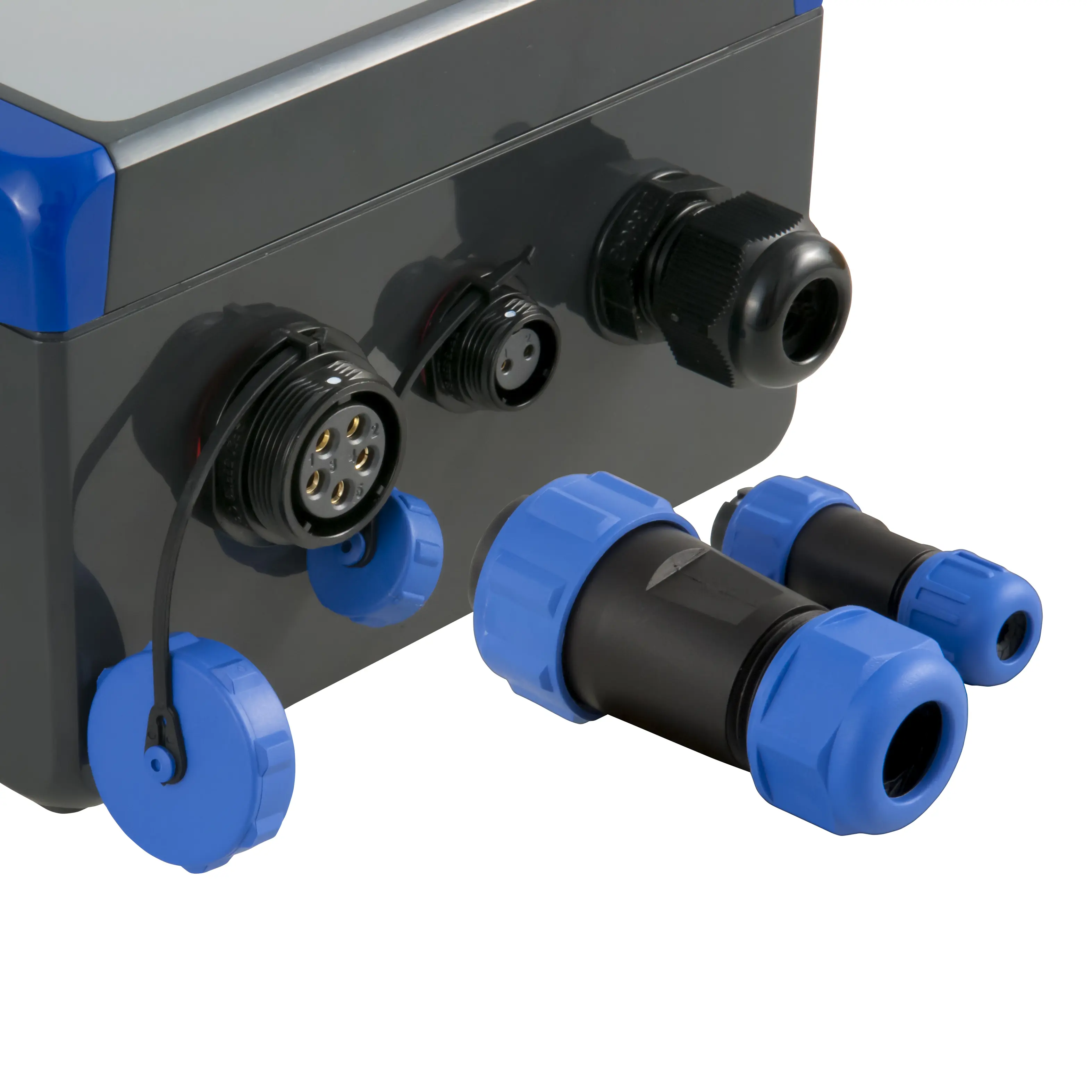

1 x sensor plug
Note: Wind sensor not included! This must be ordered separately!
