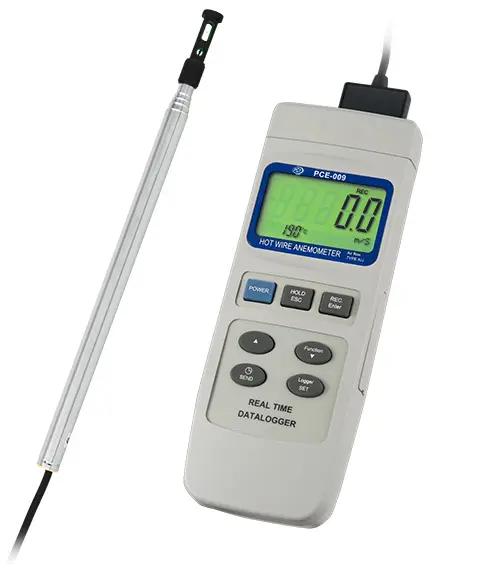

This Wind Speed Meter has a good relation between price and quality and it combines accuracy and versatility with the ability to transfer data directly to a computer. This Wind Speed Meter forms a part of a professional's basic equipment to regulate and test ventilation systems. The Wind Speed Meter is also used in research and development projects within institutions. Its fine 8 mm / .3 in point makes it possible to use in areas here there is limited space to measure, such as cooling systems. When a surface area is input into the Wind Speed Meter, it will calculate the volume of air current in m³/min. In this way, the capacity of a ventilation can be controlled and it can be used for air conditioning and refrigeration systems. It should be taken into account that when measuring air flow, various measurements should be taken and the average used to represent the air flow reading.
| Measurement range with corresponding unit: - m/s - °C / °F Calculation of volume of air current: - m³/min (CCM) |
0.2 ... 20.0 0.0 ... 50.0 / 32 ... 122°F (sensor) 0 ... 36,000 |
| Resolution - Air velocity - Air temperature - Volume of air current (CCM) |
0.1m/s (for remaining units, up to ft/min = 1.0) 0.1°C / 0.18°F 0.001 to 1 m³/min (depending on reading) |
| Accuracy - Air velocity - Air temperature - Volume of air current (CCM) |
±1% (of measurement range) or ±5% of the corresponding value ±0.8°C / 1.4°F Calculated value |
| Measuring quote | From 2 sec. to 9 hours |
| Internal memory | 16,000 values |
| Thermal sensor | - Telescopic thermistor - Hot wire sensor - Contracted length 280 mm / 11 in - Extended length 940 mm / 37 in - Maximum diameter 12 mm / .5 in - Minimum diameter 8 mm / .3 in (at the leading end) |
| Interface | RS-232 |
| Software / RS-232 cable | - Included, compatible with Windows 95, 98, 2000, XP, for data transfer - Data can also be exported to MS Excel |
| Display | Large 58 x 34 mm / 2.3 x 1.4 in LCD |
| Operating conditions | Device: 0°C ... 40°C / 32 ... 104°F <80% r.h. Thermal sensor: 0°C ... 50°C / 32 ... 122°F <80% r.h. |
| Power | 4 batteries (1.5V) (or by way of an optional mains adaptor of 9V) |
| Auto shut-off | Yes, 5 minutes to protect battery power |
| Dimensions | Device: 203 x 76 x 38 mm / 8 x 3 x 1.5 in Thermal sensor: 8 mm / .3 in diameter x 940 mm / 37 in maximum extended length (only 280 mm / 11 in when contracted) |
| Enclosure | ABS plastic |
| Weight | 515 g / 1.1 lbs |
